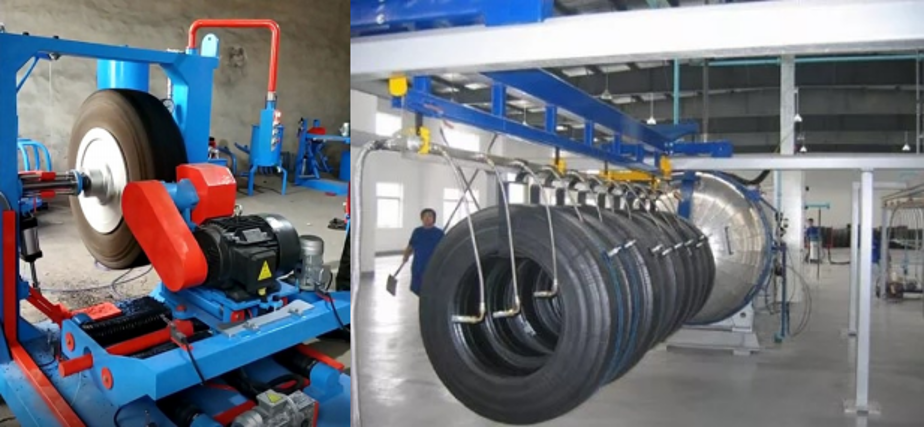

Low-price car tire retreading equipment/car tire retreading complete production line

PRODUCT DETAIL
color:custom madeMain selling points:automatic
Health status:newAdvantage one:environmental

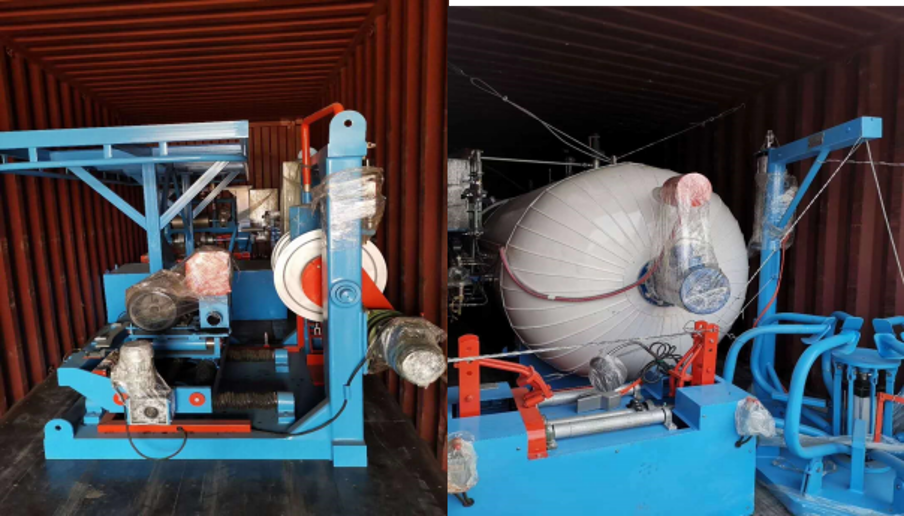

Packaging details:wooden box or as per your requestWarranty:3 years
Name:tire retreading machineCore components:PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump
type:Cold tire retreading machine autoclaveSpecification:16 inches 20 inches 22.5 inches 24 inches
Weight (kg):8000kgpayment terms:wire transfer
Advantage two:high efficiencyVideo outbound inspection:if
Control System:automaticMarketing type:normal product
Power (kW):45Showroom location:Egypt, United States, Italy, France, Germany, Philippines, Brazil, Indonesia, Mexico, Russia, Morocco, Kenya, United Arab Emirates, Sri Lanka, Romania, Tajikistan
Place of origin:Shandong Province, ChinaCore component warranty:3 years
Mechanical test report:ifVoltage:380
port:QingdaoOEM:accept
deliver goods:35 daysbrand:lucky
Supply capacity:40 sets per month negotiableApplicable industries:Building materials stores, manufacturing plants, machinery repair shops, food and beverage factories, farms, construction projects, others, advertising companies
After-sales service provided:supply

Low-price car tire retreading equipment/car tire retreading complete production line

Product Description

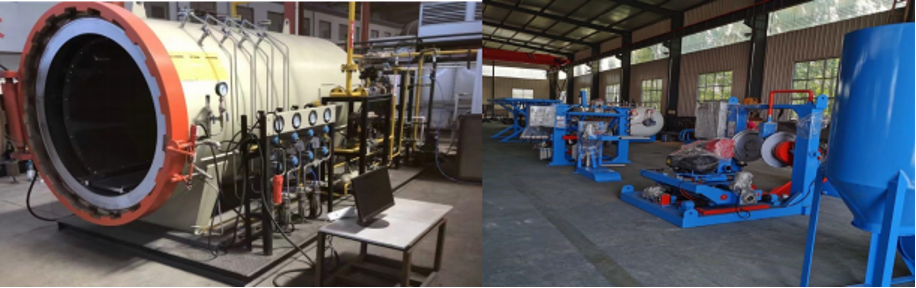

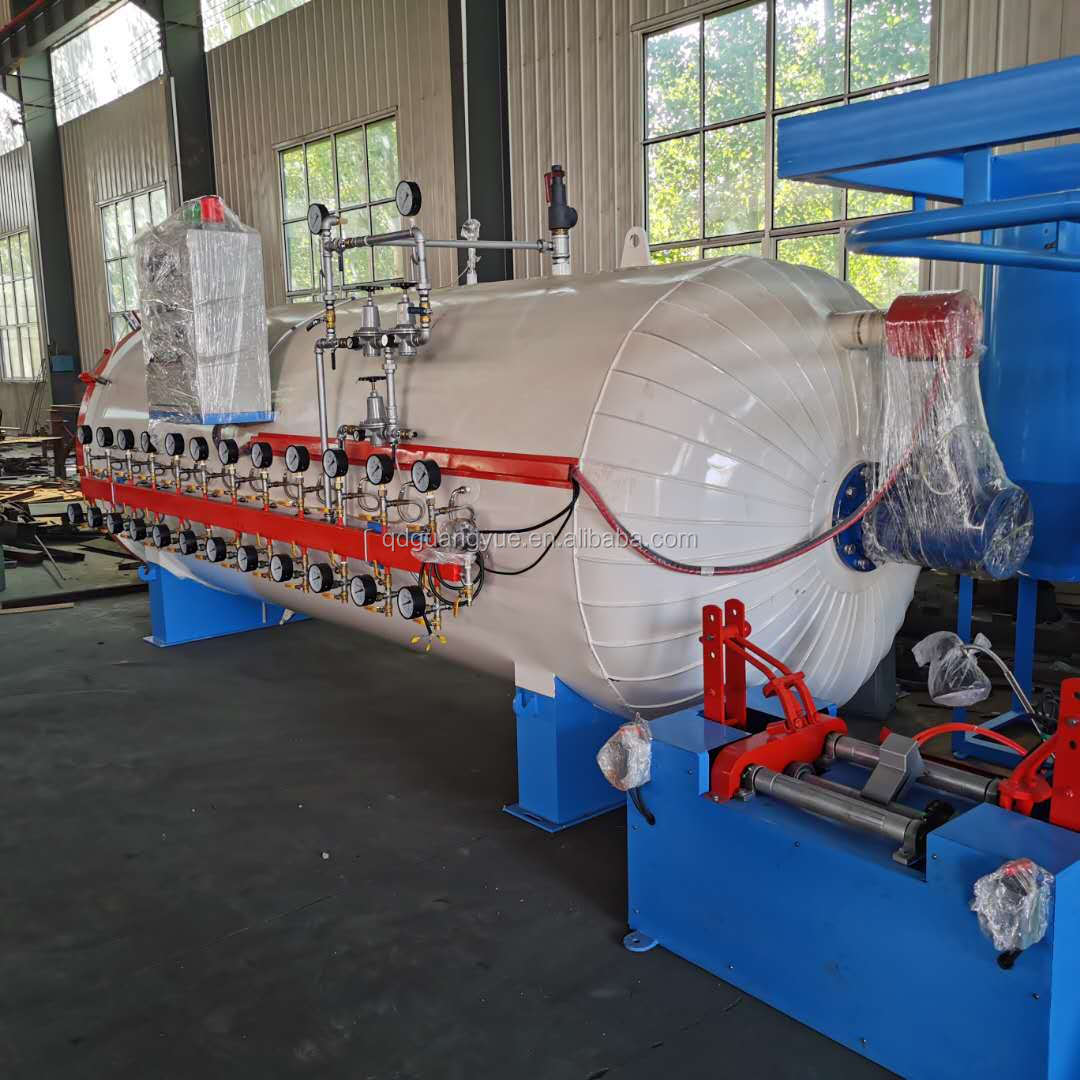

1. Autoclave

product data:

Description: Φ1500X10, control box controls electric heating curing tank.

Overall dimensions (length, width and height): 5300X2300 X2300 mm

Function: The temperature, pressure, and vulcanization time are controlled by PLC (Mitsubishi). It has excellent tire vulcanization processing equipment and has functions such as temperature compensation, pressure compensation, automatic alarm, and automatic timing. The vulcanization parameters are input through the touch screen.

Power: 380V, 50Hz, 43.5Kw.

Heating method: electricity, oil

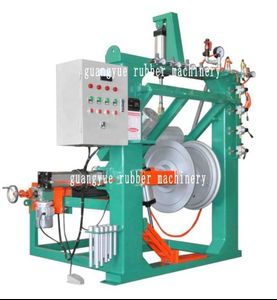

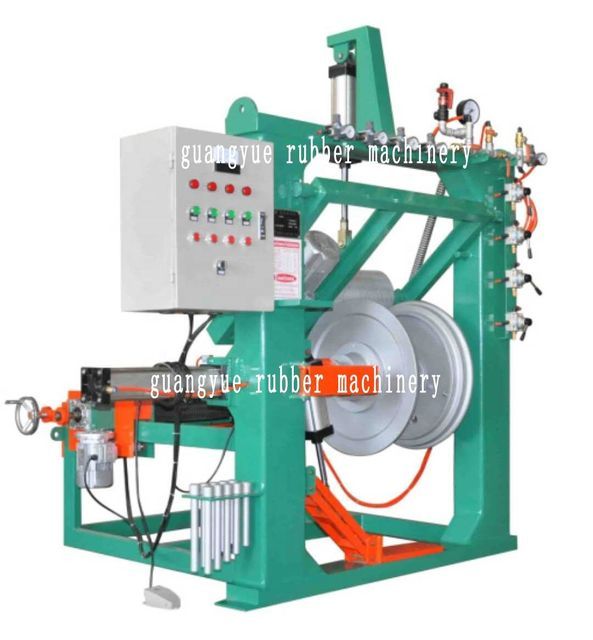

2. Tread forming machine

Also set up manual polishing machine

product data:

Description: 15″~24″ hydraulic expansion rim tread laminating machine.

Overall dimensions (length, width and height): 1500X1600X1700mm

Function: After the tire is repaired, the comprehensive pressure between the tire tread, tread and carcass can effectively remove air. Equipped with 16", 17.5", 18", 19", 22.5", 20"~22.5 inch expansion hoops , with tread shedding and auxiliary alignment functions.

Power supply: 380V, 50Hz, 5Kw

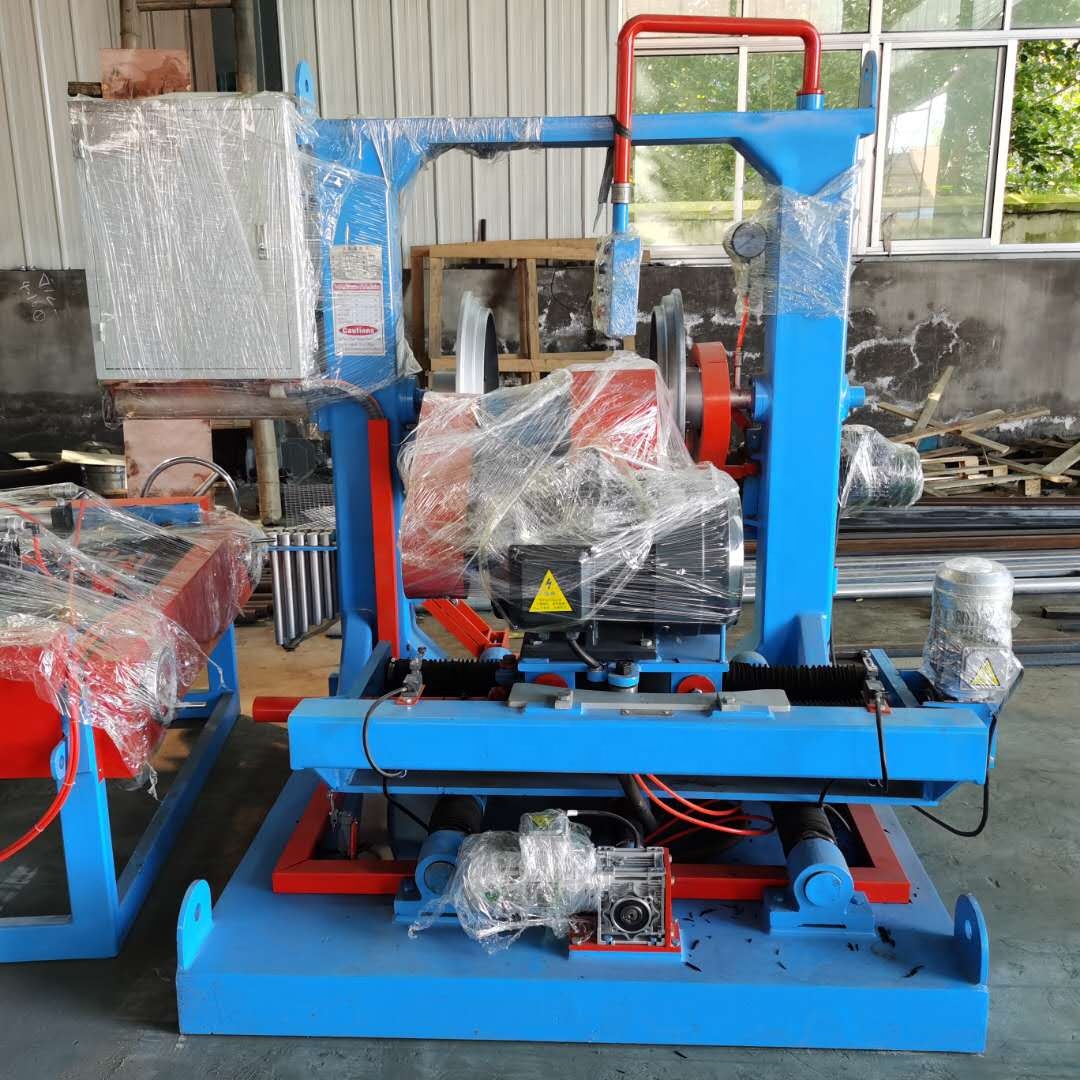

3. Polishing machine

product data:

Description: 16'', 17.5'', 18'', 19'', 22.5" automatic polishing machine

Overall dimensions (length, width and height): 2500X2000X2200mm

Function: Top up old tires and polish them according to the requirements of the retreading process. The tread arc curvature polishing range is 400~750mm, and can be polished to a specific curvature. Configuration: 16", 17.5", 18'', 19'', 22.5" tires Cleats with vacuum device, sidewall edge device.

Power supply: 380V, 50Hz, 30Kw

4. Tire repair machine

product data:

Description: Suitable for 24-inch internal size tires

Overall dimensions (length, width and height): 1500X1000x11000mm

Function: Opened to facilitate expansion of tire inspection and repair

Power supply: 220V, 50Hz, 100w

5. Envelope spreader

product data:

Description: Envelope spreader

Overall dimensions (length, width and height): 1500X1500X2000mm

Function: 16-inch ~ 22.5-inch tire disassembly and vulcanization envelope

6.Rim changing device

Description: Rim Changer

Overall dimensions (length, width and height): 1500X1200X1200

Function: Disassemble and install vulcanized steel rims for 16-inch ~ 22.5-inch tires

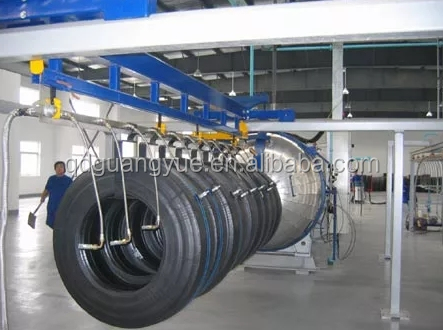

7. Tire conveyor:

product data:

Description: hanging

Overall dimensions (length, width and height): 20000X25000X2200mm

Function: All tires are impacted by the suspension, preventing the tires from falling to the ground, improving work efficiency, and keeping the tires clean during the production process.

10 hanging wheel hooks

Power supply: 220V, 50Hz, 5Kw

8. Extrusion gun

product data:

Function: Automatically adjusts the temperature to fill holes and shape the rubber strips. It is used to fill the surface pits and surface defects of soft rubber tires. It is imported from the original factory.

Power: 220V, 50Hz, 0.8Kw

9. Rubber cement mixer

product data:

(1) Overall dimensions: 700*700*500mm

(2) Speed ​​ratio: 17

(3)Power: 1.1kw

(4) Weight: 120kg

10. Dust collector
