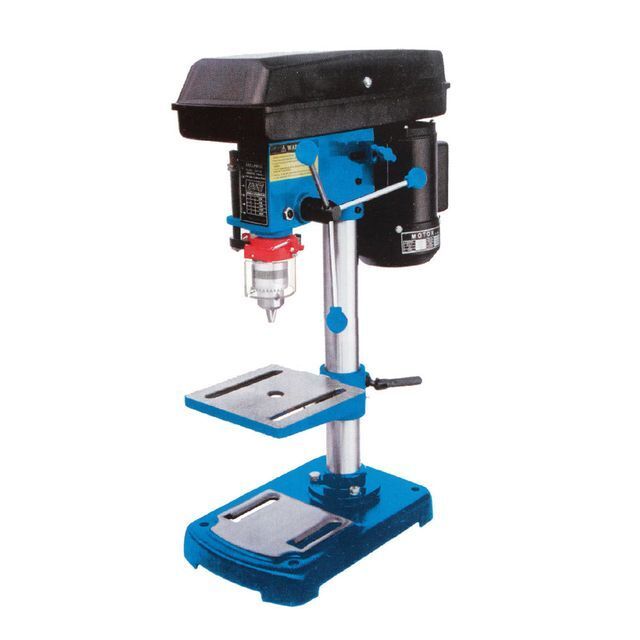

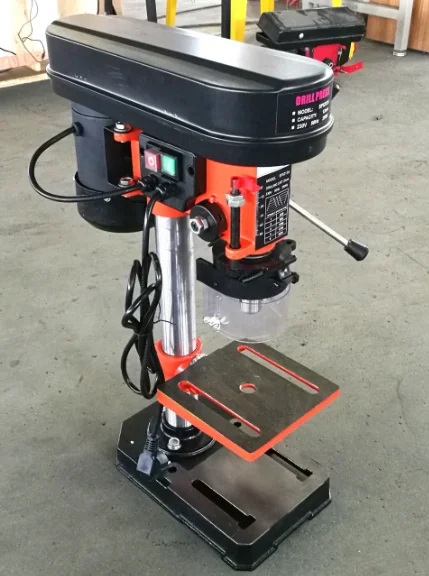

Z4113 Drill Press Mini Bench Drilling Machine SP5213A
- $45.00 / 20 - 99 pieces
$43.00 / 100 - 199 pieces
$41.00 / 200 - 499 pieces
$38.00 / >=500 pieces - 20 pieces
- Shanghai Sumore Industrial Co., Ltd.
- Shanghai, China
- Ms Sarah Tian
| Supply Ability: | 3000 Sets per Month Z4113 Drill Press Mini Bench Drilling Machine; | key word: | Machine; |
| Package Preview: | ; | Weight: | 20; |
| machine type: | vertical drill press; | certificate: | CE; |
| Packaging Detail: | wooden box drill Z4113 Drill Press Mini Bench Drilling Machine; | Max Spindle Speed: | 2000RPM; |
| custimized: | Color,voltage,brand, accessories; | Chuck Capacity: | 1/2in,5/8in; |
| Power Source: | Electric; | Voltage: | 110V-240V; |
| Place of Origin: | China; | Max Working Height: | 20IN,10in; |
| key word1: | drill press; | processing materials: | Aluminium ,copper,steel, metal,wood; |
| Model Number: | SP5213A; | Port: | Shanghai; |
| Payment Terms: | L/C,Western Union,T/T,Machine; | function: | drilling hoel,taping; |
| Drilling capacity: | 13mm; | Product Name: | Z4113 Drill Press Mini Bench Drilling Machine SP5213A; |
250W or 350W 13mm (1/2") drill press machine with cheap price SP5213A description as below:
1. High Rigid Construction
2. Easy Operation and Extended Durability
3. Different Sizes and Replaceable Worktables
4. Considerable Safety Design
5. 1/2" (13mm) max chuck capacity
6. 210mm swing
7. - 45 degree ~ 0 degree ~ + 45 degree table tilt L&R
8. 5 spindle speeds
9. chuck guard is standard accessories
10. Optional micro-switch for CE requirement
| Model | SP5213A |
| Drilling Capacity | 13 mm (1/2 '') |
| Swing | 210 mm |
| Spindle Taper | B16 |
| Spindle Travel | 50 mm |
| Spindle Speeds Steps | 5 Steps |
| Spindle Speed | 620 - 2,620 / 740 - 3,140 rpm |
| Maximumn Distance from Spindle Axis to Surface of Column | 105 mm |
| Maximumn Distance fron Spindle End to Surface of Worktable | 220 mm |
| Maximumn Distance from Spindle End to Surface of Base | 300 mm |
| Column Diameter | 46 mm |
| Height | 580 mm |
| Worktable Size | 160 x 160 mm |
| Worktable Rotate Angle (Left / Right) | +/- 45° |
| Base Size | 290 x 290 mm |
| Motor Power | 250 / 350 w |
| Net / Gross Wieght | 16 / 17 kg |
| Packing Size | 435 x 340 x 230 mm |
| Package |
1 set/polywood case (aluminum strips strengthen) |
| Minimum Order Quantity (MOQ) | 1 set |
| Full Container Loading Quantity (FCL) | 840 sets/20’GP (unitary; customerized packing available) |
| Delivery Time | 20 calendar days after receiving of advance / full payment |
Shanghai Sumore Industrial Co., Ltd. (Sumore Machinery) was established back into year
2001. The core business of Sumore Machinery was focused on full machinery business chain,
which involves research and development, fabrication and production, foreign trading and
domestic sales on a wild range of products, such as power tools, woodworking equipments,
metal-processing machines and all related accessories.
