China factory direct sale portable bench top drilling machine SP5213A ZJ4113A
- $45.00 / 1 - 5 sets
$39.00 / 6 - 10 sets
$37.00 / >=11 sets - 1 set
- Shanghai Sumore Industrial Co., Ltd.
- Shanghai, China
- Ms Tobey Yu
PRODUCT DETAIL
| Spindle taper: | B16 | Motor Power: | 250/350W |
| port: | Shanghai Port | Drilling capacity: | 13mm |
| Spindle travel: | 50 mm | Speed class: | 5 |
| Energy source: | electrical | swing: | 210 mm |
| table size: | 160x160 mm | high: | 580mm |
| Supply capacity: | 10000 drilling machines per month | Origin: | China |
| grade: | DIY | Maximum working height: | other |
| model: | SP5123A | Warranty: | 1 year |
| Packaging Details: | 1 set / poly wooden box for drill press (reinforced by aluminum strips) | payment terms: | L/C, D/P, D/A, T/T |
| northwest: | 19 kg | Base size: | 290x290mm |
Home
Product Description

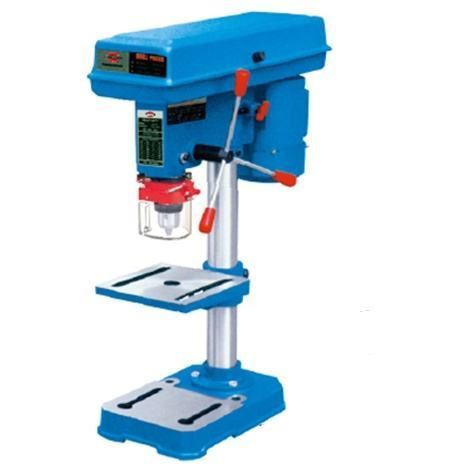

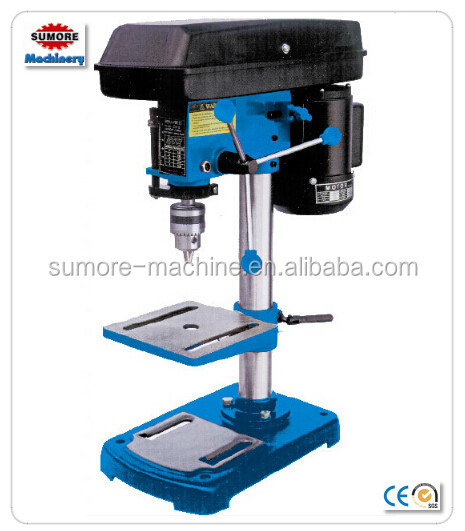

China factory direct sale portable bench top drilling machine SP5213A ZJ4113A
-
Excellent Sumo quality
-
Individual accuracy tests for each machine
- High Rigid Structure
- Easy to operate and durable
- Different sizes and interchangeable tables
- Thoughtful Security Design
| Model | SP5213A |
| Drilling capacity | 13 mm (1/2 in) |
| swing | 210 mm |
| Spindle taper | B16 |
| Spindle travel | 50mm |
| Spindle speed steps | 5 steps |
| Spindle speed | 620 - 2,620 / 740 - 3,140 rpm |
| Maximum distance from spindle axis to column surface | 105mm |
| The maximum distance from the end face of the spindle to the table surface | 220mm |
| Maximum distance from spindle end face to base surface | 300 mm |
| Column diameter | 46mm |
| high | 580mm |
| working desk size | 160×160 mm |
| Table rotation angle (left/right) | +/- 45° |
| base size | 290 x 290 mm |
| Motor Power | 250 / 350 watts |
| Net weight/Gross weight | 19/20kg |
| Package Size | 435 x 340 x 230mm |
Packaging and Shipping
| pack |
1 set/poly wooden box (reinforced with aluminum tape) |
| Minimum Order Quantity (MOQ) | 1 set |
| Full container load (FCL) | 840 sets/20'GP (integrated; can be customized packaging) |
| delivery time | 25 calendar days after receipt of advance payment/full payment |
