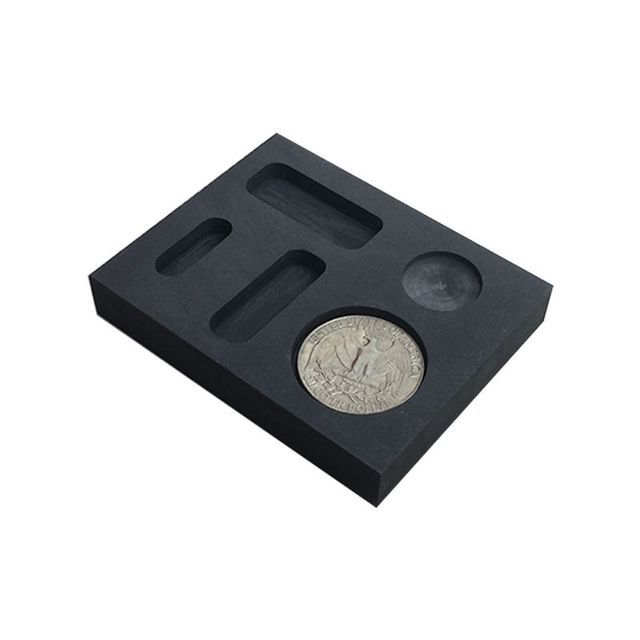

high temperature resistance graphite mold graphite coin mold
- $0.60 / >=100 pieces
- 100 pieces
- Henan Zion New Material Co., Ltd.
- Henan, China
- Mr David Li
PRODUCT DETAIL
| Origin: | China Shanghai | Supply capacity: | Annual output 1000 tons |
| model: | graphite mold | Bending strength: | 39-92 MPa |
| Resistance (μΩ.m): | 7.9-17.1μΩm | Name: | Coin Graphite Mold |
| Bulk density (g/cm3): | 1.62-1.98 g/cm3 | port: | Shanghai, Ningbo, Lianyungang |
| Packaging Details: | Carton or wooden case, or standard export package, or as your request | brand: | Zion |
| Material 2: | High Purity, High Strength | application: | Metallurgical industry |
| Compressive strength: | 78-200MPa | sample: | usable |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, PayPal | Package preview: | |
| tensile strength: | 25-70MPa | technology: | compression molding |
Product Description
We can process all kinds of graphite products, such as graphite blocks, graphite plates, graphite sheets, graphite electrode rods, graphite crucibles, graphite boats, gold melting crucibles, graphite molds, graphite heating elements, etc., all kinds of graphite products. Any custom project is accepted, if possible, please provide drawing and tell us how much you need, we will give you a quotation as soon as possible.
Our Graphite Block Material Specifications:
Name | model | Density g/cm3 | specific resistance (μΩm) | Bending strength (MPa) | Compressive strength (MPa) | Maximum ash content (%) | Maximum number of particles | Comment |
Electrode graphite | RP | ≥1.55-1.75 | 7.5-8.5 | ≥8.5 | ≥20 | ≤0.3 | ≤8-10mm | can choose |
vibrating graphite | BGSK | ≥ | 7-9 | ≥13.5 | ≥35 | ≤0.3 | ≤0.8mm | 2 dips, 3 baking |
vibrating graphite | BTSK | ≥1.62 | 7-9 | ≥9 | ≥22 | ≤0.3 | ≤2mm | 1 dip, 2 bake |
Mold graphite | BF2-3 | ≥1.8 | 10-13 days | ≥40 | ≥60 | ≤0.1 | ≤0.043mm | 2 dips, 3 baking |
Mold graphite | BF3-4 | ≥1.85 | 10-13 days | ≥47 | ≥75 | ≤0.05 | ≤0.043mm | 3 dipping, 4 baking |
extruded graphite | BFJ | ≥1.68 | 7.5-8.5 | ≥19 | ≥38 | ≤0.3 | ≤0.2mm | 1 dip, 2 bake |
Isostatic graphite | BFD | ≥1.82 | 11-13 days | ≥38 | ≥85 | ≤0.1 | 2μm, 6μm, 8μm, 15μm, etc. | 2 dips, 3 baking |
main feature
• High purity, high strength, high density
• High mechanical strength
•Strong chemical stability
•Excellent thermal shock resistance, electrical conductivity, thermal conductivity
• Good wear resistance and long service life
