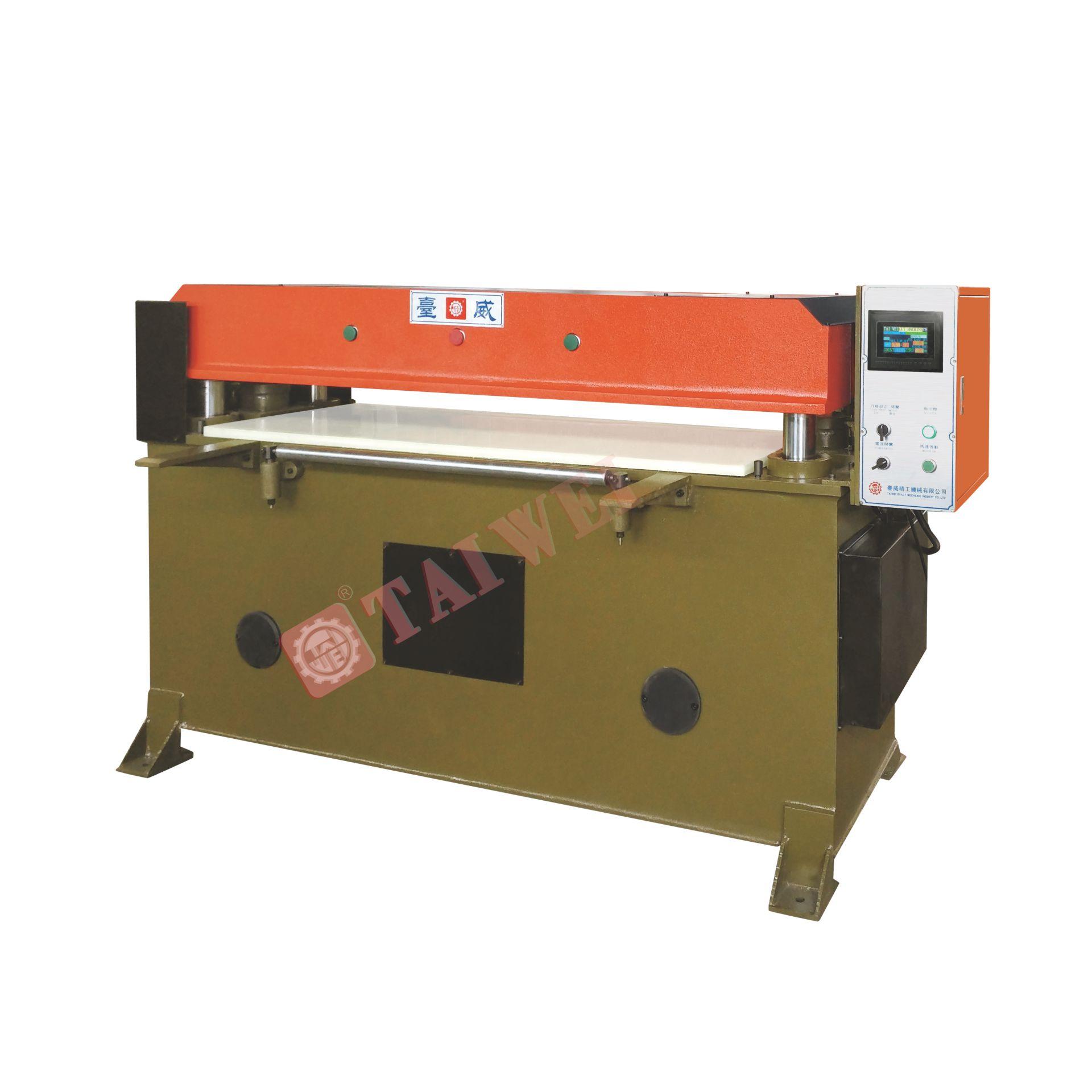

sole cutting machine shield mask die cutting machine pvc pe any kind of soft material hydraulic four post cutting machine
- $5500.00 / 1 - 2 sets
$5000.00 / 3 - 7 sets
$4500.00 / 8 - 11 sets
$4000.00 / >=12 sets - 1 set
- Quzhou Taiwei Precise Machinery Co., Ltd.
- Zhejiang, China
- Mr Shuai Chen
PRODUCT DETAIL
| Origin: | Zhejiang, China | product name: | Cutting machine TW-530P |
| Core components: | PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump | Marketing Type: | New Products 2022 |
| Health status: | new | strength: | 1.5~2.2KW |
| aspect: | 1600*500mm | Voltage: | 220v 380v 415v 480v |
| main motor power: | 2.2 kW | Cutting area: | 1250*530mm |
| Packaging Details: | Plastic film or wooden box | Core component warranty: | 1 year |
| weight: | 1600 | application: | leather/towel/paper/plastic/EVA/pc/pvc/carpet/pu foam |
| Mechanical test report: | if | Production capacity: | 200 |
| payment terms: | L/C, Western Union, T/T | MOQ: | 1 set |
| Package preview: | Video shipment inspection: | if | |
| Certification: | ISO9001 CE CNAS | Tension distance: | 50-200 mm |
| Dimensions (L*W*H): | 2400*1450*1150 | Supply capacity: | 200 sets per month |
| Warranty: | one year | Applicable industries: | Cutting Machine |
| brand: | Taiwei | Showroom location: | Canada, Vietnam, Peru, Russia, Romania, South Africa |
| Maximum cutting force: | 294KN(30T) | port: | Ningbo Shanghai Guangzhou Shenzhen Tianjin Tianjin Qingdao |
Product Description
* This model is widely used for die-cutting of various non-metallic materials

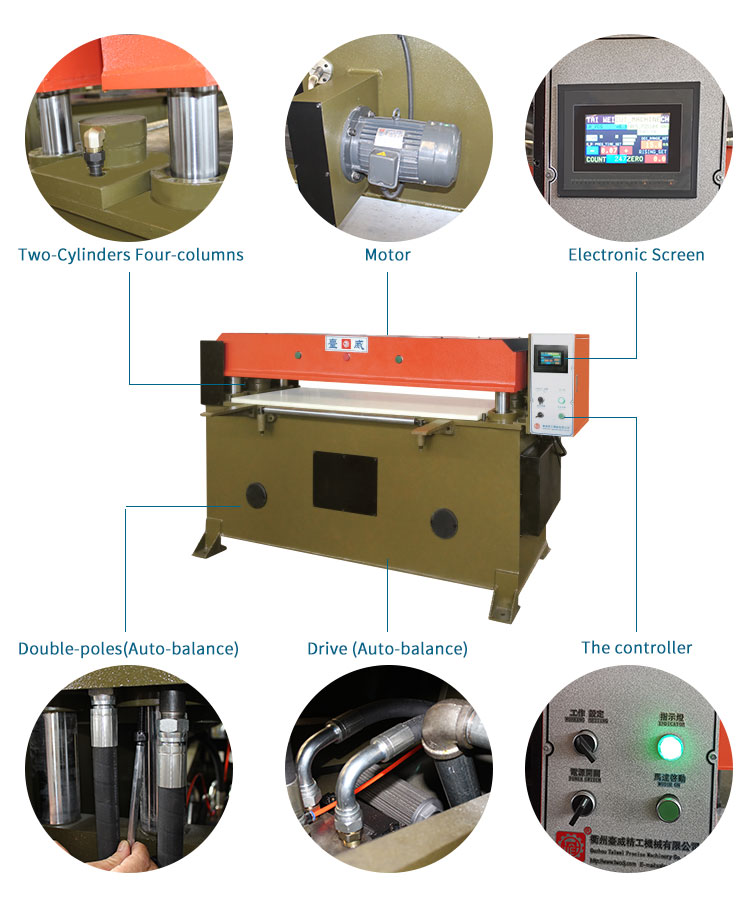

* Double oil cylinders and precise double crank connection balance structure ensure that the cutting depth of each cutting point is exactly the same
* Special optimized structure, with cutting knife and cutting depth setting, convenient and accurate stroke adjustment
* When the platen reaches the die-cutting position, it will automatically decelerate to ensure that there is no measurement error between the uppermost layer and the lowermost layer of the material
* The central oil circuit automatic lubrication system ensures the machine precision and prolongs the service life of the machine
* Special specification products can be customized
Model | TW-530P | TW-540P | TW-550P | TW-560P | TW-580P | TW-5100P |
maximum. Cutting force (t) | 30 (249 kN) | 40 (392 kN) | 50 (490kN) | 60 (588kN) | 80 (784kN) | 100 (980kN) |
Stroke (mm) | 50-200 | 50-200 | 50-200 | 50-200 | 50-200 | 50-200 |
Table size(mm) | 1600×530 | 1600×630 | 1600×830 | 1600×930 | 1600×930 | 1600×930 |
Main motor power (kW) | 2.2 | 3 | 4 | 4 | 5.5 | 7.5 |
Weight (approx.) (kg) | 2100 | 2480 | 3500 | 3700 | 4800 | 5500 |
• Note: The working surface is larger than 1500x1000mm, it is recommended to adopt a precision six-column four-cylinder structure.
Applications
Widely used in all non-metal product industries, such as shoes, bags, leather products, gloves, hats, pull
Flowers, arts and crafts, plastic packaging, clothing accessories and automotive accessories.
Flowers, arts and crafts, plastic packaging, clothing accessories and automotive accessories.
