white plastic flange bearing block housing with Stainless steel inner bearing unit CTL204
- $17.50 /set
- 1 set
- Jinan Shenglei Bearing Co., Ltd.
- Shandong, China
- Mr leon Han
| Vibration: | Z1V1 Z2V2 Z3V3 Z4V4; | end caps material: | white plastic; |
| Application: | Machinery; | Supply Ability: | 100000 Sets per Month; |
| Brand Name: | ZYSL; | inner bearing material: | Stainless Steel; |
| Certification: | ISO9001:2008; | Applicable Industries: | Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Construction works ,Energy & Mining; |
| Precision Rating: | ABEC-1 ABEC-3 ABEC-5 ABEC-7; | Lubrication: | Grease Lubricated; |
| Service: | OEM Service.Design Service; | housing material: | white plastic; |
| Port: | Shenzhen,Shanghai,Guangzhou,Ningbo,Hongkong; | Type: | Pillow Block,Pillow Block; |
| Model Number: | CFL204/USFD204; | Sample: | available; |
| Packaging Detail: | A: barreled package+outer carton+pallets B: single box+outer carton+pallets C: tube package+middle; | Place of Origin: | Shandong, China; |
| Payment Terms: | L/C,T/T,Western Union,Offical Bank Account/Paypal; |
A part of our products:
Introduction of POM plastic bearing:
POM plastic bearings , PP plastic bearing POM and PA materials with good mechanical
strength and wear resistance , suitable for the production of more sophisticated plastic
bearings, working temperature from -60 °C ~ 100 °C, high strength and smooth surface ,
basically does not appear tension , its good self-lubricating properties and low coefficient
of friction , while maintaining the traditional advantages of plastic bearings on the basis
of precise and can be used in high speed operation .
Features:
(1) rigidity, high hardness , even at low temperatures , high impact strength
(2) good excellent elasticity , creep resistance ;
(3) high thermal stability and very good dimensional stability ;
(4)good sliding properties , wear resistance ;
(5) physiologically inert , suitable for contact with food.
(6) Even in strong acid and strong oxidizing agents, poor paint adhesion
Main purpose :
Mechanical and electrical equipment , fitness equipment , food machinery , furniture and
decorating materials
HDPE, PP, UPE material has proven to be relatively weak acid cross- environment (30%
Cucl2 solution and 30% NaoH solution tested OK) it is suitable for most acid / base / salt
/ solvent / oil / gas and seawater corrosion environment. With general plastic bearings
oil-free self -lubricating, anti-magnetic insulation properties, but lower mechanical strength,
easily deformed. In comparison, the use of UPE material will have better strength, low
friction characteristics and low temperature application characteristics (down to -150 °C).
Features:
(1) good corrosion resistance at a certain temperature and concentration ability of various
corrosive media and organic media
(2) high mechanical strength , high toughness can be maintained cutting at liquid nitrogen
temperature (-196 °C)
(3)good self- lubricating, wear high
(4) Strong anti- adhesion
(5) low water absorption, excellent electrical insulation
(6) good resistance to high energy radiation
Main purpose :
Mechanical and electrical equipment , fitness equipment , food machinery , furniture and
decorating materials
PTFE high-temperature corrosion-resistant plastic bearings
PTFE and PI as a new plastic material , proved to be all known engineering plastics and high
temperature mechanical strength, dimensional stability and better performance , in which
long-term use temperature of PTFE 260 °C, PI long-term use temperature is as high as
300 °C , and which has excellent corrosion resistance.

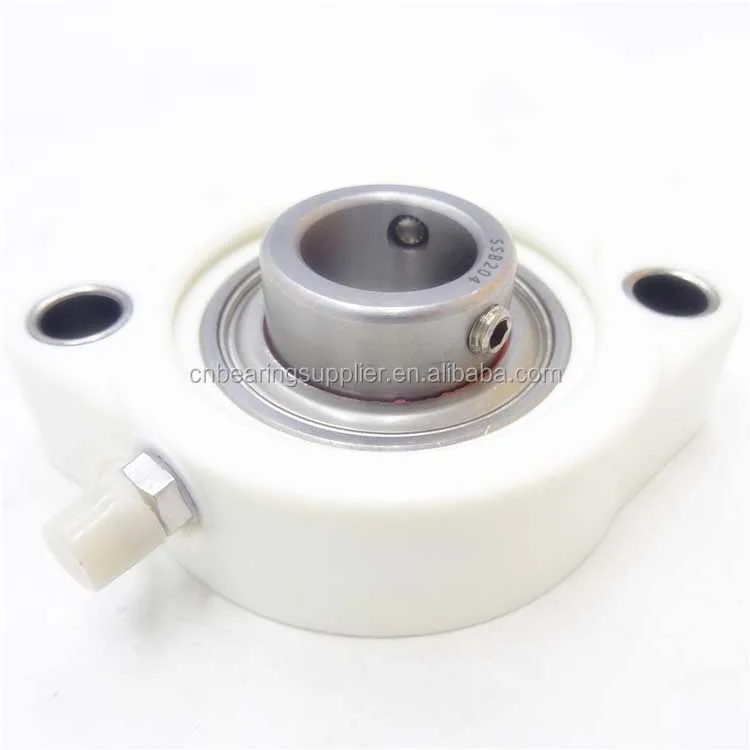

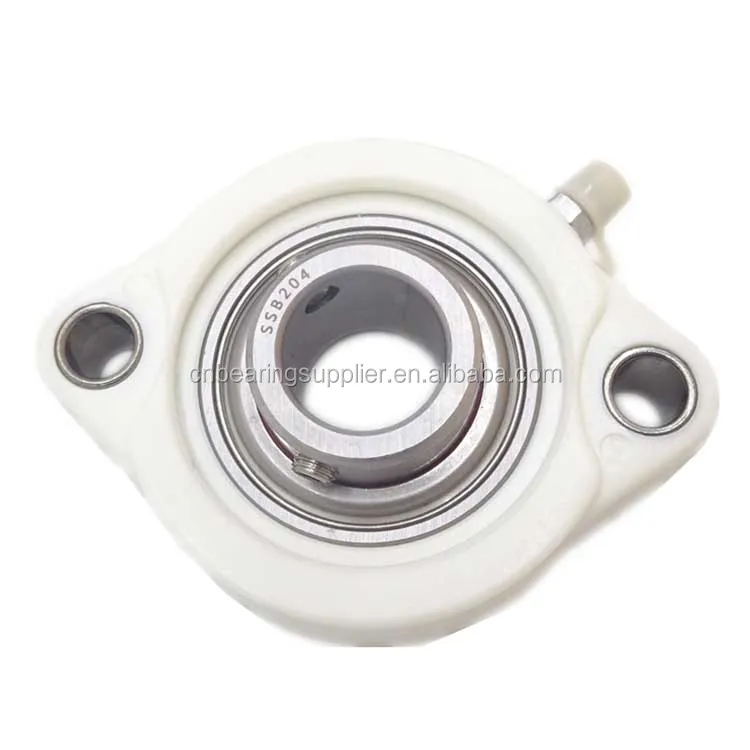

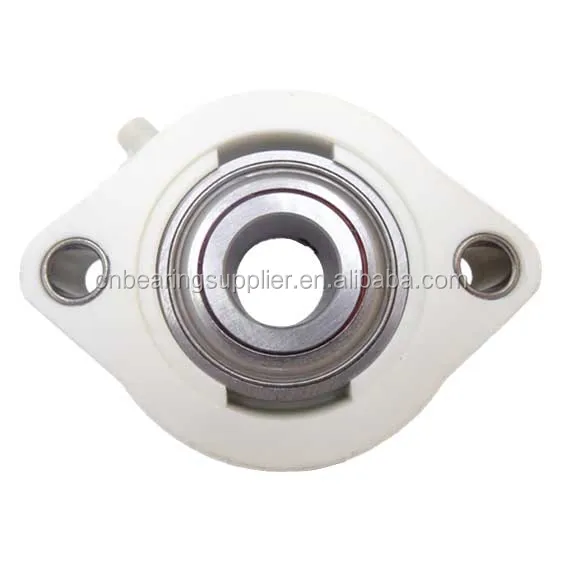

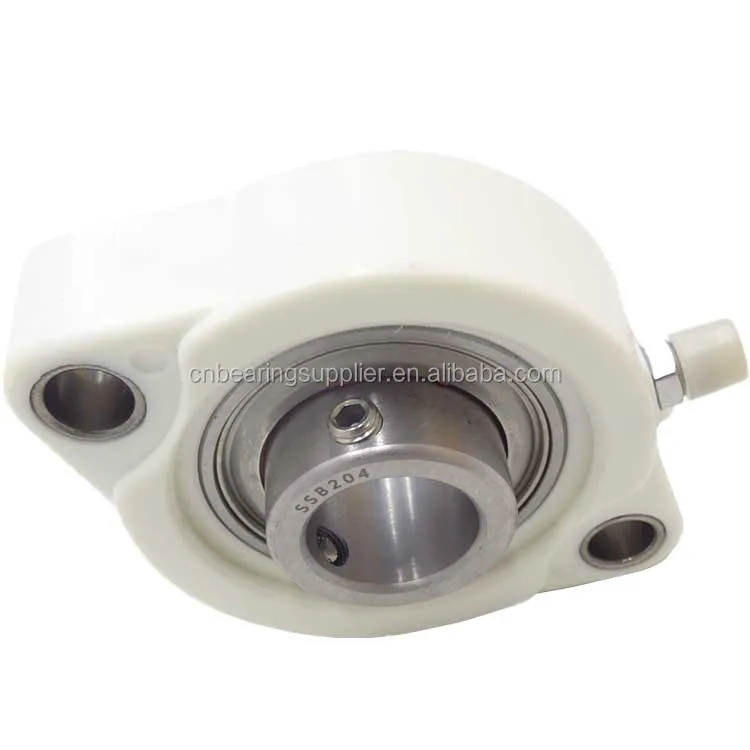

Pictures show
Specifcations

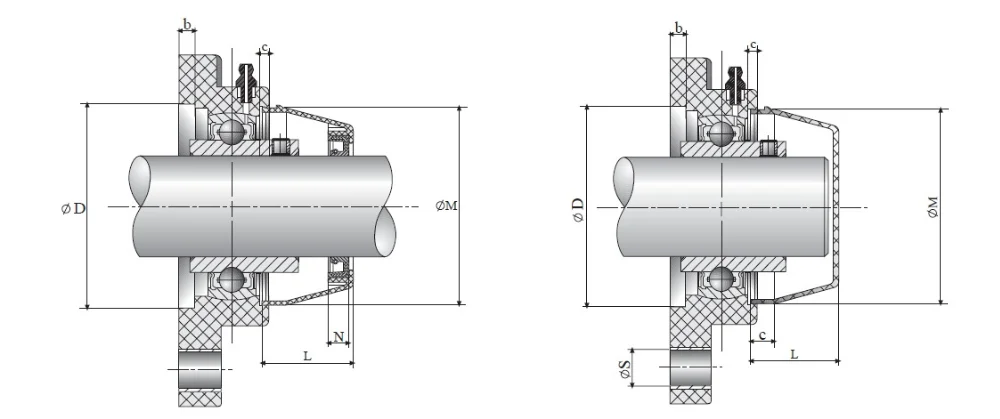

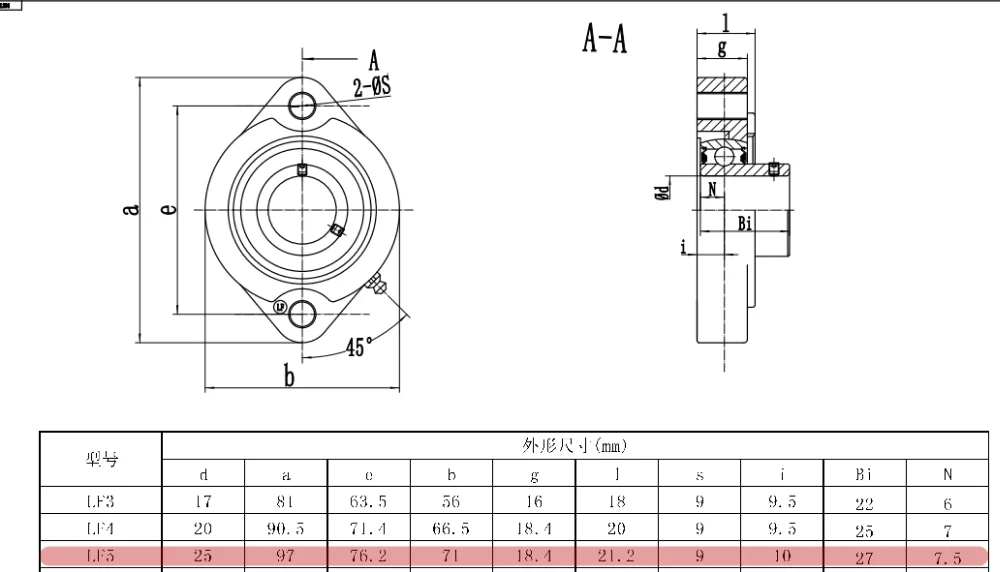

Drawing
Description of pillow block bearing
(1)structure: The pillow block ball bearings are composed of a single row deep groove ball bearings with seals at both sides and spherical outside surface, and a housing, suitable for simple support.
(2)Usage: Widely used in varieties of mechanical equipment, especially for agricultural, metallurgical, textile and printing machinery.
(3)Material: stainless steel inner bearing, whitplastic housing, white plastic opened end cap and closed end cap.
Pillow block bearing units have various types of perfect sealing devices and can operate satisfactorily under hard working conditions, especially for machines operated in dusty or muddy surroundings.
1)Pillow block a are most extensively used among the bearing units:CTL,UCP,UCPE,UCAK and SBLP,SBLLP.
These types are fixed to the shafts by means of the setscrews prepared in the innerring.
2)NAP,SALP and SALLP types are fixed to the shafts by the setscrews prepared in the eccentric locking collor.
All specifications of plastic bearing units can be customized in our factory!We can also design it for you!
Welcome to you r inquiry!
We also supply other types of pillow block bearing:
UCP series:
UCP201 UCP202 UCP203 UCP204 UCP205 UCP305 UCP206 UCP306 UCP207 UCP307 UCP208
UCP308 UCP209 UCP309 UCP210 UCP310 UCP211 UCP311 UCP212 UCP312 UCP213 UCP313
UCP214 UCP314 UCP215 UCP315 UCP216 UCP316 UCP217 UCP317……
UCIP series:
UCIP208 UCIP209 UCIP210 UCIP211 UCIP212 UCIP213 UCIP313 UCIP314 UCIP315 UCIP316
UCIP317 UCIP318 UCIP319 UCIP320 UCIP322 UCIP324 UCIP326 UCIP328……
UCF series:
UCF201 UCF202 UCF203 UCF204 UCF205 UCF305 UCF206 UCF306 UCF207 UCF307 UCF208
UCF308 UCF209 UCF309 UCF210 UCF310 UCF211 UCF311 UCF212 UCF312 UCF213 UCF313
UCF214 UCF314 UCF215 UCF315……
UCFC series:
UCFC201 UCFC202 UCFC203 UCFC204 UCFC205 UCFC206 UCFC207 UCFC208 UCFC209
UCFC210 UCFC211 UCFC212 UCFC213 UCFC214 UCFC215 UCFC216 UCFC217 UCFC218……
UCT series:
UCT201 UCT202 UCT203 UCT204 UCT205 UCT305 UCT206 UCT306 UCT207 UCT307 UCT208
UCT308 UCT209 UCT309 UCT210 UCT310 UCT211 UCT311 UCT212 UCT312 UCT213 UCT313
UCT214 UCT314 UCT215 UCT315 UCT216 UCT316 UCT217……
UCC series:
UCC201 UCC202 UCC203 UCC204 UCC205 UCC305 UCC206 UCC306 UCC207 UCC307
UCC208 UCC308 UCC209 UCC309 UCC210 UCC310 UCC211 UCC311 UCC212 UCC312……
Related models and specifications
| MODEL NO. | LENGTH(MM) | WIDTH(MM) | HEIGHT(MM) | WEIGHT(MM) |
| UCFL201 | 113 | 60 | 25.5 | 0.51 |
| UCFL202 | 113 | 60 | 25.5 | 0.51 |
| UCFL203 | 113 | 60 | 25.5 | 0.51 |
| UCFL204 | 113 | 60 | 25.5 | 0.51 |
| UCFL205 | 130 | 68 | 27 | 0.6 |
| UCFL206 | 148 | 80 | 31 | 0.9 |
| UCFL207 | 161 | 90 | 34 | 1.2 |
| UCFL208 | 175 | 98 | 36 | 1.5 |
| UCFL209 | 188 | 108 | 38 | 1.9 |
| UCFL210 | 197 | 115 | 40 | 2.2 |
| UCFL211 | 224 | 130 | 43 | 3 |
| UCFL212 | 250 | 140 | 48 | 4 |
| UCFL213 | 258 | 155 | 50 | 5 |
| UCFL214 | 265 | 160 | 54 | 5.6 |
| UCFL215 | 275 | 164 | 55 | 6.2 |
| UCFL216 | 290 | 180 | 58 | 7.8 |
| UCFL217 | 305 | 190 | 63 | 9.8 |
| UCFL218 | 320 | 205 | 68 | 12.4 |
A: 30% T/T in advance .70% against copy of B/L
B.30% T/T in advance .70% against L/C at sight
C.Western union
D.Paypal
E:50% in advance,the balance should be paid after seeing the picture of total goods.
F:Offical Bank Account
Why us
1.High speed, High Precision, Low Noise, Long Service Life
2.Wide Array of Applications
3.Large Inventories
4.Small order accept
5.Competitive Prices and High Quality
6.Various Brands
7.Require little maintenance
8. OEM is supported
9. Our company insists on the "quality first, credit first" business ideas and our product specification is well-founded. We have a good reputation in the international market by our perfect service and sufficient supply.
