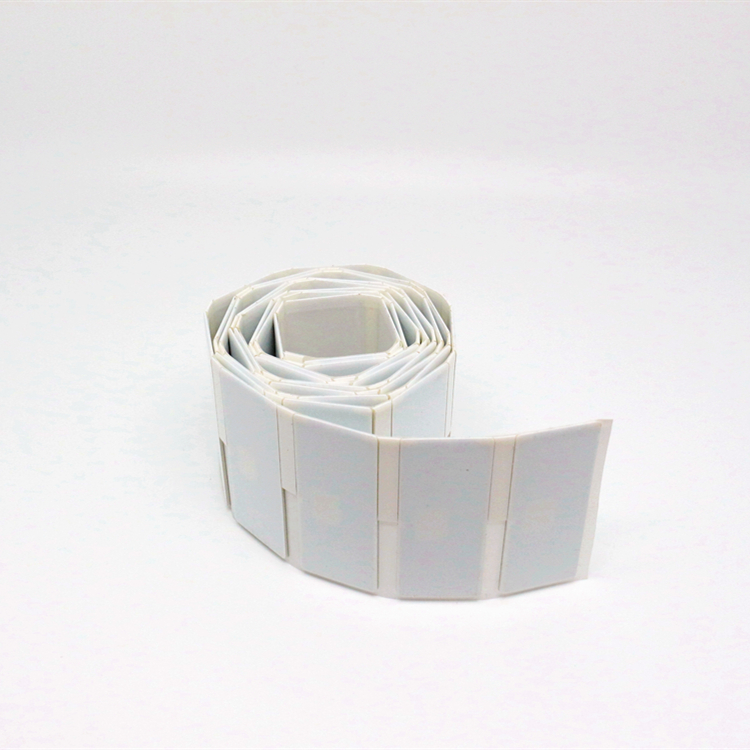

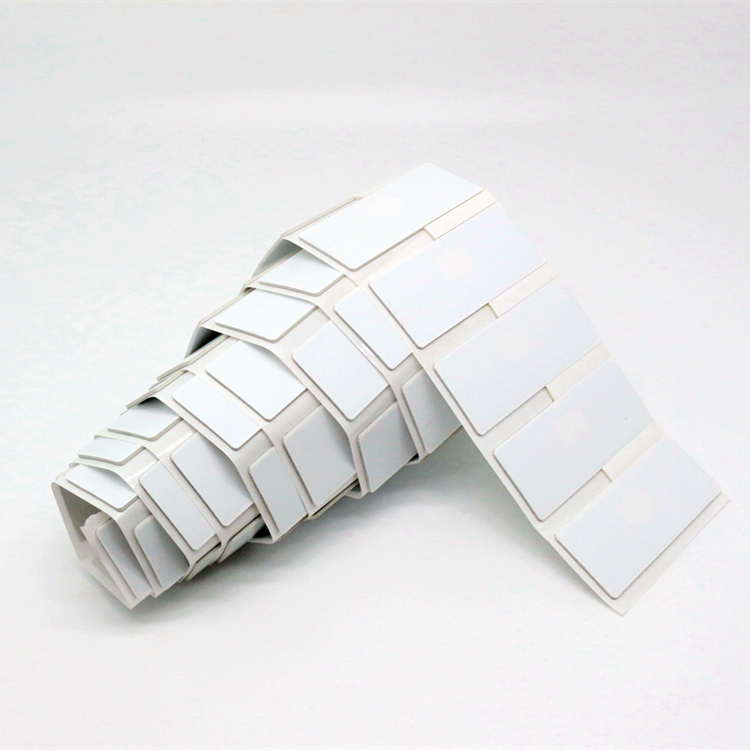

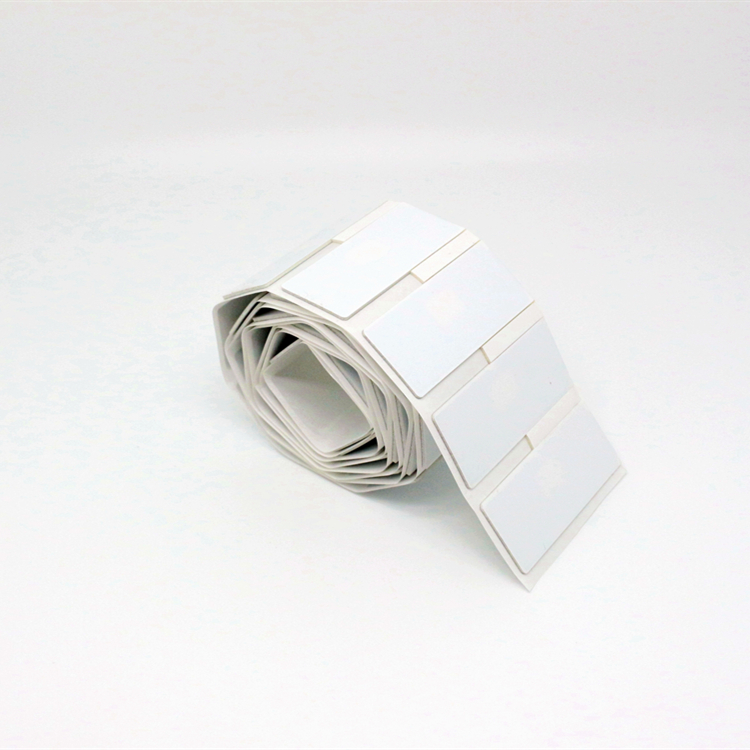

China factory wholesale price rfid uhf printable paper roll anti metal flexible label
- $0.58 / 1 - 5000 pieces
$0.56 / 5001 - 10000 pieces
$0.53 / 10001 - 50000 pieces
$0.50 / >=50001 pieces - 1 piece
- Mianyang Ruitai Intelligent Technology Co., Ltd.
- Sichuan, China
- Mr Michael Xie
PRODUCT DETAIL
| Packaging Details: | carton | payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram |
| port: | Chengdu/Hong Kong | Packaging Preview: | |
| place of origin; place of origin: | Sichuan, China | Supported printers: | Zebra RZ400/R110Xi4, Sato CL4NX, Toshiba SX-5 |
| weight: | 0.4g | Intellectual property classification: | IP54 |
| Operating temperature: | -30°C to +85°C | color: | white (standard) |
| appendix: | Industrial Grade Adhesives | brand: | RTEC |
| Supply capacity: | 5000 pieces per day | size: | 15 x 50 x 1.26 mm |
| Ambient temperature: | -30°C to +85°C | Label Material: | Foam |
| Industrial grade plastic: | High quality PET label |

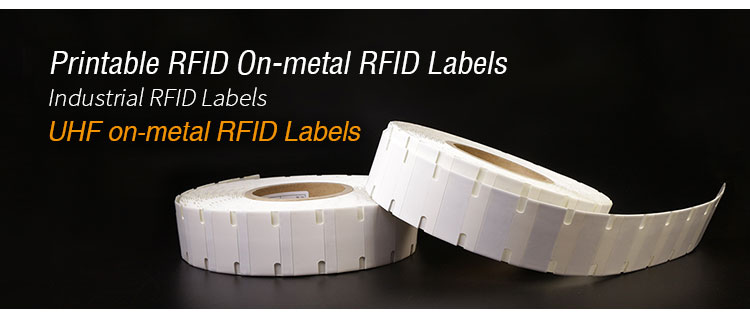

China Factory Wholesale Price Paper Roll Printable rfid UHF Flexible Anti-Metal Label Labels
Product parameters
RF Specifications | ||||||||
RF Air Protocol | EPC Global Class 1 Gen2 ISO18000-6C | |||||||
working frequency | UHF 866-868 MHz (ETSI) /UHF 902-928 MHz (FCC) | |||||||
Environmental Compatibility | optimized metal | |||||||
read range | Up to 6.5 m (on metal) Up to 3 m (outside metal) | |||||||
polarization | linear | |||||||
IC type | NXP Ucode8 | |||||||
memory configuration | EPC 128bit TID 96bit | |||||||
Mechanical Specifications | ||||||||
label material | Foam | |||||||
surface material | High quality PET label | |||||||
aspect | 15 x 50 x 1.26 mm | |||||||
weight | 0.4g | |||||||
appendix | Industrial Grade Adhesives | |||||||
Spacing on the reel | 25.5 (+/- 0.8) mm | |||||||
inner core diameter | 76.2 mm | |||||||
standard packaging | 500/repeat | |||||||

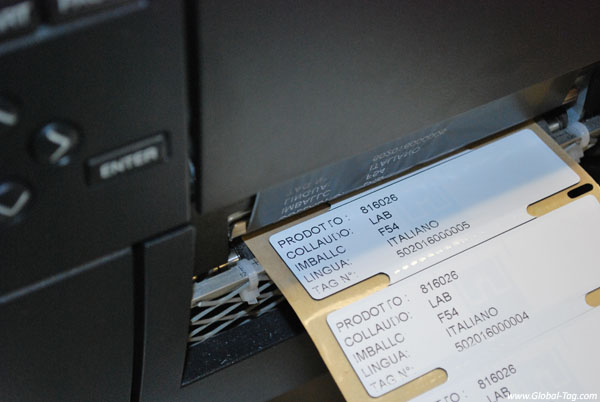

Support printing | Zebra RZ400/R110Xi4, Sato CL4NX, Toshiba SX-5 | |||||||
Environmental Metals Specification | ||
Operating temperature | -30°C to +85°C | |
ambient temperature | -30°C to +85°C | |
Intellectual Property Classification | IP54 | |
shock and vibration | MIL STD 810-F | |
Certification | CE certification RoHS certification ATEX/IECEx certified | |
Warranty | 1 year | |
Product Description
RTEC Ironlabel P5015- is a small and robust RFID tag designed for metal objects. The performance is so high that it can read ranges up to several meters.

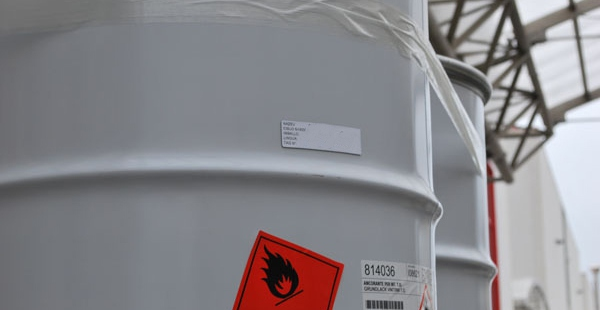

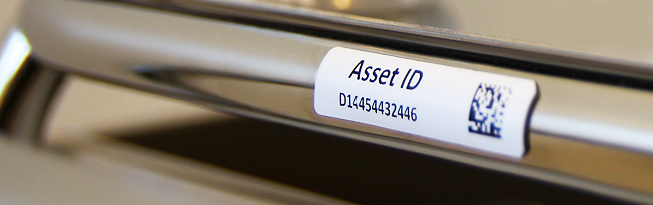

This metal tag is an excellent choice for low-cost indoor applications that require user flexibility and affordability. These advantages allow it to be used in many types of applications such as IT assets, metal pallets, cylinders and pipes, curved surfaces and metal containers.

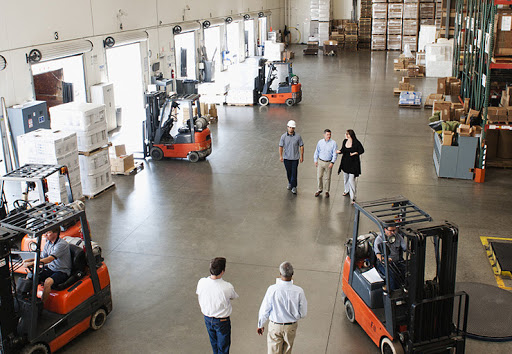

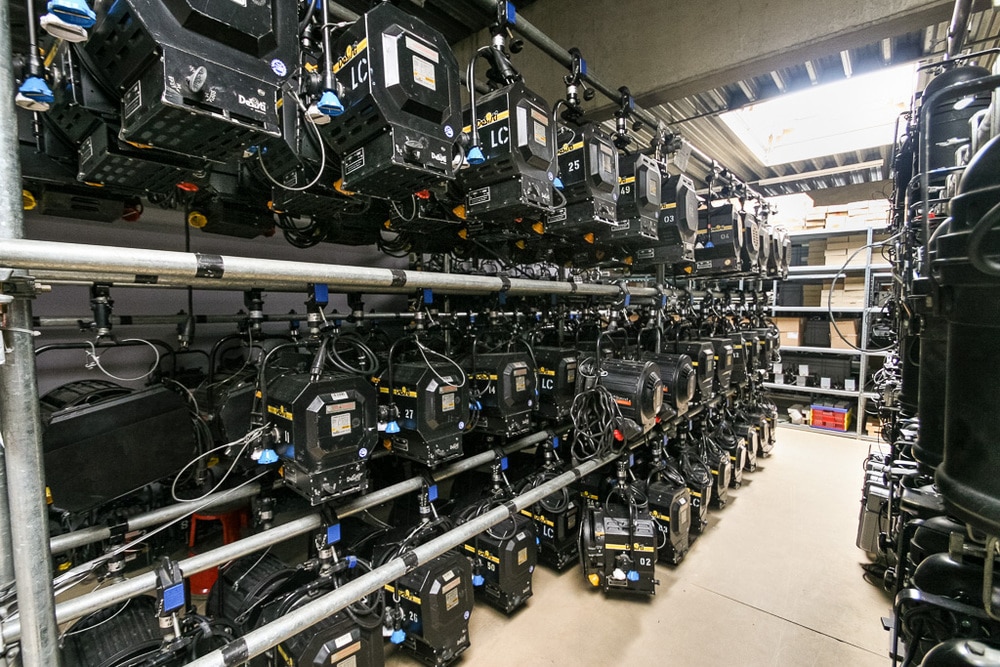

application
