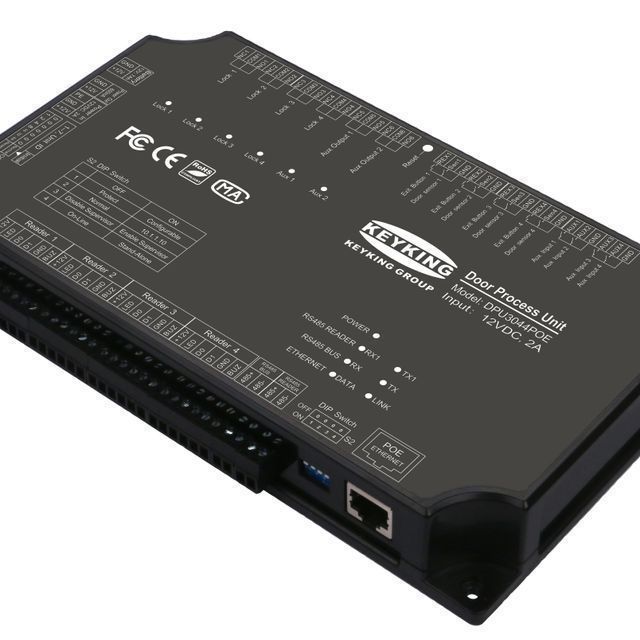

The Keyking Door Process Unit 3024POE Access Controller, (3 Series, 4 Doors, 4 Card Readers, Power over Ethernet) is an advanced 4 door
- $284.50 /piece
- 1 piece
- Shenzhen Keyking Technology Limited
- Guangdong, China
- Mr
PRODUCT DETAIL
| payment terms: | wire transfer | model: | DPU3024POE |
| network: | IP based | Material: | white black |
| Supply capacity: | 1000 pieces per day | type: | Access Controller |
| port: | Shenzhen | brand: | keying |
| ID: | Accept custom logos | Door: | 1-8 doors |
| place of origin; place of origin: | Guangdong, China | color: | white black |
Specification
product name | Access Controller |
Model | DPU3024POE |
CPU | 32-bit ARM® Cortex-M4 processor |
Cardholder Capacity | 100,000 |
log capacity | 200,000 |
communicate | TCP/IP 100MBPS auto-sensing RS485, 9600Bps |
PoE | 803.11af |
Card reader socket | Wiegand and RS485 bus |
4Number of readers | 4 Wiegand, OSDP or RS485, combined |
enter | 4 REX exit buttons, 4 door sensors |
Auxiliary input | 4 |
Auxiliary output | 2, dry contacts |
Operating temperature | - 20℃ ~ 65℃ |
Operating Voltage | 12vDC, 200mA (controller only) 12vDC, 2A (connect card reader) |

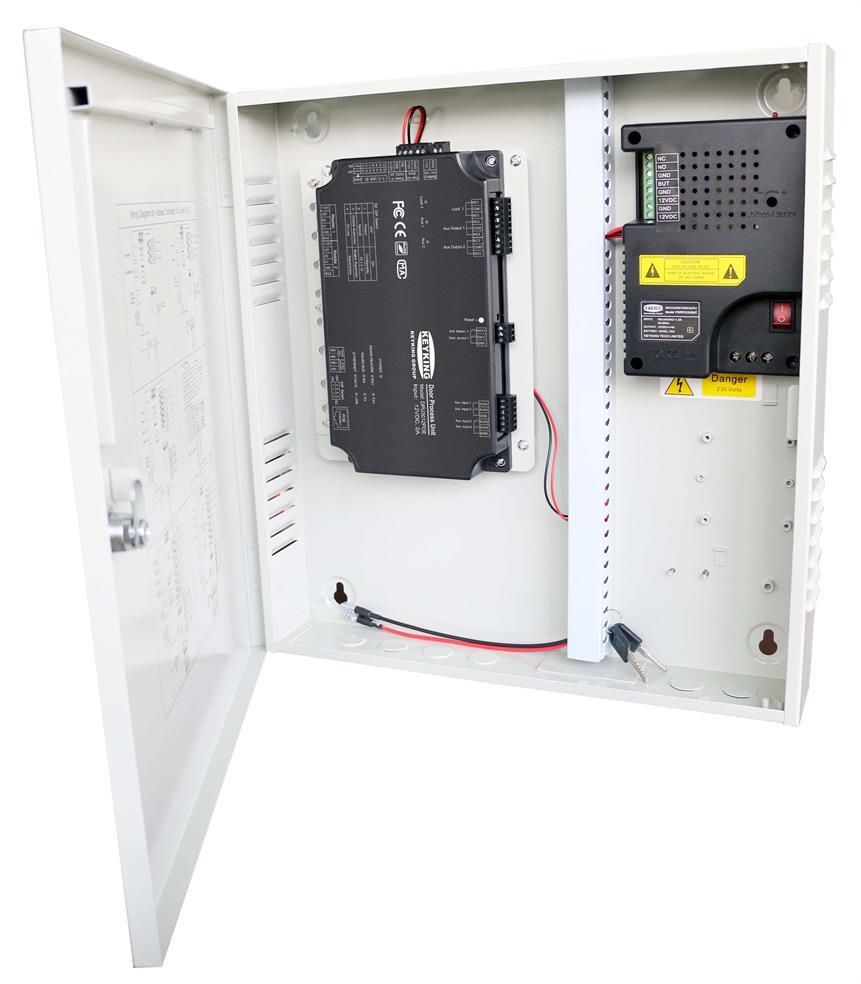

Dimensions (mm) | W138 x H244 x D33 W384 x H403 x D72 (cabinet) |
Certificate | CE, FCC, RoHS |
color | blue-green |
Product display
