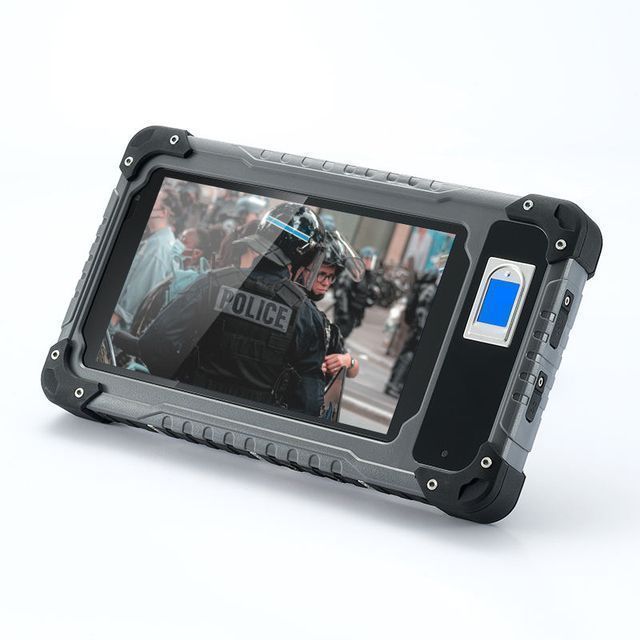

S70L (2021) Rugged Tablet Android Access Control Systems ID Card Scanner Biometric IC 4G LTE NFC UHF RFID Fingerprint Reader
- $355.00 / 10 - 99 units
$345.00 / >=100 units - 10 units
- Shenzhen Soten Technology Company Limited
- Guangdong, China
- Mr luo Mike
PRODUCT DETAIL
| port: | Shenzhen | payment terms: | L/C, Western Union, T/T |
| Warranty: | 2 years | special function: | Waterproof/weatherproof |
| SIM card: | 1.8/3.3V SIM card | graphics card: | Arm Mali--G72 MP3 |
| Battery: | 10000mAh | model: | S70L(2021) |
| place of origin; place of origin: | Guangdong, China | application: | outdoor |
| brand: | Stonehenge | Memory: | 4G |
| The internet: | 4 grams | Packaging Details: | Product size: 237*137*29mm Box size: 305*175*75mm Quantity per box: 560g NW: 700g GW: 1040g Carton size: 390*270*370mm 10set/ctn |
| exhibit: | 7 inch IPS/AFFS 720*1280 HD industrial grade 1000nit sunlight readable | Supply capacity: | 20000 pieces per month |
| Types of: | other | CPU: | ARM A73 2.0GHz octa-core |
| earphone: | 3.5 mm (CTIA) | Package preview: | |
| Internal memory: | 32G | Data interface: | USB Type-A(Host)*1 , Type-C(OTG)*1 |
1. Power button | 2. Reset button | 3. Volume up and down | 4. TF card (sealing cover) |
5. SIM card (sealing cover) | 6. Handset jack (sealing cover) | 7. Secondary camera | 8. Light sensor |
9. Near field communication | 10. Fingerprint | 11. Scan button | 12. Type-C (sealing cover) |
13. DC type (sealing cover) | 14. Main camera | 15. Type A (sealing cover) | 16. Microphone |
17. Spring spring | 18. UHF RFID (optional) | 19. Barcode scanner (optional) | 20. Speaker |
21. Nameplate |
hardware | ||||||||

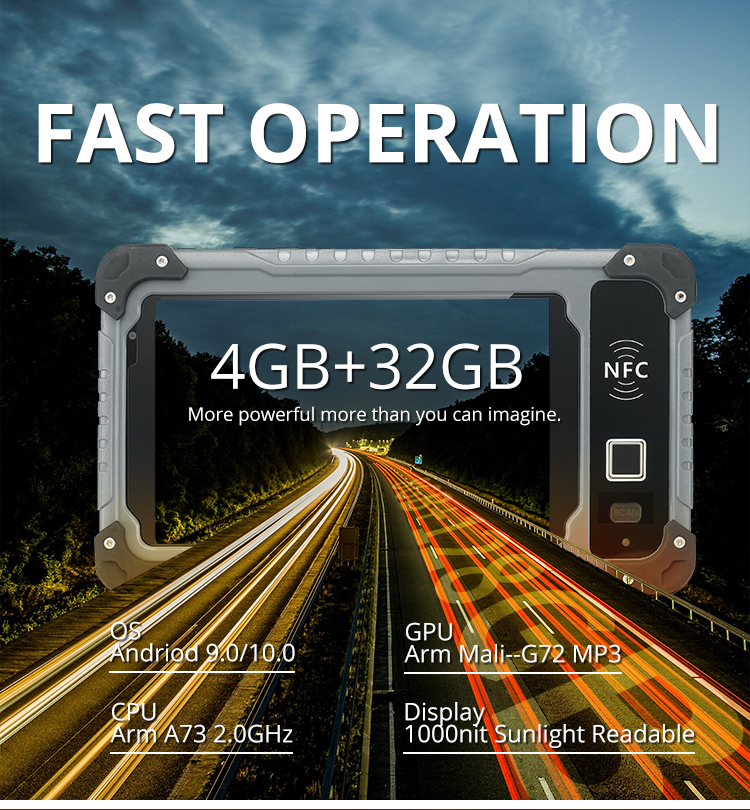

CPU | ARM A73 2.0GHz octa-core | |||||||
graphics card | Arm Mali--G72 MP3 | |||||||
Memory | 4G | |||||||
internal memory | 32G | |||||||
external memory | Micro SD card (T-FLASH card), up to 256GB | |||||||
main camera | 13.0MP(AF) with flash | |||||||
secondary camera | 5.0MP | |||||||
Battery | 10000mAh | |||||||

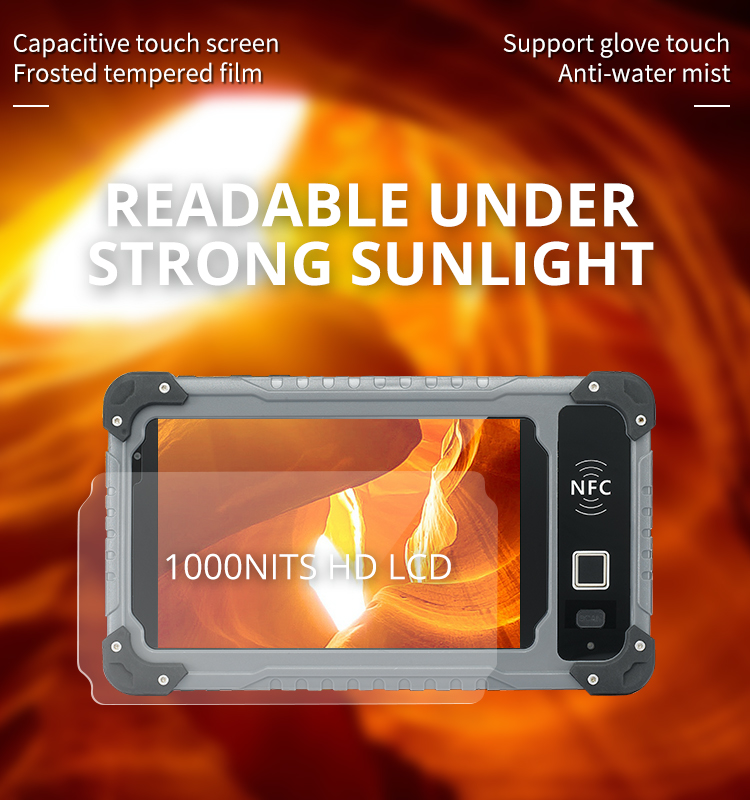

exhibit | 7 inch IPS/AFFS 720*1280 HD industrial grade 1000nit sunlight readable | |||||||
touch panel | Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen | |||||||
IO/Sensor/Navigation | ||||||||
SIM card | 1.8/3.3V SIM card | |||||||
TF card | Micro SD card (T-FLASH card); up to 256GB | |||||||
earphone | 3.5mm (CTIA) | |||||||
charging interface | Type-C & pogo pin & DC 5V (direct charging) | |||||||
Data interface | USB Type-A(Host)*1, Type-C(OTG)*1 | |||||||
direction sensor | support | |||||||
Gravity sensor | support | |||||||
Magnetic field sensor | support | |||||||
motion sensor | support | |||||||
rotation vector | support | |||||||
light sensor | support | |||||||
Accelerometer | support | |||||||
charger | 5.0V 2A-10W | |||||||
navigation | GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m) | |||||||
appearance | ||||||||

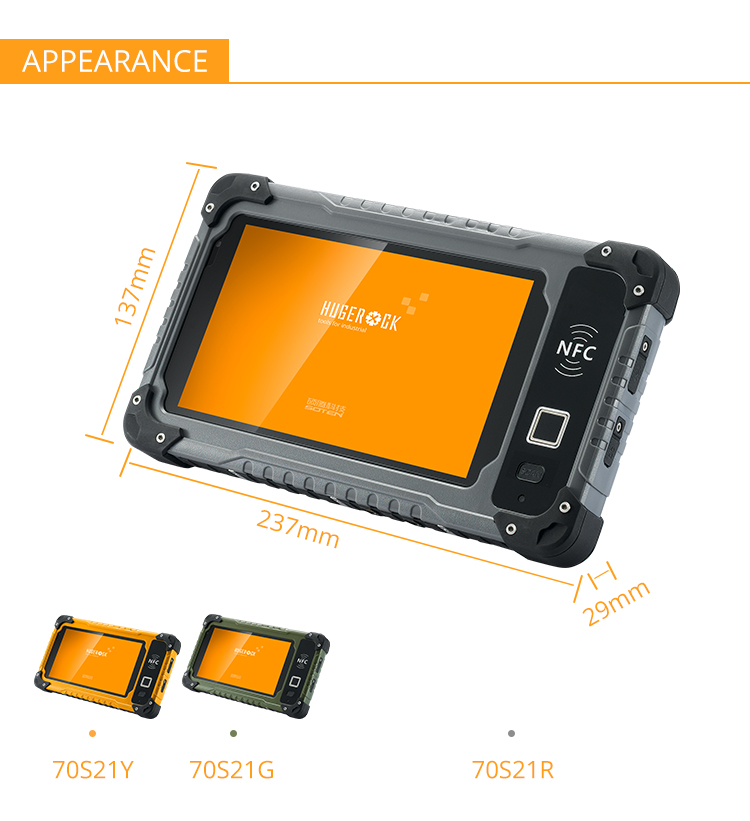

size | 237*137*29mm (length×width×height) | |||||||
weight | 780 grams | |||||||
Color and Material | black yellow black green black gray | |||||||
Communication and Network | ||||||||
Telephone | GSM/WCDMA/CDMA 1X/VoLTE | |||||||
2G | GSM/CDMA 1X/Edge/GPRS/WAP | |||||||
2G frequency band | GSM (B2/3/5/8) | |||||||
3G | WCDMA 3.75G (HSDPA+ 42.2Mbps, HSUPA+ 11.5Mbps), EVDO | |||||||
3G frequency band | WCDMA (B1/2/5/8), Evdo: BC0/BC1 CDMA: BC0/BC1 | |||||||
4G | FDD: Downlink 150Mbps, Uplink 50Mbps TDD: Downlink 150Mbps, Uplink 50Mbps | |||||||
4G frequency band | TD-LTE (B38/39/40/41); FDD LTE (B1/2/3/4/5/7/8/12/17/20/28) | |||||||
wireless online | Dual-band WIFI (2.4GHz/5Ghz) single-stream 802.11 a/b/g/n/ac | |||||||
BT | 4.2 Low Energy (LE) | |||||||
Industrial and Reliability Design | ||||||||
shockproof | 1-19Hz/1.0mm; 19-200Hz/1.0g | |||||||
Anti-drop/IK | MIL-STD-810G/Method516.6/Procedure IV and touch screen IK05 | |||||||
waterproof | Category 5 (IEC 60529) | |||||||
dustproof | Category 6 (IEC 60529) | |||||||
reliability | MTBF>5000h; MTTR | |||||||
operate | -20°C to 55°C | |||||||
Storage temperature | -40°C to 80°C | |||||||
Relative humidity | 5% to 95% | |||||||
working altitude | Maximum: 4,500 m (15,000 ft) | |||||||
Certification/OS/Software | ||||||||

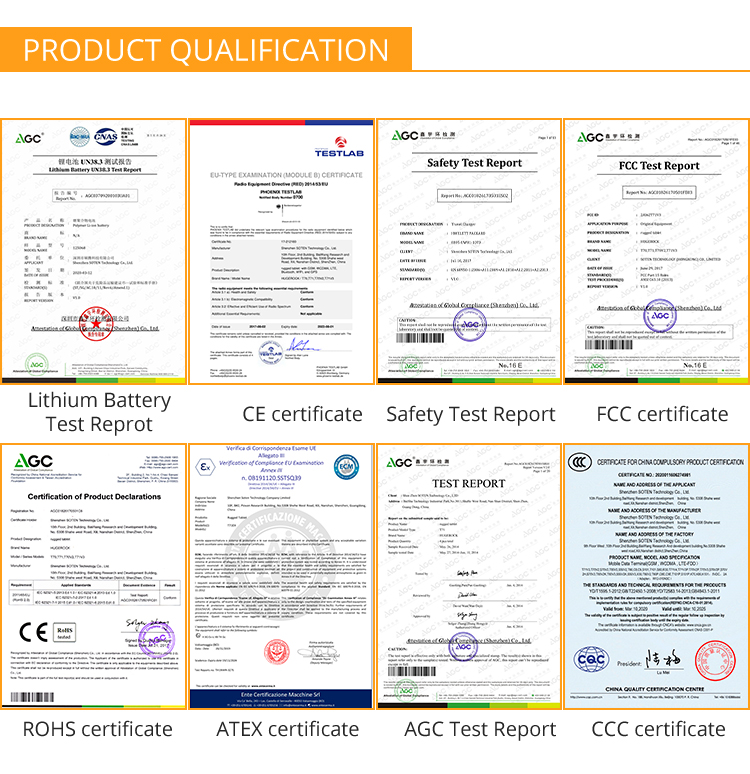

certified | GMS/3C /FCC/CE/ROHS/IP65 (IEC 60529) | |||||||
language | English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified, Chinese, Traditional Chinese, etc. | |||||||
operating system | Android 10.0/11.0 | |||||||
Packaging/Warranty/OEM | ||||||||
Warranty | 24 months | |||||||
OEM/Design and Manufacturing | support | |||||||

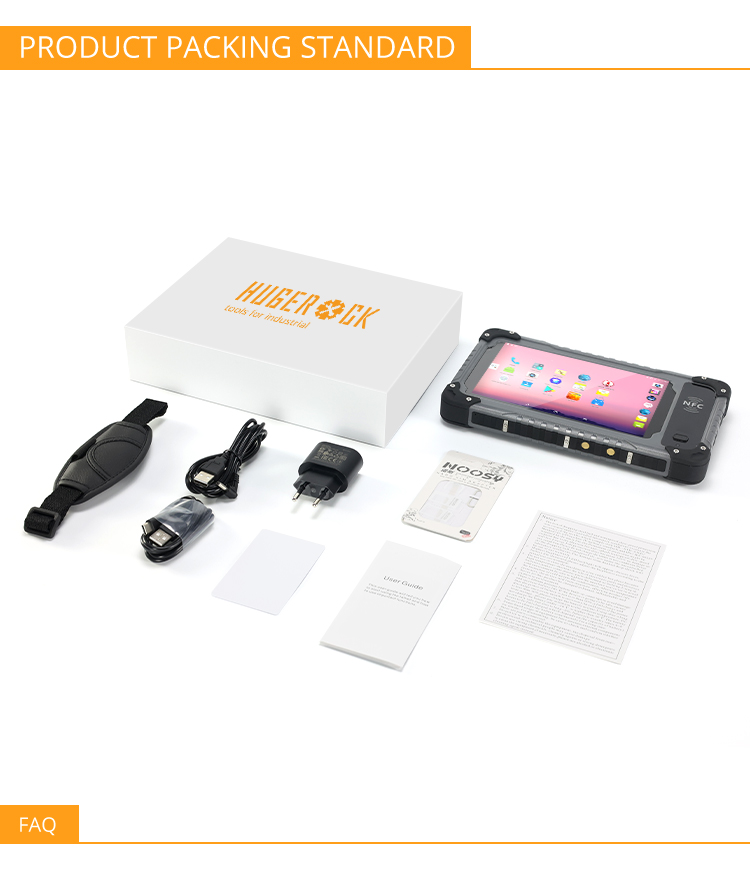

pack | USB data cable/charger 5V 2A/manual/screen protector/packing box (logo can be customized)/aircraft box/tool kit (optional) | |||||||
Q: Are you a manufacturer?
A: Yes, we are a manufacturer. We can provide OEM / ODM customized services according to various applications and needs of customers. All of our products are fully patented, ID/MD design, hardware and software, mold, assembly are all done by our own team.
Q: Can you provide SDK for me?
A: Yes, we provide free SDK if you order samples. In addition, we have support engineers to assist you with software development.
Q: What is the minimum order quantity (MOQ)?
A: We accept one unit for standard products. We can even customize with your logo if required. If OEM is required, our sales department will look at the detailed requirements and confirm the MOQ with you.
Q: Can we get free samples?
A: Sorry, generally we will not provide free samples. If customers confirm the specifications and prices, they can order samples for testing and evaluation first.
Q: Can I choose multiple functions in one device?
A: Yes, you can choose multiple functions in one device, different functions depend on the product model, optional functions: RFID (LF/HF/UHF)1 fingerprint/barcode scanner.
Q: How to order and pay?
A: We accept T/T (Bank Transfer), Alibaba Online, Western Union 1 Trade Assurance
Q: What is your product warranty?
A: We provide 24 months warranty after shipment.
Q: Can I extend the warranty period?
A: We offer extended warranties up to 36 months with a 10% price increase for extended warranties.
Q: How long does delivery take?
A: The production lead time is about 3-10 days, depending on the requirements, the shipping time by DHL/UPS/FEDEX/TNT, and the delivery time is about 3-5 working days. For some remote places, the delivery time may be a little longer.
Q: How to repair the equipment if there is a problem?
A: We will provide technical support online to solve the problem; if it is a hardware problem, we can send parts or components and teach customers to install them, or send them back to us for repair if they have technicians.
Q: Can you customize and pre-install our software?
A: We are professional sturdy equipment manufacturer with 11 years experience
