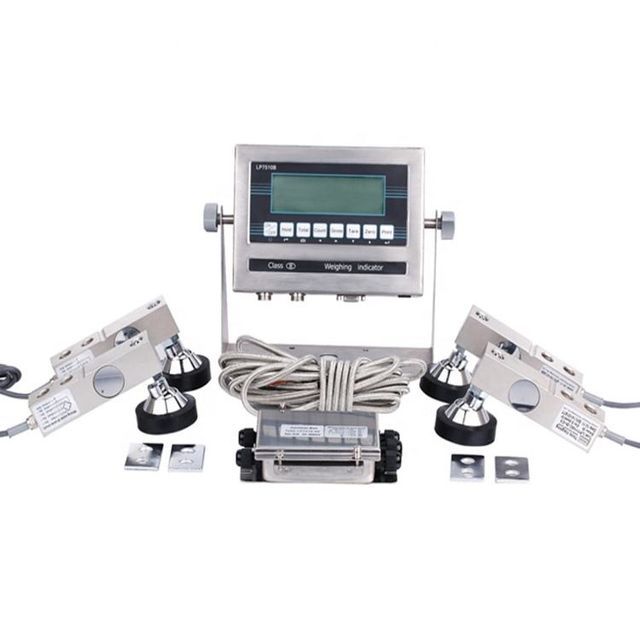

1000kg Scale Load Set Load Cell Price Online
- $140.00 / 1 - 99 pieces
$130.00 / >=100 pieces - 1 piece
- Locosc Ningbo Precision Technology Co., Ltd.
- Zhejiang, China
- Mr Terry Liu
PRODUCT DETAIL
| capacity: | 0.25, 0.5, 1, 2, 2.5, 3, 5, 7.5, 10T | Nonlinearity: Load cells: | ±0.02% of full scale |
| model: | LP7910 | Package preview: | |
| Origin: | Zhejiang, China | Supply capacity: | 5000 pieces of load cells per month |
| excitation: | 4~15VDC, maximum 15VDC | brand: | losoko |

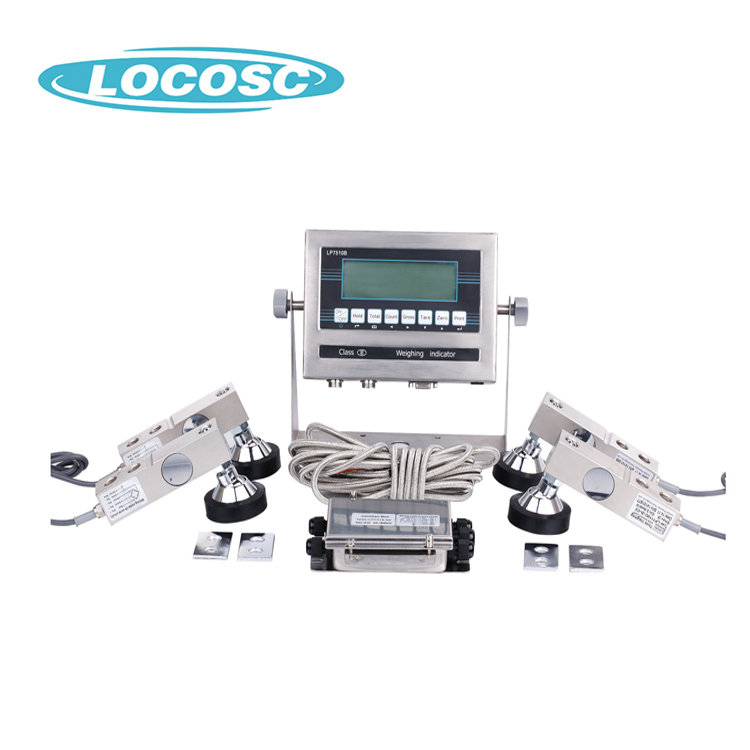

| application: | Platform scales, pallet scales, weighing modules | thing: | LP7910 Load Cell Kit |
| Destructive Load: Load Cell: | 200% full scale | Input Impedance: Load Cell: | 385±10Ω |
| usage: | weighing kit | describe: | weighing kit |
| payment terms: | L/C, Western Union, D/P, D/A, T/T | type: | load cell |
| Packaging Details: | Foam packed into inner box, then packed into strong export carton with digital load cell | port: | Shanghai, Ningbo |
| Safe Overload: Load Cell: | 150% full scale | Creep (30 minutes): Load Cell: | ±0.02% of full scale |
| Output Impedance: Load Cell: | 351±2Ω |
hot product
Product Description
Specification:
| Rated Capacity | 0.25/0.5/1/1.5/2/2.5/3/5/7.5/10T | |
| level of accuracy | C3 | |
| Rated output | 2.0±0.002mv/v | |
| nonlinear | ±0.02% of full scale | |
| Creep (30 minutes) | ±0.02% of full scale | |
| input resistance | 385±10Ω | |
| output impedance | 351±2Ω | |
| Operating temperature | -10~+40℃ | |
| safety overload | 150% full scale | |
| destructive load | 200% full scale | |
| Recommended excitation | 4~12VDC, Max: 15vDC | |
| cable | Length: 2.5~5m | Exc+(red),Exc-(black), |
| 4 wires with shield | Sig+ (green), Sig- (white) | |
| put up | Alloy steel or stainless steel, IP67 | |
| application | Platform scales, pallet scales, weighing modules, etc. | |
more products
| Which type of sensor is right for you? |
We have different types of sensors from 20kg-400t, different types of sensors and matching power supplies and junction boxes, etc., as well as new explosion-proof products for you to choose from, you can choose to contact us for recommendation, or you can enter our group to choose, wish shopping joy.
contact us Explosion-proof products join the group

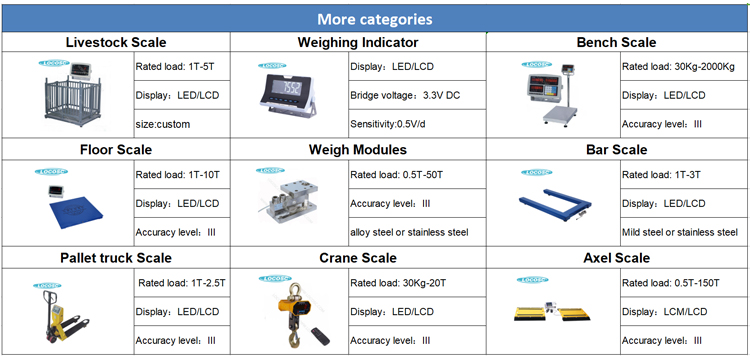

Here are our other categories, you can click on the corresponding picture to enter the selection

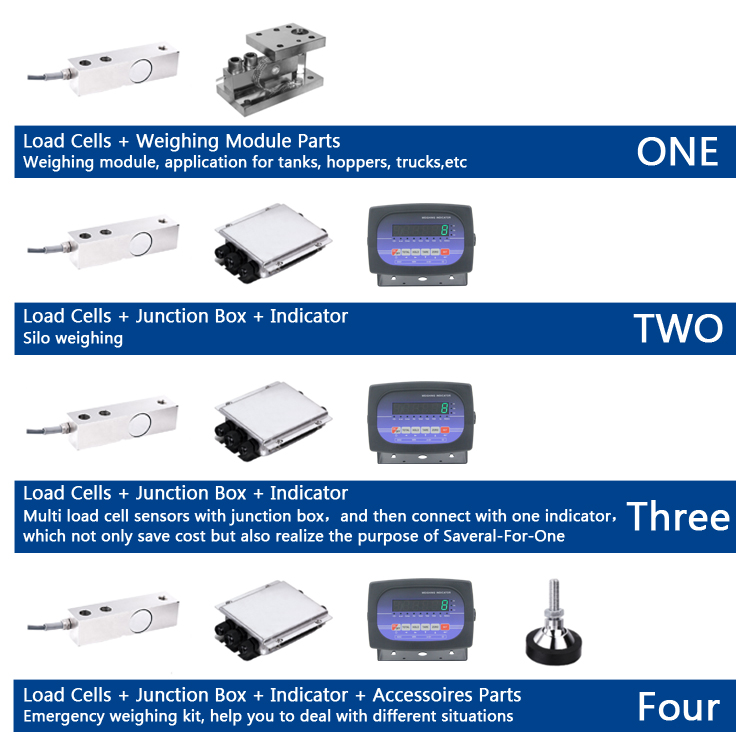

combination product method
