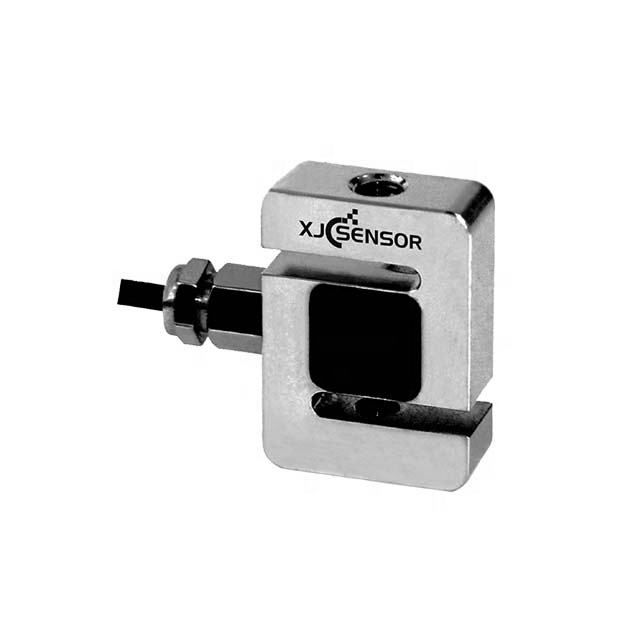

XJC-S09-B 80 kg load cell with weight indicator S type tension and compression load cell
- $100.00 / 5 - 99 pieces
$80.00 / >=100 pieces - 5 pieces
- Shenzhen Xinjingcheng Technology Co., Ltd.
- Guangdong, China
- Ms Winny Wu
| type: | load cell | place of origin; place of origin: | China |
| model: | XJC-S09-B | Packaging Preview: | |
| Supply capacity: | 3000 pieces per month | product name: | Load cell 50Kg 100Kg |
| power supply: | 2.5-5VDC | theory: | Resistive sensor |
| Certificate: | ISO9001 CE ROHS FCC | brand: | XJCS sensor |
| Material: | Stainless steel | application: | machine tool |
| payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram | usage: | Pressure Sensor |
| port: | Shenzhen or any other port in China | accuracy: | 0.05%FS |
| Packaging Details: | XJC-S09-B 80Kg Load Cell with Weight Indicator Packaging: Standard export carton packaging (other packaging requirements can be accepted upon further requirements) | output: | 4-20 mA |

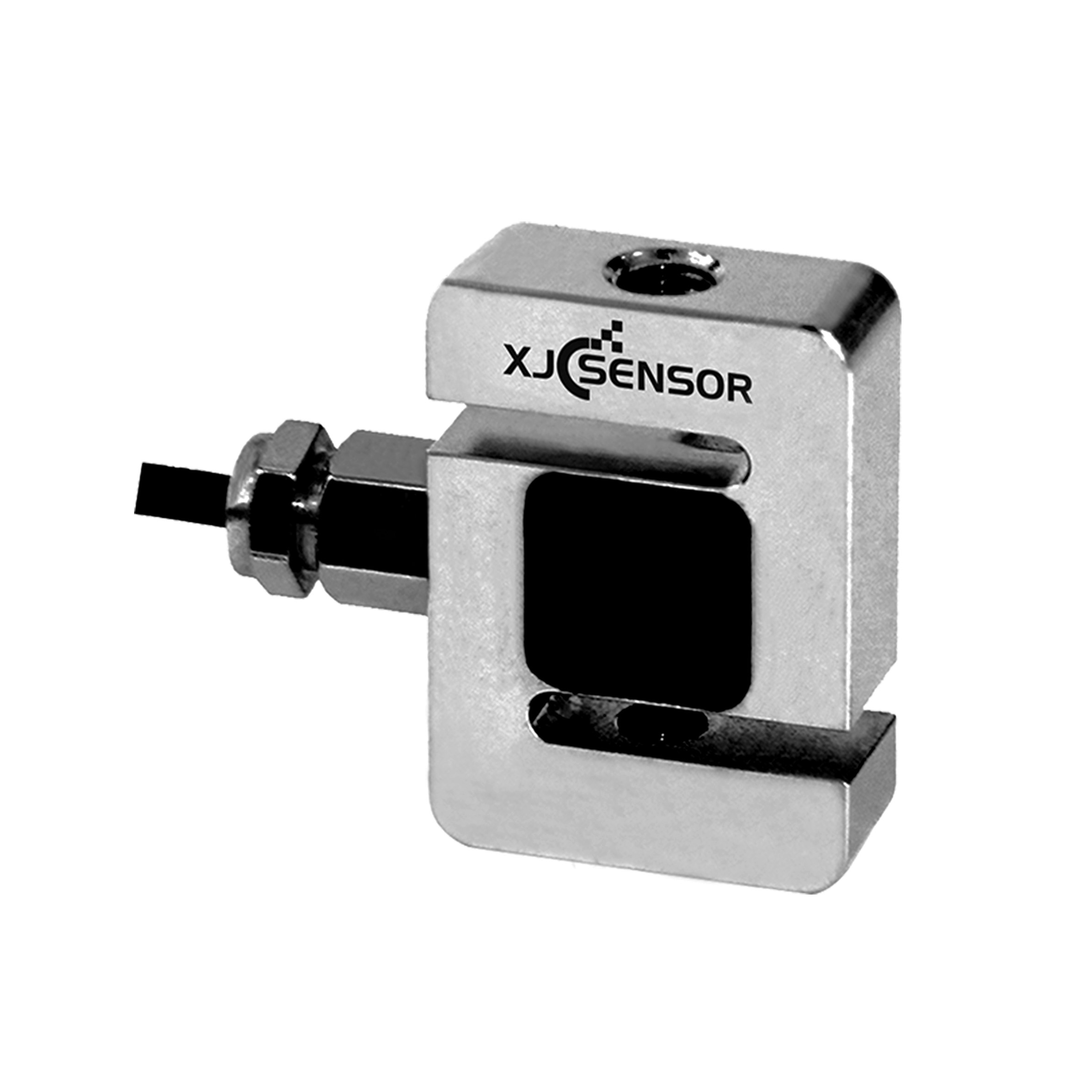

XJC-S09-B 80Kg load cell with weight indicator
application

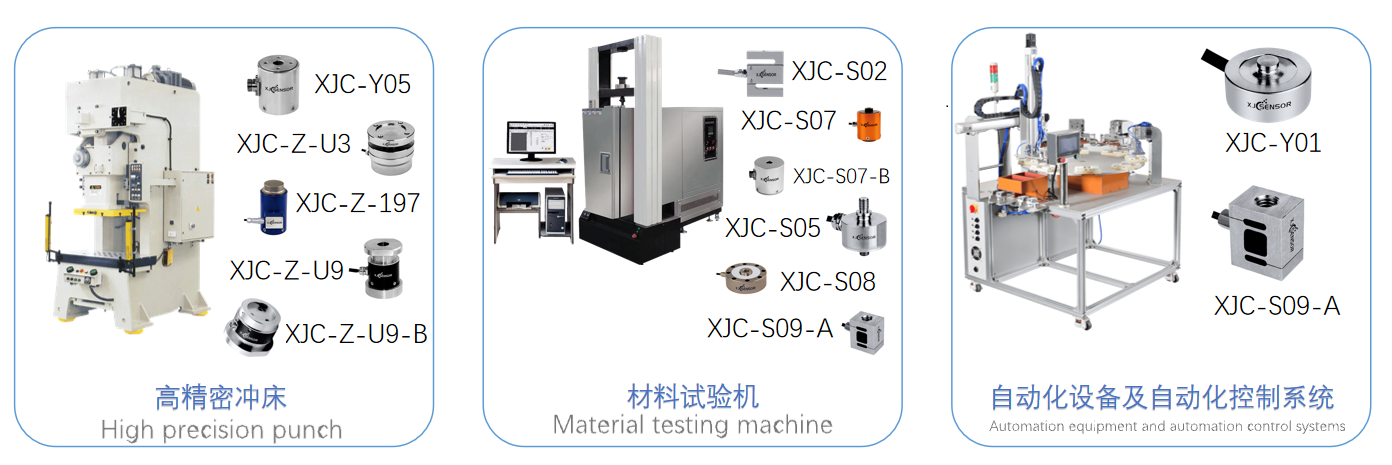

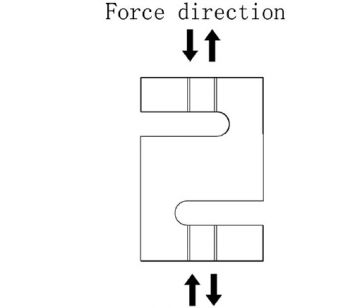

Mainly used in the field of tension and compression test instruments and automation equipment, such as small-scale force measuring instruments, hopper scale insertion force test instruments, riveting machines, welding machines, hot and cold laminators, keyboard switch feel testers, etc.
XJC-S09-B High Precision Semiconductor Silicon Piezoresistive Principle
It can meet the measuring force in the range of 9.8N-1.96KN
Stainless steel, sealed wear-resistant, oil-resistant, water-resistant, corrosion-resistant
Plastic sealing, pressure-bearing, easy and flexible installation
semiconductor principle
Small size and beautiful appearance
High frequency dynamic response
Customizable, IP 66 degree of protection
specifications
|
capacity |
1-200Kg |
|
accuracy |
0.05%FS |
|
Material |
Stainless steel |
|
Rated output |
2.0mV/V |
|
Recommended excitation |
2.5-5VDC |
|
maximum incentive |
10V |
|
Natural frequency |
≥2kHz |
|
nonlinear |
0.05%FS |
|
lag |
0.05%FS |
|
Repeatability |
0.03%FS |
|
Compensated temperature range |
-10~60℃ |
|
range of working temperature |
-20~80℃ |
|
insulation |
≥5000MΩ/100VDC |
|
input resistance |
350(700)±5Ω |
|
output impedance |
350(700)±5Ω |
|
Creep (30 minutes) |
0.01%FS |
|
zero balance |
±2%FS |
|
The effect of temperature on the output |
0.05%FS/10℃ |
|
zero temperature effect |
0.05%FS/10℃ |
|
Safe Load Limit |
150% |
|
ultimate load limit |
200% |
|
Cable size |
Φ2*3 |
|
Life |
Full scale over 1 million times |
|
cable connection |
Ex+: red; eg -: black; Signal+: green; SIG-: white |
Ordering Guide
|
model |
XJC-S09-B |
|
capacity |
customizable |
|
High |

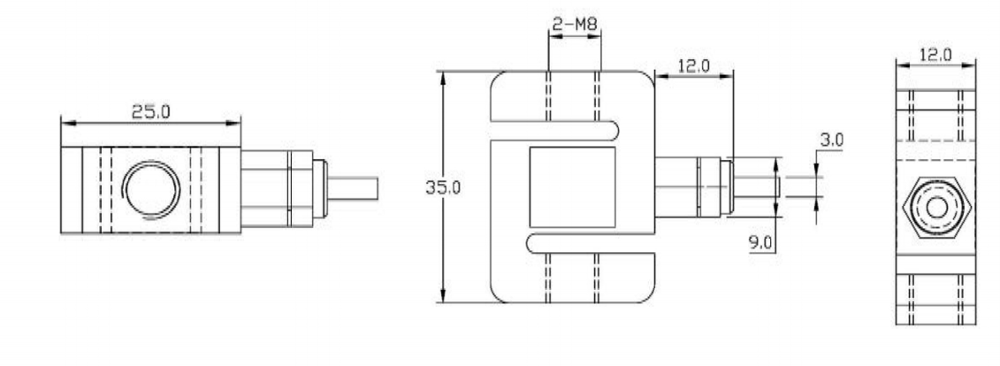

Height: 35.0MM |
|
cable output |
L03: 3 meters L05: 5 meters |
|
special requirements |
selective filling |
|
Describe smart modules |
T: Teds |
