OIML NTEP aluminum alloy L6N miniature load cell 5kg 8kg 10kg 15kg 20kg 30kg 40kg 50kg 75kg 100kg for electronic balance

PRODUCT DETAIL
describe:L6N small capacity single point load cellOutput Sensitivity:2.0±0.2mV/V
model:L6Ncable length:3 meters
place of origin; place of origin:Guangdong, ChinaMaterial:aluminum alloy
Package preview:Accuracy class:C3
usage:Electronic balanceTypes of:load cell
theory:Resistive Sensors, Resistive Load CellsSupply capacity:1000 pieces per month
port:Shenzhen, NingboRecommended excitation voltage:5~12V(DC)
brand:whole cellProtection class:Protection class 65
Maximum platform size:400 mm x 400 mmcapacity:3kg~100kg
Packaging Details:Cartons with cardboard foam pallets to protect the products from deformation during transportation. One unit per box, 20 units per carton.payment terms:wire transfer
output:Analog millivolt signal output

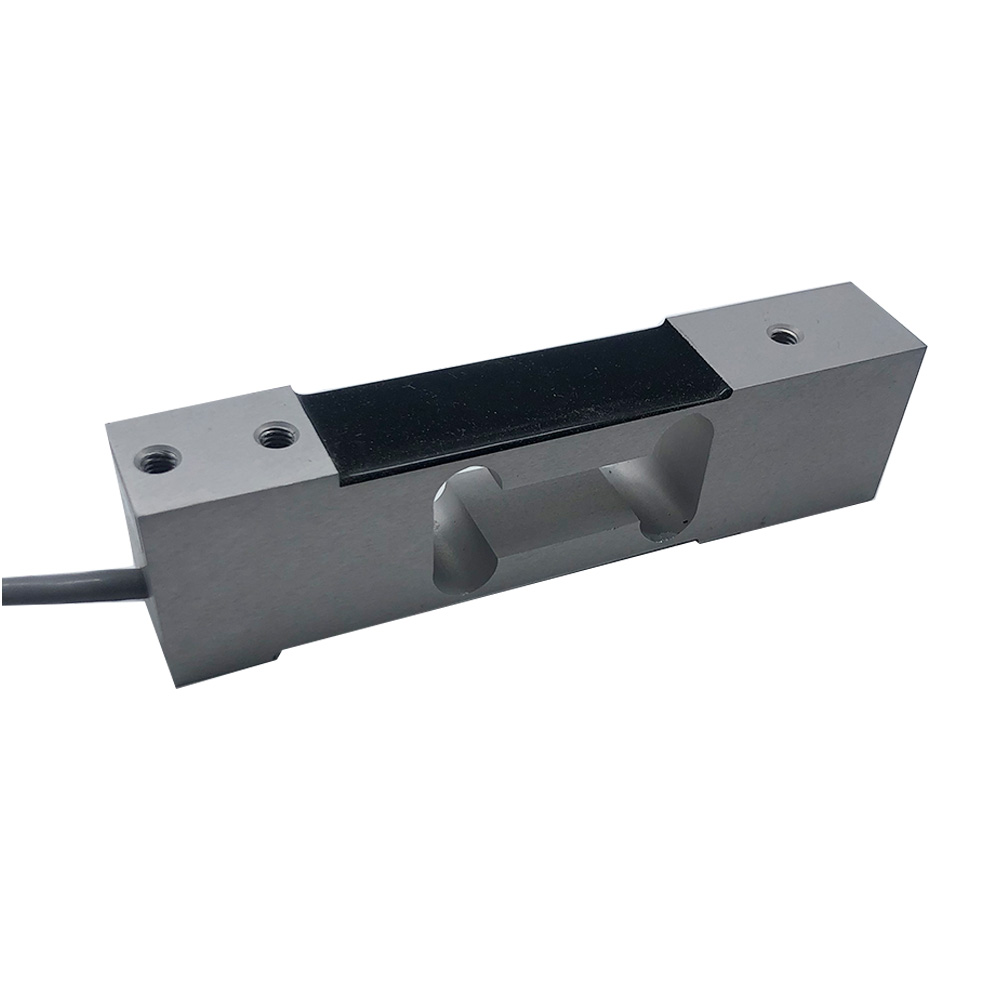

Aluminum L6N Miniature Load Cells for Pricing Scales

Platform scale 5kg 10kg 20kg 25kg 30kg 35kg weighing sensor

Product Description

Features and applications:



• Aluminum alloy IP65 single point load cell
• Colorless anodized
• Applicable to electronic balances, pricing scales, platform scales, etc.
• Maximum platform size: 400 x 400 mm



application:Electronic pricing scales, platform scales and other electronic weighing scales.







The most popular single-point load cell, the perfect load cell for retail scales such as bench scales, counting scales, pricing scales, and ideal load cells for unattended retail weighing solutions.
OIML/NETP certification.
aluminum alloy.
Large capacity up to 100 kg.
Anodized load cell body.

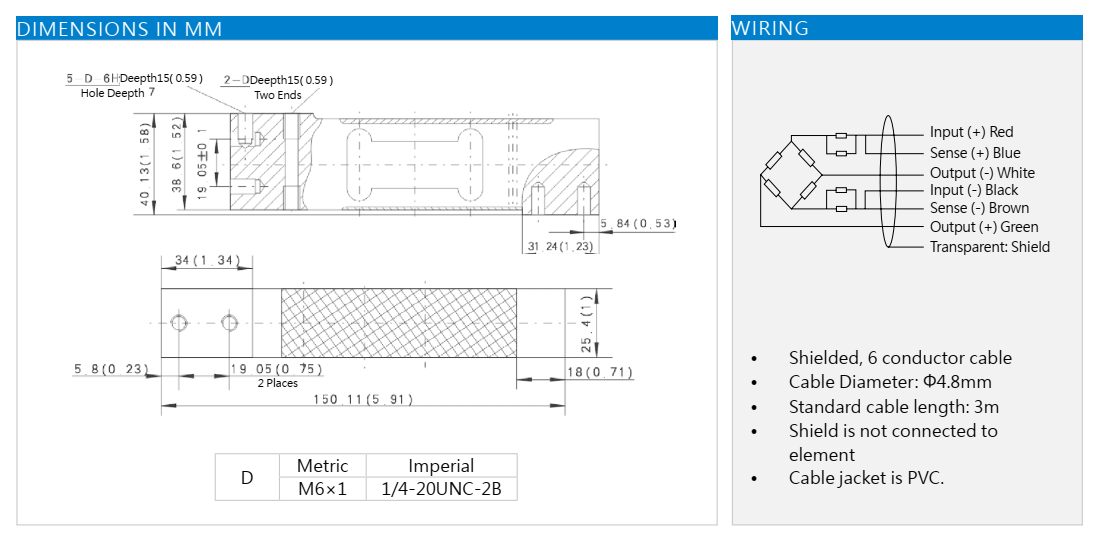

The default is 3m. Cable diameter 4.8mm.
Longer cables are custom made.



Specification



capacity Kilogram 3/5/8/10/15/20/30/40/50/75/100
accuracy   C3 C4 C5
output sensitivity (mV/V) 2.0±0.2
combination error (%FS) ±0.02 ±0.015 ±0.01
creep (%FS/30 minutes) ±0.0167 ±0.0125 ±0.01
Effect of Temperature on Sensitivity (% full scale/10℃) ±0.0175 ±0.0131 ±0.01
Effect of Temperature on Zero (% full scale/10℃) ±0.02 ±0.012 ±0.009
zero balance (%FS) ±2
Temperature compensation (℃) -10~+40
Operating temperature (℃) -35~+65
input resistance (Ω) 406±6
output resistance (Ω) 350±3
Recommended excitation voltage (Fives) 5-12(DC)
Maximum excitation voltage (Fives) 18(DC)
safety overload (%FS) 120
extreme overload (%FS) 150
degree of protection   IP65
Cable Specifications (mm) φ4.8
cable length (Meter) 3
Recommended platform size (mm) 400x400
corner correction

0.02% load value/100mm
