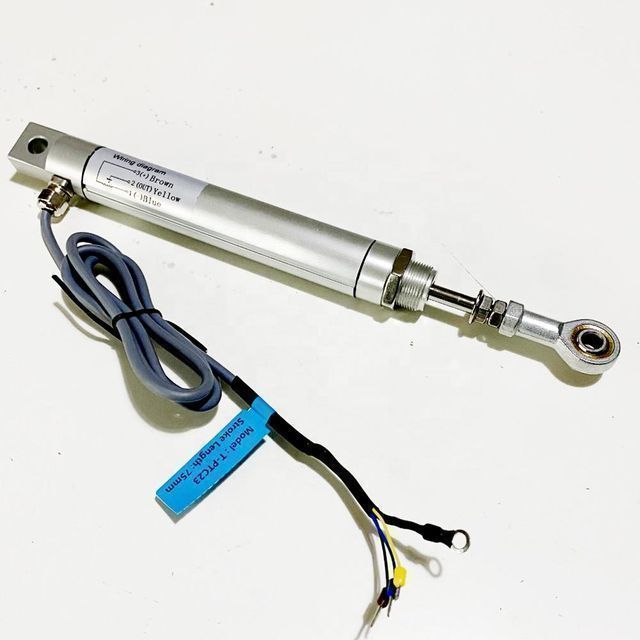

10mm 15mm 20mm 50mm 100mm 150mm linear displacement sensor IP66 high sealing T-PTC23
- $10.00 / >=2 pieces
- 2 pieces
- HT Sensor Technology Co., Ltd.
- Shaanxi, China
- Ms Jill HTsensor
PRODUCT DETAIL
| T-PTS: | 10-300mm | Recommended current: | ≤1mA |
| temperature range: | -60℃~+150℃ | port: | Xi'an, Shaanxi |
| type: | Linear Displacement Sensor | Maximum speed: | 5 m/s |
| Packaging Details: | Inner packing: 1 piece/polybag/box Outer packing: standard export carton according to customer requirements | usage: | cement equipment, cement roller press |
| Supply capacity: | 1000 pieces per month | Repeatability: | 0.01mm |
| Linear Accuracy: | ±0.1%±%FS | thing: | Motion detector |
| output: | mV/V | payment terms: | L/C, Western Union, T/T |
| place of origin; place of origin: | China | model: | T-PTC23 |
| weighing scale: | Short distances and swing moments |

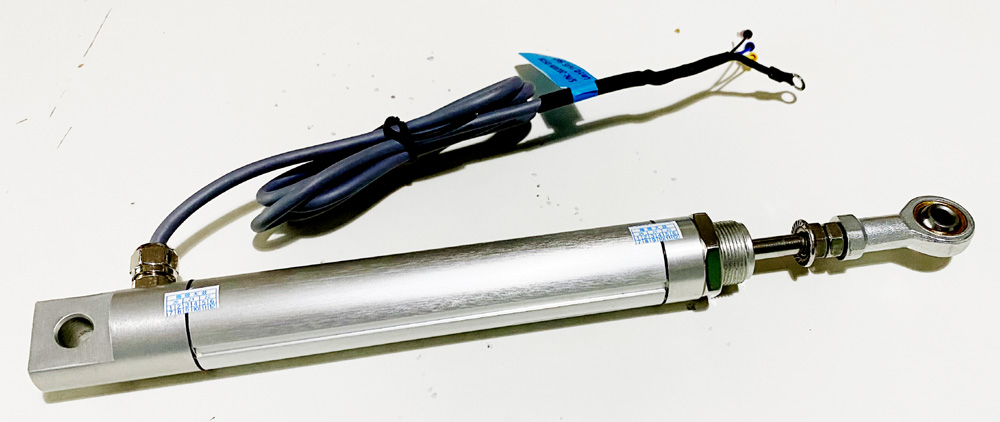

T-PTS23 High sealing level position travel sensor
introduce:

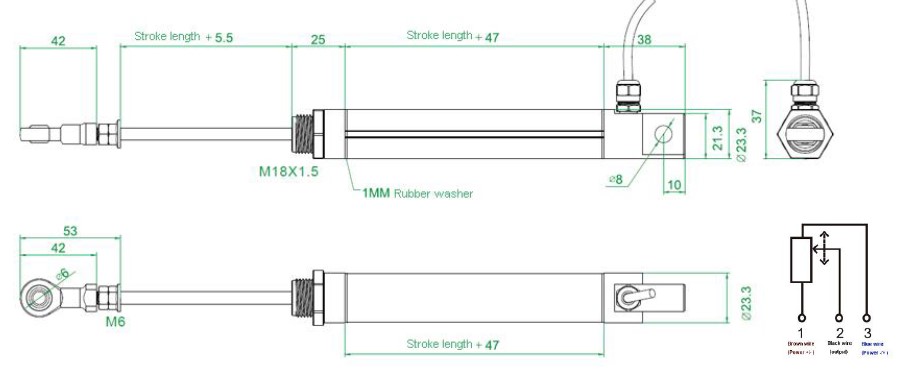

◆T-PTC23 diameter is 23.3mm
◆ Measuring range: 10mm~300mm
◆ Brackets are optional.

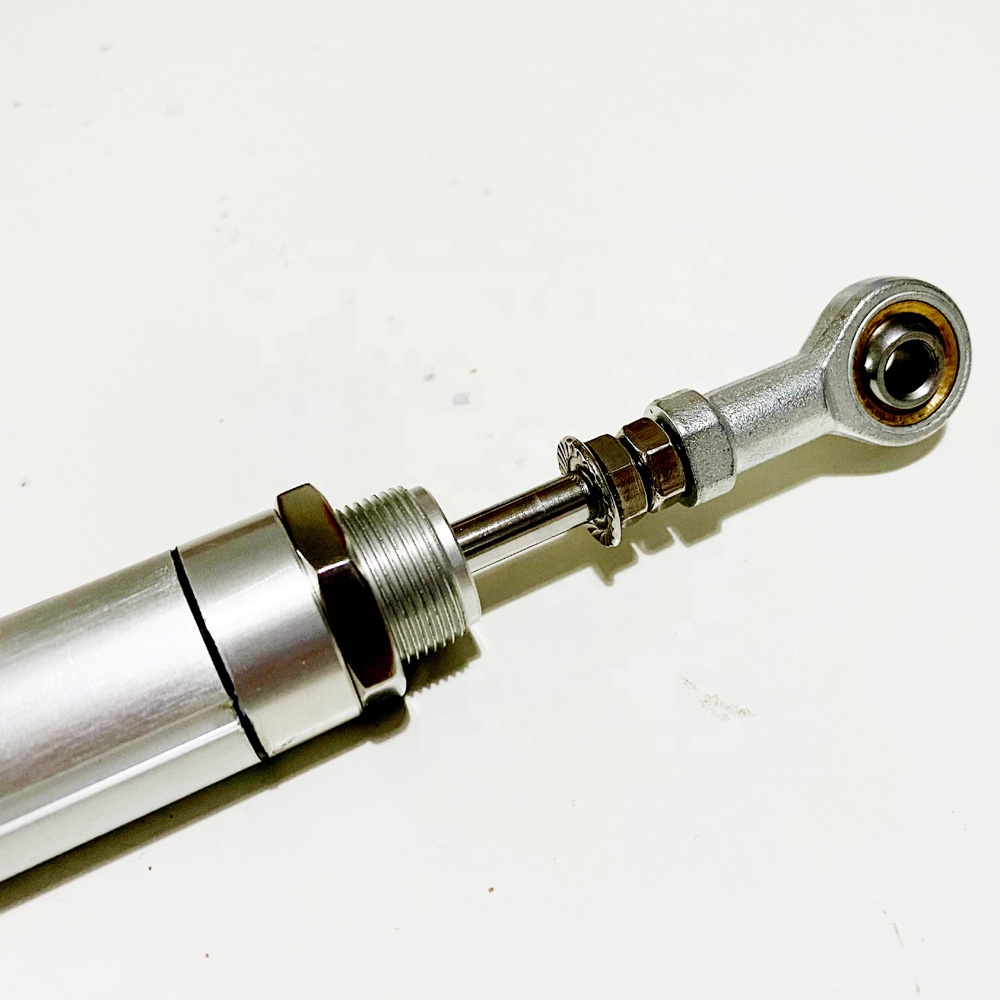

◆Rod eye end linear drive position travel sensor
◆ Stainless steel material
◆ Specially developed for cement equipment, cement roller press, road and bridge equipment, dustproof, high sealing level, stable performance, strong anti-interference ability, absolute position output, continuous measurement. longevity.
aspect
Specification
T-PTC23 series | 10mm | 15mm | 25mm | 50~75mm | 100~300mm | journey (mm) 10 15 25 50 75 100 125 150 175 200 225 250 275 300 | ||||
Linear accuracy (±%FS) | ±0.1% | ±0.05% | ||||||||
Resistance (±10%) | 1KΩ | 5KΩ | ||||||||
Effective itinerary | Range +3mm | |||||||||
resolution | endless | |||||||||
Repeatability | 0.01mm | |||||||||
Maximum speed | 5 m/s | |||||||||
Recommended current | ≤1mA | |||||||||
temperature range | -60℃~+150℃ | |||||||||
output | 0~100%×input voltage (varies with action rod) resistance output | |||||||||
sensitivity | 1 | |||||||||
temperature drift | infinitesimal | |||||||||
very long life | >100*1000000 cycles, >25*1000000 meters | |||||||||
