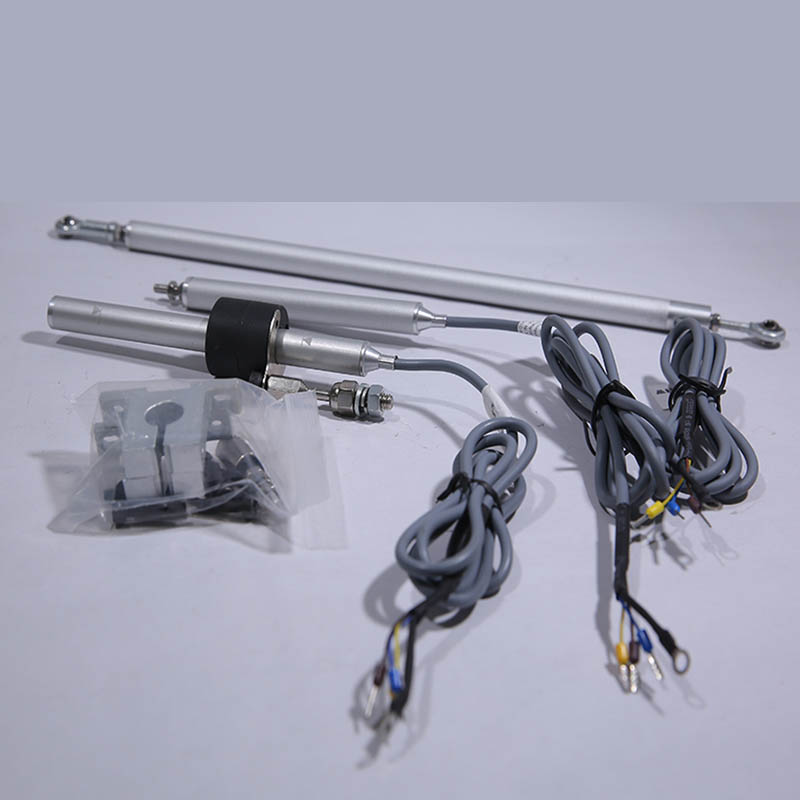

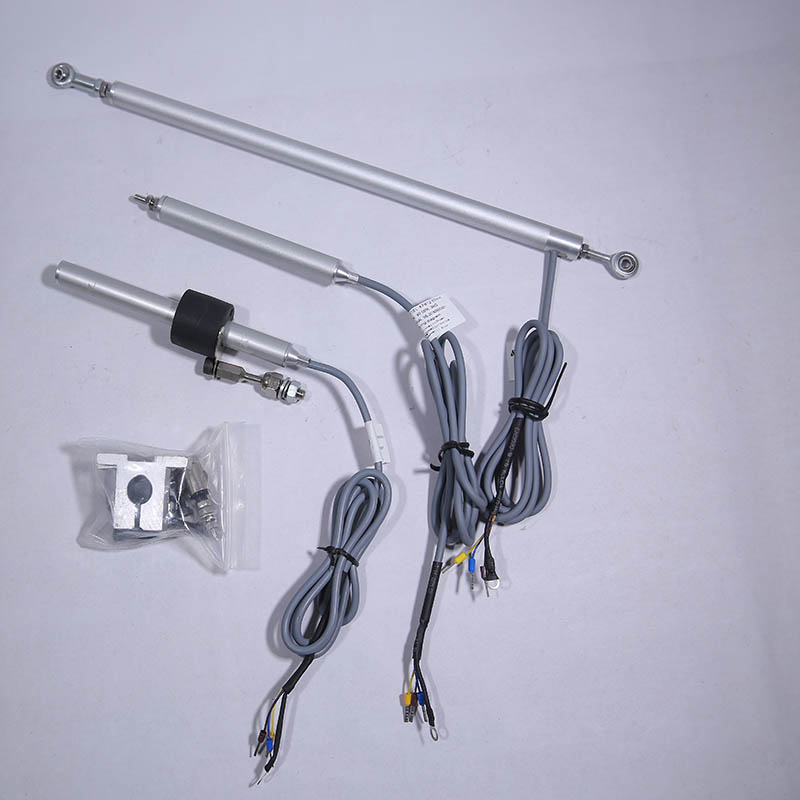

MIRAN KPM12 100mm Articulated Linear Position Transducer with Rod End Fitting
- $24.00 / 1 - 29 pieces
$22.00 / >=30 pieces - 1 piece
- Zaoyang City Milang Science & Technology Co., Ltd.
- Hubei, China
- Ms Maggie gu
PRODUCT DETAIL
| current: | 1mA | Operating temperature: | -20℃~80℃ |
| payment terms: | Western Union, L/C, D/P, D/A, T/T, MoneyGram, PayPal | Supply capacity: | 1000 pieces per month |
| port: | Shenzhen | Types of: | Linear Displacement Sensor |
| Voltage: | 0-36 volts | accuracy: | 0.3%~0.01% |
| model: | kpm12-100mm | output signal: | Resistor/4-20mA/0-5v/0-10v/Rs485 |
| Repeatability: | 0.01mm | Resistance: | 2k/5k |
| Protection class: | IP65 | scope: | 10mm~300mm |
| Packaging Details: | Each product will be packed in a plastic tube and then packed together in a carton | Material: | anodized aluminum |
| Package preview: |
Product Description
describe:

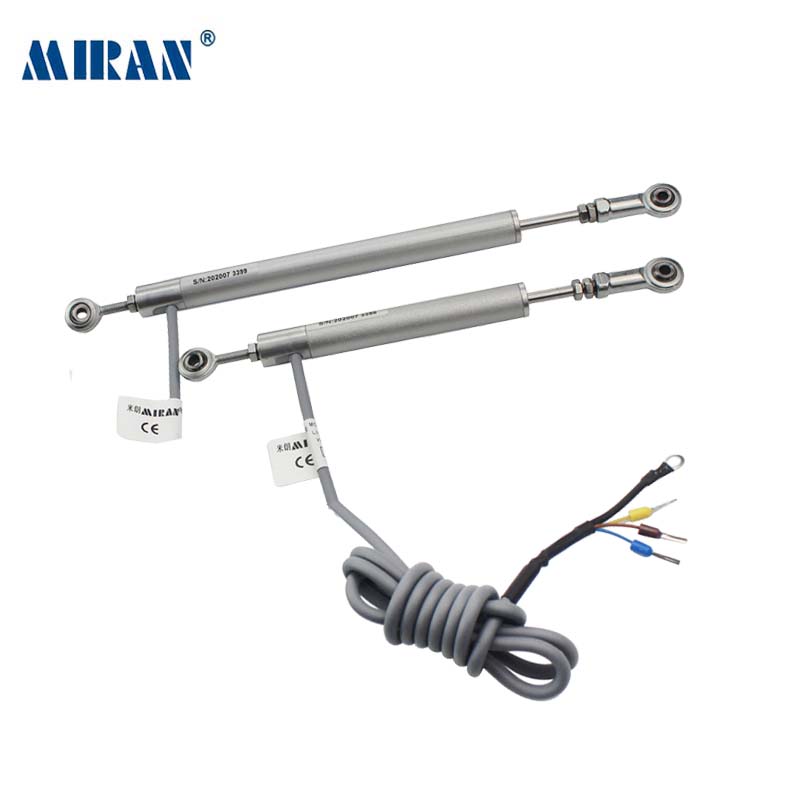

KPM12 series products are miniature articulated sensors, small size sensors with two Heim connectors at both ends. It is suitable for swing position detection with a short range. The advantage of installation is that there is no requirement for neutrality. Such as: mechanical arms, robots, brick machines, ceramic machines, gates, footwear machinery, 3D seats, prestressed jacks, etc.Customized requirements are welcome. Main features:
1. Miniature rod type linear displacement sensor, easy to install.
2. The electrical part and the operating part adopt advanced components.
3. High linear precision output, repeatable precision.
4. Multiple output signals: 4-20mA/0-5V/0-10V/RS485
notes:

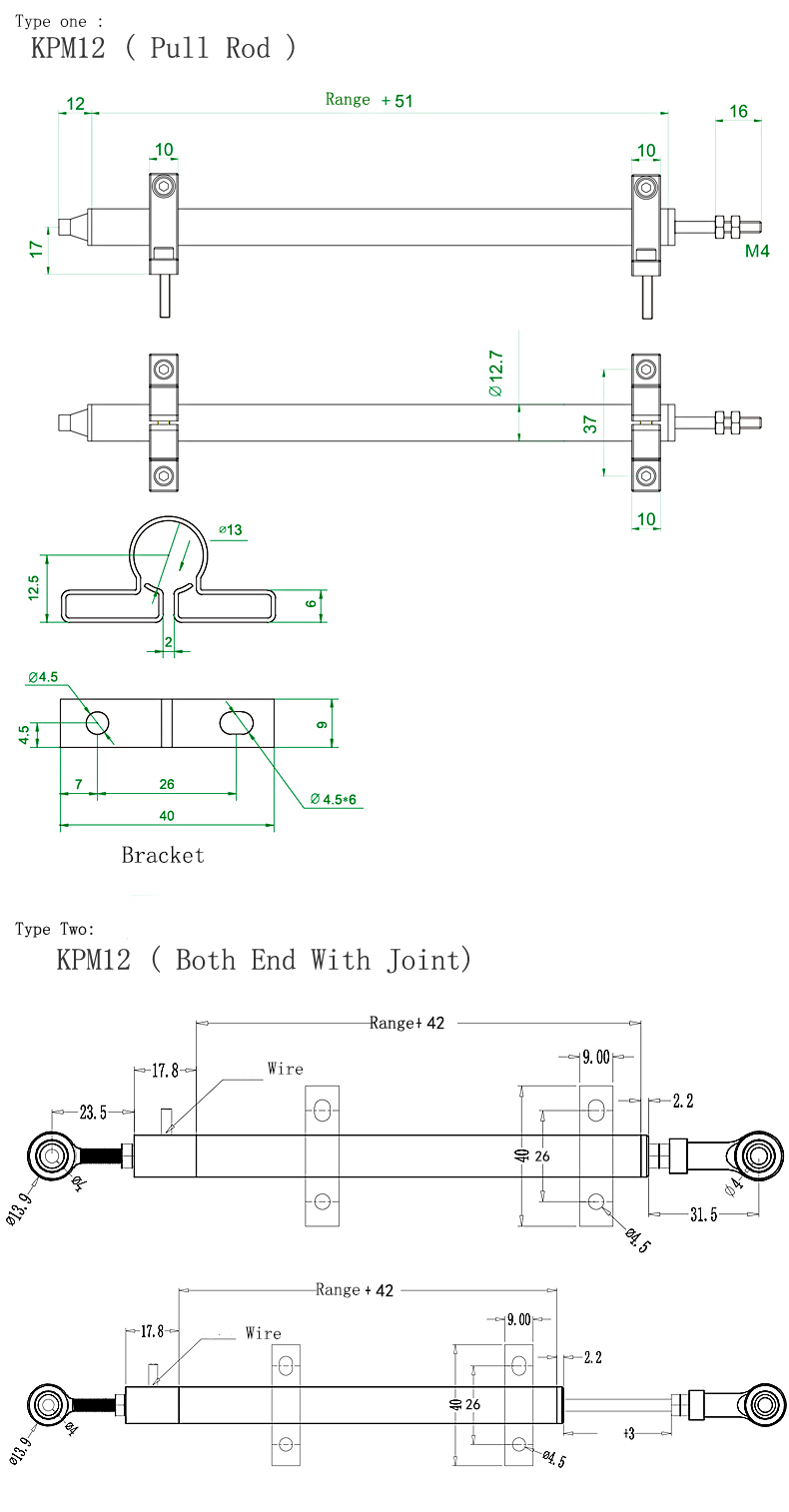

1. We can make five different diameters of this model (12mm/16mm/18mm/22mm/23mm). (Model KPM12/KPM16/KPM18/KPM22/KPM23)
2. This model has a different appearance. There are Heim joints at both ends, and there are no Heim joints at both ends (one is installed with a mounting bracket, and the other is installed without a mounting bracket) and you can choose the right one. If you have any questions, please contact us.
application:
KPM12 linear displacement sensor is suitable for motorcycles, mechanical arms, robots, brick machines, pottery machines, gates, shoe machines, three-dimensional seats, prestressed jacks, etc.
application:
KPM12 linear displacement sensor is suitable for motorcycles, mechanical arms, robots, brick machines, pottery machines, gates, shoe machines, three-dimensional seats, prestressed jacks, etc.
Specification
KPM rod sensor | 10mm | 15mm | 25mm | 50~75mm | 100~300mm | ||||
Linear accuracy (±%FS) | ±0.1% | ±0.05% | |||||||
Resistance (±10%) | 2KΩ | 5KΩ | |||||||
mechanical travel | Range +3mm | ||||||||
resolution | endless | ||||||||
Repeatability | 0.01mm | ||||||||
Maximum speed | 5 m/s | ||||||||
recommended temperature | 0°C-80°C; -20°C~+100°C | ||||||||
output signal | Standard: 0~100%×input voltage (varies with the movement of the rod) | ||||||||
Optional: 0-5V/0-10V/4-20mA/RS485 output requires additional modules | |||||||||
sensitivity | 1 | ||||||||
temperature drift | infinitesimal | ||||||||
Transducer housing material | anodized aluminum | ||||||||
Shaft material | Stainless steel | ||||||||
degree of protection | IP65 | ||||||||
Install | Fixed by Hyams joints at both ends | ||||||||
Life | >100*1000000 cycles, >25*1000000 meters | ||||||||
Effective electrical travel (mm) | 15 25 50 75 100 125 150 175 200 225 250 275 300 | ||||||||
KPM12 linear displacement sensor is suitable for motorcycles, mechanical arms, robots, brick machines, pottery machines, gates, shoe machines, three-dimensional seats, prestressed jacks, etc.
about Us
Miran Technology Co., Ltd. This is one of the largest manufacturers of linear displacement sensors in China. Since 2003, we have developed and produced linear position sensors (brands: MIRAN, LinecSKI, WANSUNGM), wire rope potentiometers, magnetostrictive level sensors, angle sensors, lubrication pumps (oil/grease/butter), LVDT, eddy current sensors and other motion control products to support many different industries.
Our products have been widely used in injection molding machines, die-casting machines, rubber machines, shoe machines, EVA injection molding machines, blow molding machines, woodworking machinery, hydraulic machinery, liquid level control, suspension stroke control, engineering machinery, seaport machinery, industrial robots, etc.
Our products have been widely used in injection molding machines, die-casting machines, rubber machines, shoe machines, EVA injection molding machines, blow molding machines, woodworking machinery, hydraulic machinery, liquid level control, suspension stroke control, engineering machinery, seaport machinery, industrial robots, etc.
As a leading sensor manufacturer in China, Miran is confident in keeping our customers ahead. Miran has passed ISO9001-2008, CE, CCC, Rohs certification. We are also proud of the following.
2.Strong R&D and design capabilities.we spentInvest 1 million US dollars every year to develop new technology and new products.We welcome OEM and ODM projects, design and produce customized according to customers' requirements
3.Promise of high quality after rigorous testing.Each product will go throughVibration test, low and high temperature test, EMI regulation test, endurance test and explosion proof test.
4.Excellent sales and after sales service.We are headquartered in Shenzhen and have branches all over China. usAll products are guaranteed for life.We can provide you with competitive perfect products.
Q1: What is the payment term?
A: We accept T/T (bank transfer), Western Union, PayPal, Alipay, WeChat Pay.
Q2: Can I have sample products for testing?
A: Yes, you can buy sample products.
Q3: What is the MOQ?
A: MOQ: 1 piece
Q4: Can you customize products for customers?
A: Yes, we provide OEM customized products, such as logo, extended sensor length, stroke length, customized wiring, connectors.
Q5: What's the delivery time?
A: 3-5 days for standard products. Please confirm with the supplier for customized products.
Q6: How to send the products?
A: By express, such as DHL, FedEx, TNT, UPS, etc.
A: We accept T/T (bank transfer), Western Union, PayPal, Alipay, WeChat Pay.
Q2: Can I have sample products for testing?
A: Yes, you can buy sample products.
Q3: What is the MOQ?
A: MOQ: 1 piece
Q4: Can you customize products for customers?
A: Yes, we provide OEM customized products, such as logo, extended sensor length, stroke length, customized wiring, connectors.
Q5: What's the delivery time?
A: 3-5 days for standard products. Please confirm with the supplier for customized products.
Q6: How to send the products?
A: By express, such as DHL, FedEx, TNT, UPS, etc.
