KTR 5-100mm high-precision linear displacement sensor with self-returning spring
- $18.00 / 1 - 9 pieces
$17.00 / 10 - 19 pieces
$16.00 / 20 - 99 pieces
$15.00 / >=100 pieces - 1 piece
- Jiangxi SOP Precision Intelligent Manufacturing Technology Co., Ltd.
- Jiangxi, China
- Ms Tina L
PRODUCT DETAIL
| payment terms: | L/C, D/P, D/P, T/T, MoneyGram | place of origin; place of origin: | Jiangxi, China |
| port: | Shanghai or any port in China | theory: | Resistive sensor |
| color: | Black | voltage: | 10-30V DC |
| usage: | position sensor | Types of: | Linear Displacement Sensor |
| feature: | Immune to external shock and vibration | accuracy: | 0.25% of full scale |

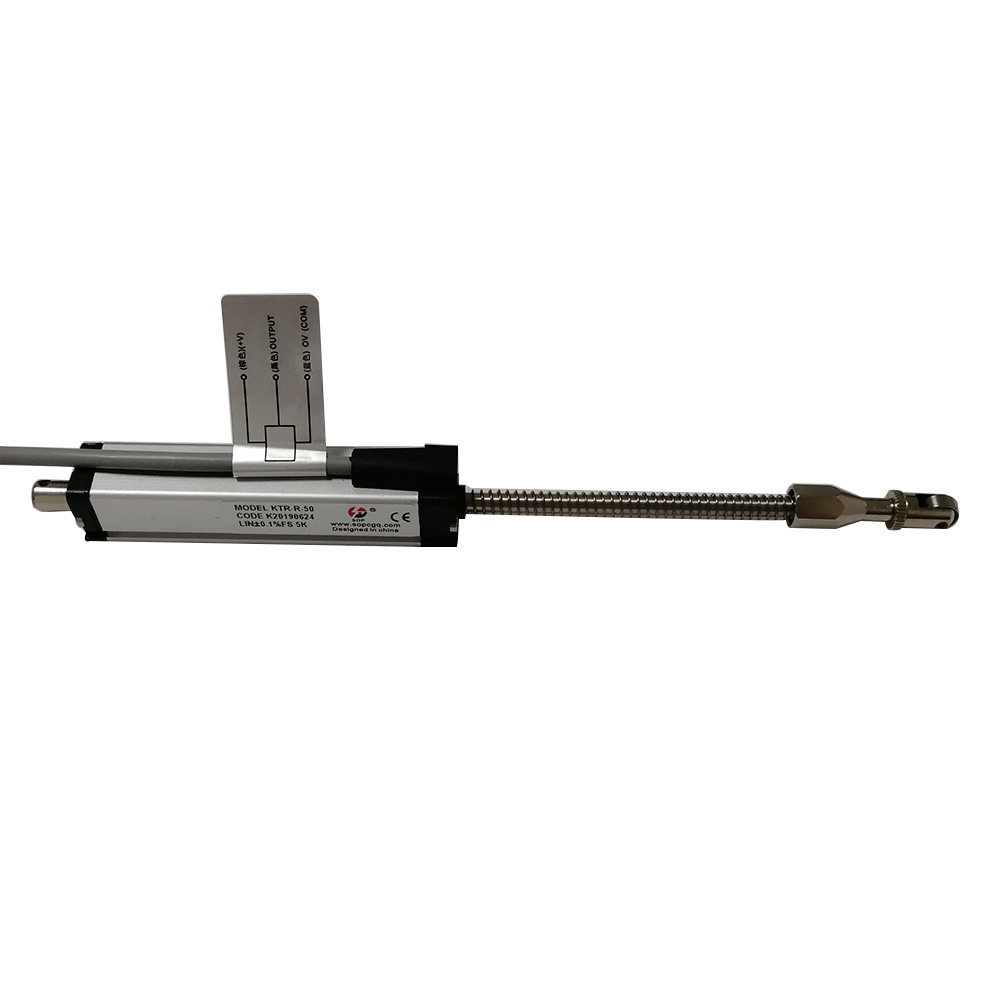

| product name: | KTR linear displacement sensor | model: | KTR-R-50 |
| describe: | KTR linear displacement sensor | brand: | Standard operating procedures |
| Head type: | wheel head | Measuring range: | 0...50mm |
| cross section: | 18mm x 18mm | Electrical connections: | cable outlet |
| Packaging Details: | packed with box | Package preview: | |
| Intellectual property category: | IP65 | output: | simulation |
Product Description

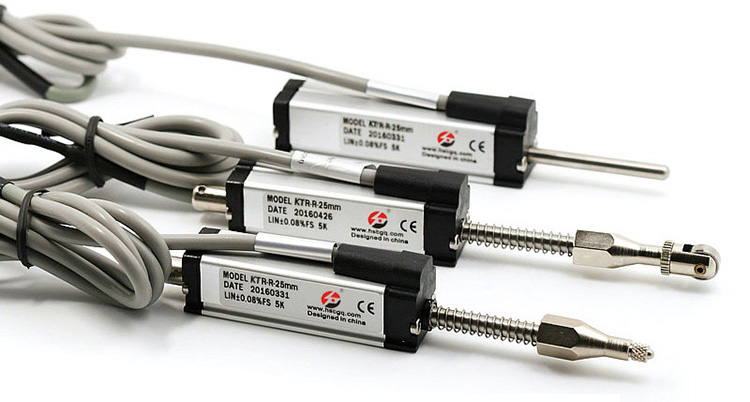

Introduction of KTR series self-restoring linear displacement sensor:
KTR series self-restoring linear displacement sensor, also known as electronic scale, resistance scale, potentiometer, displacement sensor, used forMeasure displacement and length.

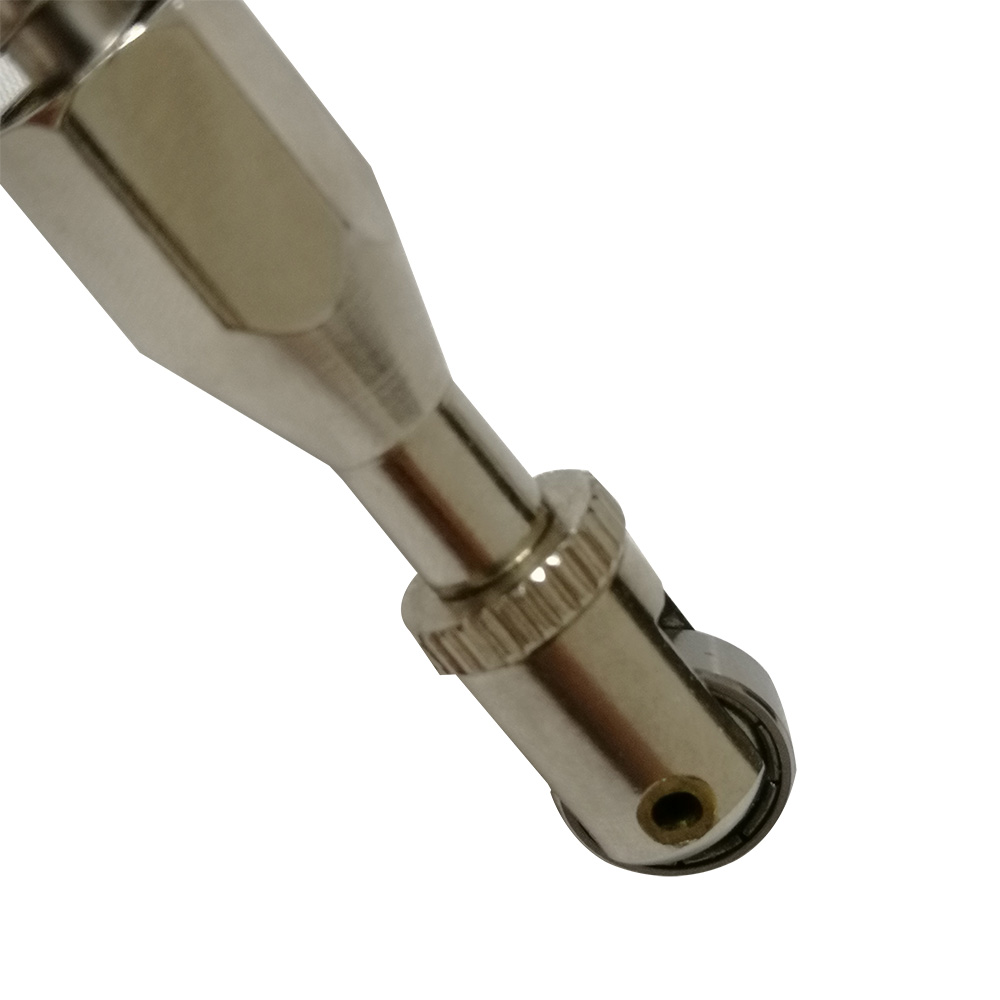

According to different use environments, there are different connectors to choose from, such as sensor heads,wheel head and club head. KTR linear position sensors can be used with integrated signal converters4-20 mAoutput or0-5/0-10 VDCoutput orRS485output.
Features
KTR series self-restoring linear displacement sensor features:
1. Small size, very suitable for places where the installation space is very narrow
2. Not subject to external shock and vibration
3. Probe head, grinding wheel head and rod head are optional
4. Inner spring and outer spring type optional
5. The service life is more than 50 million times
6. Green and black optional
7. Cable length can be customized
Product parameters
Electrical parameters | ||||||||
work plan | 50 | mm | ||||||
electric stroke | 50.5 | mm | ||||||
Resistance | 5K | ohm | ||||||
Resistance Tolerance | 5 | ±% | ||||||
accuracy | 0.25 | ±% | ||||||
repeatability | 0.01 | mm | ||||||
Working current | ≤1 | uA | ||||||
Maximum current | 10 | Well | ||||||
maximum voltage | 42 | V | ||||||
Voltage temperature rise rate | 5 | ppm/K | ||||||
Insulation resistance | ≥10@500V, 1bar, 2s | megohm | ||||||
Insulting intent | ≤100@500VDC,50Hz,2s,1bar | uA | ||||||
Mechanical parameters | ||||||||
Length (A) | 93 | ±2mm | ||||||
Mechanical Travel (MT) | 54.5 | ±2mm | ||||||
net weight | 125 | G | ||||||
horizontal direction | ≤1.1 | no | ||||||

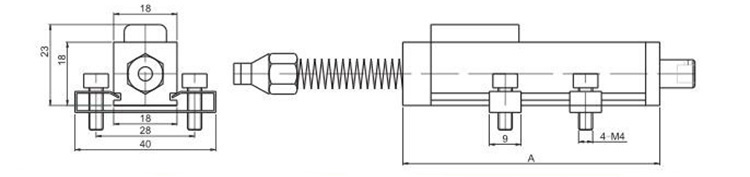

Product Dimensions
detailed drawing
