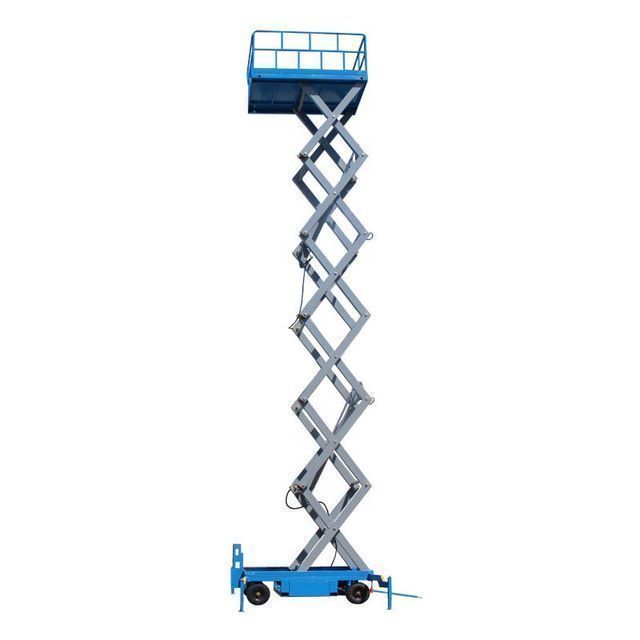

12m scissor lift platform 500kg building elevator construction hoist platform lifting table
- $1200.00 / 1 - 9 sets
$900.00 / >=10 sets - 1 set
- Shanghai Ruibiao Construction Machinery Co., Ltd.
- Shanghai, China
- Ms Angela Cheng
PRODUCT DETAIL
| Lifting speed: | 4-6m/min | After-sales service provided: | Video technical support, online support, free spare parts |
| Supply capacity: | Monthly production of 500 platform lifts | Unique selling point: | long lasting |
| platform: | Anti-skid checkered plate | Material: | high strength steel structure |
| feature: | Simple, safe and convenient operation | Maximum lifting height: | 14m |
| Dimensions (L*W*H): | 2796*1670*1750 | Voltage: | 110v 220v 240v 380v optional |
| State of health: | new | application: | maintain |
| brand: | sharp mark | Packaging Details: | Plywood - 12m scissor lift platform 500kg building lift construction hoist platform lift table |
| Name: | Scissor lift platform construction hoist platform lift table | Lifting time: | 80S |
| Rated load capacity(kg): | 500kg-2000kg | place of origin; place of origin: | China |
| Loader weight: | 2260 kg | Applicable industries: | Hotels, clothing stores, building supplies stores, machinery repair shops, manufacturing plants, food and beverage factories, farms, restaurants, home use, retail, food stores, printing shops, construction, energy and mining, food and beverage stores, advertising agencies |
| payment terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Fence height: | 1000mm |
| color: | Require | usage: | higher level |
| Warranty: | 1 year | port: | Shanghai |
12m scissor lift platform 500kg building elevator construction hoist platform lifting table
Product Description
Lifting tables are mainly used to lift workers to high places for repair, maintenance, cleaning or installation. You can easily move it to the correct working area. Mobile scissor lifts can also be equipped with batteries. With batteries, you don't need to connect to AC power, and you can make the mobile scissors lift and lower in some work areas without power. In addition, this mobile scissor lift can be installed with driven wheels and moved by hand without any hardness.
| |||||
| A.1000kg-2000kg electric scissor lift platform lift | |||||
| Model | capacity (Kilogram) | Lifting height (mm) | minimum height (mm) | platform size (mm) | weight (Kilogram) |
| RBSJY1.0-4 | 1000 | 4000 | 1180 | 2100*1200 | 1250 |
| RBSJY1.0-6 | 1000 | 6000 | 1300 | 2100*1200 | 1400 |
| RBSJY1.0-8 | 1000 | 8000 | 1420 | 2100*1200 | 1585 |
| RBSJY1.0-10 | 1000 | 10000 | 1530 | 2100*1200 | 1700 |
| RBSJY1.0-12 | 1000 | 12000 | 1750 | 2550*1530 | 2560 |
| RBSJY1.0-14 | 1000 | 14000 | 1900 | 2812*1600 | 3230 |
| RBSJY1.5-6 | 1500 | 6000 | 1530 | 2100*1530 | 1780 |
| RBSJY1.5-8 | 1500 | 8000 | 1690 | 2100*1530 | 2070 |
| RBSJY1.5-10 | 1500 | 10000 | 1850 | 2100*1530 | 2250 |
| RBSJY1.5-12 | 1500 | 12000 | 1850 | 2550*1530 | 2900 |
| RBSJY1.5-14 | 1500 | 14000 | 1960 | 2816*1600 | 3400 |
| RBSJY2.0-6 | 2000 | 6000 | 1530 | 2100*1530 | 1780 |
| RBSJY2.0-8 | 2000 | 8000 | 1690 | 2100*1530 | 2070 |
| RBSJY2.0-10 | 2000 | 10000 | 1850 | 2100*1530 | 2250 |
| RBSJY2.0-12 | 2000 | 12000 | 1954 | 2550*1600 | 3200 |
| RBSJY2.0-14 | 2000 | 14000 | 2230 | 2816*1600 | 3900 |
| |||||
| B.300kg-500kg electric scissor lift platform lift | |||||
| Model | capacity (Kilogram) | Lifting height (mm) | platform size (mm) | minimum height (mm) | weight (Kilogram) |
| RBSJY0.5-6 | 500 | 6000 | 2100*830 | 1200 | 880 |
| RBSJY0.5-7 | 500 | 7000 | 2100*830 | 1280 | 1250 |
| RBSJY0.5-8 | 500 | 8000 | 2100*930 | 1380 | 1050 |
| RBSJY0.5-9 | 500 | 9000 | 2100*930 | 1500 | 1165 |
| RBSJY0.5-10 | 500 | 10000 | 2100*1230 | 1530 | 1360 |
| RBSJY0.5-11 | 500 | 11000 | 2100*1230 | 1650 | 1400 |
| RBSJY0.5-12 | 500 | 12000 | 2550*1530 | 1750 | 2260 |
| RBSJY0.5-14 | 500 | 14000 | 2812*1530 | 1810 | 2486 |
| RBSJY0.3-16 | 300 | 16000 | 2812*1600 | 2080 | 3063 |
| RBSJY0.3-18 | 300 | 18000 | 3070*1600 | 2080 | 3900 |
| |||||
| C. Features | |||||
| |||||
| D. Workshop | |||||
| |||||
D. International certification | |||||
| |||||
