Building Construction Hoist SC200/200BZ Single Double Cage Lift for Passengers and Material Good Price Hoist
- $40000.00 /unit
- 1 unit
- Hunan Tant Construction Machinery Imp. And Exp.co., Ltd.
- Hunan, China
- Mr gene dai
PRODUCT DETAIL
| Core Components Warranty: | 1 year | Marketing Type: | New Products 2020 |
| Health status: | new | brand: | Tan |
| Weight (kg): | 1750 kg | Unique Selling Points: | High operating efficiency |
| Lifting speed: | 0-63m/min | port: | Shenzhen Port |
| payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram | Video external inspection: | if |
| application: | Building Construction | Maximum lift height: | 15M |
| Warranty: | 1 year | place of origin; place of origin: | Hunan, China |
| Applicable industries: | construction project | Supply capacity: | 5 units per month |
| Packaging Details: | / | Rated load capacity (kg): | 2 x 2000 kg |
| Showroom location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Vietnam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, Chile, United Arab Emirates , Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Malaysia, Australia | Mechanical test report: | if |
| Key words: | SC200 200 Construction Lift | Core components: | PLC, engine, bearing, gearbox, motor |
| Loader Weight: | 5T |
product description

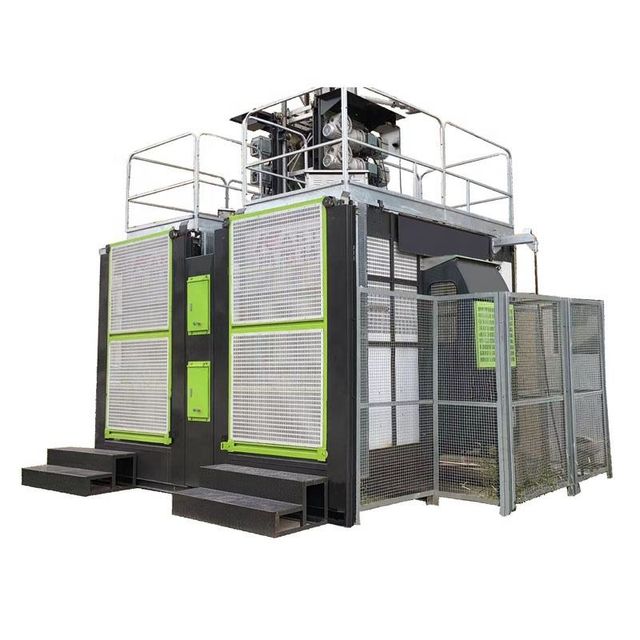

Construction lifts
The transmission system is placed on the top of the cage, which reduces the noise in the cage, increases the clearance of the hanging cage, makes the transmission more stable, and the vibration of the mechanism is smaller. The design without counterweight simplifies the installation process.
Function list
One machine is used for multiple purposes. On the basis of the construction hoist, the steel bar conveying device and the concrete conveying device are installed to convey steel bars.
Concrete and people, greatly improve the construction efficiency.
Concrete and people, greatly improve the construction efficiency.
right façade
left facade
Front view
Product Specifications
Model | Rated Lifting Weight (Kgs) | Motor(Kw) | Anti-fall safety device model | Speed (m/min) | Inverter capacity (Kw) | |||||||
Low-speed construction elevator series | ||||||||||||
single cage | Sc200 | 2000 | 2×15 | SAJ40-1.2 | 0-33 | / | ||||||
Sc200 | 2000 | 2×15 | SAJ40-1.2 | 0-33 | / | |||||||
double cage | Sc200/200 | 2×2000 | 2×2×15 | SAJ40-1.2 | 0-33 | / | ||||||
Sc200/200 | 2×2000 | 2×3×11 | SAJ40-1.2 | 0-33 | / | |||||||
Low-speed frequency conversion construction hoist series | ||||||||||||
double cage | Sc200/200B | 2×2000 | 2×2×15 | SAJ40-1.2 | 0-40 | 2×37 | ||||||
Sc200/200B | 2×2000 | 2×3×11 | SAJ40-1.2 | 0-40 | 2×37 | |||||||
Medium-speed frequency conversion construction hoist series | ||||||||||||
double cage | Sc200/200BZ | 2×2000 | 2×2×15 | SAJ50-1.4 | 0-63 | 2×55 | ||||||
Sc200/200BZ | 2×2000 | 2×3×11 | SAJ50-1.4 | 0-63 | 2×55 | |||||||
Sc200/200BZ | 2×2000 | 2×3×18.5 | SAJ50-1.4 | 0-63 | 2×55 | |||||||
Sales and Service Network

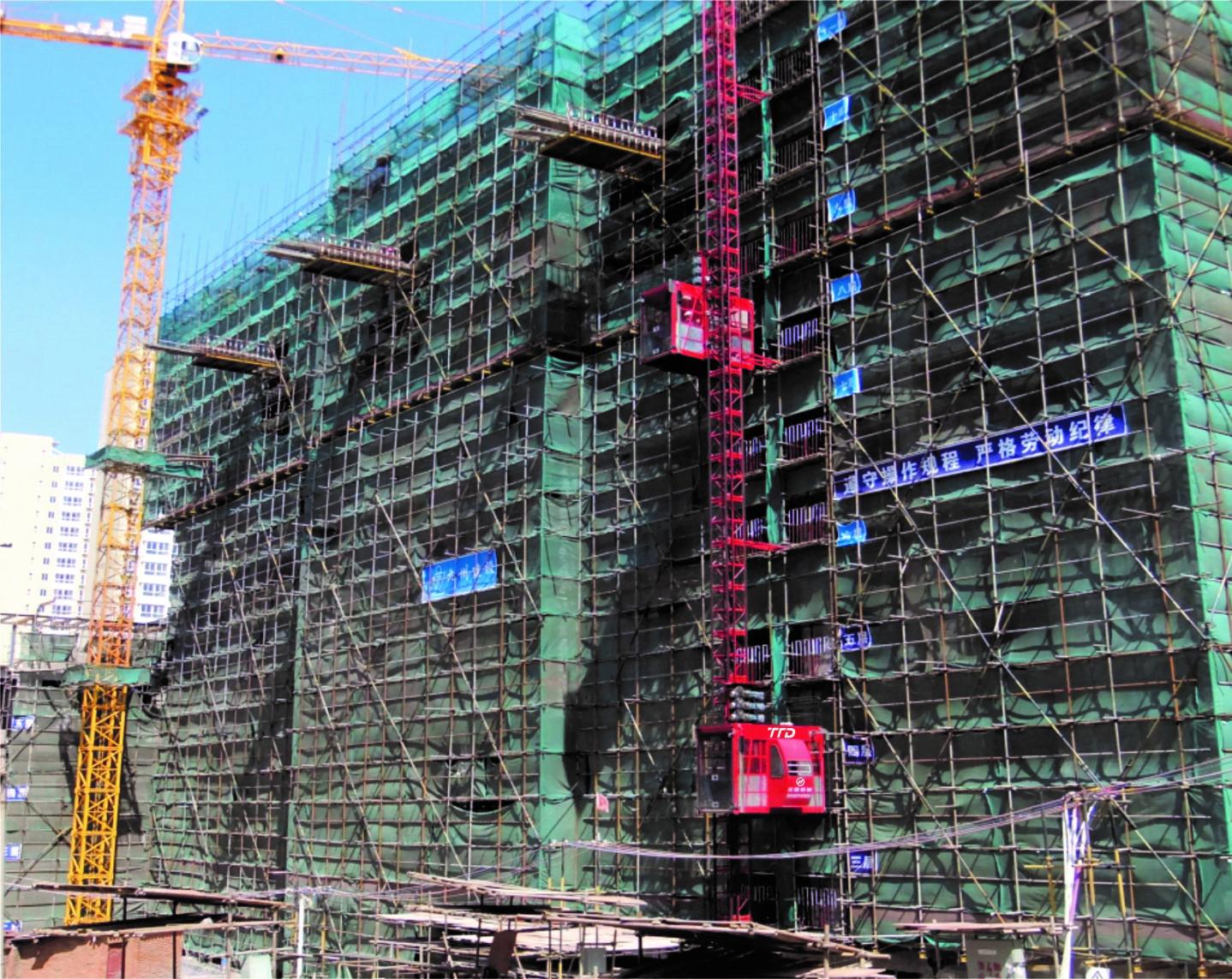

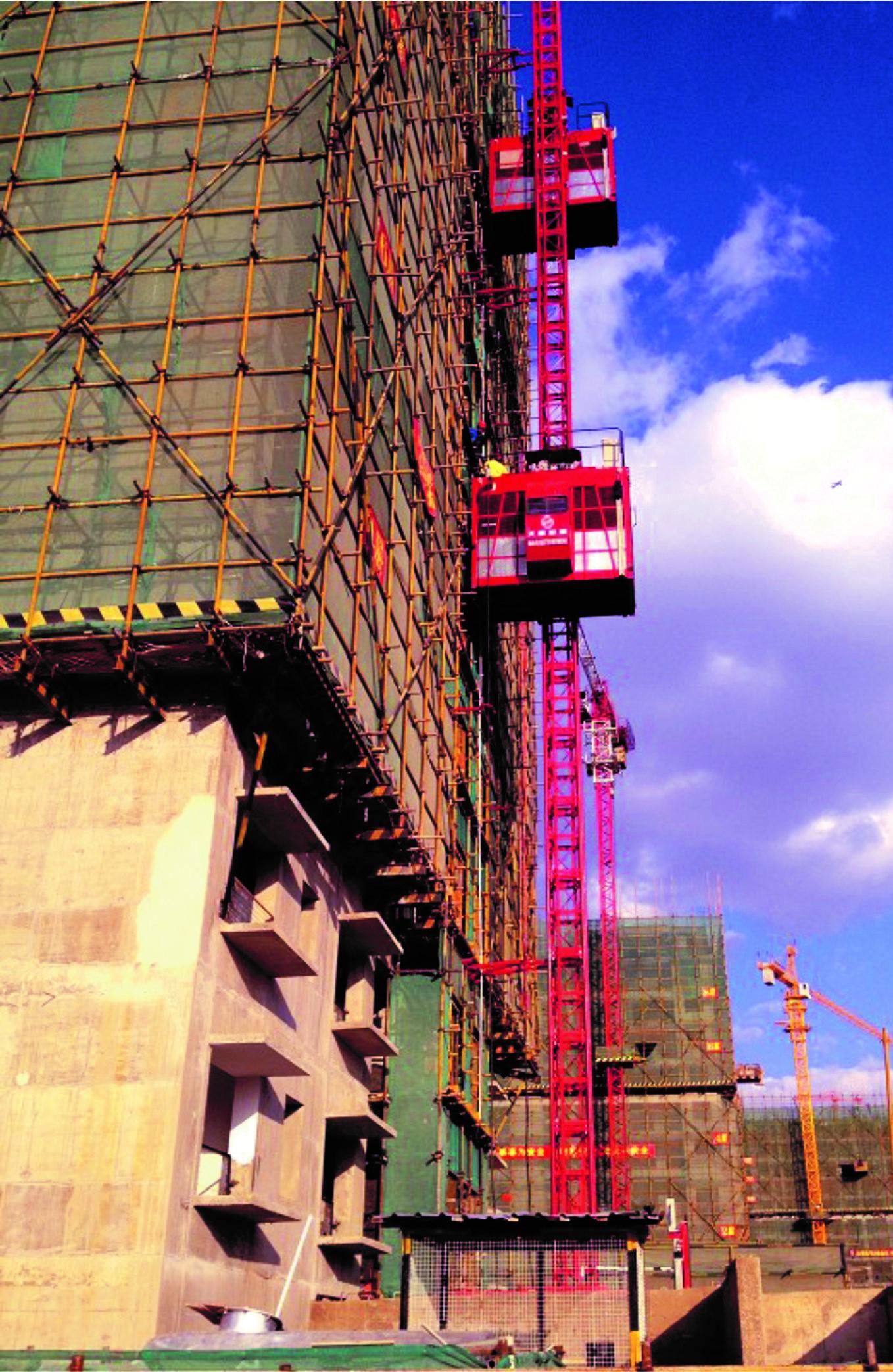

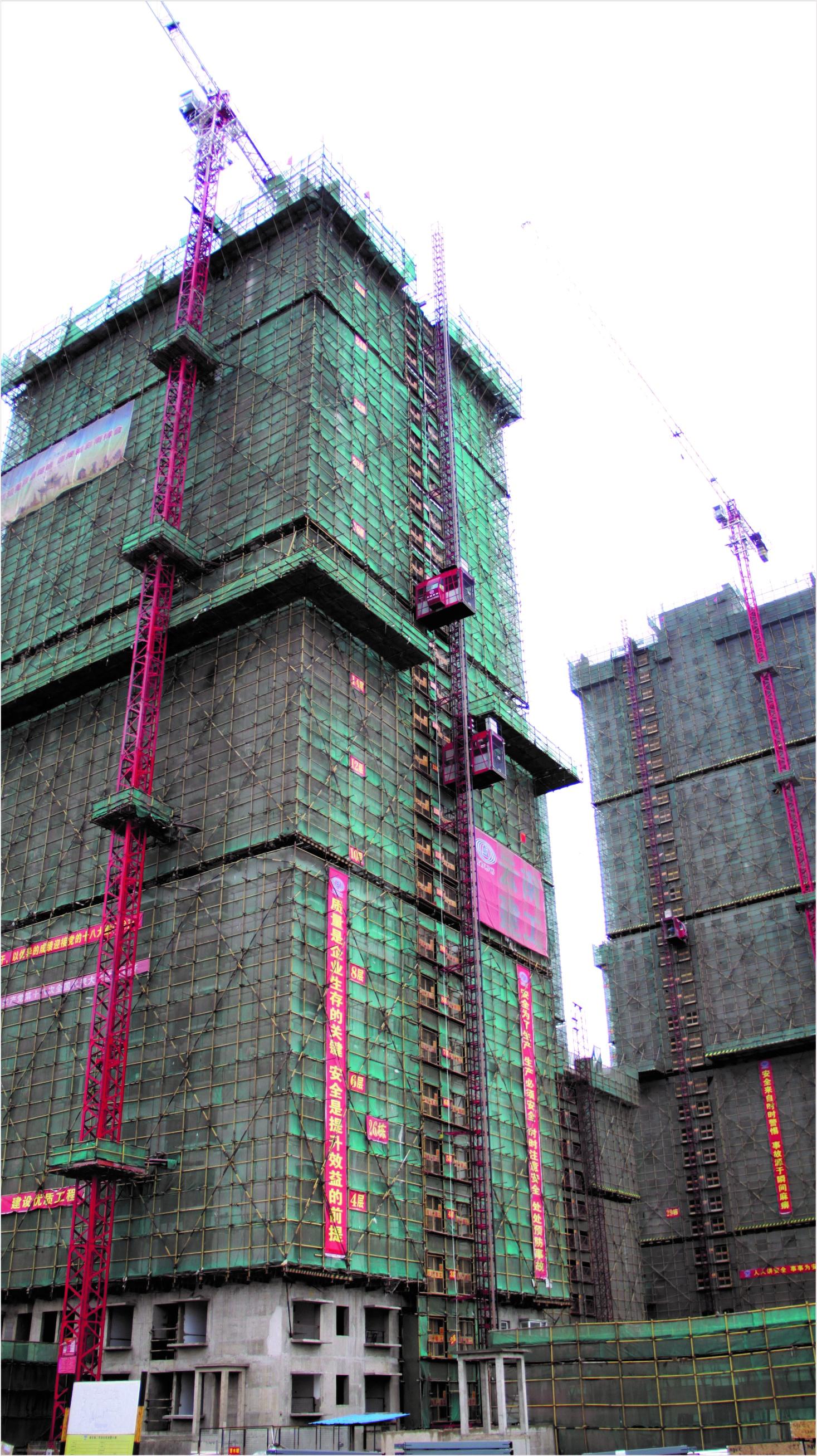

successful project
