Construction elevator drive mechanism Passenger elevator Construction elevator motor
- $15.00 /set
- 1 set
- Beijing Go Higher Construction Machinery Co., Ltd.
- Beijing, China
- Ms Star Yang
PRODUCT DETAIL
| Video external inspection: | if | electronic system: | Schneider Products |
| Packaging Details: | Spare parts carton complete set of suspended platform steel pallet; | Unique Selling Points: | High operating efficiency |
| Maximum lift height: | 400M | Dimensions (L*W*H): | 3*1.5*2.5 |
| Health status: | new | Showroom location: | not any |
| Marketing Type: | normal product | Rated load capacity (kg): | 2000 |
| port: | Qingdao/Tianjin/Shanghai | application: | building construction, bridge |
| color: | optional | brand: | Gog |
| Supply capacity: | 1000 sets per month | After Warranty Service: | Video technical support, online support, spare parts, on-site maintenance and repair services |
| Loader Weight: | 1T/2T/3T/4T | Core Components Warranty: | 3 years |
| Applicable industries: | Hotels, Building Materials Stores, Mechanical Repair Shops, Manufacturing Plants, Construction Engineering, Energy and Mining, Others | Mast part: | 650*650*1508(mm) Weight: 146Kg Q345 |
| Key words: | SC200 200 Construction Lift | Model: | SC200/200, SC300, SC100/100 |
| place of origin; place of origin: | Beijing China | Voltage: | 220V/380V/415V |
| Weight (kg): | 5kg | Motor Power: | 3*11kw |
| Core components: | engine | Mechanical test report: | if |
| payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram | custom made: | acceptable |
| Warranty: | 3 years | Surface treatment: | Powder Coating/Hot Dip |
| After-sales service provided: | Video technical support, online support, free spare parts, on-site installation and commissioning training, on-site maintenance and repair services | Local service location: | not any |
| Lifting speed: | high load moment |
detailed picture
drive
Drive System

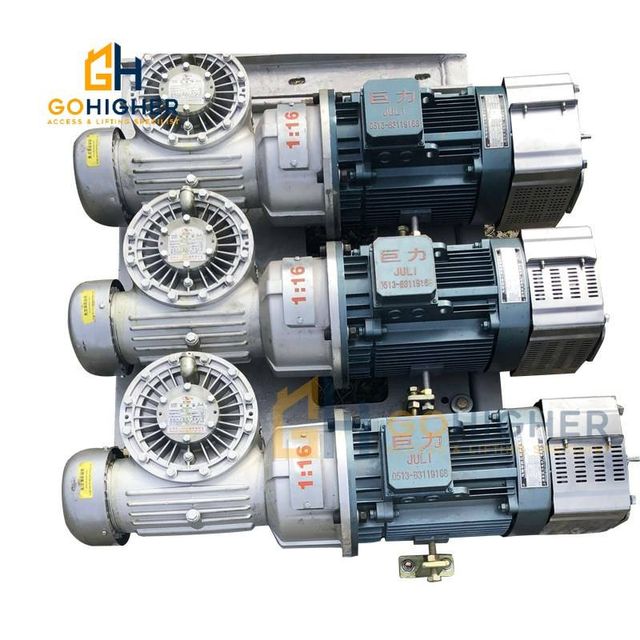

drive motor assembly
Function list
Name | Model | Rated load(kg) | Lifting speed | Type of safety device | Motor power (kw) | Inverter power (kw) |
double cage | 2*2000 | 0~36m/min | SAJ40-1.2 | 2*3*11 | 2*37 | |
2*2000 | 0~40m/min | SAJ40-1.2 | 2*2*11 | 2*37 | ||
2*2000 | 0~53m/min | SAJ50-1.4 | 2*2*13 | 2*45 | ||
2*2000 | 0~63m/min | SAJ50-1.4 | 2*3*11 | 2*75 | ||
2*2000 | 0~96m/min | SAJ50-2.0 | 2*3*18.5 | 2*110 | ||
single cage | SC200 | 2000 | 0~36m/min | SAJ40-1.2 | 3*11 | 37 |
2000 | 0~40m/min | SAJ40-1.2 | 2*11 | 37 | ||
2000 | 0~53m/min | SAJ50-1.4 | 2*13 | 45 | ||
2000 | 0~63m/min | SAJ50-1.4 | 3*11 | 75 | ||
2000 | 0~96m/min | SAJ50-2.0 | 3*18.5 | 110 |
1. Spare parts brands are optional;
2. The working height can be adjusted according to customer needs.
3. The voltage conforms to different national standards
4. Mast part:1) Steel 2) Galvanized
2. The working height can be adjusted according to customer needs.
3. The voltage conforms to different national standards
4. Mast part:1) Steel 2) Galvanized
5. Mast section size: 650*650*1508, 1508*200
Product configuration
wall tie
Cooperate
wall attachment
mast section
mast section
mast section
