1500 Transformer HV Foil Winding Machine

PRODUCT DETAIL

Expansion core shaft diameter:	460-520mm;	CNC or Not:	CNC;
Foil thickness:	Copper foil and aluminum foil 0.2~2.0 mm;	Payment Terms:	L/C,T/T,HV foil winding machine;
Material:	Other;	Warranty:	1 Year;
Showroom Location:	None;	Axial length:	400~1700 mm (not include wires);
Condition:	New;	Core Components:	PLC,Motor;
Machinery Test Report:	Provided;	Video outgoing-inspection:	Provided;
Port:	shanghai;	Warranty of core components:	1 Year;
Packaging Detail:	HV foil winding machine standard packing ,seaworthy packing .;	Coil Type:	Round,Oval,Rectangle;
Inner and External diameter for coil:	150~1000mm;	Coil diameter (Max):	≤ 1000mm;
Applicable Industries:	Manufacturing Plant;	Brand Name:	Trihope;
Coil type:	Round, rectangle;	Place of Origin:	Shanghai, China;
Foil width:	30~450 mm;	Supply Ability:	10 Sets per Month HV foil winding machine;
Weight (KG):	9000;	Coil weight (Max):	1500kg;
Load for loading container:	1500 KG;	Key Selling Points:	Automatic;
After-sales Service Provided:	Engineers available to service machinery overseas;	Marketing Type:	Ordinary Product;

Product information

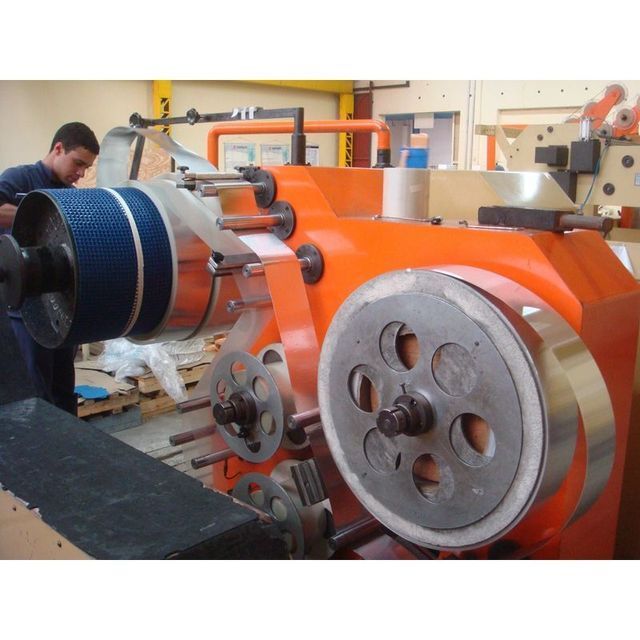

Transformer HV Foil Winding Machine


S.N	Item	Specification
1	Coil range
1.1	Axial length	400~1700 mm (not include wires)
1.2	Inner diameter and External diameter for coil	150~1000mm
1.3	Coil type	Round, rectangle
2	Coil material
2.1	Foil width	30~450 mm
2.2	Foil thickness	Copper foil and aluminum foil 0.2~2.0 mm
F b
2.4	Coil diameter (Max)	≤1000mm
2.5	Expansion core shaft diameter	Or 460-520mm
2.6	Coil weight (Max)	1500kg
3	Decoiler (1 set )
3.1	Effective length of loading container	300 mm,
3.2	Diameter range of of loading container	460~510
3.3	Load for loading container the decoiler ( Max)	1500 KG
3.4	Foil pull force	50-3000 N
3.5	Working method for foil pull force	Electric adjustable
3.6	Centering way(deviation Recertify)	Manual/automatic type
3.7	Expand and contract method of loading container	Manual
4	Winding device (1 set)
4.1	Winding speed	0~150 r/min
4.2	Working torque( Max )	≤2000N.M
4.3	Winding power	18.5 KW
4.4	Speed regulation	Frequency stepless speed regulation
4.5	Winding shaft	70mm,(Can be customized)
5	Welding device (1 set)
5.1	Welding method	TIG ac/dc tungsten argon arc welding machine
5.2	Welding speed	Frequenc control 0~0.7m/min (Stepleess Speed Adjustment)
6	Shearing device (1 set )
6.1	Shearing form	Handheld electric scissors
6.2	Shearing speed	1.5 m/min
