Low Voltage Aluminum / Copper Sheet Transformer Winding Machine
- $55000.00 /set
- 1 set
- Wuxi Haoshuo Technology Co., Ltd.
- Jiangsu, China
- Mr Rene Chen
PRODUCT DETAIL
| Supply capacity: | 10 sets per month | Local service locations: | not any |
| After-sales service provided: | On-site maintenance and repair services, on-site installation, commissioning and training, video technical support, online support, free spare parts | Applicable industries: | manufacturing plant |
| Health status: | new | Showroom location: | not any |
| control: | PLC automatic control | Foil decoiler capacity: | 500-2500kg |
| port: | Shanghai | Main selling points: | competitive price |
| Winding: | Circle/Rectangle | payment terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Place of origin: | Jiangsu, China | Packaging details: | Such machines should be shipped naked and in containers. |
| brand: | easy to say | Rectification: | Photoelectric sensor automatic correction |
| Material thickness: | Copper: 0.2-2.0mm, Aluminum: 0.3-3.0mm | Foil width: | 400-1400mm |
| Record: | 0--9999.9, precision 0.1 | Rewinding diameter: | 130-1000 |
| Warranty: | 1 year | Correction accuracy: | ±0.5(mm) |
| Cutting type: | Electric roll cutter | Material: | other |
| Post-warranty service: | Online support | Weight (kg): | 8000 |
| Whether CNC: | CNC system |
Product Description
This transformer low-voltage foil winding machine is suitable for transformer windings of 1KV and above. This machine can laminate and rewind two layers of copper foil or aluminum foil. The machine is equipped with a welding device and two shearing machines. All production parameters are set on the human-machine interface, and the machine works fully automatically.
If you are looking for transformer foil winding machine or any other transformer machine, please feel free to send us an inquiry!

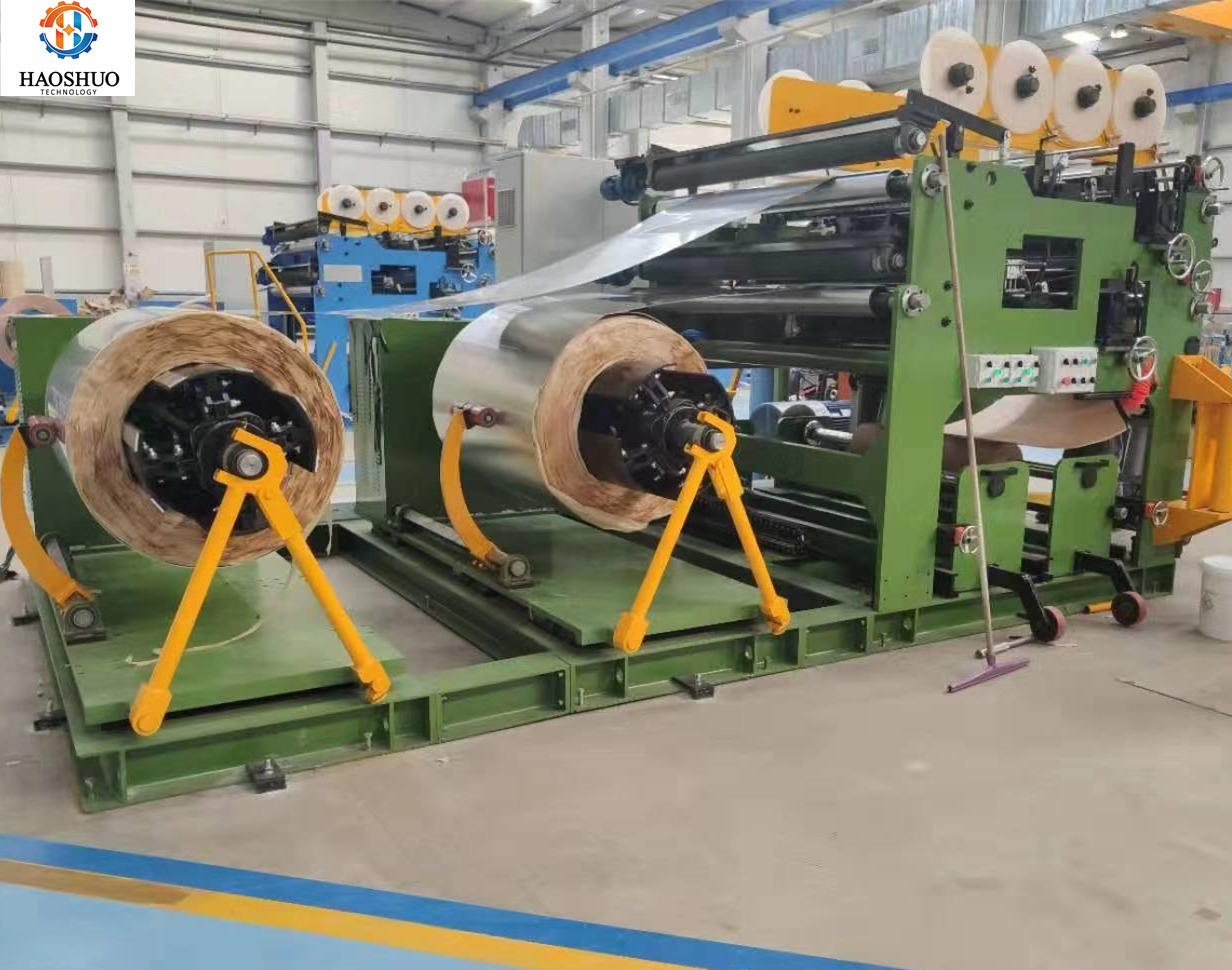

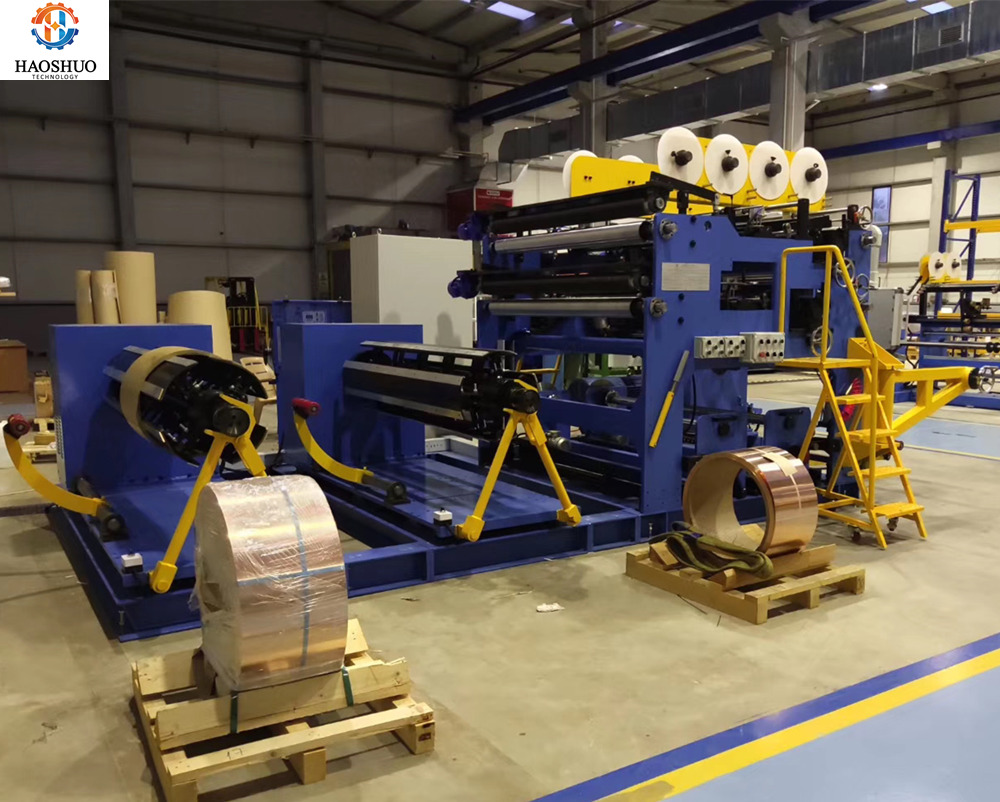

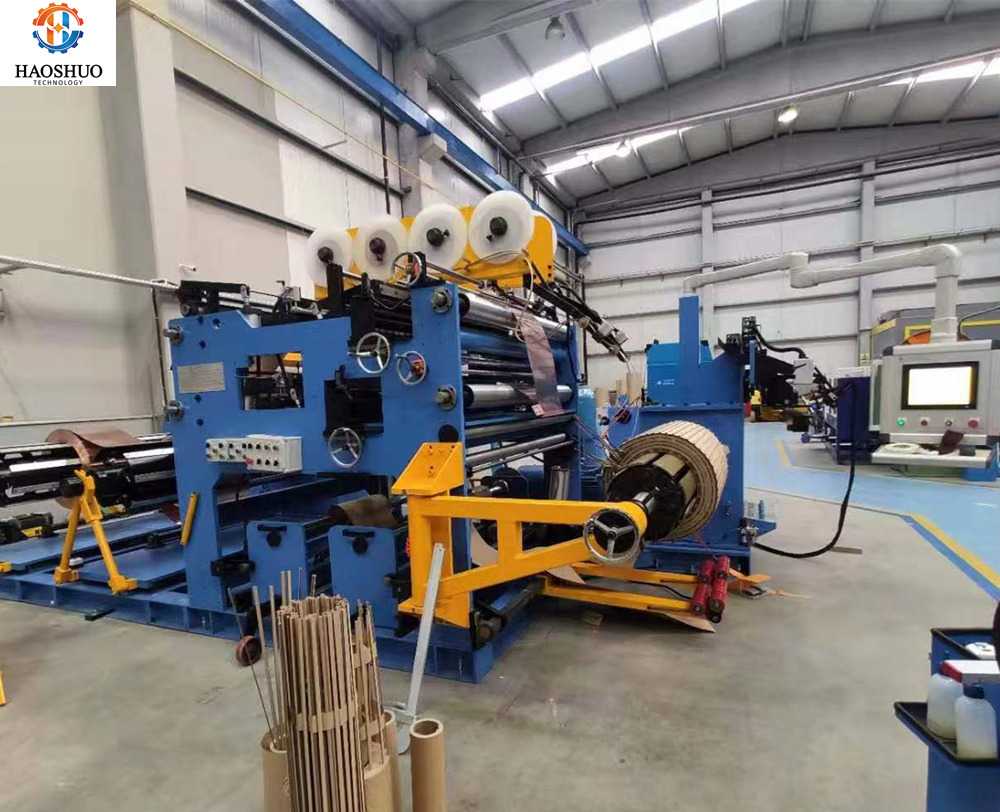

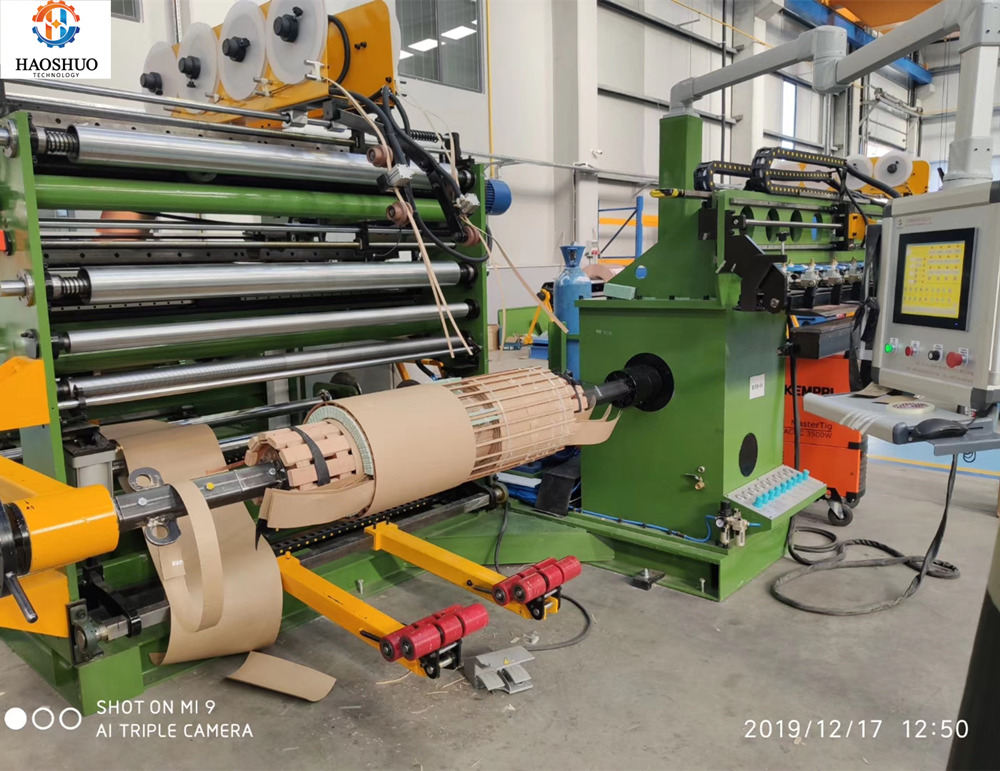

detailed image
scope technical | BRJ400-2 | BRJ600-2 | BRJ800-2 | BRJ1000-2 | BRJ1400-2 | ||||
foil width | 400mm | 600mm | 800mm | 1000mm | 1400mm | ||||
Winding diameter | Φ130-600 | Φ130-800 | Φ130-800 | Φ130-1000 | Φ130-1000 | ||||
Winding type | Circle/Rectangle | ||||||||
Material thickness | Copper: 0.2-2.0mm, Aluminum: 0.3-3.0mm | ||||||||
Foil uncoiler capacity | 500kg | 1000kg | 1500kg | 2000kg | 2500kg | ||||
Winding power | 11 kilowatts | 11 kilowatts | 11 kilowatts | 15kW | 22kW | ||||
Winding speed | 0-30 rpm | 0-26 rpm | 0-24 rpm | 0-20 rpm | 0-18 rpm | ||||
Welding type | argon arc welding | ||||||||
cutting type | Electric roll cutter | ||||||||
Interlayer insulation width | ≤450mm | ≤650mm | ≤850mm | ≤1050mm | ≤1450mm | ||||
Insulation diameter | φ76-400mm | φ76-400mm | φ76-400mm | φ76-400mm | φ76-400mm | ||||
Rectify | Photoelectric sensor automatic correction | ||||||||
Correction accuracy | ±0.5mm | ±0.5mm | ±0.5mm | ±0.5mm | ±0.5mm | ||||
control | PLC automatic control | ||||||||
Record | 0--9999.9, precision 0.1 | ||||||||
