2.54mm slide 2 way piano type dip switch
- $0.01 / >=100 pieces
- 100 pieces
- Shenzhen Eker Electronic Co., Ltd
- Guangdong, China
- Ms Strawberry J
PRODUCT DETAIL
| Temirnal: | Thru-Hole Piano Style; | Color: | Red & Blue; |
| Place of Origin: | Guangdong, China; | Manufacturing Experience: | Free sample is available; |
| Packaging Detail: | 2 way piano type dip switch Packed by tube @71pcs/tube; | Actuator: | Raised; |
| Pitch: | 2.54mm; | Max. Current: | 100mA; |
| Model Number: | DPL02 2 way piano type dip switch; | Item Name: | 2.54mm slide 2 way piano type dip switch; |
| Electrical life: | 2000cycles min; | Brand Name: | Eker; |
| Positions: | 2 pos; | Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram,Paypal; |
| Certification: | RoHS,RoHS; | Max. Voltage: | 50VDC; |
| Circuit: | SPST; | Supply Ability: | 100000 Pieces per Month 2 way piano type dip switch; |

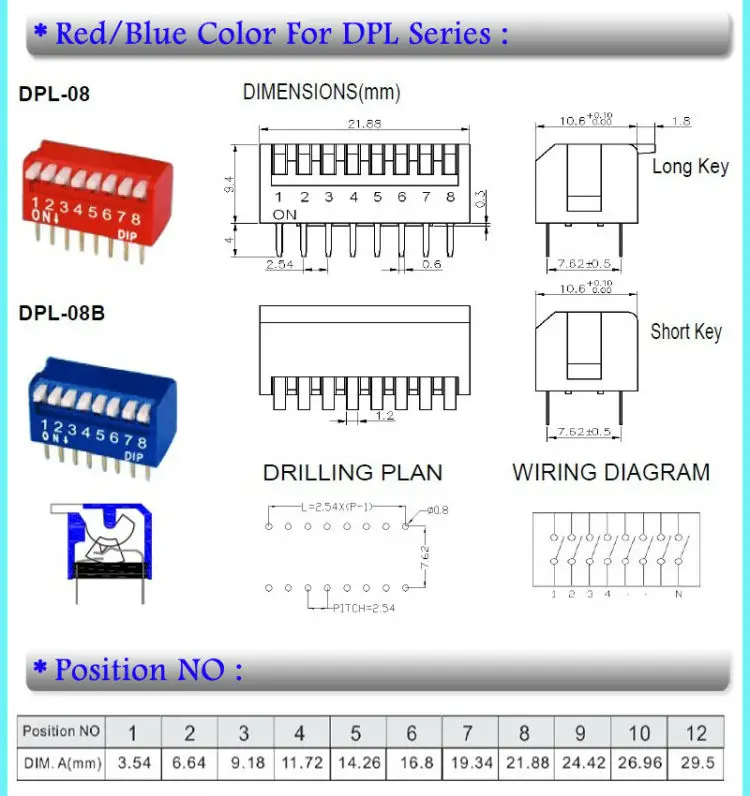

2.54mm slide 2 way piano type dip switch

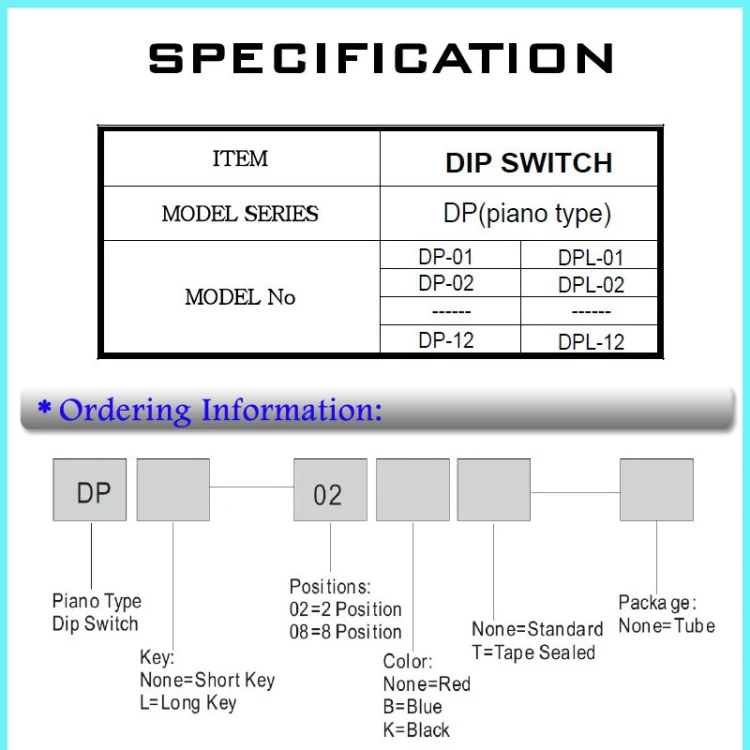

| Specifications : | |
| 1).Operation Force | 400gf max. |
| 2).Stroke | 2.00mm |
| 3).Operation Temp | -20deg C to 70deg C |
| 4).Storage Temp | -40deg C to 85deg C |
| 5).Positions | 2 |
| Electrical: | |
| 1).Electrical Life | 2000 operations cycles |
| 2).Switching rating | 25mA, 24VDC |
| 3).Contact Resistance | 50mOhms max. at initial;100mOhms max.after life test. |
| 4).Insulation Resistance | 100MOhms,500VDC |
| 5).Dielectric Strength | 500VAC/1 minute |
| 6).Circuit | SPST |

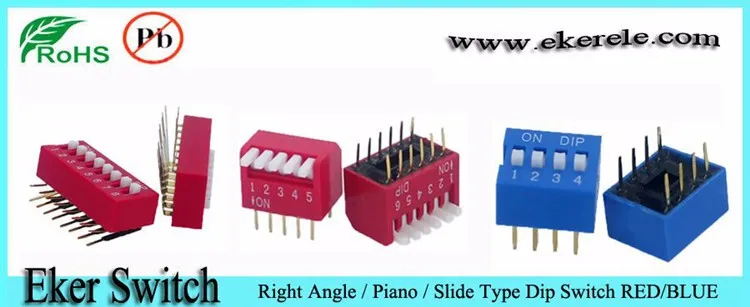

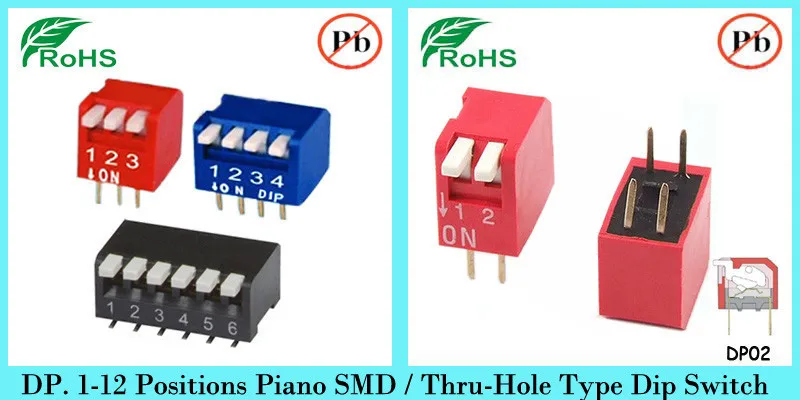

2 way piano type dip switch
- Through hole and surface mount DIP Switch
- From 1 to 12 positions
- Actuators all in "OFF" position
- Tube packaging
2.54mm slide 2 way piano type dip switch
More About Eker Switch.
- 1.25 Years' experience of Manufacture.
- 2.Variety of Designs, Provide Professional & Original Fashionable Designs, with more than thousand designs.
- 3.Original manufacturer with direct factory price, Competitive & Fashionable.
- 4.High Standard management for quality control.
- 5.Small order acceptable: 1000pcs are welcome.
- 6.Safe payment terms: T/T, Western Union, Paypal are available.
- 7.Prompt Delivery & Lowest shipping cost : We can get low discount for the freight .
- 8.OEM available, Customers' designs are warmly welcome.
- 9.Excellent Service.
FAQ:
Q: Can I get free sample for test before place an order?
A: Yes, we offer FREE SAMPLE for you test.
Q: Does your company accept small order?
A: Yes, we accept small trial order.
Q: Does your company accept online order?
A: Yes, we accept Trade Assurance Online Order and Secure Payment Online Order, they will keep you money in safe.
Q: How can I do if there is some problem with the goods?
A: You can ask for FULL REFUND if there is any quality problems with our products, except human factors.
