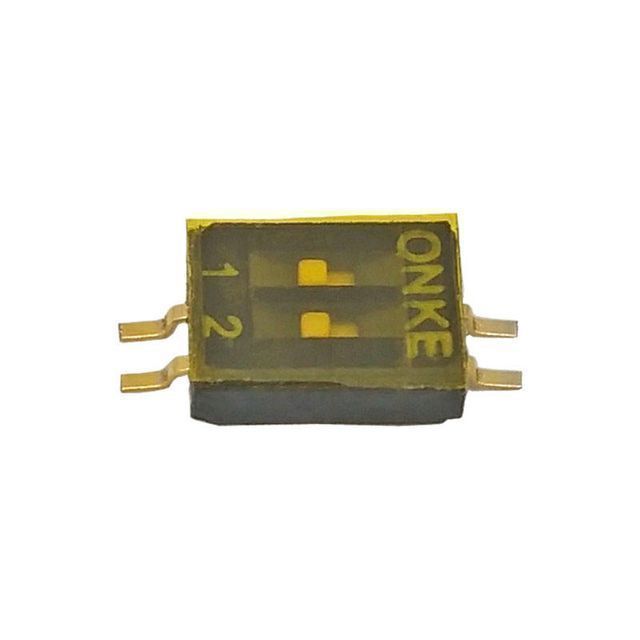

SPST 2 POS SMD Slide DIP Switch 1.27mm Pitch Gold Plated
- $0.18 / >=2000 pieces
- 2000 pieces
- Shenzhen Eker Electronic Co., Ltd
- Guangdong, China
- Ms Strawberry J
PRODUCT DETAIL
| terminal type: | SMT patch S lead | Electrical life: | 2000 cycles |
| project name: | SPST 2 POS SMD Slide DIP Switch 1.27mm Pitch Gold Plated | Embedded executor: | tape seal |
| circuit: | SPST | 1.27mm DIP switch stroke: | 0.6mm |
| Job ID: | 2 digits | maximum. current: | 100mA |
| Supply capacity: | 1000000pcs per month 2 POS SMD DIP Switch 1.27mm | Package preview: | |
| model: | HDS-02-TR 2 POS patch dial switch 1.27mm | brand: | Eckel |
| port: | Shenzhen | payment terms: | Western Union, T/T, Paypal |
| Origin: | Guangdong, China | Packaging Details: | 2 POS SMD DIP Switch 1.27mm 2000pcs/reel |
| maximum. Voltage: | 50VDC | Switch Rating: | 24VDC 25mA |
| Certification: | RoHS Directive | asphalt: | 1.27 mm |
| Operating temperature: | -30°C to +85°C |
SPST 2 POS SMD Slide DIP Switch 1.27mm Pitch Gold Plated
This 1.27mm miniature micro-dip switch is used in garage door opener, telecommunications, test and instrumentation, and controller applications, among others.
advantage:
- • Half Pitch Surface Mount DIP Switches
- • 1 to 12 positions, optional top tape seal

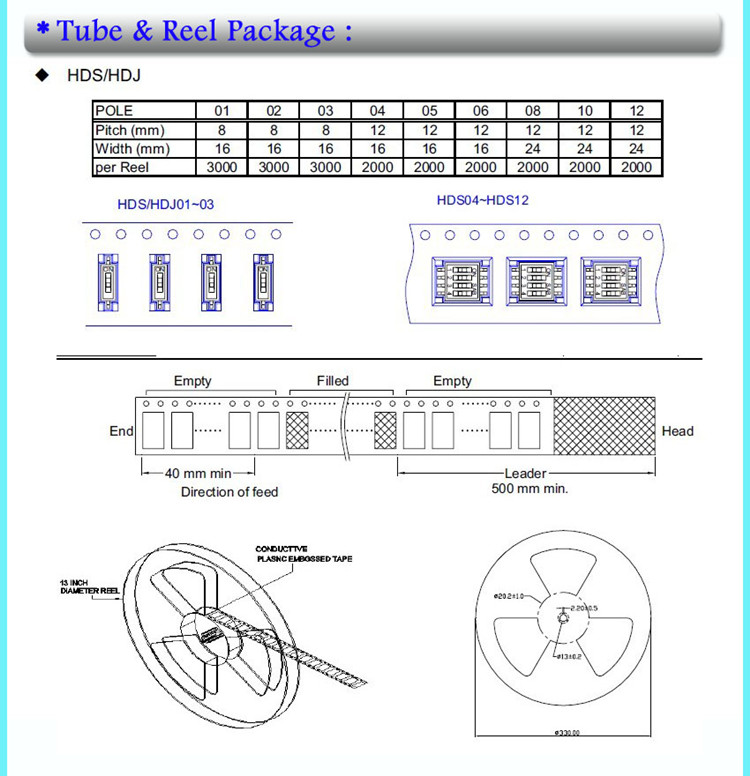

- • Tube or tape and reel packaging
- • Welcome OEM&ODM
Product Description
| type | Half pitch 1.27mm |
| model | HDS-02-TR |
| terminal | SMT/SMD S-leads |
| Action force | Maximum 1000gf |
| Electrical life | 2000 cycles |
| Operating temperature | -40℃ ~ +85℃ |
|
Switching/Non-switching Ratings |
24VDC 25mA; 50VDC 100mA |
|
Vacancies |
1, 2, 3, 4, 5, 6, 8, 10, 12 |
|
Install |
PCB surface mount |
If you need more information on smd mini dip switches, please contact us for a data sheet.
Specification
our service
After-sales 24 hours * 7 days!

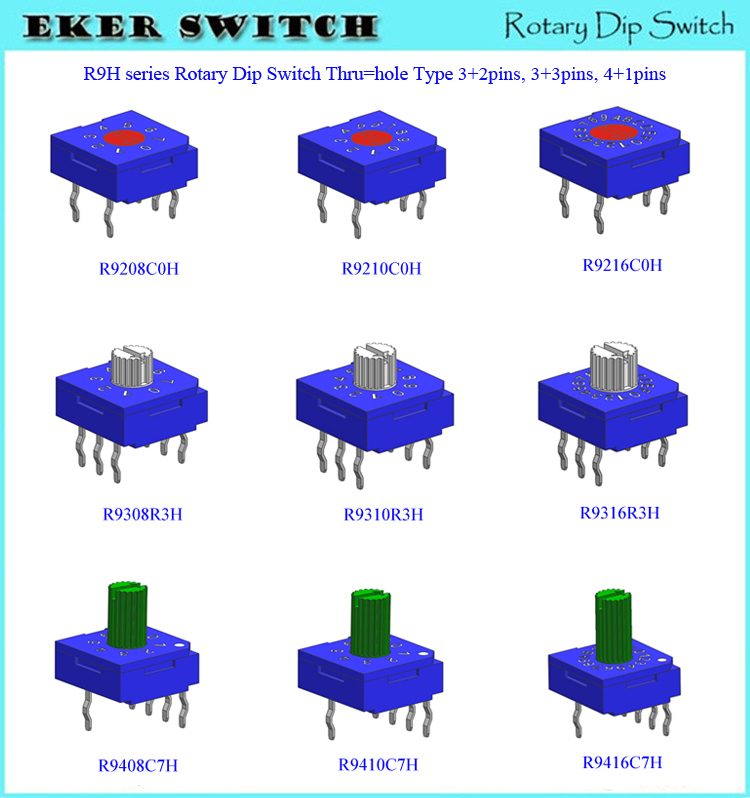

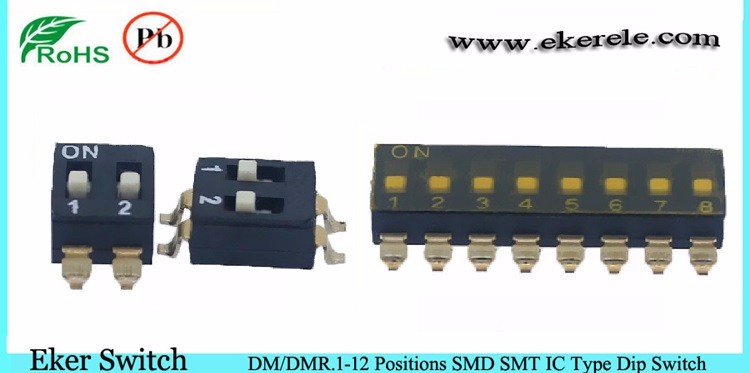

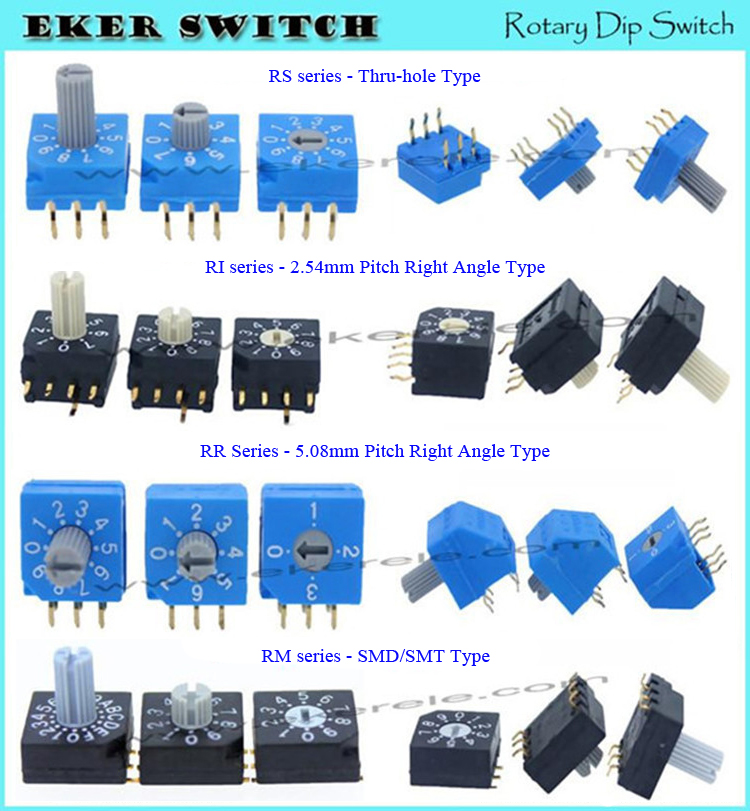

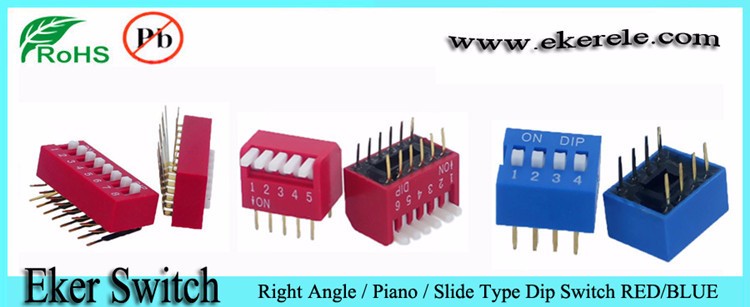

Other types of switches:
