DIP Switch Series, Slide Type, 25 mA 24V DC 2 to 10 Poles
- $0.30 / >=1000 pieces
- 1000 pieces
- SUPERTECH ELECTRONIC CO., LTD.
- Taiwan, China
- Ms Supertech Supertech
PRODUCT DETAIL
| Packaging Preview: | maximum. Voltage: | - | |
| payment terms: | Western Union, Wire Transfer, Paypal | port: | Taiwan port |
| brand: | S'TECH | maximum. current: | - |
| Supply capacity: | 5000000 pieces/month | Packaging Details: | carton |
| Certification: | RoHS | Shipping method: | DHL\UPS\Fedex\EMS\TNT |
| place of origin; place of origin: | Taiwan | model: | SWIT-NDS |

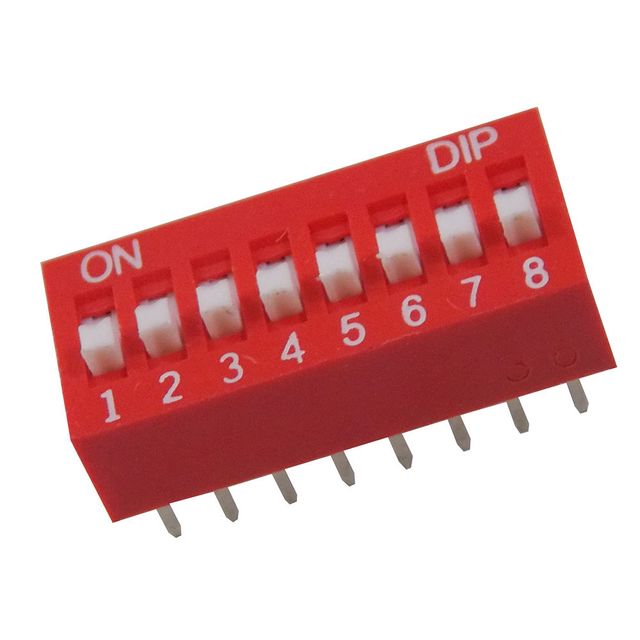

DIP Switch Series, Slide Type, 25mA 24V DC 2 to 10 Poles
Number of poles:1-10, 12
Product Description
feature:
slide
Both ON/OF positions are suitable for welding processes
High reliability gold contacts
Red, blue and black options
application:
industrial control
Computers and Peripherals
Multiple function control

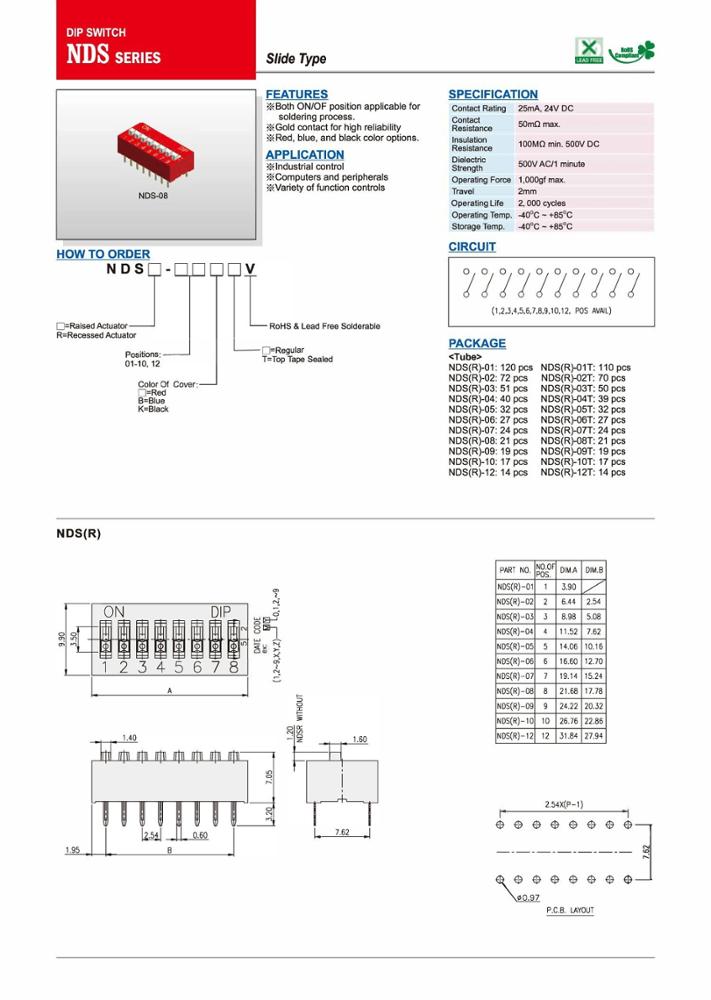

Specification:
Contact Rating: 25mA, 24V DC
Contact resistance: 50mΩ max
Insulation resistance: 100MΩ min. 500V DC
Dielectric Strength: 500V AC/1min
Operating force: up to 1000gf
Stroke: 2mm
Service life: 2,000 cycles
Operating temperature: -40 to +85°C
Storage temperature: -40 to +85°C
