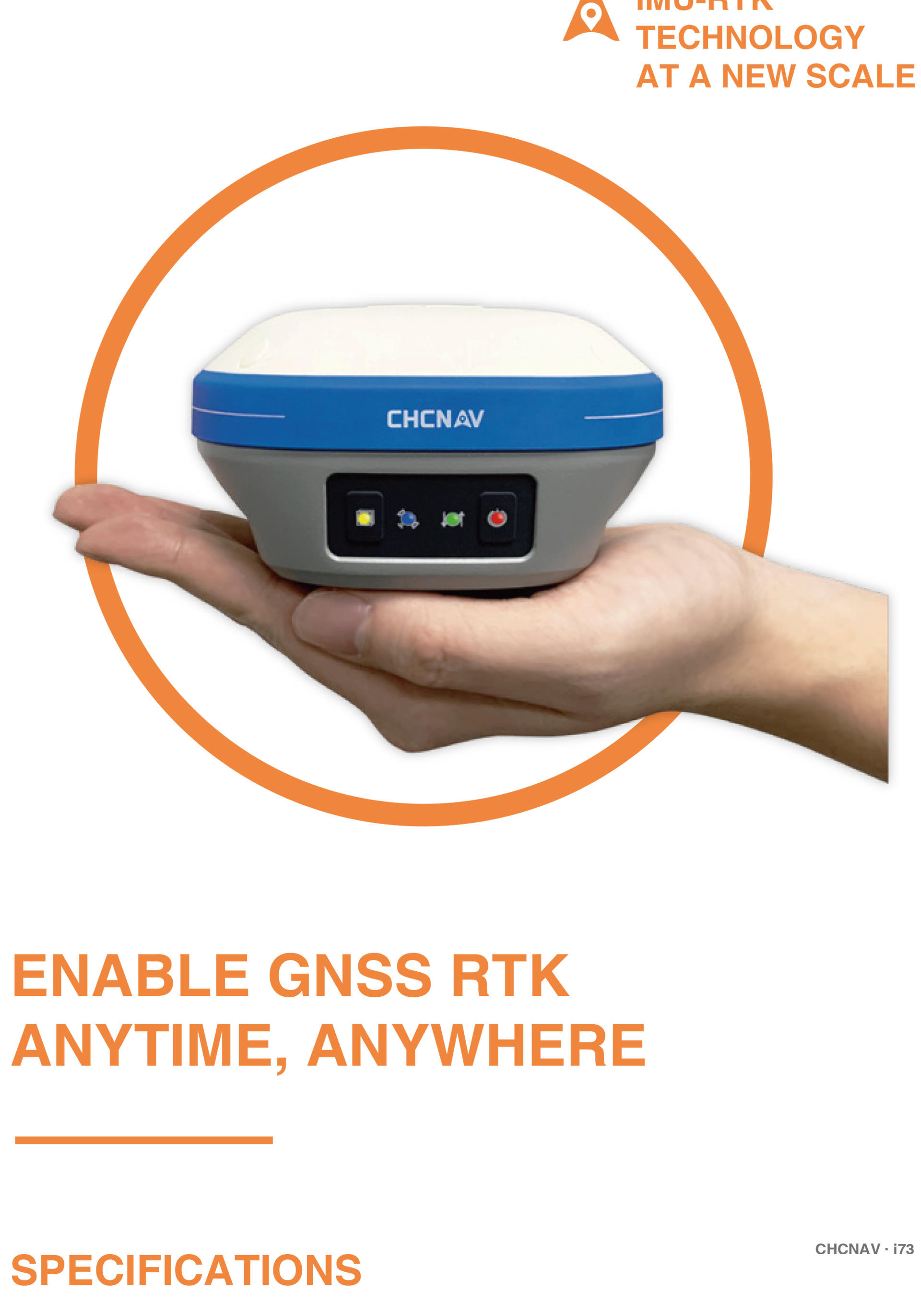

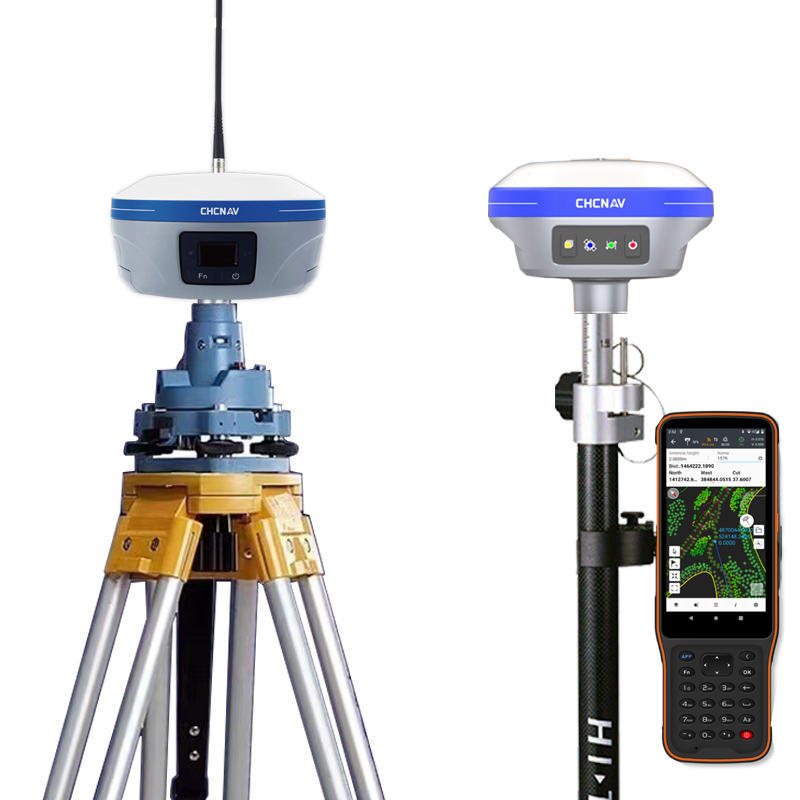

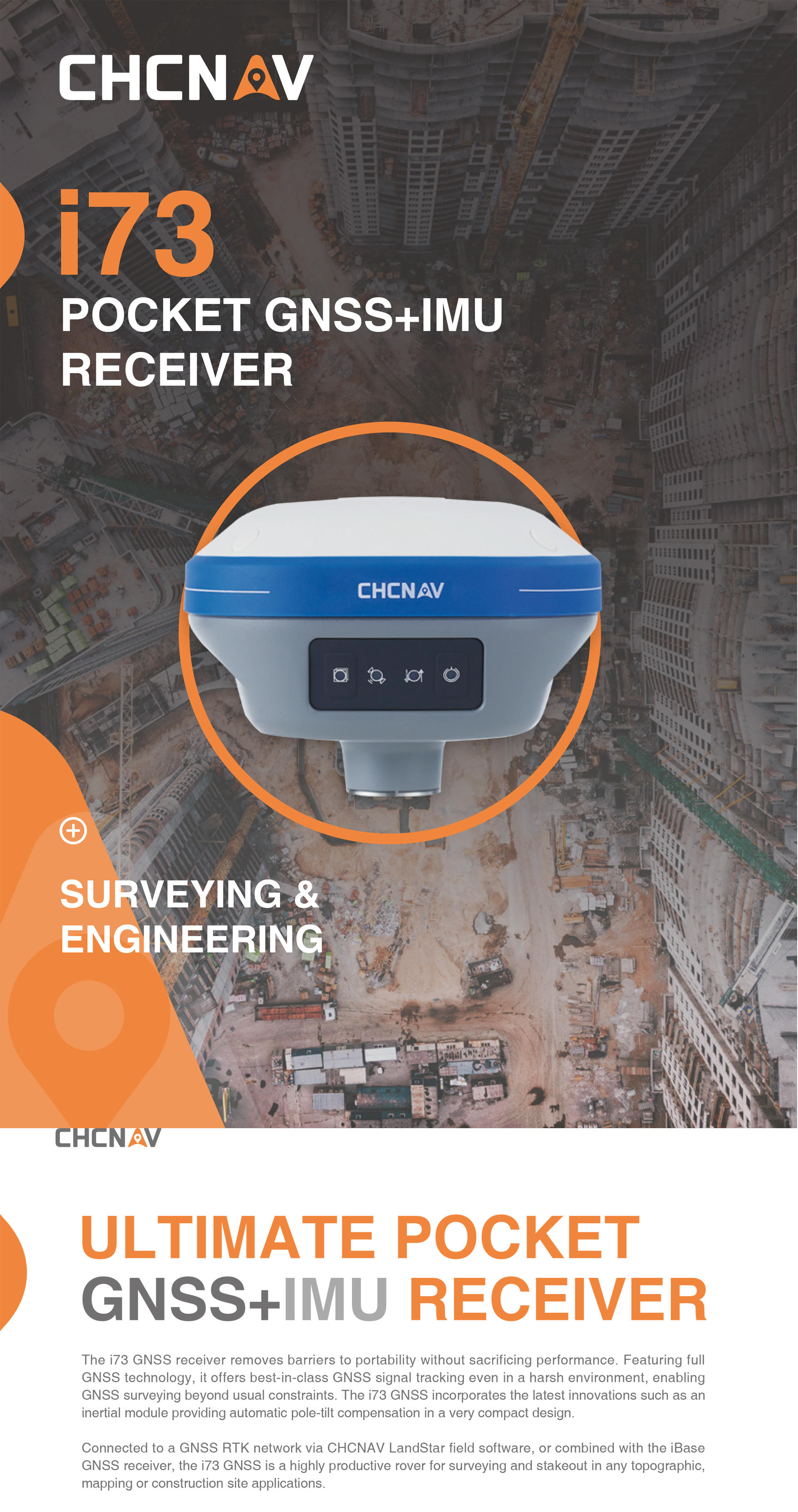

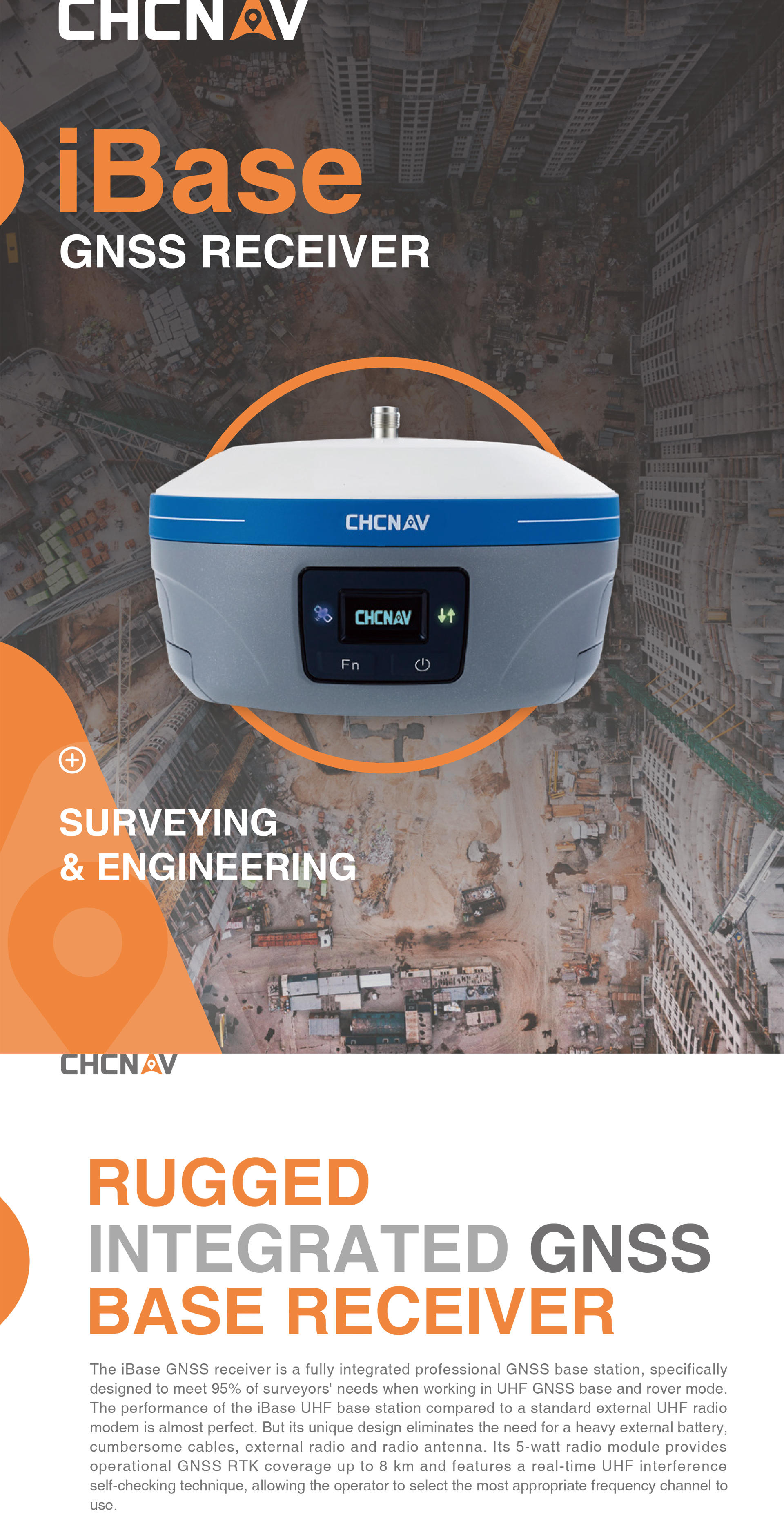

CHCNAV i73+ IMU ibase RTK high precision GPS GNSSGPS RTK surveying and mapping equipment GNSS
- $3400.00 / 1 - 2 sets
$3300.00 / 3 - 4 sets
$3200.00 / >=5 sets - 1 set
- Chengdu Mingjun Trading Co., Ltd.
- Sichuan, China
- Mr cao
PRODUCT DETAIL
| Sales unit: | single product | Customization support: | OEM production |
| brand: | CNAC | Single package size: | 56X35X46 cm |
| Gross weight per piece: | 12.000 kg | model: | chc i73 GNSS receiver |
| Glonass: | G1 G2 P1 P2 | Global Positioning System: | L1/L2/L5 |
| accuracy: | 1 cm | channel: | 624 |
| communicate: | Wifi | place of origin; place of origin: | China Shanghai |
| type: | GPS receiver | Warranty: | 1 year |
| application: | land survey |

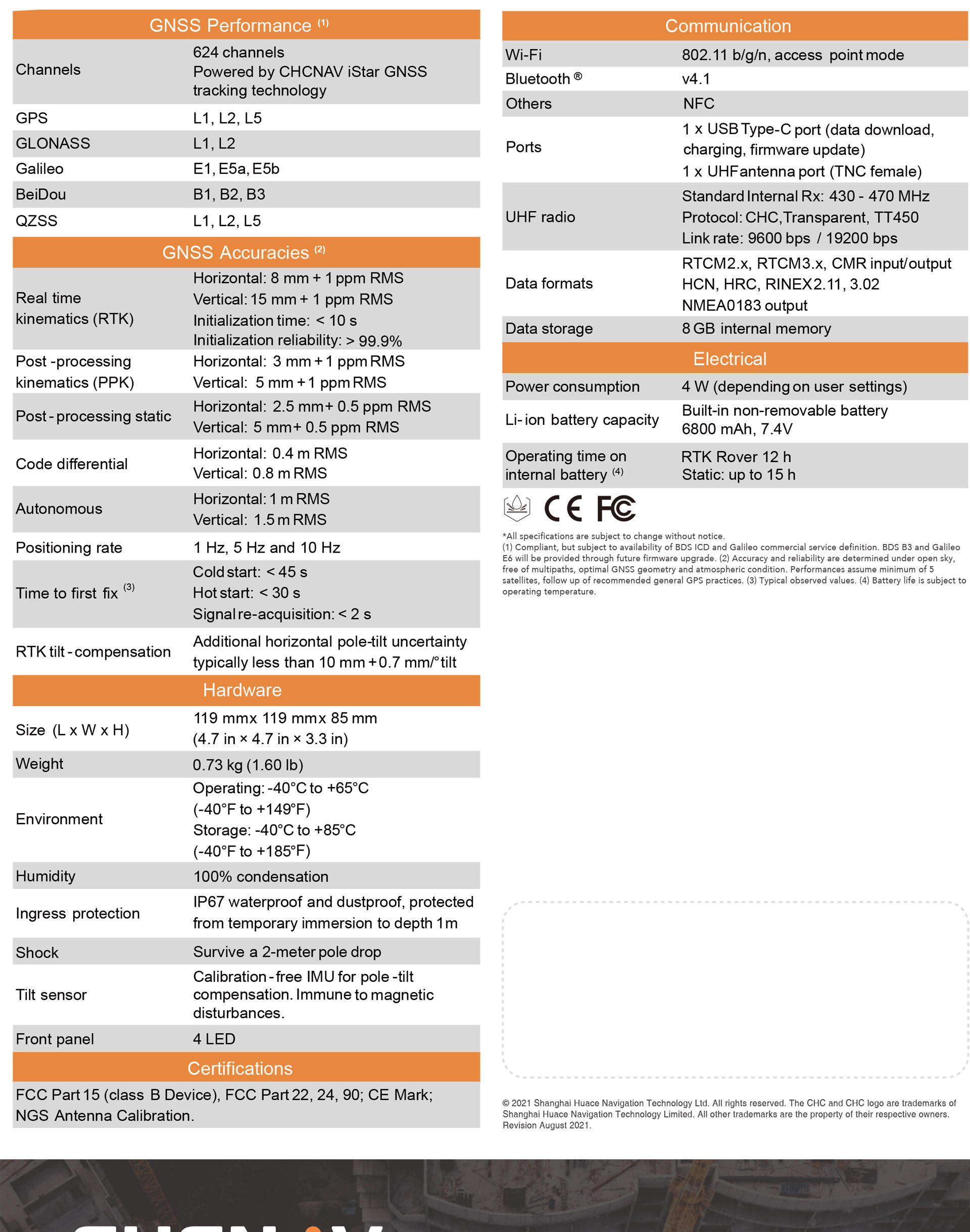

Specification
project | content | scope |
Receiver Characteristics | satellite tracking | GPS+BDS+Glonass+galileo+QZSS, support Beidou three-generation satellites, support five-star sixteen-frequency |
operating system | operating system | |
number of channels | 624 channels | |
initialization time | <5 seconds (typical) | |
initial reliability | >99.99% | |
Receiver Appearance | button | 1 dynamic/static switching key, 1 power key |
indicator light | 1 differential signal light, 1 satellite light, 1 static data acquisition light, 1 power light | |
Nominal accuracy | static precision | Plane accuracy: ±(2.5+0.5×10-6×D)mm |
Elevation accuracy: ±(5+0.5×10-6×D) mm | ||
RTK accuracy | Plane accuracy: ±(8+1×10-6×D)mm | |
Elevation accuracy: ±(15+1×10-6×D)mm | ||
Stand-alone precision | 1.5m | |
Code difference accuracy | Plane accuracy: ±(0.25 + 1×10-6×D) m | |
Elevation accuracy: ±(0.5+1×10-6×D)m | ||
GNSS+ inertial navigation | inertial measurement unit | 200 Hz |
slope | 0~60° | |
Tilt Compensation Accuracy | 10mm+0.7mm/°tilt (accuracy within 30°<2.5cm) | |
Electrification parameter | Battery | Built-in 6800mAh lithium battery, supporting 15 hours of battery life for mobile stations |
external power supply | Support USB interface external power supply | |
physical properties | Dimensions (L*W*H) | 119mm*119mm*85mm |
weight | 0.73 kg | |
Material | Magnesium alloy AZ91D body | |
Operating temperature | -45℃~+75℃ | |
Storage temperature | -55℃~+85℃ | |
Waterproof and dustproof | IP68 rating | |
Shock Shock | IK08 level | |
Anti-fall | Anti-2 meters free fall | |
data output | output format | NMEA 0183, binary code |
output method | BT/Wi-Fi/Radio | |
static storage | storage format | Can directly record HCN, HRC, RINEX |
storage | Standard 8GB built-in storage | |
download method | Universal USB data download; HTTP download | |
data communication | input/output interface | 1 external UHF antenna interface |
1 USB-TypeC interface, support charging, power supply, data download | ||
network module | The manual supports 4G full Netcom | |
radio station | Built-in high frequency 450-470MHz single receiver radio | |
protocol | CTI protocol, transparent transmission, TT450 | |
Bluetooth | BT4.0, backward compatible with BT2.x, compatible with Windows, Android, IOS systems | |
data transmission | Wi-Fi data link | |
Wifi | 802.11b/g/n | |
near field communication | Support NFC flash connection | |
receiver function | super double | At the same time, it supports broadcast + network two-way data differential, providing comprehensive data services |
one click match | Support manual software to match base station data with one key | |
remote upgrade | Support one-key remote upgrade | |
manual parameters | Model | HCE600 Android Measurement Manual |
the Internet | 4G full Netcom, built-in eSIM for three-year surveying and mapping traffic | |
operating system | Android 10 | |
CPU | Octa-core 2.0Ghz processor | |
LCD screen | 5.5'' HD display | |
Battery | 14 hours of battery life | |
Waterproof and dustproof | IP68 |
