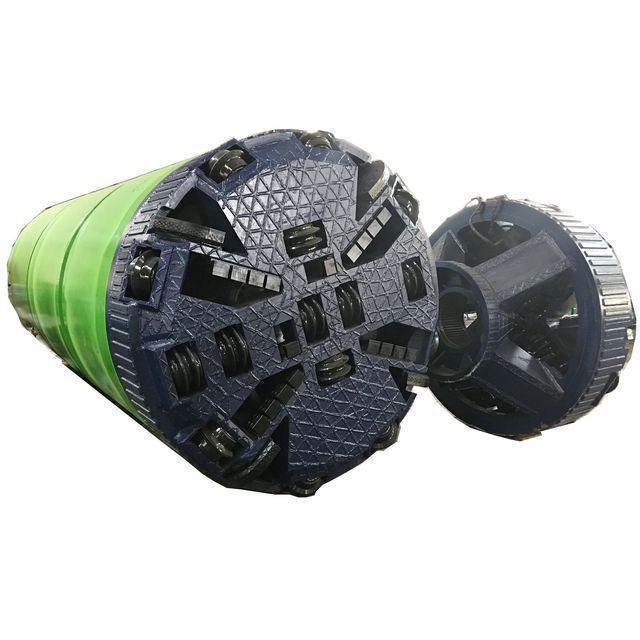

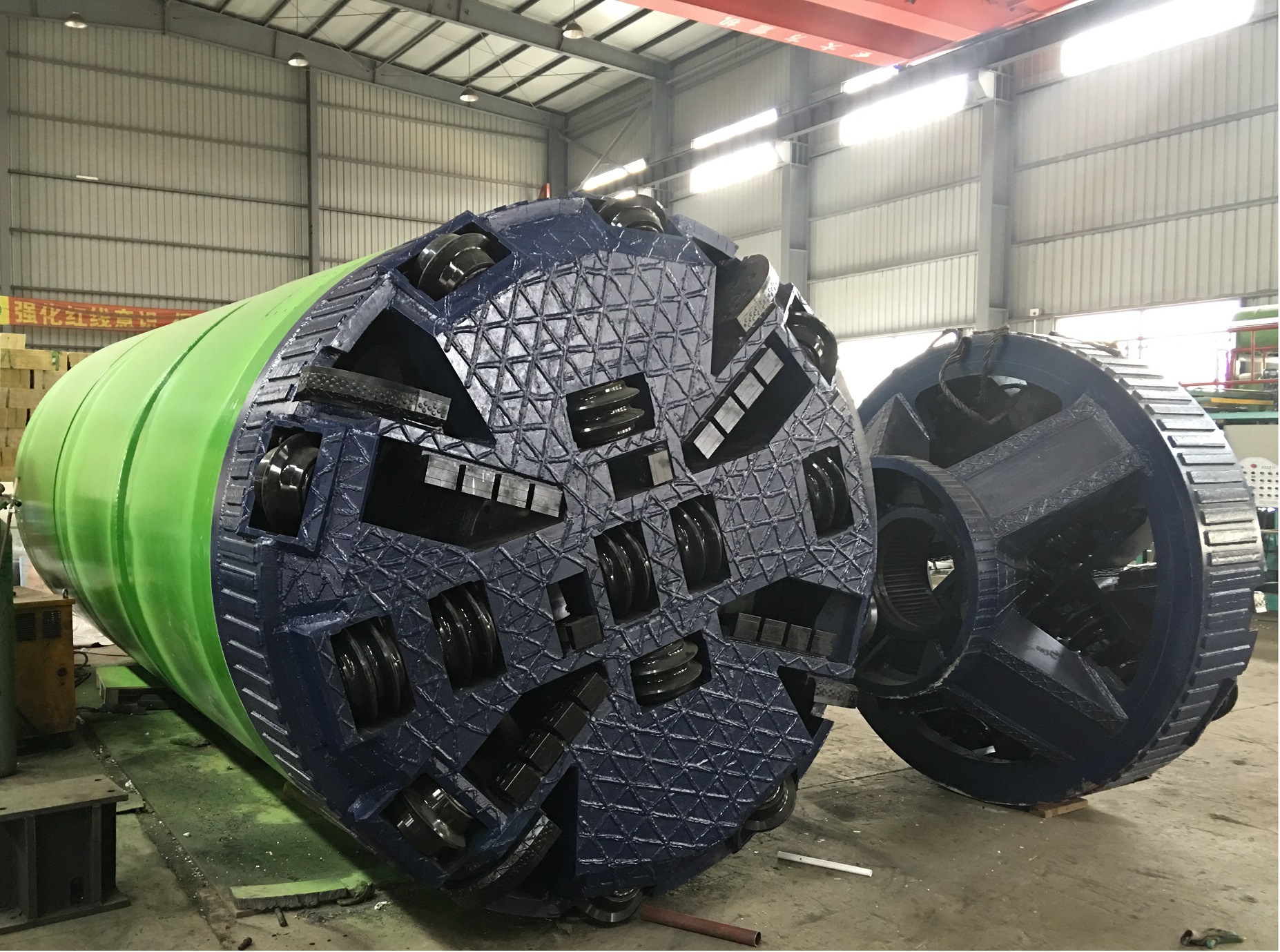

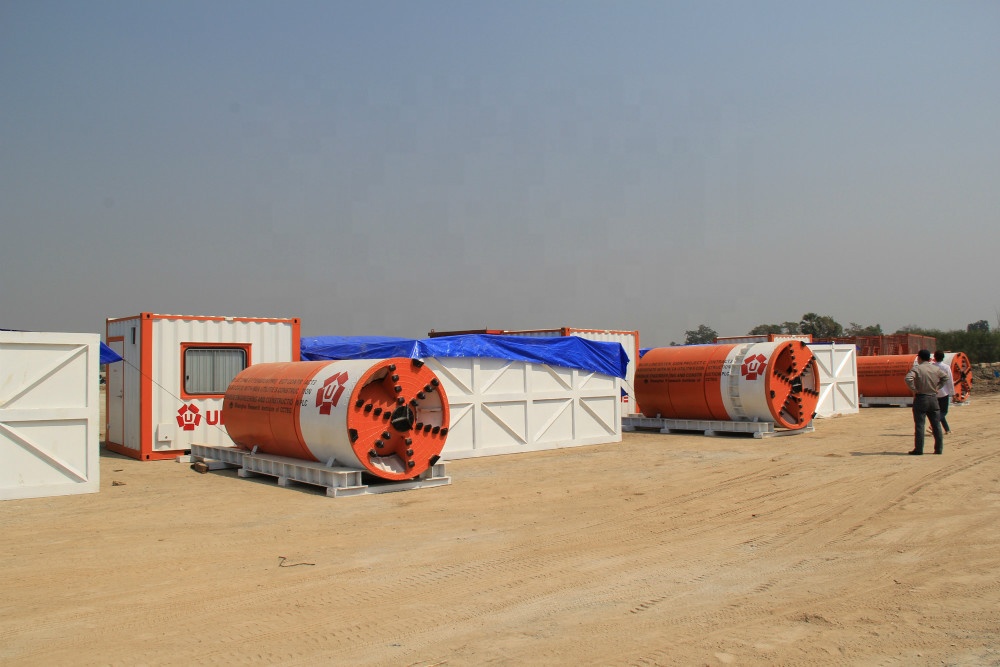

DG2200 Rock Tunneling Machine, Pipe Inserting Machine, TBM.
- $120000.00 /set
- 1 set
- Realtop Heavy Industry Co., Ltd.
- Hunan, China
- Ms Eva Liu
| Dimensions (L*W*H): | 2610*4000mm | Mechanical test report: | if |
| Packaging Details: | Pack according to customer's needs. | After-sales service provided: | Engineers available to service machinery overseas |
| weight: | 10 kg | place of origin; place of origin: | Hunan, China |
| Core component warranty: | 1 year | Package preview: | |
| Types of: | Slurry balance pipe jacking machine | Warranty: | 1 year |
| Applicable industries: | Construction Engineering, Energy and Mining | Supply capacity: | 30 sets per year |
| Core components: | PLC, engine, bearing, gearbox, motor, water pump | mud: | Clay, soil, silt, coal mines are fine |
| brand: | Ruituo | Trenchless: | trenchless pipe jacking |
| Curve up: | yes, experienced | Showroom location: | not any |
| Moment: | 553 kilometers | color: | according to customer |
| Video shipment inspection: | if | work experience: | More than 20 units apply in Singapore |
| pipeline: | Concrete, sector, steel, HDPE, pipe jacking | usage: | Sewage, tunnels, coal mines, etc. |
| State of health: | new | Marketing Type: | 2019 Hot Products |
| payment terms: | L/C, T/T | port: | Shanghai Port, China |
Applications
1. Introduction:
The remote control mud balance pipe jacking machine is a new type of advanced high-tech trenchless equipment.
It integrates multi-disciplinary technologies such as mechanical unit, hydraulic system, electric controller (including PLC), laser system, and measuring device.
In addition to being efficient, it also has no impact on ground transportation. In addition, it is good for the environment and can reduce construction costs.
2. Scope of application:
For trenchless underground pipeline laying projects, eg. Sewage, water supply, sewage works, cables, tunnels...
3. Specifications:
-3.1 Applicable to a wide range of soils such as soft soil, clay, sandy soil, gravel soil, and hard soil.
-3.2 The crushing ability is strong, and the crushing particle size and quantity are large.
-3.3 It has an independent water injection and grouting system, especially the tool cleaning device; it is suitable for hard soil with large N value.
-3.4 The lifting speed is very fast, the theoretical maximum speed is 120mm per minute.
-3.5 The running precision is high, the direction can be adjusted up, down, left, and right, and the Max. correction angle is 2.5 degrees.
-3.6 The jacking distance can be long.
-3.7 The ground operating system is adopted, which is safe, intuitive and convenient!
-3.8 The structure is firm, easy to use and maintain, and easy to disassemble in the working tunnelReceive tunnel.
Model: DGR2200B-QNP | scope | |
Host size | inner diameter (mm) | 2200 |
Outer diameter (mm) | 2630 | |
Overall length (mm) | 7500 | |
cutting part | Motor power (kW) | 37×4 |
Cutterhead torque (kN m) | 471 | |
Cutter speed(r/min) | 3 | |
Correction cylinder | quantity | 8 |
Thrust(kN) | 1000 | |
Stroke (mm) | 100 | |
Correction angle (°) | ±2 | |
Hydraulic system | Motor power (kW) | 3.7 |
Working pressure (MPa) | 31.5 | |
mud system | Water supply pump power (kW) | 45 |
Mud pump power (kW) | 55 | |
Side mud pipe diameter (mm) | 150 | |
main lifting system | Jacking speed(mm/min) | 0--80 |
Working pressure (MPa) | 31.5 | |
Rated jacking force (kNm) | 2000×8 | |
Timing method | Using frequency conversion speed regulation | |
Total power (KW) | 15KW+22KW |
main feature
Our product advantages:
Jack machine.
Suitable for trenchless underground pipeline laying.
Easy control on the ground, continuous work underground.
Fast and safe!
Diameter from 250-5000mm.
