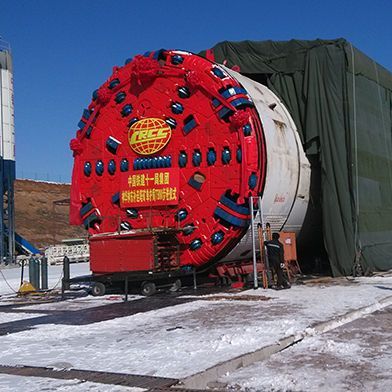

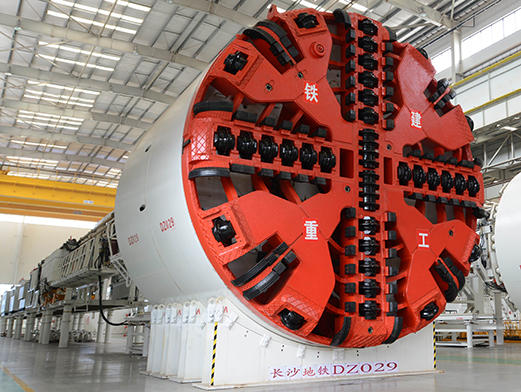

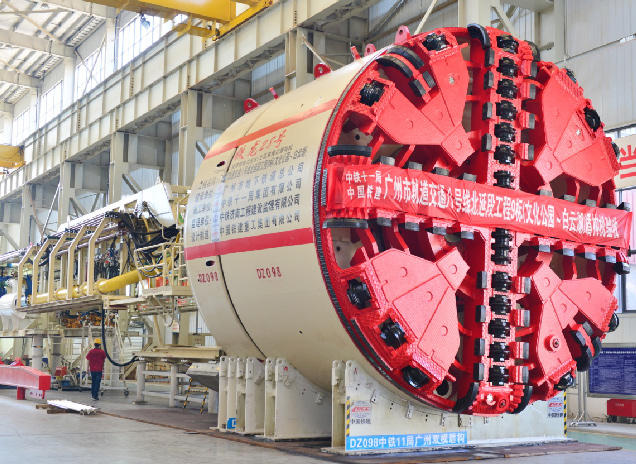

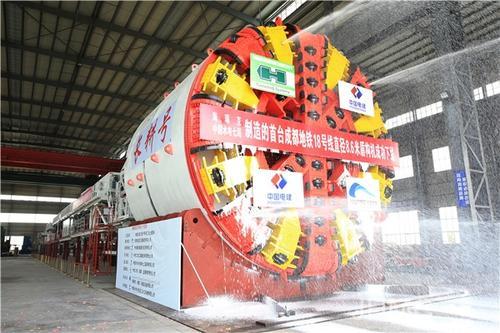

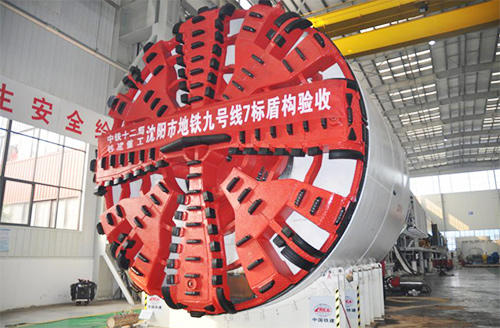

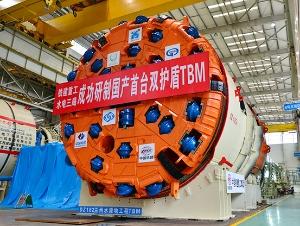

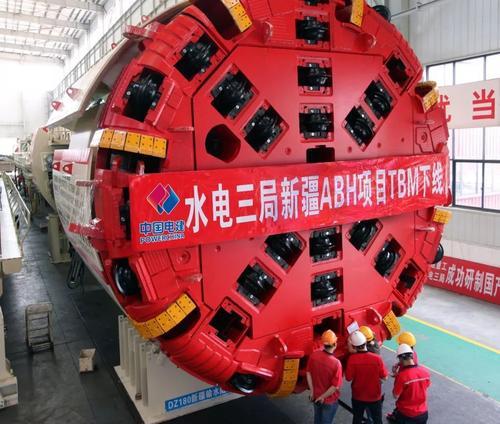

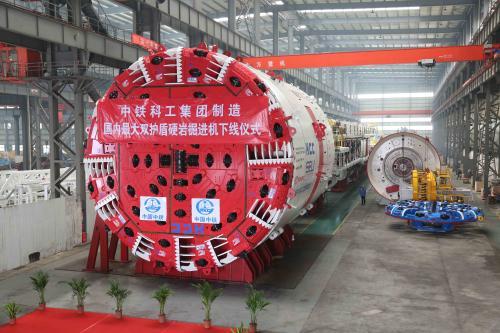

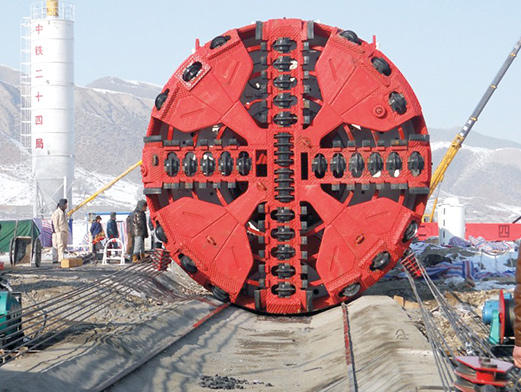

Earth pressure balance Shield_TBM rotary tunnel boring machine
- $45000.00 /piece
- 1 piece
- Anhui Heavy And Light Industries International Co., Ltd.
- Anhui, China
- Ms Ms Wonderful
PRODUCT DETAIL
| delivery time: | within 15 days | Place: | Hefei |
| Showroom location: | not any | Engine type: | single cylinder |
| Mechanical test report: | if | product name: | tunnel boring machine |
| Applicable industries: | Construction material stores, machine repair shops, manufacturing plants, construction works, energy and mining, advertising agencies | Supply capacity: | 50 pieces per month |
| Marketing Type: | New Products 2021 | Origin: | Anhui, China |
| Health status: | new | Packaging Details: | wooden box or container |
| Certification: | CE/ISO9001 | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Carrier type: | driver | Video shipment inspection: | if |
| port: | FOB Shanghai | Core components: | PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump |
| origin: | Chinese original | weight: | 98000 kg |
| MOQ: | 1 | color: | customer request |
| brand: | health and wellness | Core component warranty: | 1.5 years |
| Warranty: | 1 year, 1.5 years |
Product Description
Product Features - This product is independently developed by China Railway Heavy Industry and has completely independent property rights. - It adopts the pressure balance in the excavation cabin and the pressure of the face and the formation. The product has good adaptability to the formation. It is suitable for excavating clay, sand, gravel, rock and other composite formations in clay, silt and other formations.
- the design
An articulated shield allows body posture to be adjusted while advancing.
An articulated shield allows body posture to be adjusted while advancing.
- The product is equipped with imported main bearings, main drive seals and main drive reducers. Large driving torque, long service life and high safety.
- PLC control system realizes real-time online monitoring and data acquisition. - The laser guidance system has high precision to ensure the smooth progress of excavation.Specification | |
Product Series | Small diameter shield machine |
type | ZTE 3730 |
matching fragment | 3500/3000mm |
Excavation diameter | 3785mm |
total length | about 100m |
Advance distance | ＞1900mm |
Minimum turning radius | ≥100m |
level ability | ±35‰ |
Design life of main components | ≥10000 hours |
