New mini tunnel boring machine 600mm pipe jacking machine XDN600 XDN600H-L for concrete
- $100000.00 / 1 - 4 units
$85000.00 / >=5 units - 1 unit
- Maxizm Construction Machinery (Qingdao) Co., Ltd.
- Shandong, China
- Ms Judy Zhang
PRODUCT DETAIL
| Pipe diameter (outer diameter): | 750mm | Mechanical test report: | if |
| brand: | China's first | Showroom location: | not any |
| Moment: | 34KN.M | Warranty: | 1 year |
| Outer Diameter*Length: | 770*3200mm | Video shipment inspection: | if |
| Force per cylinder: | 217KN | payment terms: | L/C, Western Union, T/T, MoneyGram |
| Launch shaft size: | 2900mm | weight: | 4100 kg |
| Number of cylinders: | 3EA | Core components: | PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump |
| revolution: | 12 rpm | Pipe diameter (ID): | 600mm |
| port: | Shanghai Port, Qingdao Port, etc... | Applicable industries: | Building materials stores, machinery repair shops, retail, construction, energy and mining |
| Marketing Type: | normal product | Dimensions (L*W*H): | 770*3200mm |
| Motor Power: | 37KW | Packaging Details: | naked bag |
| Health status: | new | Supply capacity: | 1000 units per year |
| Core component warranty: | 1 year | Origin: | Jiangsu, China |
| Slurry line diameter: | 75mm |
touch
Meizhi Construction Machinery (Qingdao) Co., Ltd.Meizhi Industrial Co., Ltd.
URL: www.maxizm.com
We have specialized in exporting construction machinery and vehicles for 13 years. Product range: truck cranes, crawler cranes, loaders, excavators, bulldozers, road rollers, motor graders, tractors, forklifts, concrete machinery, etc.
Xuzhou famous brand tunnel boring machine 600mm hard rock pipe jacking machine XDN600 XDN600H-L
Product Description

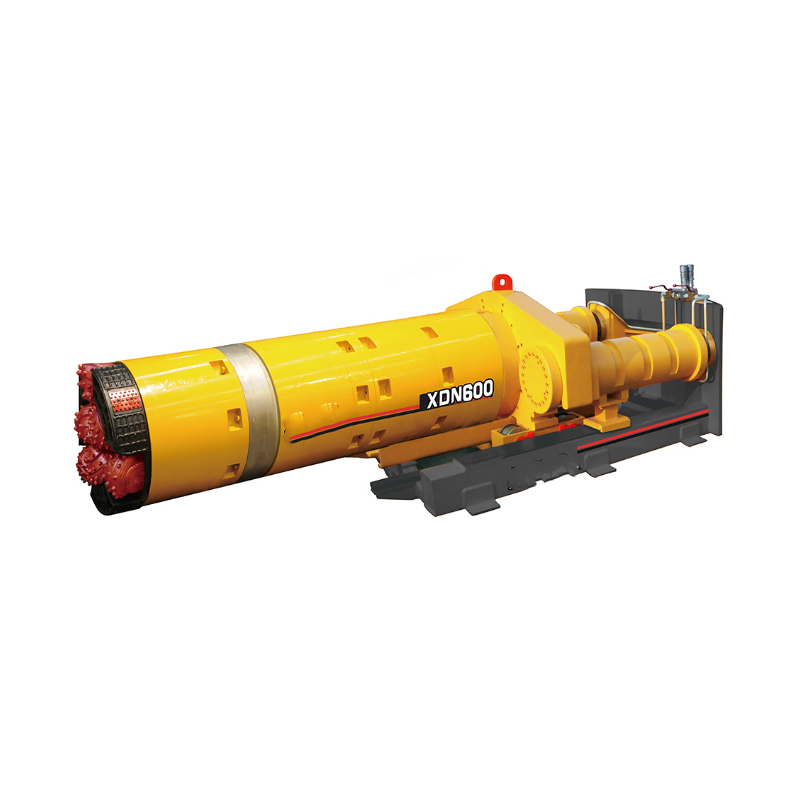

600mm Hard Rock Pipe Jacking Tunnel Drilling Micro Tunnel Boring Machine XDN600
1. High reliability:
The hydraulic overload protection system is reliable and safe, and has good waterproof performance.
2. Strong geological adaptability:
The speed is steplessly adjustable, and different cutting wheels are designed for different ground conditions, with strong adaptability.
3. High rock breaking efficiency:
The special design of the large eccentric cone crusher improves the working efficiency of the secondary crushing and makes the stones easier to discharge.
4. Good construction operability:
Jacking speed and mud flow are continuously adjustable, making it easier to achieve a balance between jacking speed and mud flow.
The hydraulic overload protection system is reliable and safe, and has good waterproof performance.
2. Strong geological adaptability:
The speed is steplessly adjustable, and different cutting wheels are designed for different ground conditions, with strong adaptability.
3. High rock breaking efficiency:
The special design of the large eccentric cone crusher improves the working efficiency of the secondary crushing and makes the stones easier to discharge.
4. Good construction operability:
Jacking speed and mud flow are continuously adjustable, making it easier to achieve a balance between jacking speed and mud flow.
Product parameters
describe | unit | parameter value | ||
Diameter | ID | mm | Φ600 | |
outer diameter | Φ750 | |||
Outer diameter x length | mm | Φ770×3200 | ||
rotating system | Motor Power | kilowatt | 37 | |
torque | KNm | 34 | ||
revolution | rpm | 12 | ||
Roll Correction System | force per cylinder | thousand cattle | 217 | |
number of cylinders | EA | 3 | ||
steering angle | ° | 3 | ||
Sizing line diameter | mm | Φ75 | ||
weight | Kilogram | 4100 | ||
Lifting system motor power | kilowatt | 15 | ||
Jacking cylinder | thrust | thousand cattle | 1000 | |
number | EA | 2 | ||
stroke | mm | 760×2 | ||
Launch axis size | mm | Φ2900 | ||
Receiving shaft size | mm | Φ1900 | ||
Charge pump motor power | kilowatt | 5.5 | ||
Discharge pump motor power | kilowatt | 11 | ||
Fuel injection pump motor power | kilowatt | 4 | ||

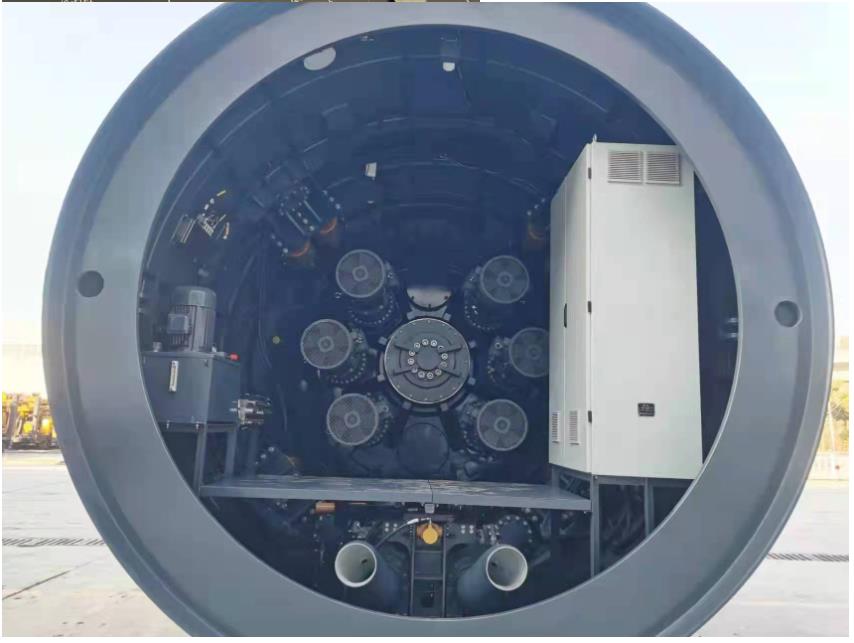

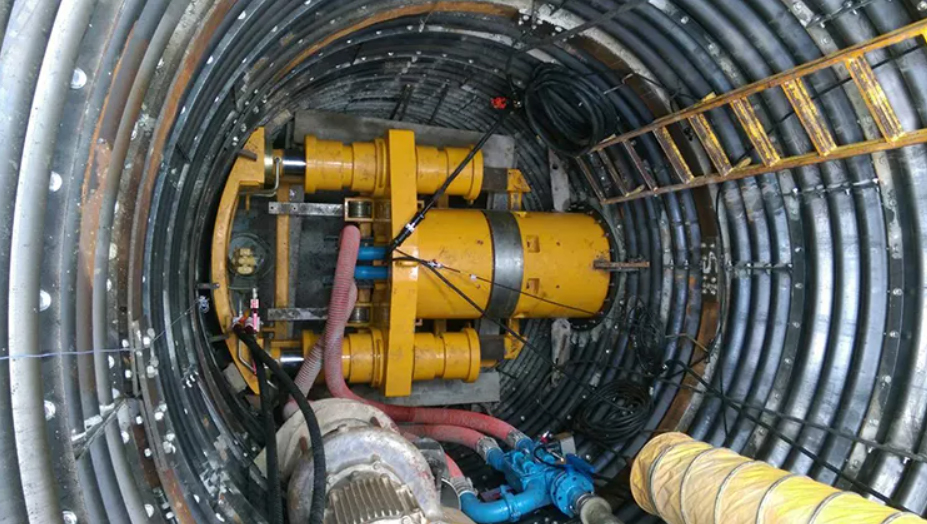

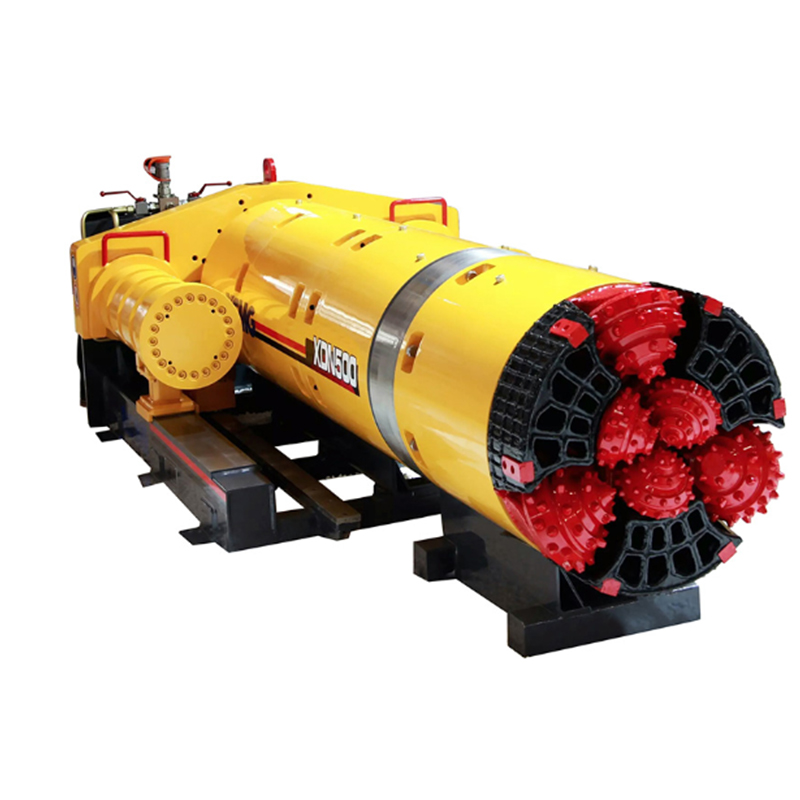

detailed drawing
