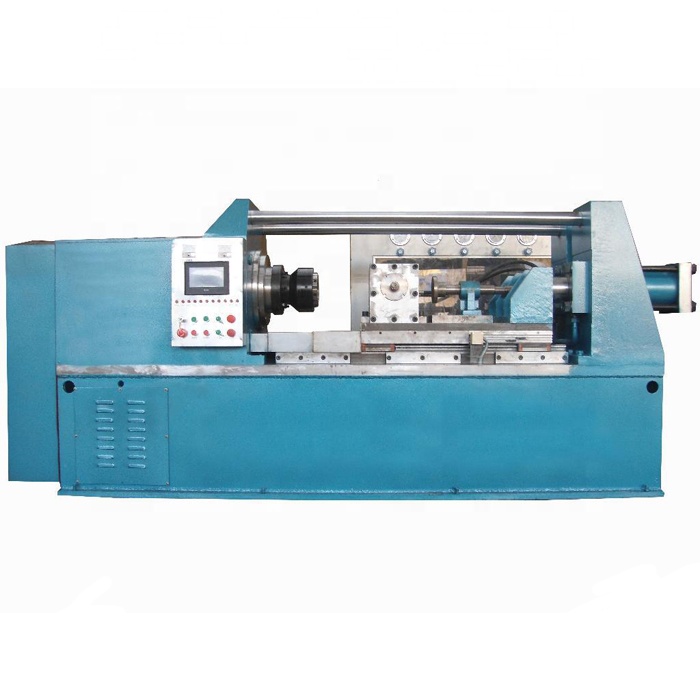

Direct friction welding machine
- $35000.00 /set
- 1 set
- Dalian Bluestar Trading Co., Ltd.
- Liaoning, China
- Ms Yang Sun
| Solder area: | 12000mm2 | Showroom location: | Italy, Brazil, Russia, Australia |
| Voltage: | 380V | Certification: | ISO9001 |
| Motor speed: | 500 rpm | Weight (kg): | 1600 kg |
| Types of: | friction welding machine | Maximum output: | 2000KN |
| After warranty service: | Video technical support, online support, spare parts, on-site maintenance and repair services | Package preview: | |
| Applicable industries: | Building materials stores, manufacturing plants, energy and mining | Motor output: | 180KW |
| Weld diameter: | 60-140mm | Production speed: | 30-60 pieces/hour |
| weight: | 13000 kg | Core components: | PLC, bearings, motors, water pumps |
| Main selling points: | automatic | Marketing Type: | normal product |
| usage: | friction welding | Rated Capacity: | 2000KN |
| Local service location: | Brazil, Russia, Thailand | After-sales service provided: | On-site installation and commissioning training video technical support online support |
| Warranty: | 1 year | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| State of health: | new | Video shipment inspection: | if |
| Supply capacity: | 100 sets per year | port: | Chinese port |
| Mechanical test report: | if | Nominal Duty Cycle: | 100% |
| place of origin; place of origin: | Liaoning, China | current: | 50A |
| brand: | blue star | aspect: | 3500x900x1500mm |
| Packaging Details: | wooden box | Core component warranty: | 1 year |
friction welding machine
Spin friction welding is a solid-state process in which one part is rotated at high speed and pressed against another part that remains stationary. The resulting friction heats the parts, causing them to be forged together.
|
Model |
Maximum upsetting force (KN) |
Maximum Welding Area(mm²) |
welding diameter |
speed(rpm) |
|
DBS-2 |
20 |
20-140 |
5-13 |
5000 |
|
DBS-5 |
50 |
50-260 |
8-18 |
3000 |
|
DBS-12 |
120 |
150-700 |
14-30 |
1500 |
|
DBS-20 |
200 |
150-1020 |
14-36 |
1500 |
|
DBS-30 |
300 |
314-1600 |
20-45 years old |
1200 |
|
DBS-40 |
400 |
500-2400 |
25-55 years old |
1100 |
|
DBS-63 |
630 |
960-3400 |
35-64 years old |
1000 |
|
DBS-80 |
800 |
1300-5000 |
40-75 |
950 |
|
DBS-100 |
1000 |
1600-6000 |
45-86 |
890 |
|
DBS-125 |
1250 |
2000-7800 |
50-100 |
600 |
|
DBS-160 |
1600 |
4300-8792 |
89-160 |
580 |
|
DBS-200 |
2000 |
5100-12500 |
102-189 |
500 |
|
DBS-250 |
2500 |
3850-15500 |
70-140 |
500 |
|
DBS-320 |
3200 |
6400-20000 |
90-160 |
380 |
|
DBS-400 |
4000 |
8000-25000 |
100-180 |
350 |
|
DBS-500 |
5000 |
8000-31400 |
100-200 |
320 |
|
DBS-700 |
7000 |
8000-44000 |
100-240 |
320 |
feature
- This versatile compact friction welding machine for truck rollers was developed based on experience with piston rods. Ideal design provides high thrust in a compact size
- PC quality assurance system for quality control (status control visibility and waveform display function). Ease of handling and high levels of repeatability produce products with high stability.
- Good product grabbing area increases productivity Can be combined with commercial loader equipment. Improve productivity.
Why choose Bluestar brand machine tools:
1) High quality and competitive price
2) More than 10 years export experience
3) CE, SGS, ISO certification
4) Provide OEM service
5) 24 hours online problem solving service (SKYPE,Trademanager)
6) 12 months quality guarantee
