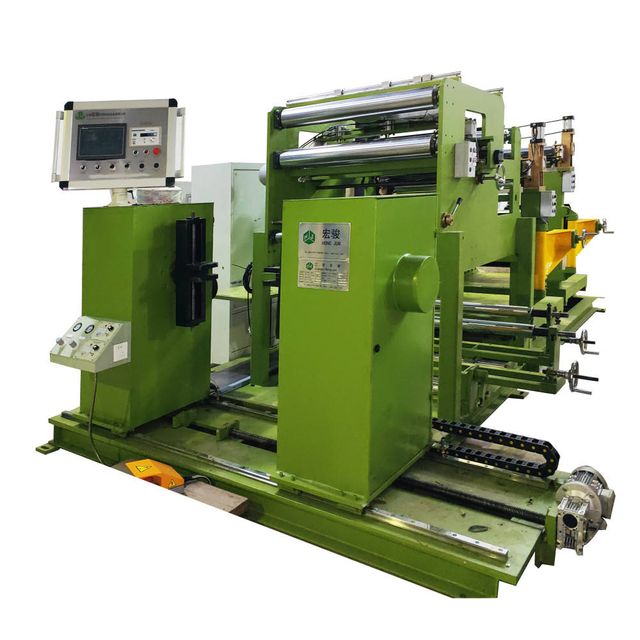

High-efficiency cutting machine of Hongjun factory near Ningbo Port
- $30000.00 /set
- 1 set
- Jiangxi Hongjun Environmental Protection Technology Co., Ltd.
- Jiangxi, China
- Mr John Xiong
PRODUCT DETAIL
| Weight (kg): | 3000 | Core Components Warranty: | 1 year |
| Warranty: | 1 year | Speed of work: | 0~180 rpm |
| delivery time: | within 50 working days | product name: | Two shear two punch silicon steel cutting line |
| Coil width(mm): | 40 - 400 mm | Minimum order quantity: | 1 set |
| brand: | Hongjun Factory | Packaging Details: | Standard export package two shear two punch silicon steel cutting line high-efficiency cutting machine in Hongjun factory near Ningbo port |
| Working power: | 24kW | Slitting thickness (mm): | 0.23 - 0.35 mm |
| Video external inspection: | if | Slitting width (mm): | 350 - 9000 mm |
| Supply capacity: | 100 sets per year | Marketing Type: | Hot Products of 2019 |
| Core components: | PLC, motor | Mechanical test report: | if |
| Model: | XE-LL-400Z | Material thickness: | 0.23~0.35mm |
| Health status: | new | Main selling point: | high productivity |
| Material width: | 40~400mm | place of origin; place of origin: | Jiangxi, China |
| port: | Shanghai FOB | Applicable industries: | other, factory |
| payment terms: | Western Union, wire transfer | Showroom location: | not any |
| Packaging Preview: |
production instructions
Technical data of this device | ||||
1. | Coil Specifications | High-efficiency cutting machine of Hongjun factory near Ningbo Port | ||
1.1 | Applicable materials: | Silicon steel coil | ||
1.2 | Material quality: | Domestic authentic silicon steel or international standard silicon steel | ||
1.3 | Material thickness: | 0.23-0.35mm | ||
1.4 | Material width: | 40-400 (max) | ||
1.5 | Coil inner diameter range: | 495-510mm | ||
1.6 | Single head coil weight: | 1.5 tons | ||
1.7 | Motor speed: | About 0-180m/min | ||
1.8 | Horizontal scissors material: | YG11-N | ||
1.9 | Horizontal scissors hardness: | HRA87.8 | ||
1.10 | Horizontal scissors density: | 14.45g/cm³ | ||
1.11 | Bending strength of transverse scissors: | 3180N/mm² | ||
1.12 | Installed power: | 24KW | ||
2. | Finished product information | High-efficiency cutting machine of Hongjun factory near Ningbo Port | ||
2.1 | Size Length: | 350—9000mm | ||
2.2 | Dimensional tolerance: | ±0.20mm/2m at constant speed | ||
2.3 | Cutting angle accuracy: | ±0.025° | ||
2.4 | Cutting burrs: | ≤0.02mm | ||
2.5 | Punching burrs: | ≤0.02mm | ||
3. | Other device data | |||
3.1 | power supply: | 380V/50Hz | ||
3.2 | Building area (approximately): | Length 14m × Width 2.5m | ||
3.2 | Production line direction: | Right to left (lines facing the console) | ||
3.3 | Equipment Color: | peas green with light yellow | ||
3.4 | Working face elevation: | About 1000mm | ||
Description of the main components of the equipment
High-efficiency cutting machine of Hongjun factory near Ningbo Port
1. Foil roll device
1) The device consists of an open coil head, a gear box, a gear reducer, a motor, a deviation correction actuator, a pressure roller, etc. The main function of this device is to generate foil tension and foil deflection.
2) The tension is uncoiling type, and tension is generated during rewinding or rewinding. The rewinding method, rewinding speed and tension are given steplessly according to the process requirements. The adjustment of the tension is convenient and accurate, and the foot switch controls the rewinding or rewinding. Winding device
1) The device consists of an open coil head, a gear box, a gear reducer, a motor, a deviation correction actuator, a pressure roller, etc. The main function of this device is to generate foil tension and foil deflection.
2) The tension is uncoiling type, and tension is generated during rewinding or rewinding. The rewinding method, rewinding speed and tension are given steplessly according to the process requirements. The adjustment of the tension is convenient and accurate, and the foot switch controls the rewinding or rewinding. Winding device
3) The whole is connected by the linear guide on the base, the photoelectric sensing device (rack), the high-precision gear reducer and motor and the ball screw foil with correction are detected by the foil tape edge.
The rectification method adopts photoelectric detection, which is accurate and reliable, with low failure rate and convenient maintenance.High-efficiency cutting machine of Hongjun factory near Ningbo Port
2. Insulation wrapping device
1) The device consists of a reel shaft and a motor clutch controller.
2) There are two layers of insulation and vortex, the vortex is used for the inflatable shaft.
3) Easy to load and unload gas. The whole device is placed in the trolley and can be pulled out as a whole, which is convenient for loading and unloading and adjusting the cutting edge. The outside of the vehicle body is not guided, does not occupy space, and the site is clean and beautiful.High-efficiency cutting machine of Hongjun factory near Ningbo Port
4) The insulation tension of the layer depends on the magnetic powder clutch, tension control, no noise.
The tension is not specified, and the winding diameter is constant from large to small. The width of the whole machine and each reel can be adjusted manually.
3. Welding equipment
1) TIG welding is used for the welding of foil and lead wire. The welding equipment is mainly composed of the following parts: fixture, welding torch driving mechanism, welding torch adjusting mechanism, TIG welding machine, cooling water tank, etc.
2) The opening pressure of the clamping part is realized by pneumatic, the welding torch can be adjusted up and down, the welding torch is driven by a frequency conversion motor, and the speed is not adjustable.
3) The whole machine can be moved (electrically) into or out of the welding area. The welding table can move the angle (60 degrees), so that the foil strip, especially the thicker foil strip, can adjust the welding angle through the clamping part.
4. Cleaning device
The upper and lower felt plates clamp the foil tape to remove impurities such as metal chips and dust on the foil. The backing plate can be raised and lowered under the action of the air cylinder, and the clamping force can be adjusted by a pressure regulator.
When the upper plate is clamped, the whole device can float with the foil tape, and the whole foil tape can
The felt plate body is fixed with screws respectively, and the whole felt can also be removed to replace the felt.
The rectification method adopts photoelectric detection, which is accurate and reliable, with low failure rate and convenient maintenance.High-efficiency cutting machine of Hongjun factory near Ningbo Port
2. Insulation wrapping device
1) The device consists of a reel shaft and a motor clutch controller.
2) There are two layers of insulation and vortex, the vortex is used for the inflatable shaft.
3) Easy to load and unload gas. The whole device is placed in the trolley and can be pulled out as a whole, which is convenient for loading and unloading and adjusting the cutting edge. The outside of the vehicle body is not guided, does not occupy space, and the site is clean and beautiful.High-efficiency cutting machine of Hongjun factory near Ningbo Port
4) The insulation tension of the layer depends on the magnetic powder clutch, tension control, no noise.
The tension is not specified, and the winding diameter is constant from large to small. The width of the whole machine and each reel can be adjusted manually.
3. Welding equipment
1) TIG welding is used for the welding of foil and lead wire. The welding equipment is mainly composed of the following parts: fixture, welding torch driving mechanism, welding torch adjusting mechanism, TIG welding machine, cooling water tank, etc.
2) The opening pressure of the clamping part is realized by pneumatic, the welding torch can be adjusted up and down, the welding torch is driven by a frequency conversion motor, and the speed is not adjustable.
3) The whole machine can be moved (electrically) into or out of the welding area. The welding table can move the angle (60 degrees), so that the foil strip, especially the thicker foil strip, can adjust the welding angle through the clamping part.
4. Cleaning device
The upper and lower felt plates clamp the foil tape to remove impurities such as metal chips and dust on the foil. The backing plate can be raised and lowered under the action of the air cylinder, and the clamping force can be adjusted by a pressure regulator.
When the upper plate is clamped, the whole device can float with the foil tape, and the whole foil tape can
The felt plate body is fixed with screws respectively, and the whole felt can also be removed to replace the felt.
If you want to know more, please contact us now!
If you have any problems in production, please communicate with us immediately!
