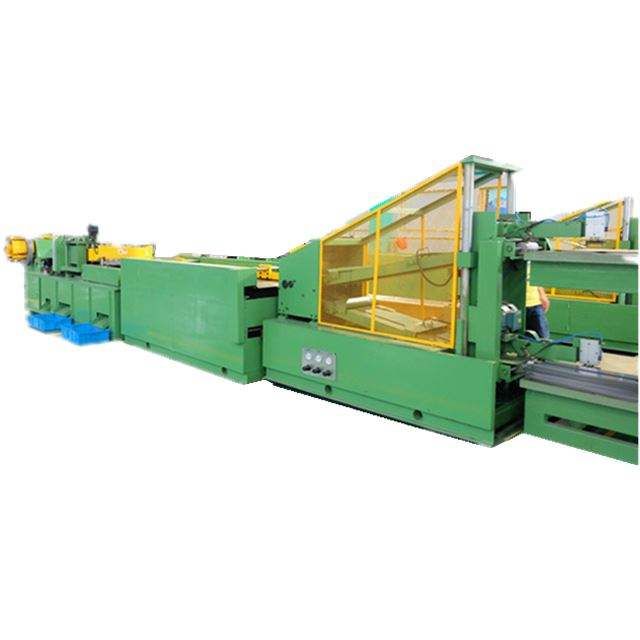

Stepping lap core cutting machine transformer core wire
- $100000.00 /set
- 1 set
- Wuxi Haoshuo Technology Co., Ltd.
- Jiangsu, China
- Mr Rene Chen
| Showroom location: | not any | Slitting speed (m/min): | 80 - 120 m/min |
| Maximum slitting bar: | 12 | brand: | HS |
| After-sales service provided: | Engineers can repair machinery overseas | Core components: | PLC, engine, motor, gear |
| Mechanical test report: | if | Coil inner diameter (mm): | 480 - 520 mm |
| Slitting thickness (mm): | 0.23 - 0.5 mm | Weight (kg): | 20000 |
| Warranty: | 1 year, 1 year | place of origin; place of origin: | Jiangsu, China |
| Coil width(mm): | 1000 - 1250 mm | Applicable industries: | Transformer manufacturing, silicon steel slitting, CRGO steel slitting |
| Material: | Silicon steel | Marketing Type: | Hot Products 2022 |
| color: | green | Video external inspection: | if |
| Core Components Warranty: | 1 year | strength: | 20, 30, 35KW |
| Health status: | new | Slitting width (mm): | 40 - 1200 mm |
| Dimensions (L*W*H): | 12.6*6.5*2M | Main selling point: | automatic |
| payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram | Certification: | EU standard |
| Width slitting error (mm): | 0 - 0.1 mm | Name: | Stepping lap core cutting machine transformer core wire |
| Packaging Details: | Seaworthy packaging for the corer is shipped in a 40ft container. | application: | transformer |
| type: | Fully automatic | Supply capacity: | Annual output of 100 core cutting machines |
| Line size: | 17.5mx 4.0mx 2.5m | CNC system: | delta |
| port: | Shanghai |
Stepping lap core cutting machine transformer core wire
Product Description
This line is a fully automatic transformer core cutting line, suitable for V-free silicon wafers and punching of different shapes, including stepped lap cores. The line adopts servo motor feeding, servo motor punching, PLC control, and the screen can be set to touch screen. After cutting, separate the pieces of different shapes and place them in an orderly manner.
|
thing |
HJX300 |
HJX400 |
HJX600 |
|
Coil weight |
1000kg |
1000kg |
1000kg |
|
CRGO coil width |
30-330mm |
40-440mm |
60-660mm |
|
thickness |
0.23-0.35mm |
0.23-0.35mm |
0.23-0.35mm |
|
length accuracy |
±0.2mm |
±0.2mm |
±0.2mm |
|
cutting burrs |
≤0.02mm |
≤0.02mm |
≤0.02mm |
|
HMI |
10.4” touch screen |
10.4” touch screen |
10.4” touch screen |
|
total power consumption |
20KW |
30KW |
35KW |
|
Line size |
17.5mx 4.0mx 2.5m |
17.5mx 4.2mx 2.5m |
17.5mx 4.5mx 2.5m |
|
total gross weight |
16 tons |
17 tons |
19 tons |
core cutter
main ingredient
Double head hydraulic uncoiler
Speed control board with sensor in buffer pit
Servo feeding device
Pneumatic servo positioning V-groove machine
Pneumatic punching machine
Pneumatic 135° (or -45°) shearer (adjustable to 0°)
Pneumatic 45° Shearer
Servo rail positioning device
Belt conveyor with safety guard
Automatic Stacking Collection Conveyor
Product stacker
Operation control cabinet
Machine Features
Fully automatic line for cutting different core materials
Servo feeding, punching, with step lap function
High speed, high precision and easy operation
Centerline positioning, automatic stacking
International famous brand electric pneumatic components
our service
Customized machine one-stop service
Overseas installation operation training
One year warranty for the whole machine
Lifetime technical support
core cutter
core cutter
