High quality mining equipment double impeller leaching mixing tank for gold mine

PRODUCT DETAIL
Motor type:AC motorHealth status:new
usage:Leaching equipmentMarketing Type:New Products 2022
Core components:engine, motorSupply capacity:50 sets per week
Video shipment inspection:ifprice:Negotiable
Warranty:1 yearDimensions (L*W*H):rely on
Showroom location:Indonesia, ChileCore component warranty:1 year
quality:Advanced technologyOrigin:Shandong China
payment terms:L/C, T/TApplicable industries:Energy and Mining
application:miningtype:Leach tank
Install:Technical supportProduction capacity:99%
Weight (kg):1000color:customizable
market:GlobalMechanical test report:if
brand:JinpengAfter-sales service provided:Engineers available to service machinery overseas
port:Qingdao Yantai DalianPackaging Details:export standard packaging
Product Description
Double impeller leaching mixing tank
Compared with the ordinary mixing tank, the double impeller leaching mixing tank adopts double impellers, and the pulp is stirred evenly
The more even it is, the more energy-efficient it is in terms of energy consumption. The impeller adopts the rubber-covering process, which has a long service life, is convenient to use for air supply, and has uniform air and gas.
Effective volume: 6-1740m³
work rules
scope of application
Small specific gravity, low viscosity, slow settling speed, ore particle size within 200 yards accounts for more than 90%, pulp density is less than 45%, gold leaching, adsorption, etc. are mixed.
How the product works
Under the agitation of double impellers, under the action of resistance, the pulp flows from top to bottom in the center and spreads
The damping plate, through which air is passed at the lower end of the shaft, mixes with the slurry and circulates upwards to form a uniform suspension mixture.
Advantage
Features of double leaf leaching mixing tank:
1. Ventilation is to use the tube or hollow shaft that surrounds the bottom with air to ventilate, so that the air enters the mixing tank through the air tube or hollow shaft, and the gas is evenly dispersed and the bubbles are small.
2. The new type of large-diameter rubber impeller is adopted, with low speed and long service life.
3. There is a very strict control on the stirring intensity, so that the concentration and fineness distribution in the stirring tank are consistent. Improve cyanide in and out rate and carbon adsorption rate.
The company optimizes and improves the structure of the pneumatic system, gas lift system, and carbon-carbon separation system. The ore flow is stable, the slurry is mixed, and the power consumption is small, thereby reducing the wear of carbon. Compact structure and easy maintenance. The specifications of the leaching tank with a maximum diameter of more than 10 meters have been developed, and the structure and performance are also continuously improved.
Product parameters
Model
Tank specification (mm)
length x length
Effective volume (m³)
impeller
speed
(revolutions per minute)
impeller
diameter
(mm)
engine
Model
engine
strength
(kilowatt)
tank
weight
(Kilogram)
Total weight (kg)
SJ2.0×2.5
2000×2500
6
52
909
XLD2.2-4-29
2.2

2144
SJ2.5×3.15
2500×3150
13.14
52
935
XLD2.2-4-29
2.2
2242
3095
SJ3.0×3.0
3000×3000
18
40.85
1130
XLD4-5-35
4
2802
4161
SJ3×3.15
3000×3150
18.93
43
1130
XLD4-5-35
4
3331
4323
SJ3.15×3.55
3150×3550
twenty four
43
1260
XLD4-5-35
4
3391
4583
SJ3.5×3.5
3500×3500
30
52
1310
XLD5.5-5-29
5.5
4286
5025
SJ3.5×4.0
3500×4000
32.7
41
1310
XLD5.5-5-29
5.5
4631
5429
SJ3.55×4.0
3550×4000
33.6
43
1310
XLD4-5-35
4
4860
5825
SJ3.7×4.2
3700×4200
38.4
42
1310
XLD4-5-35
4
5058
6153
SJ4.0×4.0
4000×4000
38
35
1750
XLD7.5-7-43
7.5
6056
7450
SJ4.0×4.5
4000×4500
48 years old
35
1750
XLD7.5-7-43
7.5
6106
7569
SJ4.5×5.0
4500×5000
71.57
35
1750
XLD7.5-7-43
7.5
7506
10864
SJ5.0×5.6
5000×5600
98
31
2046
XLD11-8-47
11
10483
14291
SJ5.5×6.0
5500×6000
112
31
2100
XLD11-8-47
11
14209
18745
Φ6×6.5
6000×6500
170
24.9
2300
XLD18.5-9-35
18.5
16164
21006
Φ6.5×7
6500×7000
215
twenty three
2400
XLD18.5-9-43
twenty two
17190
25567
Φ7.0×7.5
7000×7500
245.4
twenty one
2400
XLD22-10-47
twenty two
22091
30486
SJ7.5×8.0
7500×8000
268.6
twenty one
2900
XLD22-10-47
twenty two
26958
34365
SJ8.0×8.5
8000×8500
342
16.4
3200
Y250M-8
30
33489
42468
Φ8.5×9
8500×9000
395
18.5
3300
Y250M-8
30
36696
46623
Φ9.5×10
9500×10000
648
16.6
3750
Y280S-8
37
46261
59786
Φ10.5×11
10500×11000
900
13.28
4400
Y315S
55
56888
72647
Φ11.5×12
11500×12000
1190
12.1
4600
Y315M-8
75
67669
95669
Φ12×13
12000×13000
1414
13.4
4600
Y315L1-8
Post-90s
88418
120635
Φ13×14
13000×14000
1740
10.7
5200
JR125-8
110
113669
148666

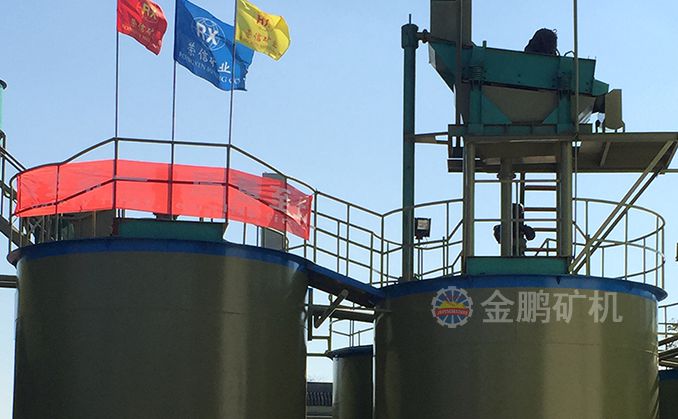

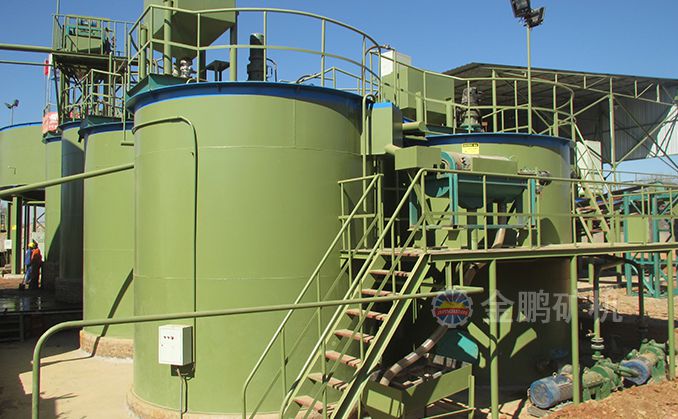

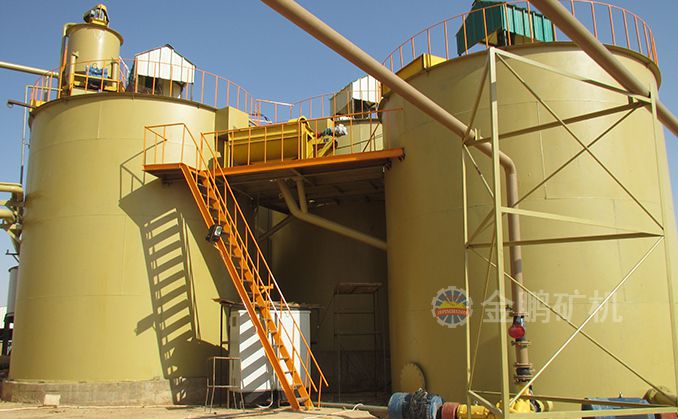

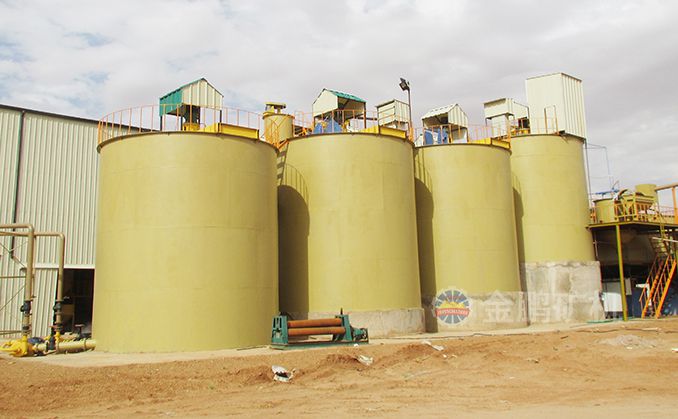

success case
