LED reflow oven 8 zones original SMT pick and place reflow oven production line
- $8000.00 / 1 - 4 sets
$7700.00 / 5 - 9 sets
$7000.00 / >=10 sets - 1 set
- Shenzhen Carst Technology Co., Ltd.
- Guangdong, China
- Mr Charlie Yang
PRODUCT DETAIL
| PCB maximum width: | 500mm | Applicable industries: | manufacturing plant |
| Voltage: | 380 | Packaging Details: | Vacuum inspection export wooden box |
| Nominal Duty Cycle: | 100% | Temperature control method: | PID control + SSR drive |
| Marketing Type: | normal product | Showroom location: | Egypt |
| Warranty: | 1 year | Mechanical test report: | if |
| payment terms: | L/C, Western Union, T/T, MoneyGram | port: | Shenzhen |
| Core component warranty: | 1 year | heating time: | about 15 minutes |
| Video shipment inspection: | if | Supply capacity: | 50 sets per month |
| aspect: | 5050*1350*1530mm | Main selling points: | Famous PLC |
| Temperature control range: | Room temperature~350℃ | Conveyor belt height: | Mesh belt 880±20mm |
| Heating zone length: | 3170mm | Belt speed: | 0-2.0m/min |
| Package preview: | type: | reflow soldering | |
| Health status: | new | Origin: | Guangdong, China |
| Core components: | PLC, engine, bearing, motor, gear | Abnormal alarm: | Abnormal temperature alarm |
| Number of heating zones: | up 8 down 8 | brand: | Custer |
| Temperature control accuracy: | ±1℃ | usage: | PCB soldering |
| current: | Three-phase, 380V 50/60Hz | Weight (kg): | 2050 kg |
| Rated Capacity: | 5300W |
Detailed description
Conveyor system |

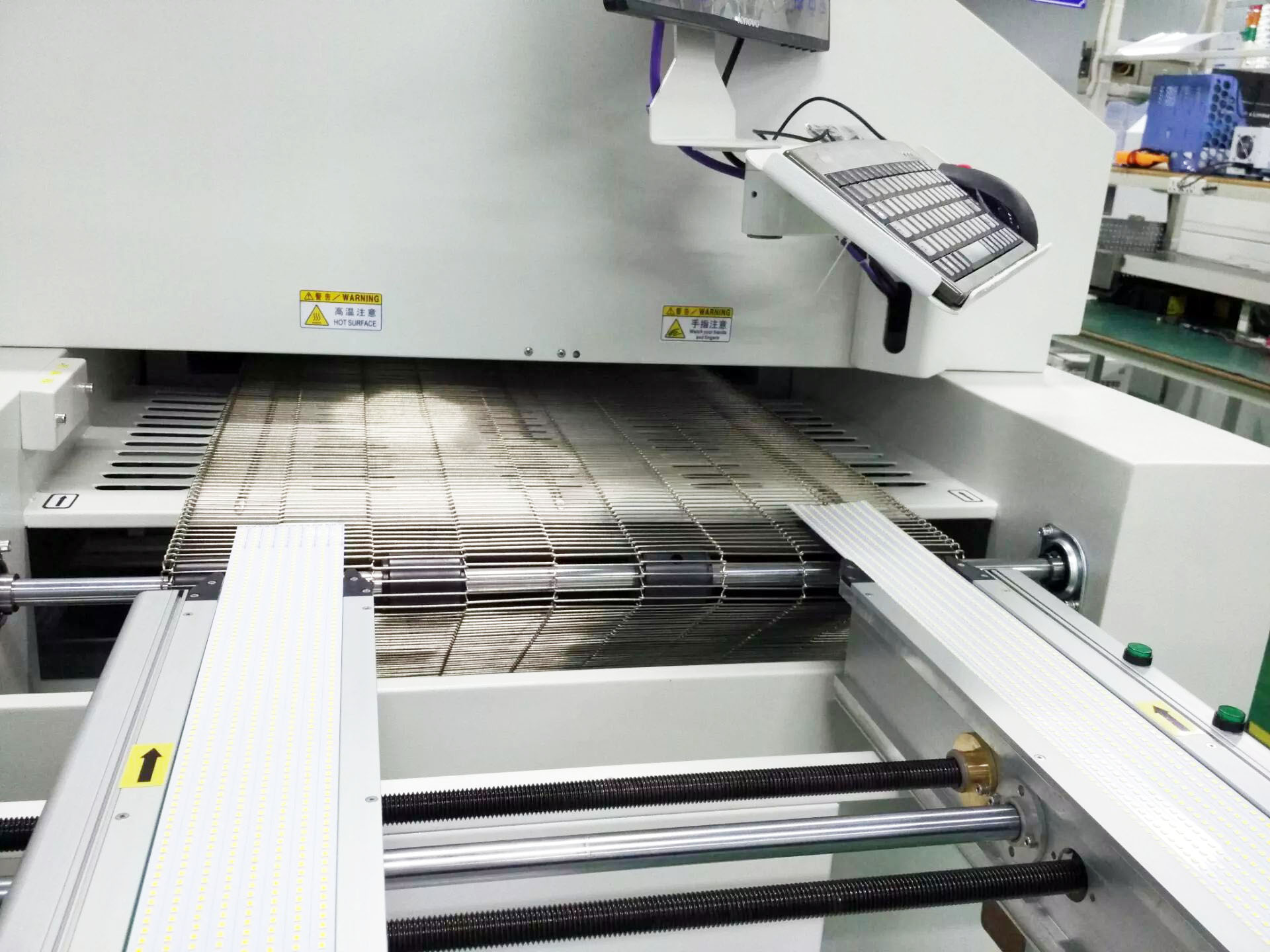

1. PCB transmission mode ▶ VSVF (Variable Variable Frequency) ▶ Synchronous belts and chains ▶ Excellent stability |

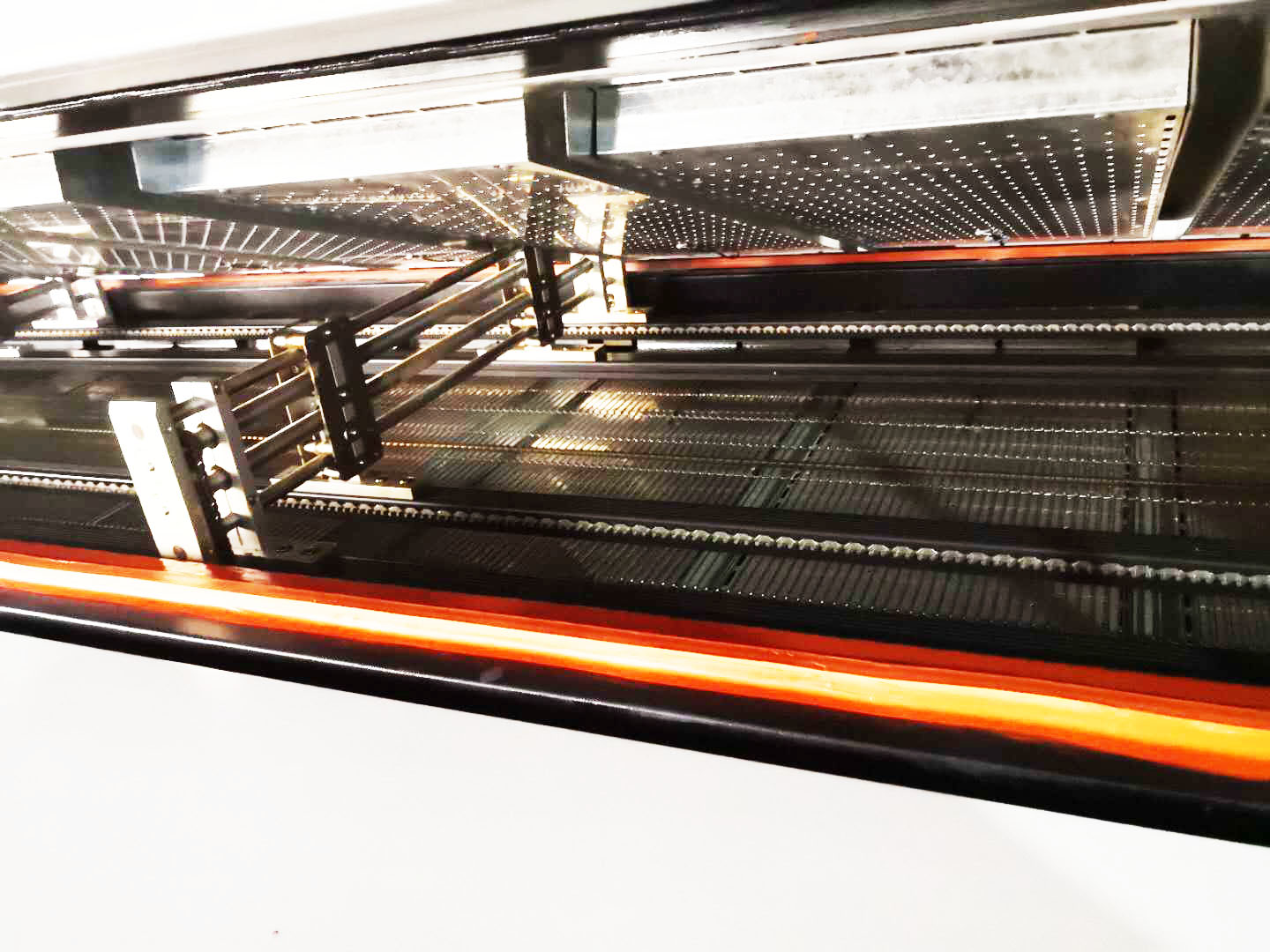

2. Chain ▶ Made of high-quality aluminum ▶ Automatic refueling system ▶ Rail width adjustment accuracy ▶ Long service life |
welding system | ||||||||
1. Good at soldering CSP, BGA, 0201CHIP, etc. | ||||||||
2. 16 heating zones and 2 cooling zones. ▶ The welding temperature of each heating zone is independently controlled and adjustable. ▶ The upper and lower hot air heating ensures uniform welding temperature and solves the problem of dead angle. | ||||||||
3. The warm-up time is less than 20 minutes. | ||||||||
4. Optimized design of multi-layer heat insulation ▶ Reduced heat loss. ▶ Reduced fuel consumption. ▶ Save cost and improve heating efficiency. | ||||||||
structural system | ||||||||
1. Modular design, easy to install and maintain. 2. The upper cover of the machine can be opened with a force less than 6 kg. 3. Pneumatic power is used to automatically lift the furnace. 4. Safety bar supporting the furnace body. | ||||||||
security system |
1. Over-temperature alarm and automatically stop heating to protect the machine and PCB board. 2. On-line UPS, power-off protection, to ensure normal output of PCB. |
Control System

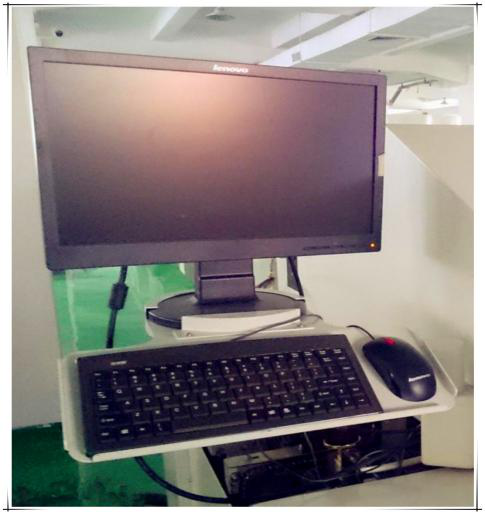

1. Computer control & emergency manual control. 2. Chinese and English windows operation interface. 3. PC+PLC automatic control, stable and accurate.
body temperature monitoring system |
1. Full monitoring. ▶ Monitor PCB temperature throughout soldering period. |
2. Real-time monitoring. ▶ Every second temperature change can be detected, collected and generated data curve. |

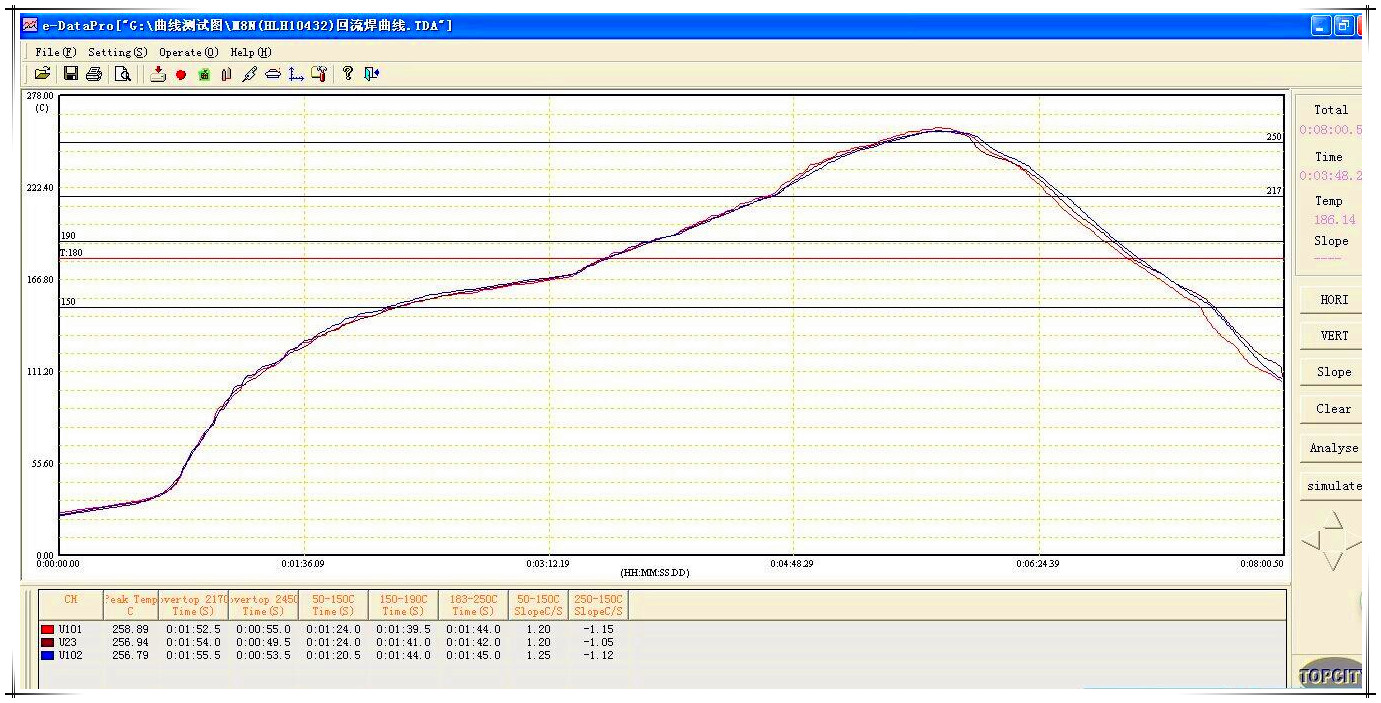

3. Intelligent monitoring ▶ PID temperature control system can automatically keep the temperature curve in line with the curve you set. ▶ The welding temperature curve is stored in the computer and can be used at any time. |
cooling system |

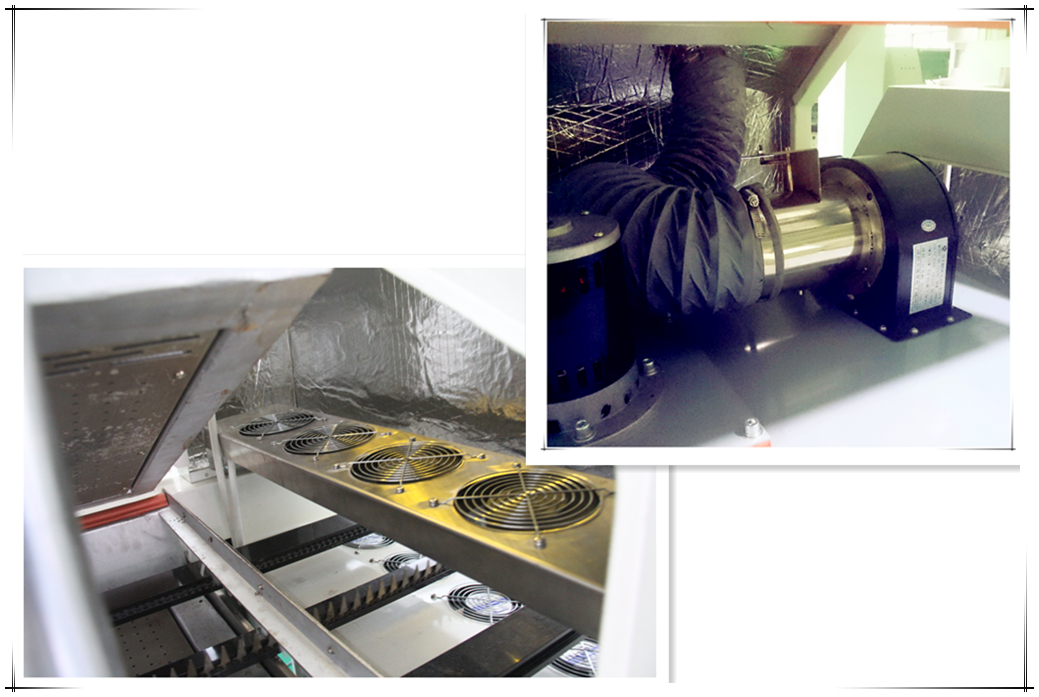

1. 2 cooling zones. 2. Forced air cooling system and convection circulation to make the motor temperature ≤38℃. 3. Independently control the cooling system. 4. The temperature of output PCB board is ≤60℃. |
