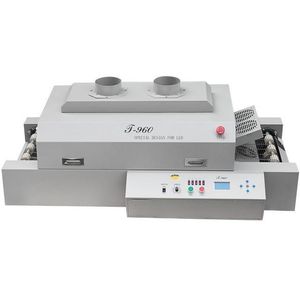

T-960 Puhui Infrared LED Channel Reflow Oven SMT for BGA Soldering
- $1050.00 /set
- 1 set
- Wenzhou Hecan Electronic Equipment Co., Ltd.
- Zhejiang, China
- Ms Cici Cheng
PRODUCT DETAIL
| Packaging Details: | Wooden box, steel frame, internal foam pack support, strong and pressure-resistant. | Conveyor Speed: | 0-1500mm/min |
| Applicable industries: | Building materials stores, machinery repair shops, manufacturing plants | place of origin; place of origin: | Zhejiang, China |
| Main selling point: | easy to operate | L*W*H(mm): | 1450*630*470MM |
| Supply capacity: | 200 sets per month | Packaging Preview: | |
| Temperature control accuracy: | ± 1℃ | Core Components Warranty: | 1 year |
| Mechanical test report: | if | Rated Capacity: | 4500w |
| Rated Duty Cycle: | 100% | type: | reflow soldering |
| Video external inspection: | if | port: | Shanghai/Ningbo/Tianjin/Guangzhou |
| Weight (kg): | 98kg | Health status: | new |
| Showroom location: | India, Russia | Voltage: | AC220V/380V, 50HZ, 220V/110V |
| Warranty: | 1 year | current: | 20A |
| Core components: | motor | Marketing Type: | Hot Products 2022 |
| Temperature control range: | Room temperature - 300℃ | usage: | PCB/BGA/LED Full SMD Soldering |
| Operation direction: | left to right | heating time: | about 10 minutes |
| Welding area: | 300*960mm/11.8 x 37.8 inches | rated power: | 4.5KW |
| aspect: | 145*63*47CM | Heating zone: | Up 3 / Down 2 |
| brand: | he can | payment terms: | L/C,Western Union,T/T,Paypal |
Infrared and hot air benchtop
Conveyor Reflow Oven
Electric welding machine T-960 series
for LED PCB soldering
Conveyor Reflow Oven
Electric welding machine T-960 series
for LED PCB soldering

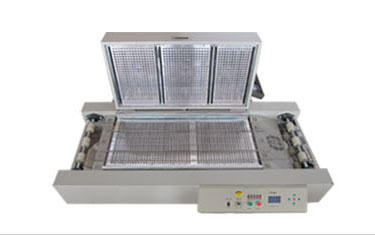

The Infrared IC Heater T960 is a microprocessor controlled reflow oven. The machine is controlled by intelligent horizontal sirocco and fast infrared heating technology, the temperature is kept very accurate and uniform. Lead-free solder paste for high soldering temperatures for effective soldering of a wide range of SMT and BGA components.
· Large solder area
· Effective temperature control
· Stable transmission system
· Convenient controls
· Professional use
Specification
·Model: T-960
·Heating zone: top 3/bottom 2
·Welding area: 300 x 960 mm / 11.8 x 37.8 in.
·Voltage: 220V, 50HZ
·Heated zone length: 960 mm / 37.8 in.
·Maximum width of PCB board: 300 mm / 11.8 in.
·Rated power: 4.5KW
·Conveyor belt speed: 0-1500 mm/min
·Heating time: 15 minutes
·Temperature Control Range: Room Temperature - 300°C / 572°F
·Temperature control accuracy: ±1℃
·Temperature distribution deviation: ±2℃
·Heating zone: top 3/bottom 2
·Welding area: 300 x 960 mm / 11.8 x 37.8 in.
·Voltage: 220V, 50HZ
·Heated zone length: 960 mm / 37.8 in.
·Maximum width of PCB board: 300 mm / 11.8 in.
·Rated power: 4.5KW
·Conveyor belt speed: 0-1500 mm/min
·Heating time: 15 minutes
·Temperature Control Range: Room Temperature - 300°C / 572°F
·Temperature control accuracy: ±1℃
·Temperature distribution deviation: ±2℃
·Heating method: infrared and hot air
·Temperature control: PID
·direction:about
·Cooling Zone: 1
·Heating time: 15 minutes

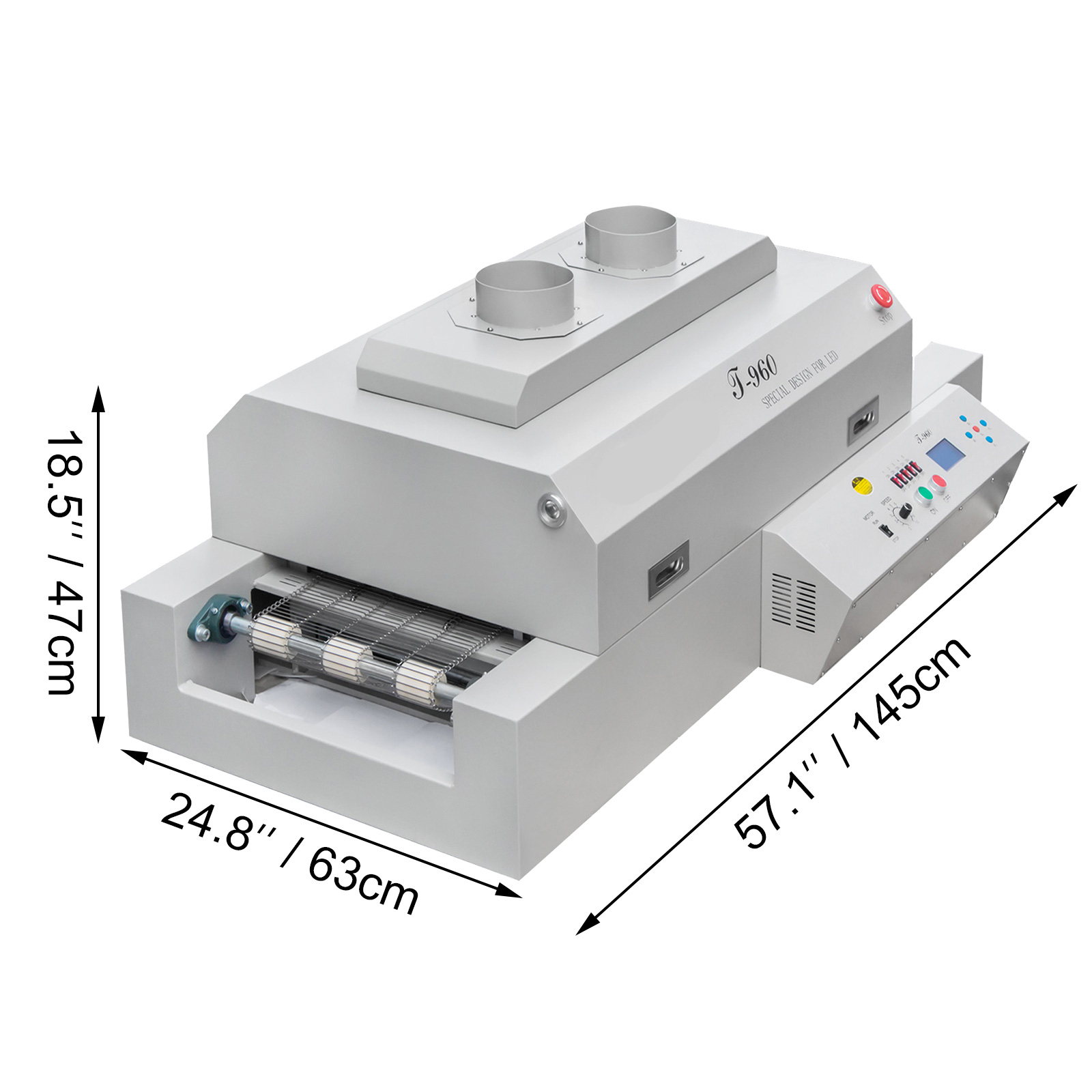

·L*W*H(mm):1450*630*470mm
·Machine weight: 98kg
·Gross weight: 130kg

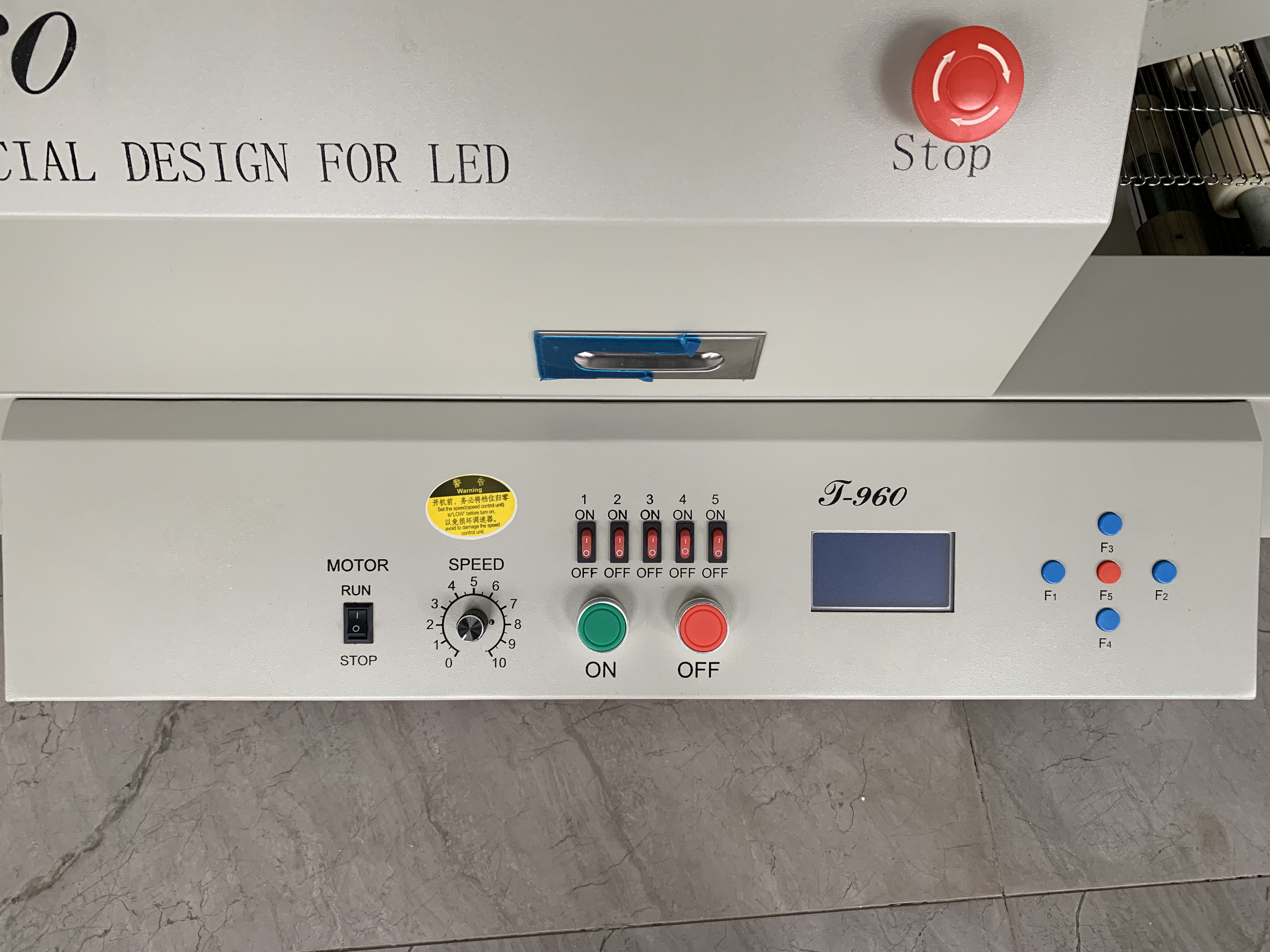

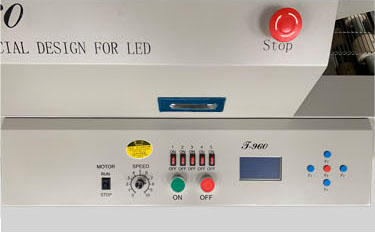

1. Single panel operation
Simple operation, avoid panel high temperature, improve stability

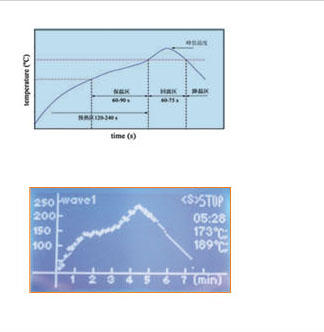

2. Preset 8 smart wavesUsing programmable technology, 8 temperature waves are preset, which can automatically complete the entire welding process. 8 waves meet various welding requirements and avoid changing the temperature every time.

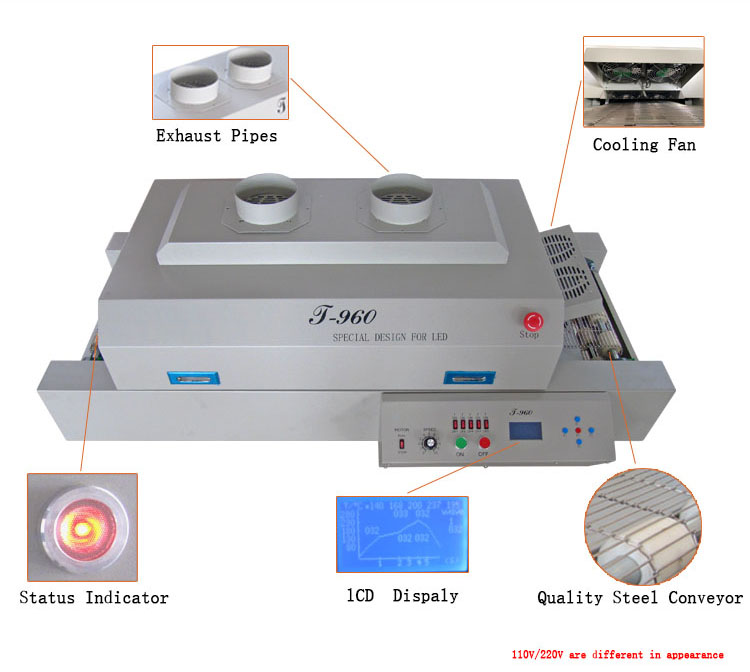

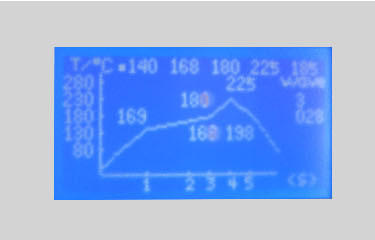

3.LCD intuitive display
LCD display every data for better visual experience
4. PID temperature control system
PID control makes temperature more accurate. Fast heating, low energy consumption, high efficiency

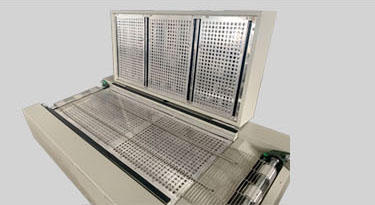

5. Heat insulation protection design
Unique thermal insulation design keeps the temperature of 5 heating zones stable and avoids high temperature of the case

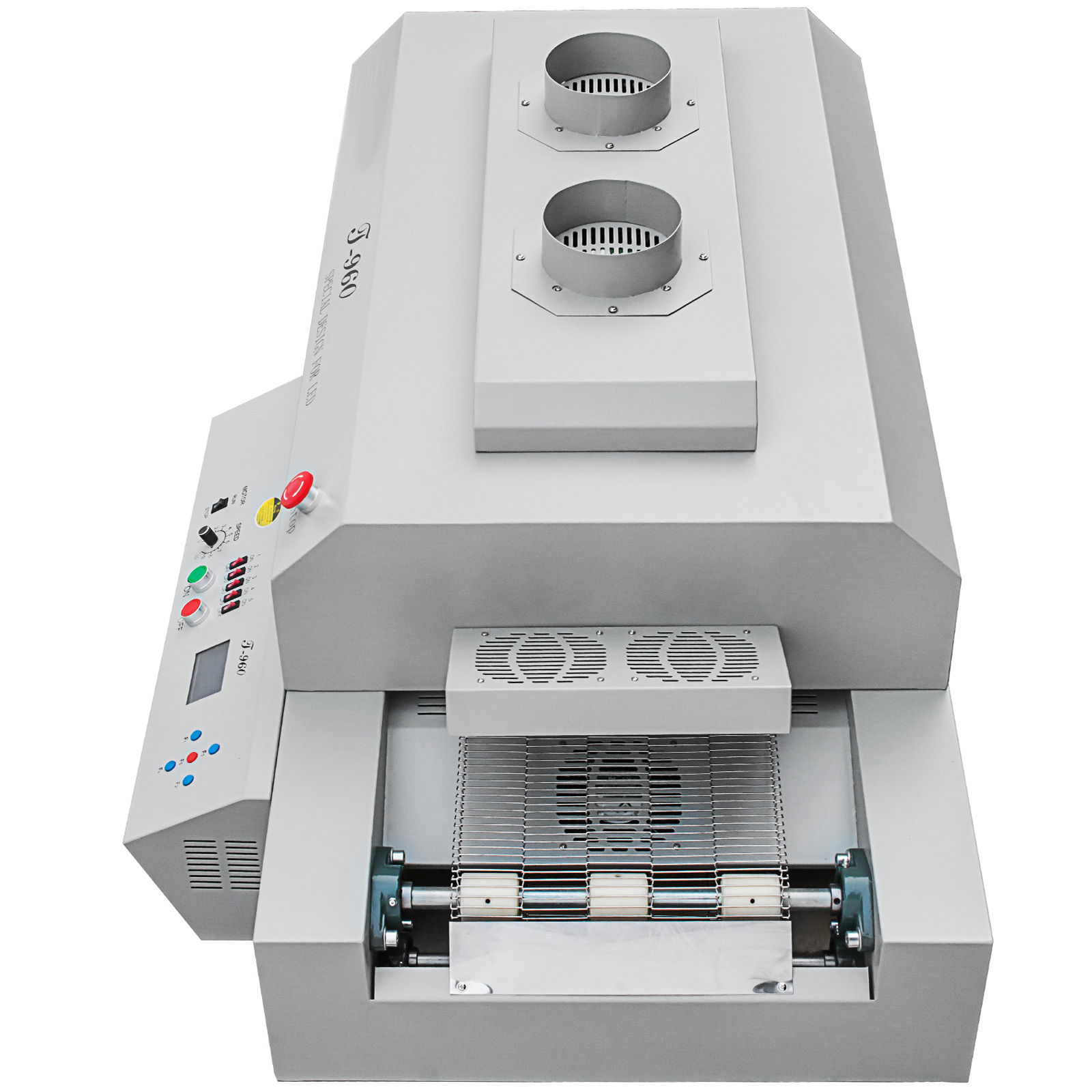

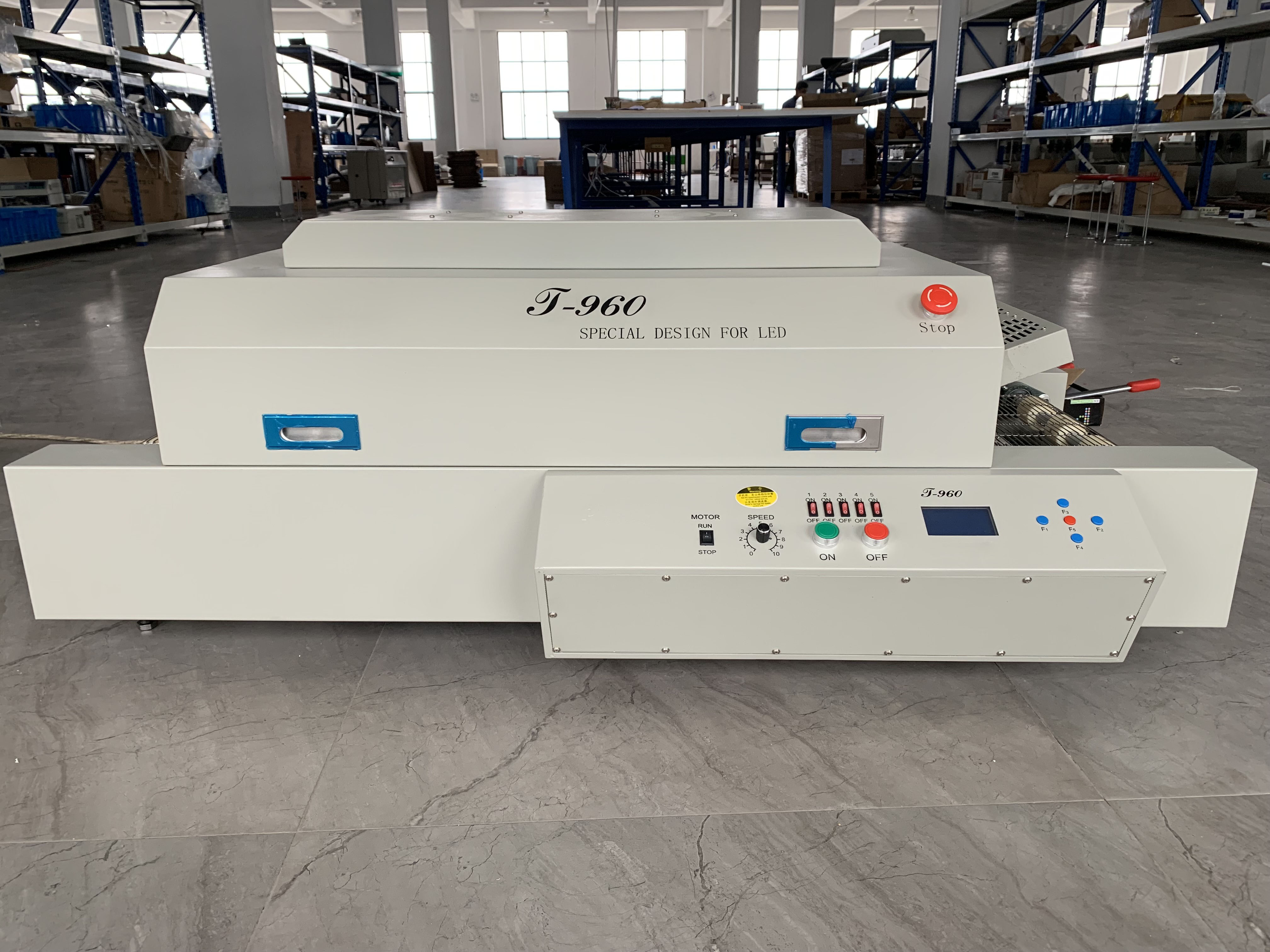

real shot
Model | Weld width | strength | temperature range | heating zone | aspect |
T-961 | 230mm | 3.5KW | RT-300℃ | up 3/down 3 | 1000x466x445mm |
T-960 | 300mm | 4.5KW | RT-300℃ | up 3/down 2 | 1450x630x470mm |
T-960E | 300mm | 4.5KW | RT-350℃ | up 3/down 2 | 1200x630x470mm |
T-960W | 300mm | 4.5KW | RT-350℃ | up 3/down 2 | 1450x630x470mm |
Package
FAQ
Q: How was the training?
A: After purchasing our machine, it is very easy for your engineer to come to our company or operate the machine according to the training video and user manual, the user manual will be provided with the machine.
Q: Are these machines difficult to use?
A: No, it's not difficult at all For our former customers, it only takes about 2 days to learn the operation
Q: Can the machine meet software updates?
Q: How was the training?
A: After purchasing our machine, it is very easy for your engineer to come to our company or operate the machine according to the training video and user manual, the user manual will be provided with the machine.
Q: Are these machines difficult to use?
A: No, it's not difficult at all For our former customers, it only takes about 2 days to learn the operation
Q: Can the machine meet software updates?
A: Yes, we will update the machine and send it to you as soon as possible
Q: Is there any operation video to watch?
A: We provide customers with special operation videos. If there is anything you don't understand, you can contact us, and we will arrange an engineer to shoot the specified video.
Q: What kind of maintenance is required?
A: Add lubricating oil to the guide rail, let the water drain from the oil-water separator, and clean the nozzle (we will support this oil)
