PZT Customized Ultrasonic Sensor ceramic piezo element
- $0.50 /piece
- 1 piece
- Shanghai Panrui Electric Co., Ltd.
- Shanghai, China
- Ms Camille Xiang
| Place of Origin: | China; | Single package size: | 10X10X10 cm; |
| Metal types: | Piezoelectric Ultrasonic Transducer; | Package Preview: | ; |
| Brand Name: | piezo element; | Drive type: | Drive; |
| Feature: | High Temperature Resistance; | Packaging Detail: | PZT Customized Ultrasonic Sensor ceramic piezo element Packing: Sandard Export Packing.; |
| Product Name: | piezo element; | Resistivity: | 81-85/70-80/30-39/0.8-1.0/0.6-0.8; |
| Material: | PZT5; | Type: | Piezoelectric Ceramics; |
| Diameter: | 5~80mm; | Frequency: | 1.7MHz/1.4MHz/3MHz/113KHz/108KHz/customized; |
| Single gross weight: | 0.001 KG; | Model Number: | piezo element; |
| Voltage: | 3.7V~240V; | Selling Units: | Single item; |
| Shape: | Custom-shaped; | OEM: | Accept OEM; |
Product Name:PZT Customized Ultrasonic Sensor ceramic piezo element
Key Words
Ultrasonic Atomization
High Frenquency Atomization Series
Micro-atomization Series
Ultrasonic Cosmetology Transducers
High Frequency Beauty Chip Series
Low Frequency Beauty Chip Series
Shovel Skin Knife Series
Slimming Transducer Series
Piezoelectric Knitting Actuator
Piezoelectric Micro Pumps
Ultrasonic Transducers

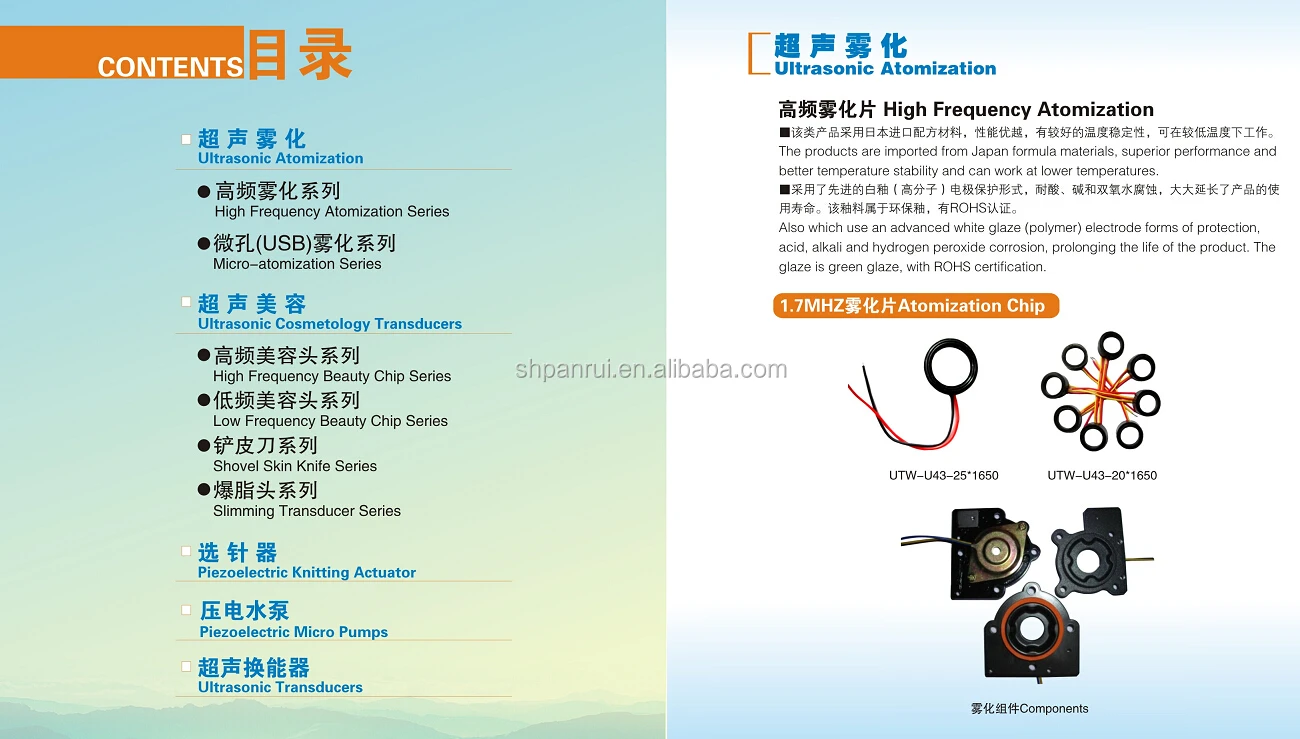

Ultrasonic Atomization
High Frequency Atomization:The products are imported from Japan formula materials, superior performance and better temperature stability and can work at lower temperatures.
Also which use an advanced white glaze(polymer) electrode forms of protection acid, alkali and hydrogen peroxide corrosion, prolonging the life of the product. The glaze is green, with ROHS certification.
1.7MHZ Atomization Chip
Electric Specification | ||
Item | Unit | parameter |
Frequency | MHZ | 1.65+/-0.05 |
conversion efficiency | % | More than 50 |
resonant impedance | Ohm | Less than 2 |
capacity | PF | 1800+/-15% |
quality of humidifying | ML/H | 400 |
product equivalent life | Hrs | 6000 |
Recommended voltage | V | 24,38 |
2.4MHZ Atomization Chip
Electric Specification | ||
Item | Unit | parameter |
Frequency | MHZ | 2.40+/-0.05 |
conversion efficiency | % | More than 50 |
resonant impedance | Ohm | Less than 2 |
capacity | PF | 1200+/-15% |
quality of humidifying | ML/H | 240 |
product equivalent life | Hrs | 6000 |
Recommended voltage | V | 12,24 |
3MHZ Atomization Chip
Electric Specification | ||
Item | Unit | parameter |
Frequency | MHZ | 3.0+/-0.05 |
conversion efficiency | % | More than 50 |
resonant impedance | Ohm | Less than 2 |
capacity | PF | 950+/-15% |
quality of humidifying | ML/H | 100 |
product equivalent life | Hrs | 6000 |
Recommended voltage | V | 5,12 |

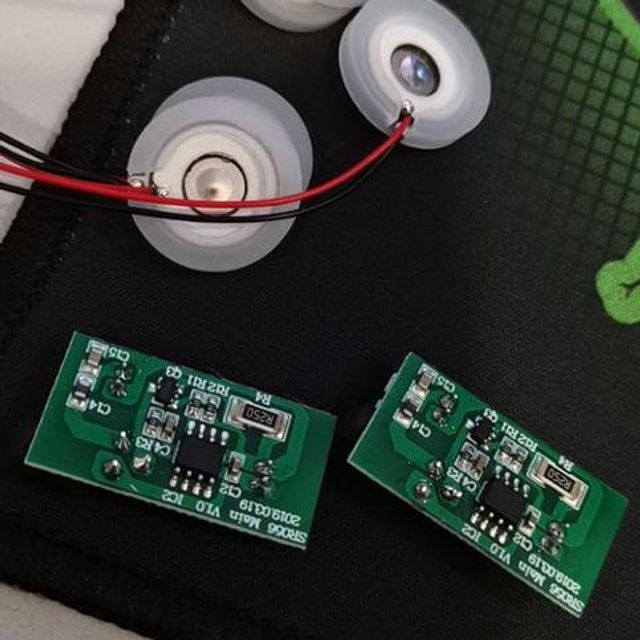

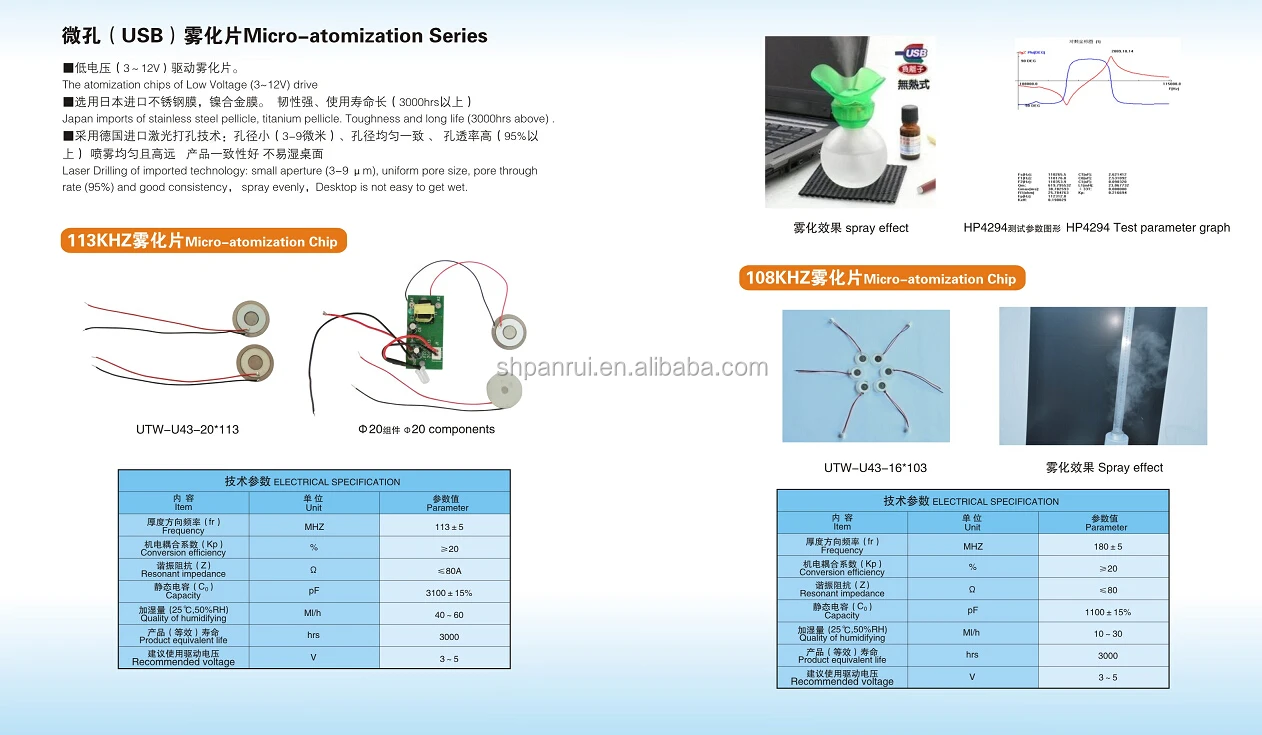

USB Micro-atomization Series
The atomizaton chips of low Voltage(3-12V)drive
Japan imports of stainless steel pellicle titanium pellicle Toughness
and long life(3000hrs above)
Laser Drilling of imported technology:small aperture(3-9um)uniform pore size,pore through rate(95%)and good consistency,spray evenly, Desktop is not easy to get wet.
113KHZ Micro-atomization Chip
Electric Specification | ||
Item | Unit | parameter |
Frequency | MHZ | 113+/-5 |
conversion efficiency | % | More than 20 |
resonant impedance | Ohm | Less than 80A |
capacity | PF | 3100+/-15% |
quality of humidifying | ML/H | 40-60 |
product equivalent life | Hrs | 3000 |
Recommended voltage | V | 3-5 |
108KHZ Micro-atomization Chip
Electric Specification | ||
Item | Unit | parameter |
Frequency | MHZ | 180+/-5 |
conversion efficiency | % | More than 20 |
resonant impedance | Ohm | Less than 80 |
capacity | PF | 1100+/-15% |
quality of humidifying | ML/H | 10-30 |
product equivalent life | Hrs | 3000 |
Recommended voltage | V | 3-5 |

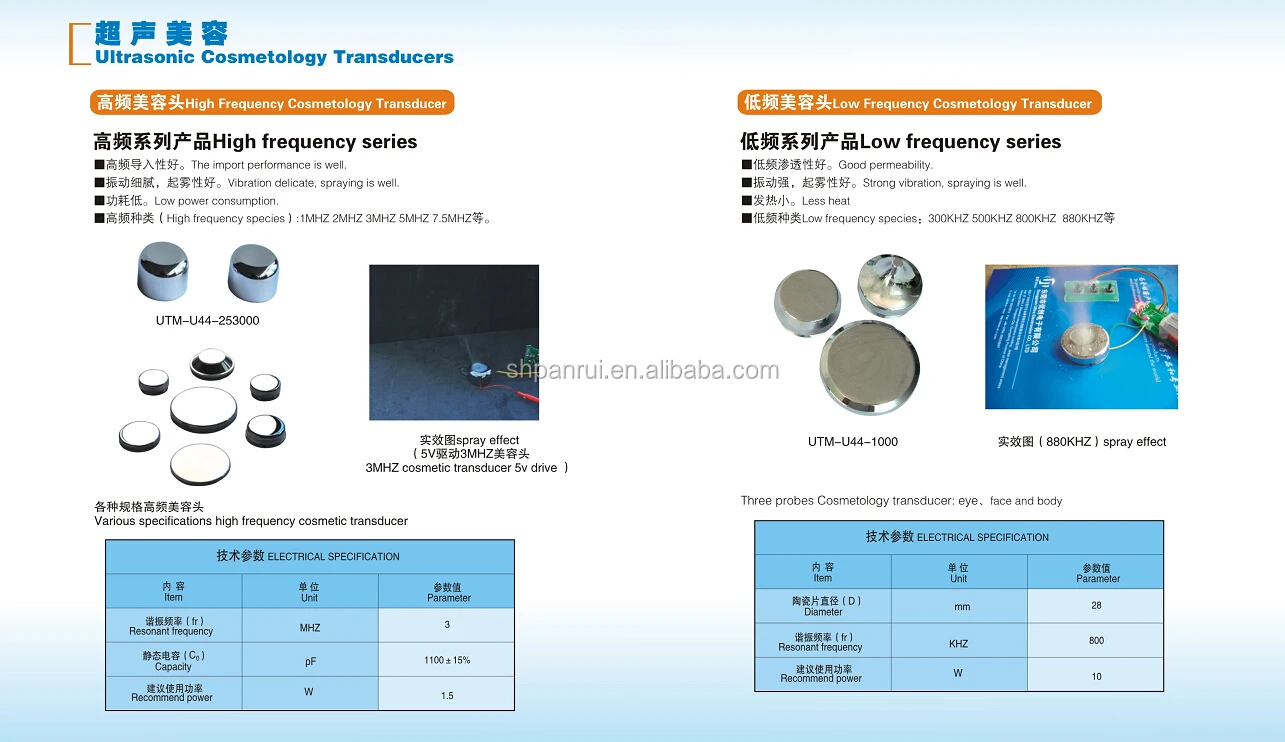

Ultrasonic Cosmetology Transducers
high Frequency Cosmetology Transducer
High Frequency series:
The import performance is well.
Vibration delicate,spraying is well.
Low power consumption
(High frequency species):1MHZ 2MHZ 3MHZ 5MHZ 7.5MHZ
Electric Specification | ||
Item | Unit | parameter |
Resonant frequency | MHZ | 3 |
capacity | PF | 1100+/-15% |
Recommended Power | W | 1.5 |
Low Frequency Cosmetology Transducer
Low frequency series:
Good permeability.
Strong vibration spraying is well.
Less heat.
Low frequency species:300KHZ 500KHZ 800KHZ 880KHZ.
Electric Specification | ||
Item | Unit | parameter |
Diameter | Mm | 28 |
Resonant frequency | KHZ | 800 |
Recommended Power | W | 10 |

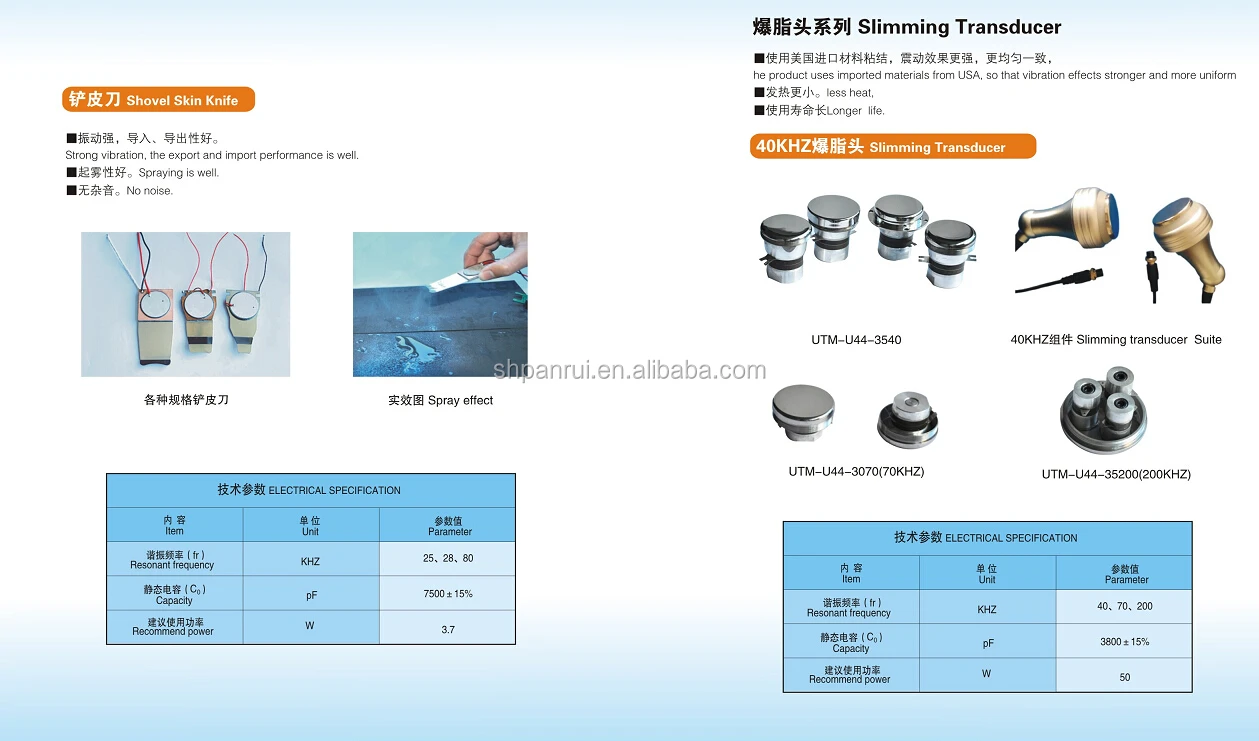

Shovel Skin Knife
Strong Vibration and import performance is well.
Spraying is well.
No noise.
Electric Specification | ||
Item | Unit | parameter |
Resonant frequency | Mm | 25, 28,80 |
capacity | PF | 7500+/-15% |
Recommended Power | W | 3.7 |
Slimming Transducer
The product uses imported materials from USA,so that vibration effects stronger and more uniform,
Less heat.
Longer life.
40KHZ Slimming Transducer
Electric Specification | ||
Item | Unit | parameter |
Resonant frequency | KHZ | 40,70,200 |
capacity | PF | 3800+/-15% |
Recommended Power | W | 50 |

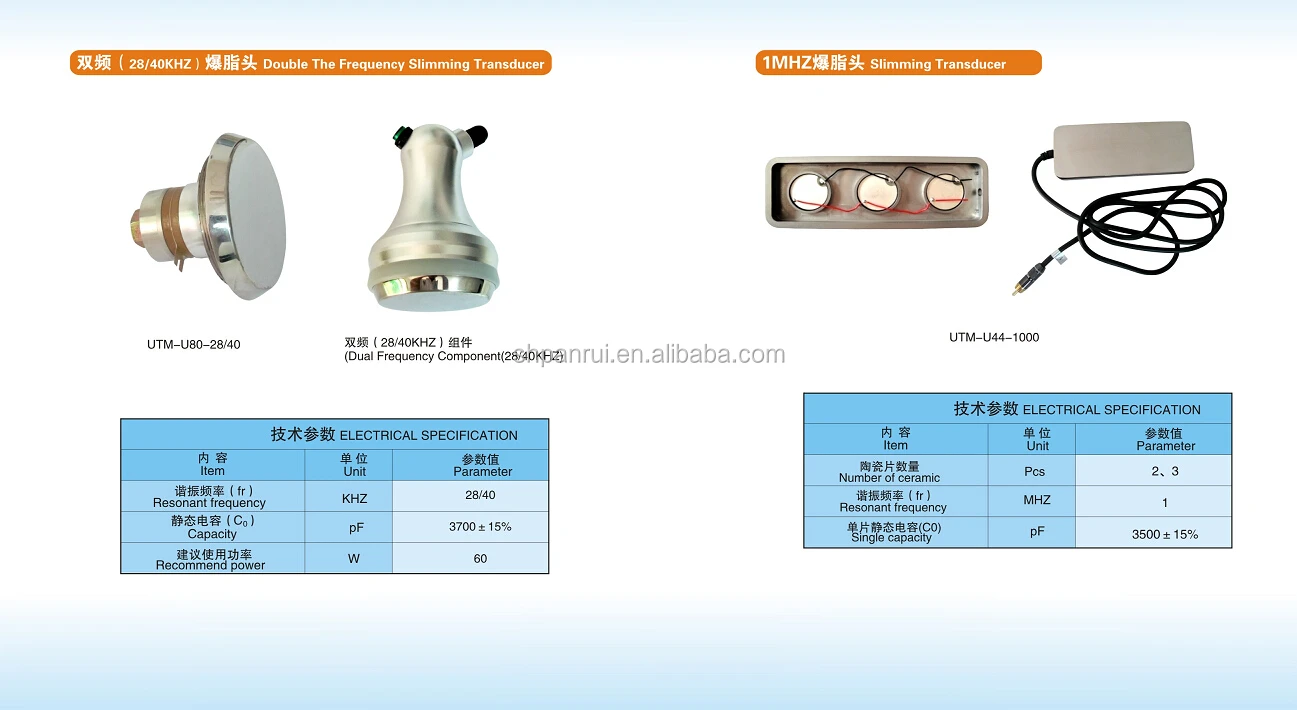

(28/40khz)Double the frequency slimming transducer
Electric Specification | ||
Item | Unit | parameter |
Resonant frequency | KHZ | 28/40 |
capacity | PF | 3700+/-15% |
Recommended Power | W | 60 |
1MHZ slimming transducer
Electric Specification | ||
Item | Unit | parameter |
Number of ceramic | PCS | 2.3 |
Resonant frequency | MHZ | 1 |
Single capacity | PF | 3500+/-15% |

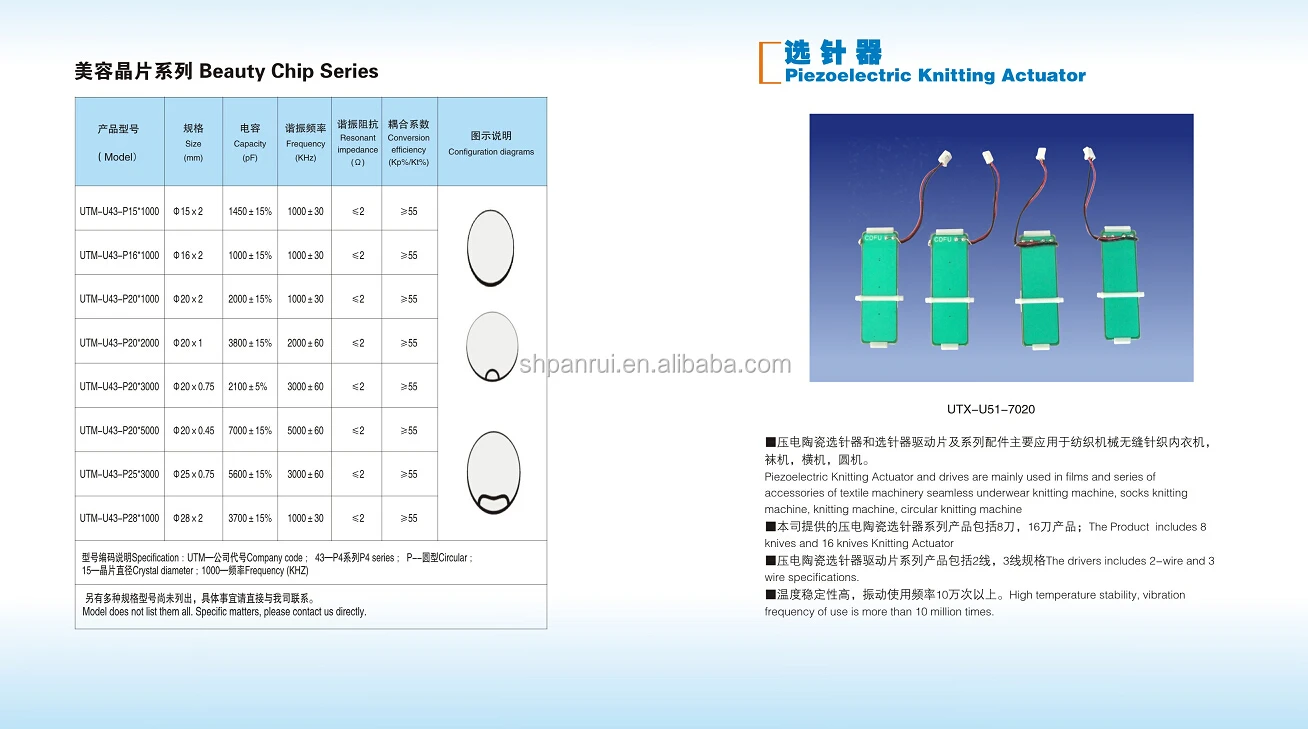

Piezoelectric knitting Actuator
Piezoelectric knitting actuator ana Drives are mainly used in
films and sevies of accessories of textile machineny
seamless underwear knitting machine, socks knitting
machine, knitting machine, circular knitting machine.
The Product includes 8 knive and 16 knives knitting actuator.
The drivers includes 2-wire and 3 wire specifications.
High temperature stability, vibration frequemcy of use is
more than 10 million times.

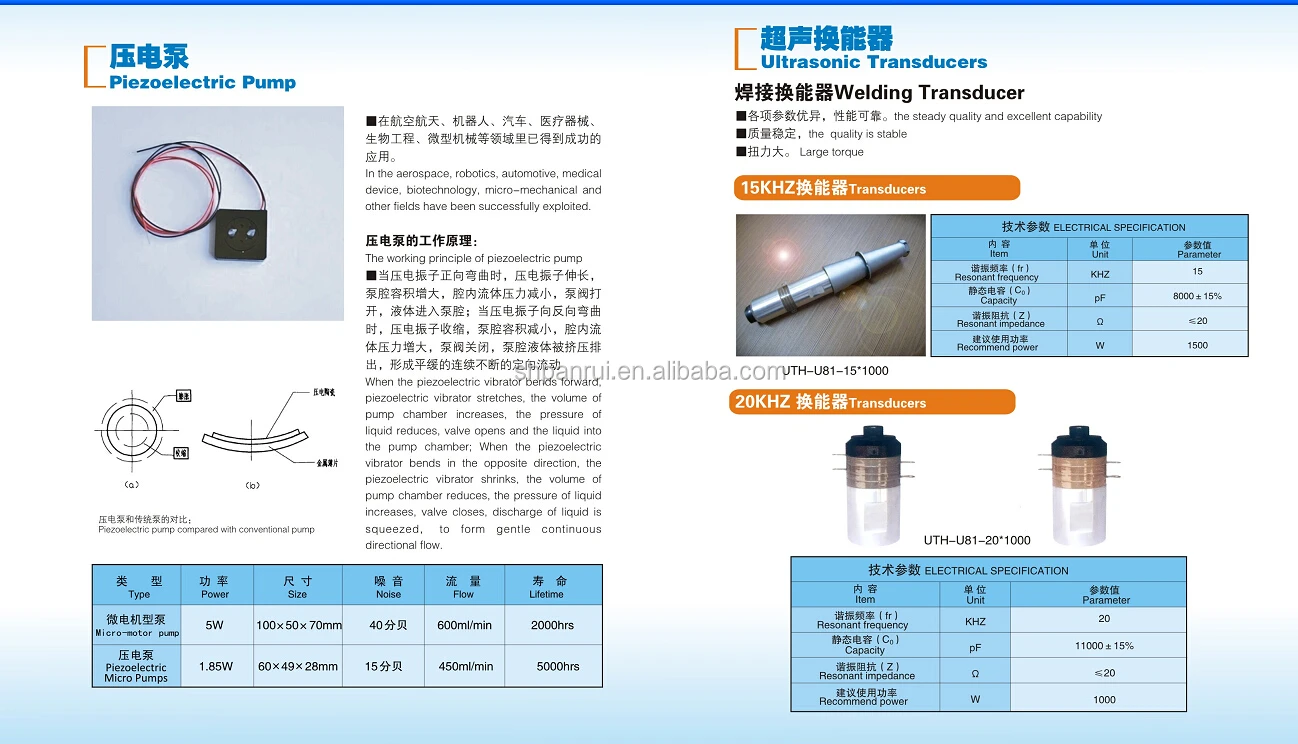

Piezoelectric Pump
In the aerospace, Robotic, Automotive, medical device, biotechnology, micro-mechanical and other fields have been successfully exploied.
The working principle of piezoelctric pump:
When the piezoelectric vibrator bends forward, piezoelectric vibrator stetches, the volume of pump chamber increases, the pressure of liquid reduces,valve opens and the liquid into the pump chamber; when the piezoelectric vibrator bends in the opposite direction,the piezoelectric vibrator shrinks, the volume of pump chamber reduces, the pressure of liquid increases, valve closed, discharge of liquid is squezzed, to form gentle continuous directional flow.
Ultrasonic Transducers
Welding Transducer:
The steady quality and excellent capacility.
The quality is stable.
Large Torque.
15KHZ Transducers
Electrical Specifications | ||
Item | Unit | Parameter |
Resonant Frequency(FR) | KHZ | 15 |
Capacity(C0) | pF | 8000+/-15% |
Resonant Impedence(Z) | Ohm | Less than 20 |
Recommend Power | W | 1500 |
