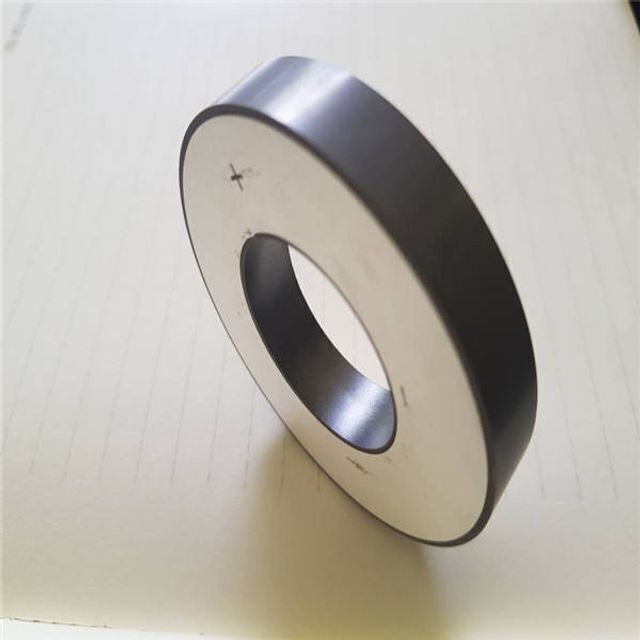

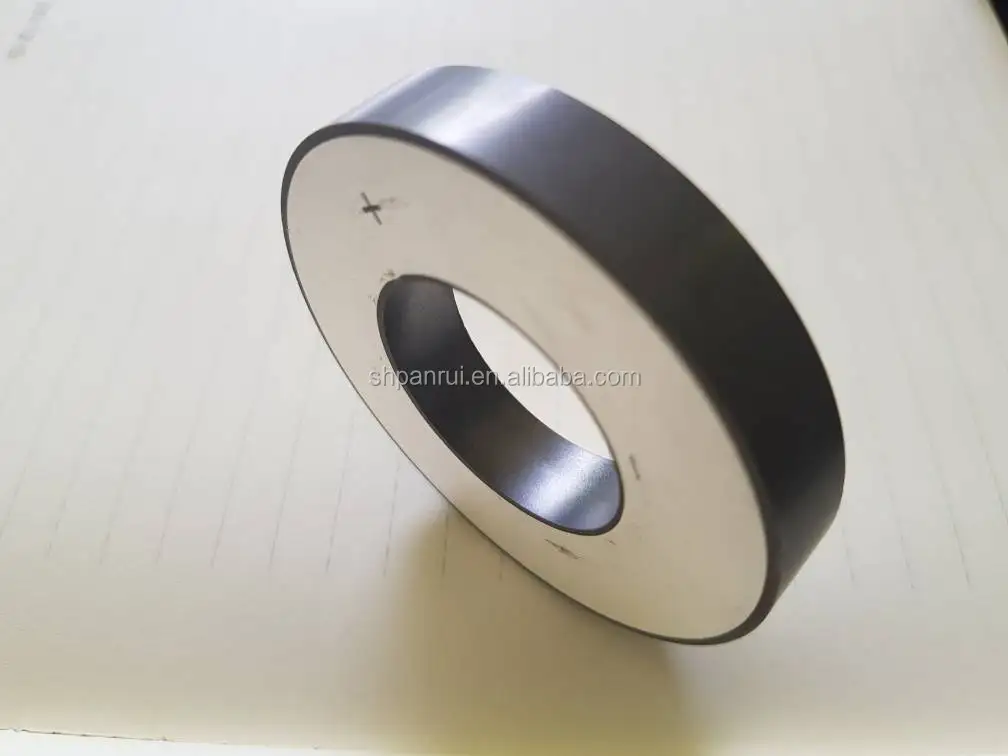

Piezoelectric Ceramic Disc Rings Piezo Ring for Ultrasonic Cleaning
- $0.50 / 1 - 199 pieces
$0.49 / >=200 pieces - 1 piece
- Shanghai Panrui Electric Co., Ltd.
- Shanghai, China
- Ms Camille Xiang
| Package Preview: | ; | Material: | Alumina-Zirconia, Ceramic; |
| Port: | Shanghai,Shenzhen; | Supply Ability: | 100000 Pieces per Day; |
| Packaging Detail: | Piezoelectric Ceramic Disc Rings Piezo Ring for Ultrasonic Cleaning Packing: Standard Export Packing.; | Brand Name: | Piezo Ring for Ultrasonic Cleaning; |
| Type: | Piezoelectric Ceramics; | Place of Origin: | Shanghai, China; |
| Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram; | Model Number: | Piezo Ring for Ultrasonic Cleaning; |
Product Name: Piezoelectric Ceramic Disc Rings Piezo Ring for Ultrasonic Cleaning
Key Words
Ultrasonic Atomization
High Frenquency Atomization Series
Micro-atomization Series
Ultrasonic Cosmetology Transducers
High Frequency Beauty Chip Series
Low Frequency Beauty Chip Series
Shovel Skin Knife Series
Slimming Transducer Series
Piezoelectric Knitting Actuator
Piezoelectric Micro Pumps
Ultrasonic Transducers
USB Micro-atomization Series
The atomizaton chips of low Voltage(3-12V)drive
Japan imports of stainless steel pellicle titanium pellicle Toughness
and long life(3000hrs above)
Laser Drilling of imported technology:small aperture(3-9um)uniform pore size,pore through rate(95%)and good consistency,spray evenly, Desktop is not easy to get wet.
Low Frequency Cosmetology Transducer
Low frequency series:
Good permeability.
Strong vibration spraying is well.
Less heat.
Low frequency species:300KHZ 500KHZ 800KHZ 880KHZ.
|
Electric Specification |
||
|
Item |
Unit |
parameter |
|
Diameter |
Mm |
28 |
|
Resonant frequency |
KHZ |
800 |
|
Recommended Power |
W |
10 |
Shovel Skin Knife
Strong Vibration and import performance is well.
Spraying is well.
No noise.
|
Electric Specification |
||
|
Item |
Unit |
parameter |
|
Resonant frequency |
Mm |
25, 28,80 |
|
capacity |
PF |
7500+/-15% |
|
Recommended Power |
W |
3.7 |
Piezoelectric knitting Actuator
Piezoelectric knitting actuator ana Drives are mainly used in films and sevies of accessories of textile machineny
seamless underwear knitting machine, socks knitting
machine, knitting machine, circular knitting machine.
The Product includes 8 knive and 16 knives knitting actuator.
The drivers includes 2-wire and 3 wire specifications.
High temperature stability, vibration frequemcy of use is
more than 10 million times.
Piezoelectric Pump
In the aerospace, Robotic, Automotive, medical device, biotechnology, micro-mechanical and other fields have been successfully exploied.
The working principle of piezoelctric pump:
When the piezoelectric vibrator bends forward, piezoelectric vibrator stetches, the volume of pump chamber increases, the pressure of liquid reduces,valve opens and the liquid into the pump chamber; when the piezoelectric vibrator bends in the opposite direction,the piezoelectric vibrator shrinks, the volume of pump chamber reduces, the pressure of liquid increases, valve closed, discharge of liquid is squezzed, to form gentle continuous directional flow.
Ultrasonic Transducers
Welding Transducer:
The steady quality and excellent capacility.
The quality is stable.
Large Torque.
15KHZ Transducers
|
Electrical Specifications |
||
|
Item |
Unit |
Parameter |
|
Resonant Frequency(FR) |
KHZ |
15 |
|
Capacity(C0) |
pF |
8000+/-15% |
|
Resonant Impedence(Z) |
Ohm |
Less than 20 |
|
Recommend Power |
W |
1500 |
