Portable Glass Edger

PRODUCT DETAIL
port:Qingdao/Shanghai/Shenzhenweight:3100 kg
CNC or not:normalProcessing glass thickness:1-30mm
Minimum working size:40mmx40mmState of health:new, new
After-sales service provided:On-site service by overseas engineers, online support, free spare parts, on-site installation and commissioning training, on-site maintenance and repair services, video technical supportProduction capacity:300-500 pieces
Package preview:Core component warranty:1 year
Voltage:380v, 50HZpayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram
Warranty:1 yearSupply capacity:200 sets per month
Applicable industries:Hotels, clothing stores, building supplies stores, manufacturing plants, machinery repair shops, food and beverage factories, farms, restaurants, home use, retail, food stores, print shops, construction, energy and mining, food and beverage stores, advertising agenciesstrength:18 kW
glass thickness:1-40mmMarketing Type:New Products 2020
Video shipment inspection:ifproduct name:Glass linear edging machine
Types of:Glass edgerCore components:motor, water pump
Showroom location:France, Russia, JapanPackaging Details:wooden bag
speed:0-4m/minCertification:ce
Glass processing size (maximum):3000*3000mmType of machine:Glass edger
place of origin; place of origin:Shandong Chinabrand:Zhaoyang
Dimensions (L*W*H):7000*1100*2350mmapplication:Construction Furniture Home Appliances
Main selling points:easy to operateAfter warranty service:Video technical support, online support, spare parts, on-site maintenance and repair services
Local service location:France, Malaysia, RomaniaMechanical test report:if

Glass edger

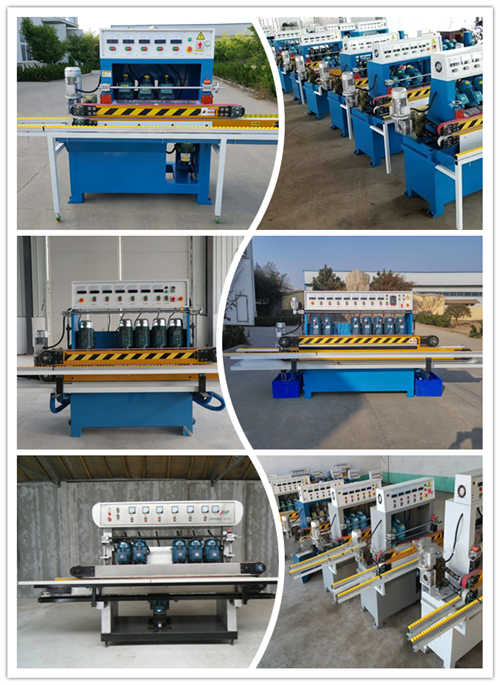

Brady-ZY-4/8/9/10 axis glass linear edging machine/beveling machine/double line edging machine

ZY-glass beveling machine

ZY-Glass edging machine

ZY-glass polishing machine

ZY-glass grinder

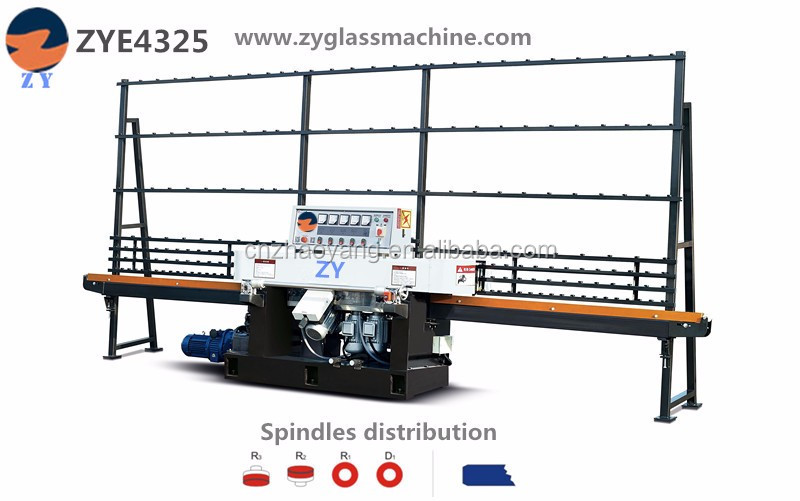

1. ZYE4325 glass linear edging machine (4 axis)





ZYE4325 4-axis glass linear edging machine is used for edging flat glass of different sizes and thicknesses. Complete rough grinding, fine grinding, and angle making at one time. The feeding speed can be adjusted steplessly, and the operating speed can be changed as required.



Specification

Model

ZYE4325

Dimensions (length x width x height)

5000×1000×2500mm

minute glass size

80×80mm

Glass thickness range

3-25mm

Feeding speed

0.5-5m/min

power supply

380V/50Hz

Installed power

10Kw

weight

2000KG

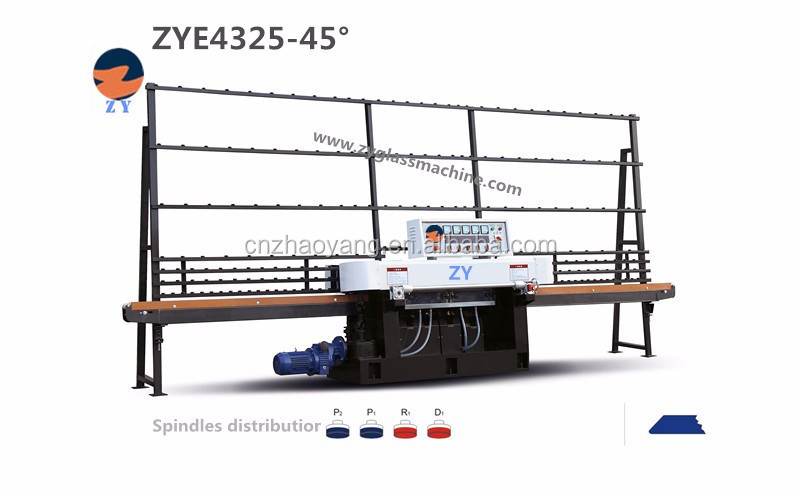

2. ZYE4325-45° glass linear edging machine (4 axes)







ZYE4325-45° Glass Linear Edge Grinding Machine (9 Axis)It is suitable for edging and corner grinding of flat glass of different sizes and thicknesses, rough grinding, fine grinding and polishing can be completed at one time. The polished grease surface is close to the finish of the glass substrate. When adjusting different processing thicknesses (refer to the front axle beam data display instrument), the front chamfering grinding head can move synchronously with the front axle beam, which has the advantages of advanced structure, high machining accuracy, convenient operation, and continuous processing. The thickness is the same, it is the necessary equipment for deep processing of glass.



Specification

Model

ZYE4325-45°A

Dimensions (length x width x height)

6000×1000×2500mm

minute glass size

50×50mm

Glass thickness range

3-25mm

Feeding speed

0.7-5m/min

power supply

380V/50Hz

Installed power

10.5Kw

weight

1900KG

























Model

ZYE4325-45°B

Dimensions (length x width x height)

6000×1000×2500mm

minute glass size

25×25mm

Glass thickness range

3-25mm

Feeding speed

0.7-5m/min

power supply

380V/50Hz

Installed power

10.5Kw

weight

1900KG

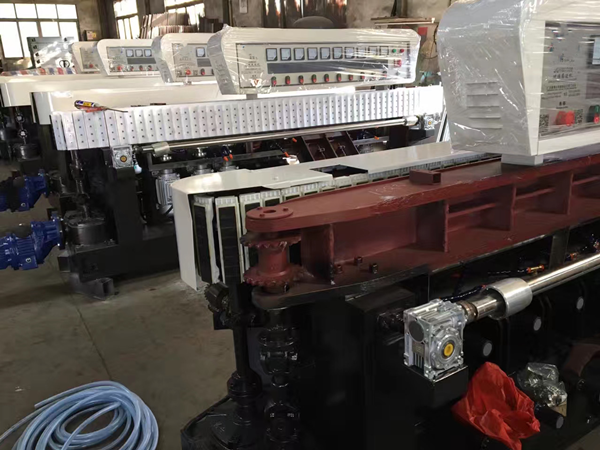

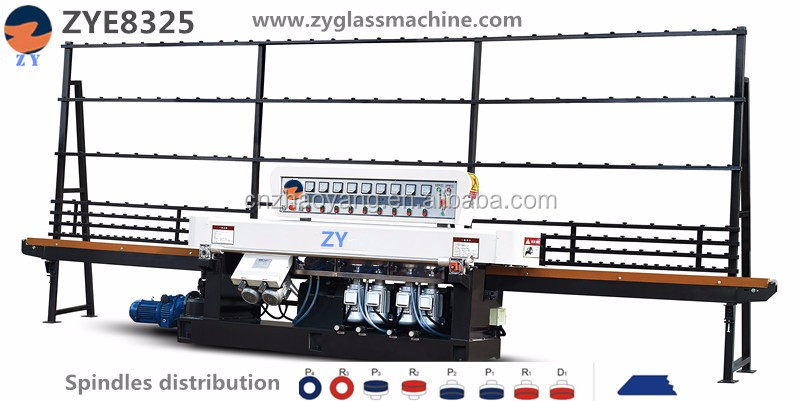

3. ZYE8325 glass linear edging machine (8 axes)







ZYE8325 Glass Linear Edge Grinding Machine is specially designed for grinding flat glass with different sizes and thicknesses with straight edges or 45 angles. Round grinding, polishing, and cornering can be completed at one time. Its speed can be widely adjusted with its stepless regulator. Very smooth speed change In the grinding operation, the feed speed and running speed can be adjusted arbitrarily. Font guides can be adjusted for different thicknesses of processed glass. With clamping, lubricating, voltage stabilizing and other automation systems, advanced structure, high precision, convenient operation and high work efficiency, it is one of the indispensable instruments for glass processing. Grinding wheels 8 pcs, designed for straight edge, coarse grinding, semi-rough grinding, fine grinding, edging, semi-finish grinding, double-sided angle polishing and fine polishing.



Specification:

Dimensions (L×W×H) 7000×1100×2350mm

Platform height 750mm

Weight 3000Kg

Power 18Kw

Feeding processing size 0.5m/min-4m/min

Glass processing size (max)3000mm×3000mm (miu)100mm×l00mm

Angle maximum width 2.5mm

Flat edge maximum cutting 3mm Angle 45°

Glass thickness 3-25mm

Voltage 380V.50Hz

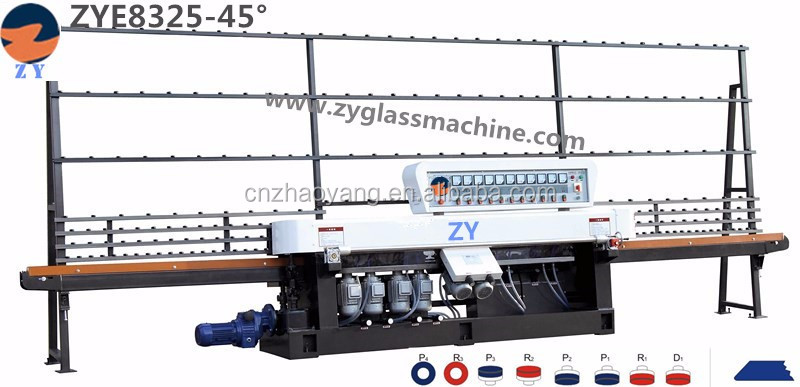

4. ZYE8325-45° glass linear edge grinding machine (8 axes)









ZYE8325-45° Glass Linear Edge Grinding Machine (9 Axis)It is suitable for edging and corner grinding of flat glass of different sizes and thicknesses, rough grinding, fine grinding and polishing can be completed at one time. The polished grease surface is close to the finish of the glass substrate. When adjusting different processing thicknesses (refer to the front axle beam data display instrument), the front chamfering grinding head can move synchronously with the front axle beam, which has the advantages of advanced structure, high machining accuracy, convenient operation, and continuous processing. The thickness is the same, it is the necessary equipment for deep processing of glass.



Specification:

Model

ZYE8325-45°A

Dimensions (length x width x height)

6800×1000×2500mm

minute glass size

50×50mm

Glass thickness range

3-25mm

Feeding speed

0.7-5m/min

power supply

380V/50Hz

Installed power

17.25Kw

weight

2900KG























Model

ZYE8325-45°B

Dimensions (length x width x height)

6800×1000×2500mm

minute glass size

25×25mm

Glass thickness range

3-25mm

Feeding speed

0.7-5m/min

power supply

380V/50Hz

Installed power

17.25Kw

weight

3100KG



















5. ZYE9325 glass linear edge grinding machine (9 axes)





ZYE9325 Glass Linear Edge Grinding Machine is specially designed for straight edge or 45 angle grinding and polishing of flat glass of different sizes and thicknesses. Round grinding, polishing, and cornering can be completed at one time. Its speed can be widely adjusted with its stepless regulator. Very smooth speed change In the grinding operation, the feed speed and running speed can be adjusted arbitrarily. Font guides can be adjusted for different thicknesses of processed glass. With clamping, lubricating, voltage stabilizing and other automation systems, advanced structure, high precision, convenient operation and high work efficiency, it is one of the indispensable instruments for glass processing. Grinding wheel 9, designed for straight edge, rough, semi-rough, finish, edging, semi-finish, double-sided angle polishing and finish polishing.



Specification:
Dimensions (length x width x height): 7000 x 1100 x 2350mm
Platform height: 750mm
Weight: 3000Kg
Voltage: 380V/50Hz
Power: 18Kw

Feed processing size: 0.5m/min-4m/min
Glass processing size (max): 3000mm×3000mm (miu) 100mm×l00mm
Maximum width of corners: 2.5mm
Flat edge maximum cutting: 3mm
Angle: 45°
Glass thickness: 3-25mm

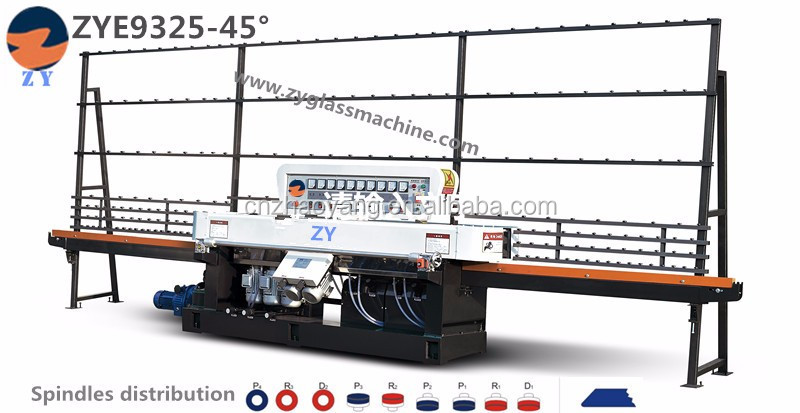

6. ZYE9325-45° glass linear edging machine (9 axes)

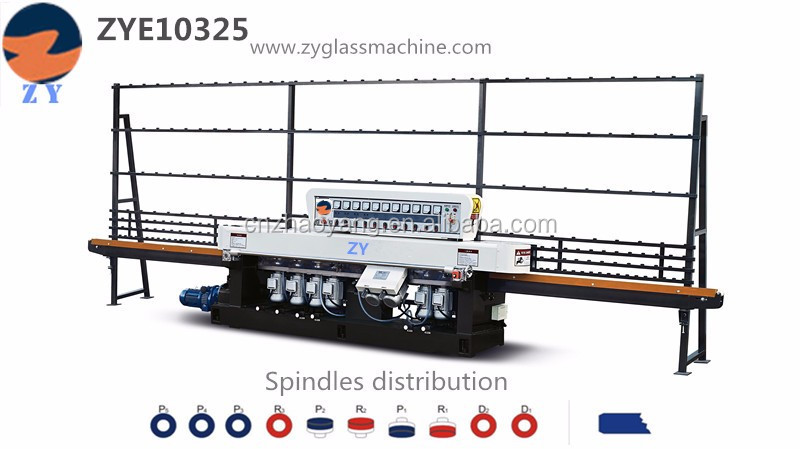

7. ZYE1025 glass linear edge grinding machine (10 axis)

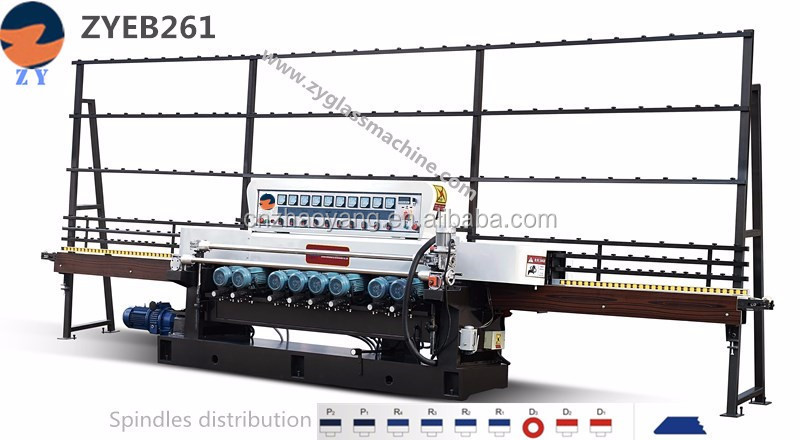

8. ZYEB261 glass beveling machine

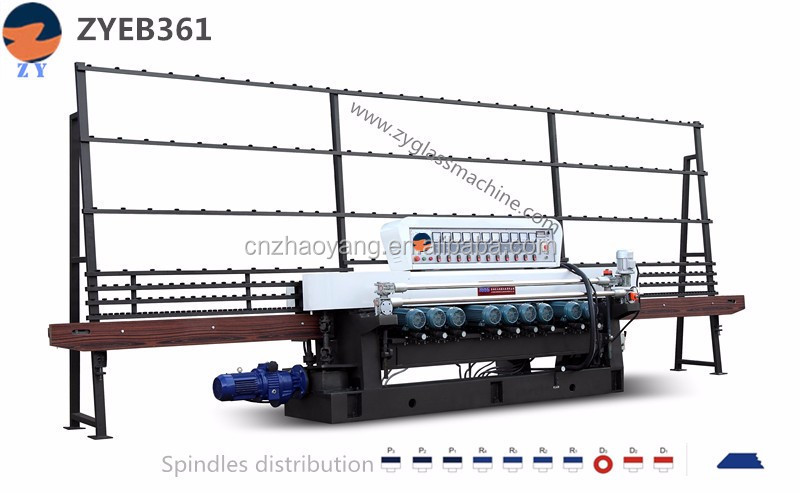

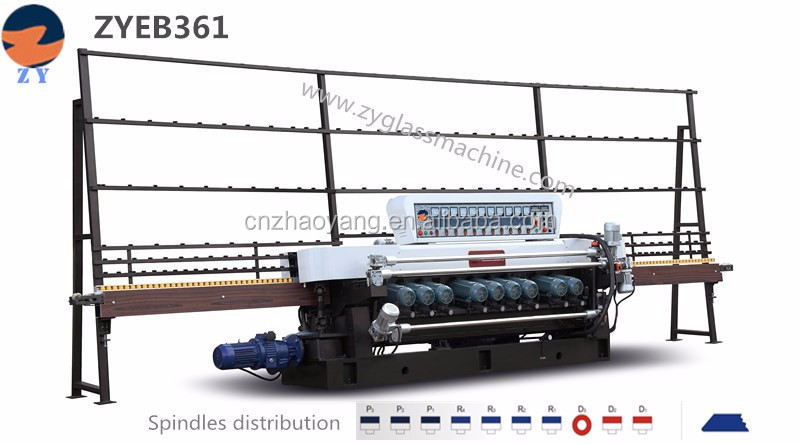

9. ZYEB361 glass beveling machine (lifting)







10. ZYEB361 glass beveling machine

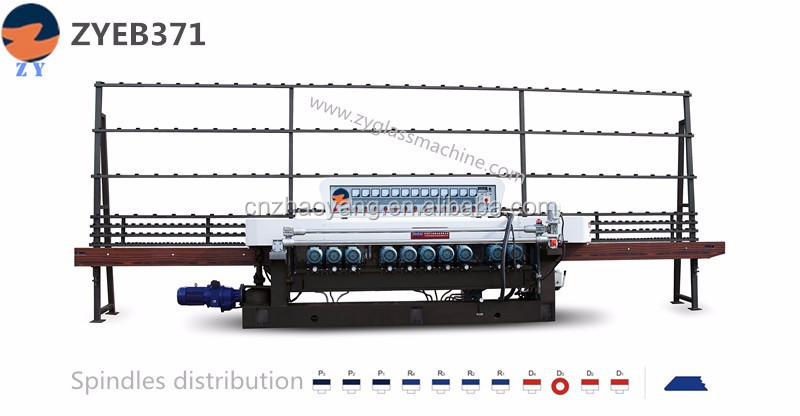

11. ZYEB371 glass beveling machine

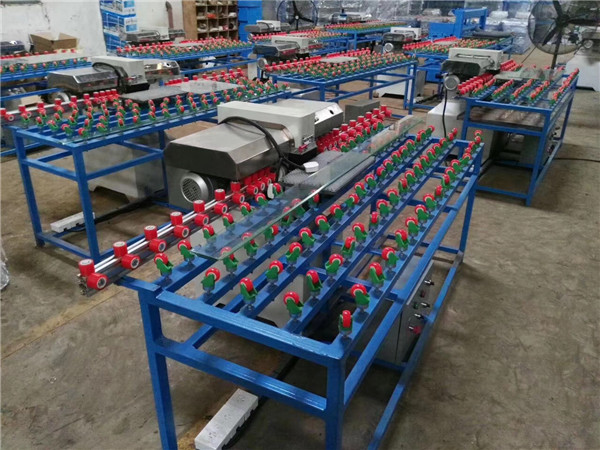

Horizontal small glass beveling machine
