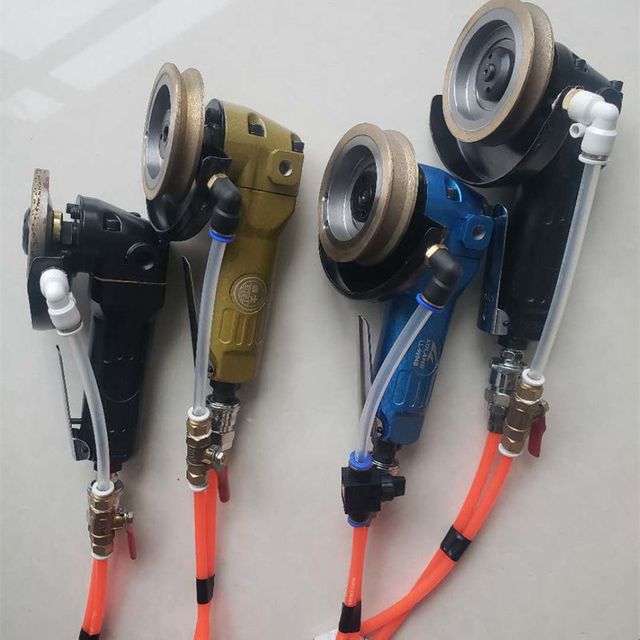

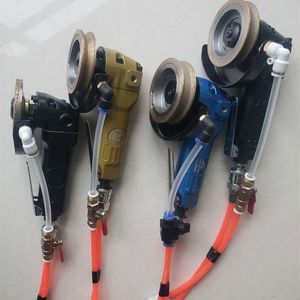

portable glass edging machine
- $4500.00 /set
- 1 set
- Jinan Zhaoyang Machine Co., Ltd.
- Shandong, China
- Mr Brady Ni
| Brand Name: | ZHAOYANG; | Supply Ability: | 200 Sets per Month; |
| Key Selling Points: | Easy to Operate; | Min.working size: | 40mmx40mm; |
| Application: | Architectures Furniture Household Appliance; | Dimension(L*W*H): | 7000*1100*2350mm; |
| Marketing Type: | New Product 2020; | CNC or Not: | Normal; |
| Port: | QINGDAO/SHANGHAI/SHENZHEN; | Showroom Location: | France,Russia,Japan; |
| Certification: | ce; | Warranty of core components: | 1 Year; |
| Machine Type: | Glass Edging Machine; | Product name: | Glass Straight Line Edge Polishing Machine; |
| Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram; | Weight: | 3100 kg; |
| Production Capacity: | 300-500pcs; | After-sales Service Provided: | Engineers available to service machinery overseas,Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support; |
| Glass Processing Size(max) : | 3000*3000mm; | Condition: | New,New; |
| Type: | glass edging machines; | Warranty: | 1 Year; |
| Video outgoing-inspection: | Provided; | Process the glass thickness: | 1-30mm; |
| Applicable Industries: | Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company; | Packaging Detail: | wooden package; |
| Voltage: | 380v,50HZ; | Power: | 18kw; |
| Core Components: | Motor,Pump; | After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; |
| Glass Thickness: | 1-40mm; | speed: | 0-4m/min; |
| Machinery Test Report: | Provided; | Place of Origin: | Shandong, China; |
| Local Service Location: | France,Malaysia,Romania; | Package Preview: | ; |
glass edging machine
Brady-ZY-4/8/9/10 spindles glass straight line edging/beveling machine/double line edging machine
ZY-glass bevelling machine
ZY-glass edging machine
ZY-glass polishing machine
ZY-glass grinding machine
1.ZYE4325 glass straight line edging machine(4 spindles)
ZYE4325 4 spindles glass straight line edging machine is used to grind the hemline on flat glass of different size and thickness. The rough grinding, precise grinding,and angle making can be finished at one time. Feeding speed can be steplessly adjusted, and operation speed can be altered as required.
Specifications
|
Model |
ZYE4325 |
|
Dimension(L×W×H) |
5000×1000×2500mm |
|
Min. glass size |
80×80mm |
|
Glass thickness range |
3-25mm |
|
Feeding speed |
0.5-5m/min |
|
Power supply |
380V/50Hz |
|
Installed power |
10Kw |
|
Weight |
2000KG |
2. ZYE4325-45° glass straight line edging machine(4 spindles)
ZYE4325-45° glass straight line edging machine(9 spindles) is suitable for edging and corner grinding of plate glass of different size and thickness,finishing coarse grinding,fine grinding and polishing at one time.The fat surface after polishing is close to bright and clean degree of glass matrix.When adjusting different processing thickness(able to refer to data display instrument on front-axie beam),former chamfering grinding head can move simultaneously along with the front-axie beam.It possesses the advantages of advanced structure,high working precision,easy operation and capacity of continuous processing for the same thickness,and thereby is necessary equipment for glass deep processing.
Specifications
|
Model |
ZYE4325-45°A |
|
Dimension(L×W×H) |
6000×1000×2500mm |
|
Min. glass size |
50×50mm |
|
Glass thickness range |
3-25mm |
|
Feeding speed |
0.7-5m/min |
|
Power supply |
380V/50Hz |
|
Installed power |
10.5Kw |
|
Weight |
1900KG |
|
Model |
ZYE4325-45°B |
|
Dimension(L×W×H) |
6000×1000×2500mm |
|
Min. glass size |
25×25mm |
|
Glass thickness range |
3-25mm |
|
Feeding speed |
0.7-5m/min |
|
Power supply |
380V/50Hz |
|
Installed power |
10.5Kw |
|
Weight |
1900KG |
3. ZYE8325 glass straight line edging machine(8 spindles)
ZYE8325 glass straight line edging machine is designed for grinding straight edges or 45 angles on flat glass of different sizes and thickness. The round grinding, polishing and angle making can be completed in a procession. Its speed can be widely adjusted by its stepless regulator. Speed alteration is very smooth In grinding operation, feeding and operation speed can be adjusted at random .Font rails can be adjusted to fir vcaried thickness of processed glass. With an automation system for gripping,lubricant ,steady voltage and its advanced its advanced structure ,high precision ,easy operation and high working efficiency, it is one of indispensable instruments for glass procession. Grinding Wheels 8, it is designed for straight edges, rough grinding half-rough grinding Refined grinding, Grinding, half-refine grinding, polishing and refined grinding and polishing of both sides angle.
Specifications:
Size(L×W×H) 7000×1100×2350mm
Height of platform 750mm
Weight 3000Kg
Power 18Kw
Feeding Processing Size 0.5m/min-4m/min
Glass Processing Size(max)3000mm×3000mm (miu)100mm×l00mm
Maximum width of arris 2.5mm
Maximum cutting of flat edging 3mm Angle of arris 45°
Thickness of glass 3-25mm
Voltage 380V.50Hz
4.ZYE8325-45° glass straight line edging machine(8 spindles)
ZYE8325-45° glass straight line edging machine(9 spindles) is suitable for edging and corner grinding of plate glass of different size and thickness,finishing coarse grinding,fine grinding and polishing at one time.The fat surface after polishing is close to bright and clean degree of glass matrix.When adjusting different processing thickness(able to refer to data display instrument on front-axie beam),former chamfering grinding head can move simultaneously along with the front-axie beam.It possesses the advantages of advanced structure,high working precision,easy operation and capacity of continuous processing for the same thickness,and thereby is necessary equipment for glass deep processing.
Specifications:
|
Model |
ZYE8325-45°A |
|
Dimension(L×W×H) |
6800×1000×2500mm |
|
Min. glass size |
50×50mm |
|
Glass thickness range |
3-25mm |
|
Feeding speed |
0.7-5m/min |
|
Power supply |
380V/50Hz |
|
Installed power |
17.25Kw |
|
Weight |
2900KG |
|
Model |
ZYE8325-45°B |
|
Dimension(L×W×H) |
6800×1000×2500mm |
|
Min. glass size |
25×25mm |
|
Glass thickness range |
3-25mm |
|
Feeding speed |
0.7-5m/min |
|
Power supply |
380V/50Hz |
|
Installed power |
17.25Kw |
|
Weight |
3100KG |
5.ZYE9325 glass straight line edging machine(9 spindles)
ZYE9325 glass straight line edging machine is designed for grinding and polishing straight edges or 45 angles on flat glass of different sizes and thickness. The round grinding, polishing and angle making can be completed in a procession. Its speed can be widely adjusted by its stepless regulator. Speed alteration is very smooth In grinding operation, feeding and operation speed can be adjusted at random .Font rails can be adjusted to fir vcaried thickness of processed glass. With an automation system for gripping,lubricant ,steady voltage and its advanced its advanced structure ,high precision ,easy operation and high working efficiency, it is one of indispensable instruments for glass procession. Grinding Wheels 9, it is designed for straight edges, rough grinding half-rough grinding Refined grinding, Grinding, half-refine grinding, polishing and refined grinding and polishing of both sides angle.
Specifications:
Size(L×W×H): 7000×1100×2350mm
Height of platform :750mm
Weight: 3000Kg
Voltage :380V/50Hz
Power: 18Kw
Feeding Processing Size :0.5m/min-4m/min
Glass Processing Size(max):3000mm×3000mm (miu)100mm×l00mm
Maximum width of arris: 2.5mm
Maximum cutting of flat edging: 3mm
Angle of arris :45°
Thickness of glass :3-25mm
6. ZYE9325-45° glass straight line edging machine(9 spindles)
7.ZYE1025 glass straight line edging machine(10 spindles)
8. ZYEB261 glass beveling machine
9. ZYEB361 glass beveling machine(lift)
10. ZYEB361 glass beveling machine
11. ZYEB371 glass beveling machine
horizontal small glass small beveling machine
glass edging machine
glass beveling machine
solutions for--
All size of glasses edging and beveling
all kinds of glasses edging and beveling
....................................................
