Portable Hydraulic Single Person Aluminum Aerial Work Platform Ladder Vertical Mast Lift
- $2200.00 / 1 - 9 sets
$2000.00 / 10 - 29 sets
$1300.00 / >=30 sets - 1 set
- Shandong Belift Machinery Co.,ltd.
- Shandong, China
- Ms Ellie Wang
| Operating mode: | move | net weight: | 300 -460 kg |
| feature: | Explosion-proof, insulation | application: | apartment |
| model. : | AWP | Supply capacity: | 100 sets per month |
| After-sales service: | Online technical support, free spare parts, return and exchange | Project solution ability: | Graphic design, overall project solution, cross-category integration |
| Specification: | 5m to 12m | Platform size: | 0.67*0.66m |
| Origin: | China | design style: | modern |
| Transport Packaging: | Wrap in paper bag and film | Packaging Details: | standard |
| Warranty: | 1 year | Driver type: | direct current |
| brand: | Braft | trademark: | Braft |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Maximum Platform Height: | 5m 6m 8m 9m 10m 12m |
| model: | AWP | port: | Qingdao Port, Shanghai Port, Ningbo Port, Guangzhou Port |

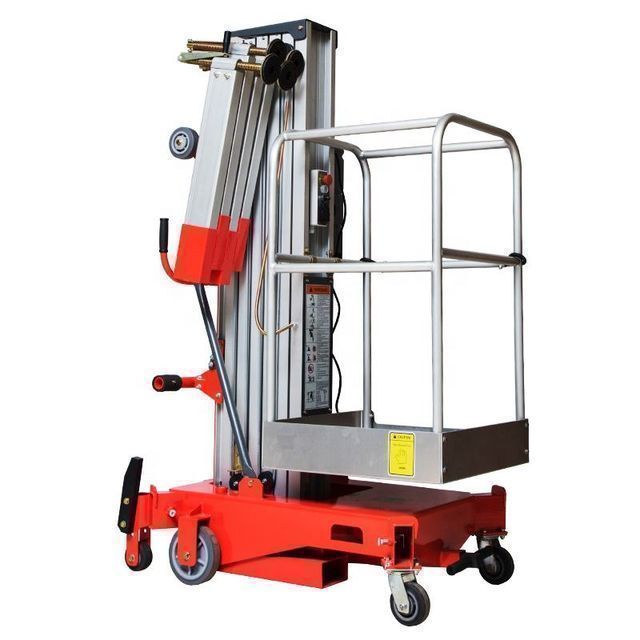

5-12m High-end Electric Man Lift Hydraulic Single Mast Aluminum Lift
Blift brand high-end single-mast aluminum liftHigh-quality aluminum alloy is used to reduce the net weight of the fuselage. This way, the aluminum alloy aerial work platform will make it easier for the operator to move around.
The high-end aluminum alloy working platform is equipped with four high-strength support legs, and the operator must open the four support legs and adjust the level according to the spirit level. To improve maneuverability, two sets of control panels are equipped on the aerial work platform. One is under the body and the other is on the platform.In case of power failure, the aluminum alloy aerial work platform is designed with an emergency descent button. When it loses power, tighten the emergency button and it will start to descend.
Widely used in supermarkets, shopping malls, factories, hotels, restaurants, stations, theaters, exhibition halls, indoor and outdoor maintenance.
Move via man manuAlily.
Boost from AC (without battery) or DC (with battery) power
AC: Voltage according to your local standard.
DC: battery powered.
Features and advantages:
2. Safety switch function, high operation safety
|
model. |
Aerial work platform-H5 |
AWP-H6 |
Aerial work platform-H8 |
AWP-H9 |
AWP-H10 |
AWP-H12 |
|
|
platform height |
4.7m |
6.2m |
7.8m |
9.2m |
10.4m |
12m |
|
|
working height |
6.7m |
8.2m |
9.8m |
11.2m |
12.4m |
14m |
|
|
Carrying capacity |
150 kg |
150 kg |
150 kg |
150 kg |
136 kg |
120 kg |
|
|
platform size |
0.67*0.66m |
||||||
|
the crew |
one person |
||||||
|
outrigger cover |
1.7*1.7m |
1.7*1.7m |
1.7*1.7m |
1.8*1.8m |
1.9*1.8m |
2*1.9m |
|
|
total measurement |
1.24*0.78*1.99m |
1.36*0.78*1.99m |
1.4*0.78*1.99m |
1.46*0.81*2.78m |
|||
|
net weight |
330 kg |
350 kg |
370 kg |
390 kg |
420 kg |
490 kg |
|
|
air conditioner |
380v/220v/110v |
||||||
|
Motor Power |
0.75kw |
||||||
|
options |
direct current |
12v |
|||||
|
DC |
1.5kw |
||||||
|
charger |
12v15A |
||||||
Shadong Bailit MachinerySpecializing in the industry of manufacturing aerial work platforms and material lifting platforms.Established in 2015, now our products are welcomed by customers all over the world.
Certificates: CE, ROHS, SGS, ISO, etc.
