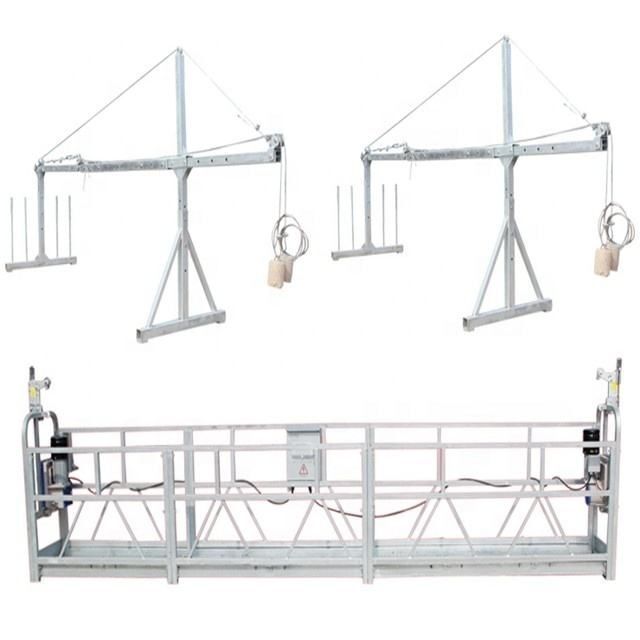

ZLP 630 galvanized suspended platform
- $1800.00 / 1 - 29 sets
$1300.00 / >=30 sets - 1 set
- Ningjin Luwang Machinery Equipment Co., Ltd.
- Shandong, China
- Mr Luwang Official
| Application: | Construction site; | Voltage: | 220v/380v/415v/50hz; |
| Supply Ability: | 3000 Sets per Month; | Design Style: | Modern; |
| Project Solution Capability: | graphic design,3D model design,total solution for projects,Cross Categories Consolidation,Others; | Lift height: | 200m; |
| Warranty: | 5 years; | Model Number: | ZLP 630; |
| Package Preview: | ; | Model: | ZLP630; |
| Port: | Tianjiin; | Type: | Galvanized; |
| Color: | customized; | Surface treatment: | Powder Coating; |
| Brand Name: | Luwang; | Feature: | Safety; |
| Safety Lock: | LDF30; | Payment Terms: | L/C,T/T; |
| Certificate: | ISO9001/CE; | Packaging Detail: | standard export packing; |
| Material: | Q235 STEEL; | After-sale Service: | Online technical support,Onsite Installation,Onsite Training,Onsite Inspection,Free spare parts,Return and Replacement,Other; |
| Place of Origin: | Shandong, China; | Rated Load(Kg): | 630kg; |
1.Company introduction
Ningjin Luwang Machinery Equipment Co., Ltd.
(formerly Ningjin Xiangrui Machinery Factory)found in 2005
Location: Ningjin County,(Dezhou, Shandong Province)
"China Hardware Machinery Township",200KM away from Tianjin port, it’s convenience for export.
Main products: ZLP series suspended platforms
Electric suspended platforms
Pedal suspended platforms
Special-shape suspended platforms
& Accessories
Offices & branch:
5 offices established in China mainland
Beijing branch (International Department)
2. Products & Specifications
|
The parameters of ZLP series electric suspended platforms |
||
|
|
ZLP630 |
ZLP800 |
|
Material & Surface Treatment |
Hot-dip Galvanizing (HDG) steel, powder spraying steel, Aluminum alloy |
|
|
Rated load |
630KG |
800KG |
|
Dimension L×W×H(mm) |
6000(2m×3) × 690 or 760 × 1180 |
7500(2m×3+1.5m)× 690 or 760 ×1180 |
|
Hoist× 2 |
||
|
Hoist type |
LTD6.3 |
LTD8 |
|
Motor type |
YEJ90L-4 |
YEJ90L-4 |
|
Power |
1.5KW, 1400r/min |
1.8KW, 1400r/min |
|
Break torque |
15N·M |
16N·M |
|
Unit Weight |
48KG |
52KG |
|
Lifting speed |
9.3±0.5m/min |
8.2±0.5m/min |
|
Max Lifting Height |
200m |
200m |
|
Safety lock× 2 Dacromet shell, Stainless steel lock core, unit weight:5KG |
||
|
Allowable impact |
30KN |
30KN |
|
Angle adjustment |
3°~8° |
3°~8° |
|

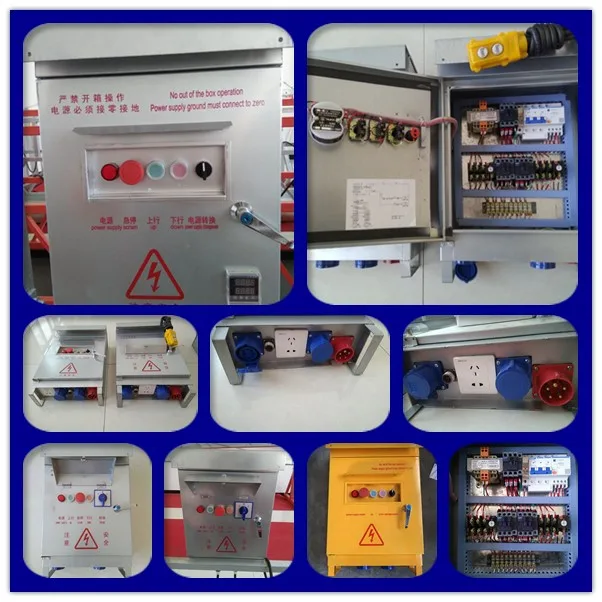

Electric control box × 1 |
Galvanized /paint shell, CHINT / Schneider components, unit weight:15KG |
|
|
Platform weight |
480KG |
550KG |
|
Wire rope × 4 |
4*31SW φ8.3mm |
4*31SW φ8.6mm / φ9.1mm |
|
Cable× 1 |
3*2.0+2*1.0YC-5 |
3*2.0+2*1.0YC-5 |
|

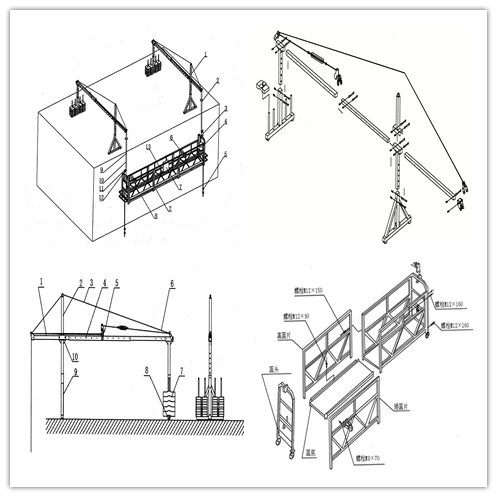

Suspension mechanism × 2 |
Front beam overhang 1.3-1.5m, Front beam height 1.1-1.6m Weight: 360KG (Without counterweight) |
|
|
Counterweight 25KG/piece |
1000KG. |
1000KG. |

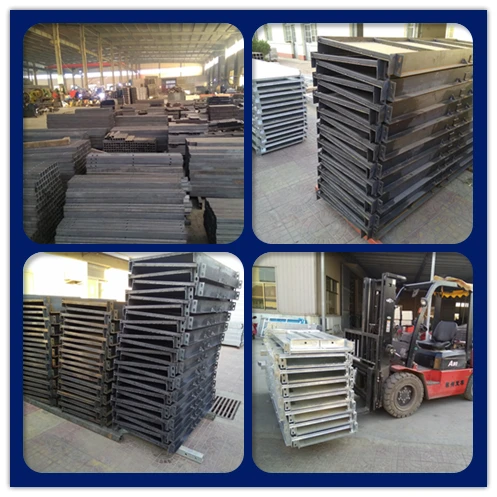

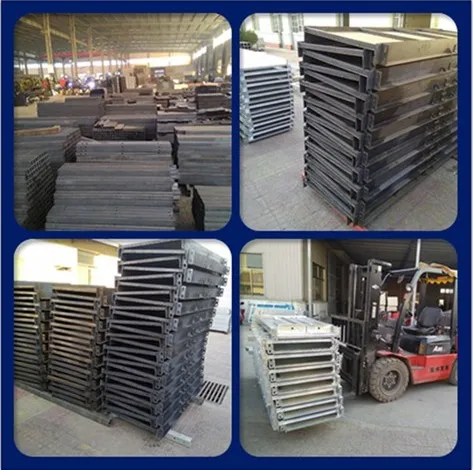

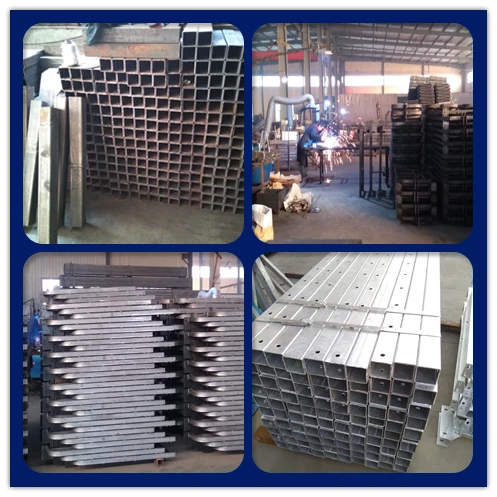

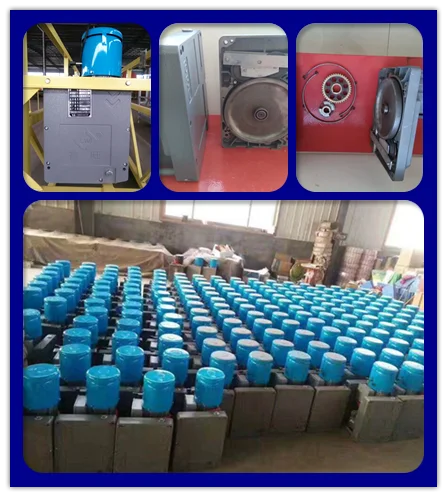

3.Raw materials & finished products

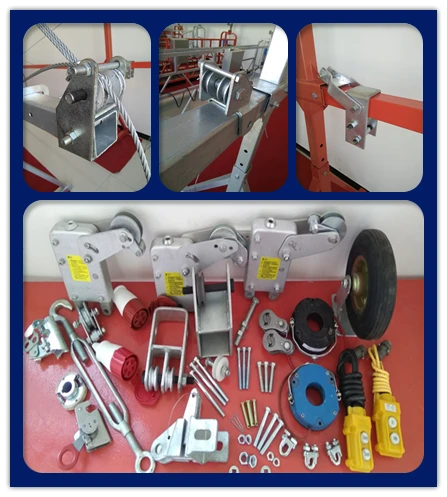

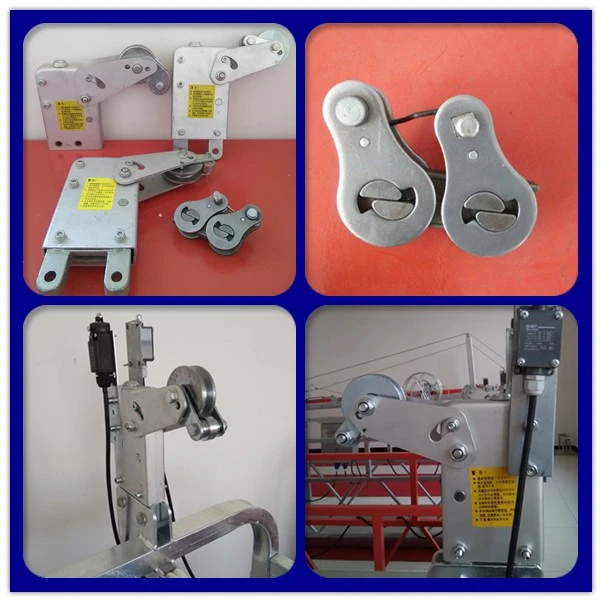

4.Accessories

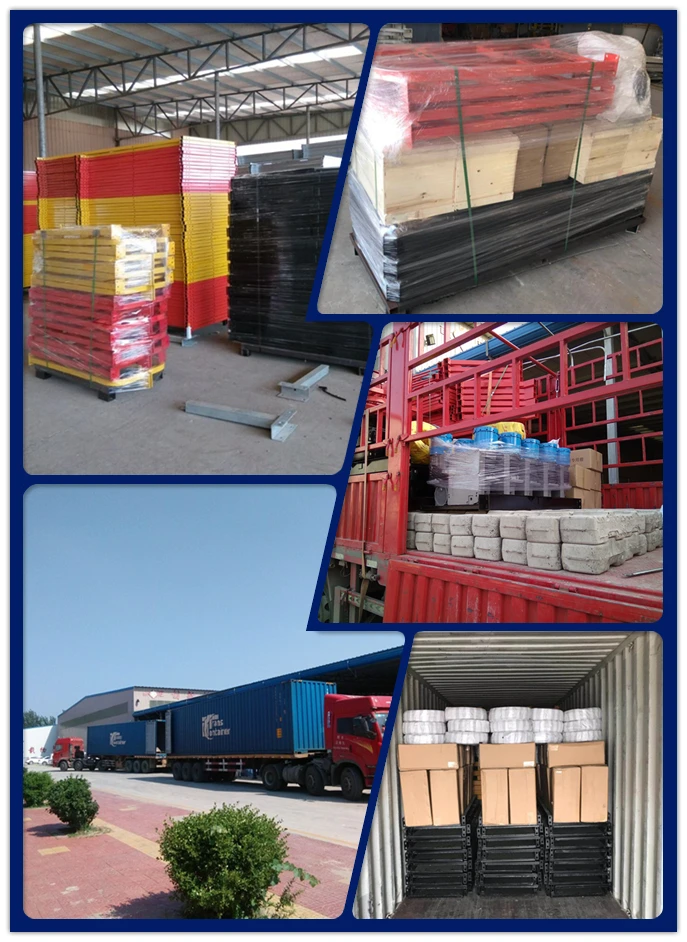

5.Export Packing & Loading
Wrapped pallets packing, full container loading in bulk & as required.
6.Customers Visiting & International Exhibitions
7.Certifications
8.FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer.
Q: How long is your delivery time?
A: 5-10 days --- in stock products.
15-20 producing days --- OEM & special designed products, depending on order quantities.
Q: What is your terms of payment ?
A: Payment less than 1,000USD, 100% in advance.
Payment more than1,000USD, 30% T/T in advance, balance before shipment.
If any other question, please feel free to contact us as below:
9.Contact us
Website: www.luwangcn.com
Factory Address: Shiji Industrial Park, Ningjin county, Shandong Province, 253401 China
Beijing branch: Rm 510, No.10 BLDG, Dongya 5 Ring International,Daxing District, Beijing,100076 China
