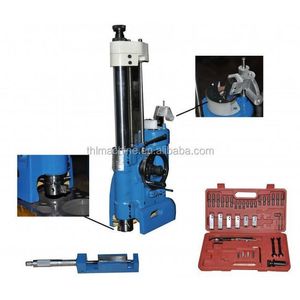

Portable cylinder boring machine T8014S with square stand
- $1125.00 /unit
- 1 unit
- Shanghai THL Machine Tool Co., Ltd.
- Shanghai, China
- Mr xu li
PRODUCT DETAIL
| Showroom location: | Russia, Ukraine | Table travel (X) (mm): | 0mm |
| Main selling points: | multifunctional | Origin: | China Shanghai |
| brand: | THL | weight: | 100 kg |
| Positioning accuracy (Z axis) mm: | 0 | Video outbound inspection: | if |
| Supply capacity: | 10 units per day | Voltage: | 220V/380V |
| After Warranty Service: | Video Technical Support | strength: | 550 watts |
| port: | Shanghai | Positioning accuracy (X axis) mm: | 0 |
| Table size (mm): | other | Warranty: | 6 months |
| Spindle speed range (rpm): | 7.5 rpm | Health status: | new |
| Marketing Type: | Hot Products of 2019 | Table travel (Y) (mm): | 0mm |
| Table travel (Z) (mm): | 0mm | Number of spindles: | single |
| Local service locations: | USA, Russia, Ukraine | type: | vertical |
| After-sales service provided: | Provide overseas third-party support, online support, video technical support | Certification: | ISO9001:2008 |
| Travel (W axis) (mm): | 0mm | Number of axes: | 2 |
| Whether CNC: | normal | Mechanical test report: | if |
| Dimensions (L*W*H): | 360x345x1100mm | Packaging Details: | wooden box |
| Applicable industries: | Building materials store, machinery repair shop | Core component warranty: | 3 months |
| Weight (ton): | 0.1 tons | payment terms: | wire transfer |
| Positioning accuracy (Y axis) mm: | 0 | Core components: | engine, other |
- Screw feed fast retract
- Fast, Aggressive, Anchored
- three finger center
- special micrometer
- knife sharpener
main specifications
|
Model
|
T8014S
|
T8016S
|
|
|
Bore diameter
|
Φ65-Φ140mm
|
Φ80-Φ165 mm
|
|
|
maximum. Drilling depth
|
300mm
|
400 mm
|
|
|
Spindle speed
|
250;380 rpm
|
200;300 rpm
|
|
|
Spindle feed
|
0.11mm/rotation
|
0.12mm/rotation
|
|
|
Spindle quick reset
|
636 mm/min
|
780mm/min
|
|
|
engine
|
Voltage
|
220/380 volts
|
220/380 volts
|
|
strength
|
0.25/0.37 kW
|
0.25/0.37 kW
|
|
|
speed
|
1440 rpm
|
1440 rpm
|
|
|
Dimensions
|
320×330×850 mm
|
360×345×1100mm
|
|
|
Package Size
|
540×470×1030 mm
|
500×490×1270 mm
|
|
|
weight
|
62 kg
|
85 kg
|
|
Standard Carbide Boring Tool
Rough cut: 3PCS
Optional Drilling Tool
1. Counterbore - cutting sleeve, counterbore block
2.30 degree offset
3.30 degree offset and counterbore
4. Knife sharpener
packing list
|
No
|
Accessories
|
Specification
|
quantity
|
|
1
|
Tool Setting Micrometer
|
65-140 for T8014S
80-170 for T8016S |
1
|
|
2
|
Boring tool
|
|
4 pieces
|
|
3
|
tool collector
|
2 each
|
3 series
|
|
4
|
finger centered
|
3 each
|
T8014A 6 Series
7 series of T8016A |
|
5
|
spring coil
|
|
1
|
|
6
|
Knife sharpening accessories
|
by option
|
1 set
|
|
7
|
hexadecimal. socket wrench
|
S=4,5,6
|
3 pieces
|
|
8
|
single end wrench
|
S=11
|
2
|
|
9
|
Anchoring device
|
|
1 set
|
