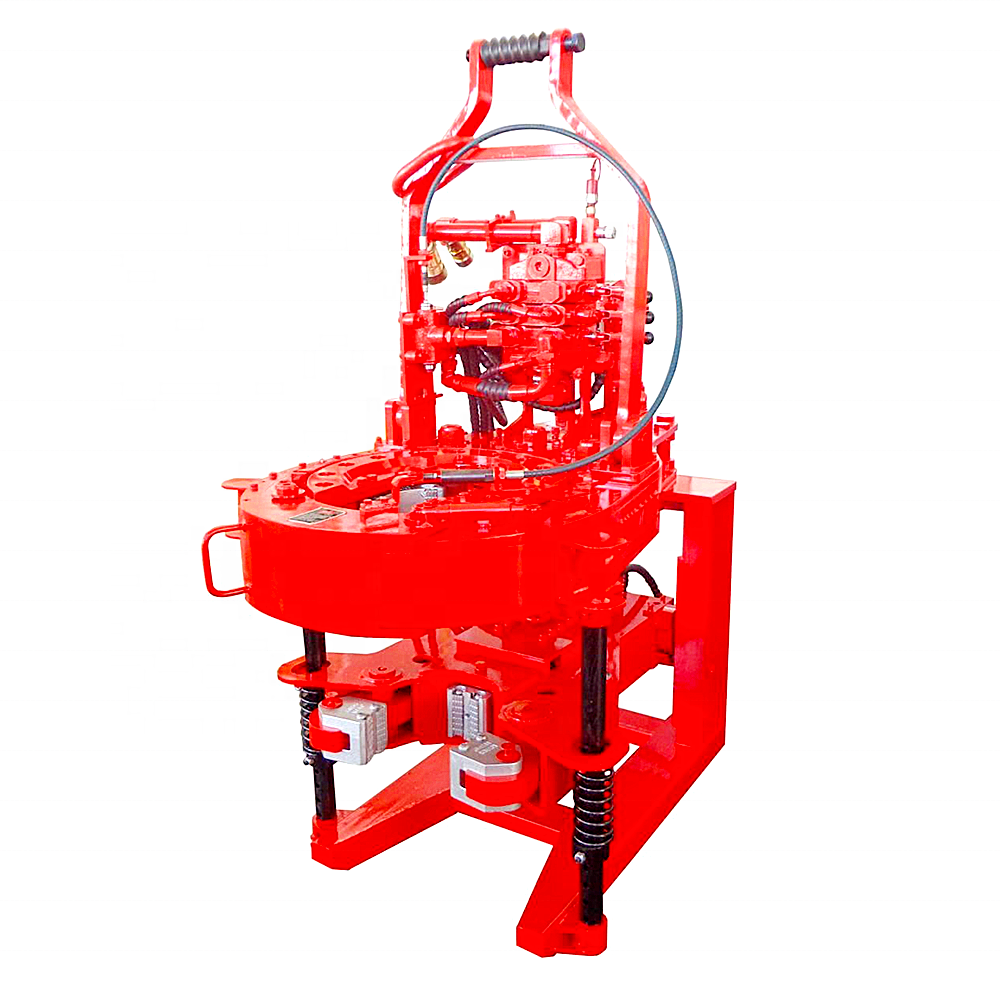

Power Tong API KHT8625 Teda Hydraulic Body TED TEDA Power Range Size 2 7/8 Inch - 8 5/8 Inch for Well Head
- $18000.00 /set
- 1 set
- Dongying Qixiang Import & Export Co., Ltd.
- Shandong, China
- Ms Eve Liu
PRODUCT DETAIL
| Packaging Preview: | ; | brand: | TEDA; |
| Packaging Details: | Standard export packing or as your request; | port: | any port in China; |
| Mechanical test report: | if; | Processing type: | forging; |
| Material: | Carbon steel; | Video external inspection: | if; |
| model: | KHT8625; | Health status: | new; |
| use: | drilling; | Core components: | Transmission, engine, motor; |
| payment terms: | L/C,Western Union,T/T; | Local service location: | Egypt, Canada, Turkey, United Kingdom, Italy, France, Germany, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, United Arab Emirates , Colombia, Algeria, Sri Lanka, Romania, Bangladesh, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan; |
| Certification: | API; | Applicable industries: | mechanical repair shop; |
| Warranty: | 1 year; | place of origin; place of origin: | Chinese mainland); |
| Core Components Warranty: | 1 year; | type: | Drill pipe, power tongs; |
| Showroom location: | Egypt, Canada, Turkey, Italy, Brazil, Mexico, Russia, Spain, Morocco, Chile, Kazakhstan, Tajikistan, Japan; | Type of machine: | drilling tools; |
| Supply capacity: | 65 sets per month; | Marketing Type: | New products in 2020; |
Product Description

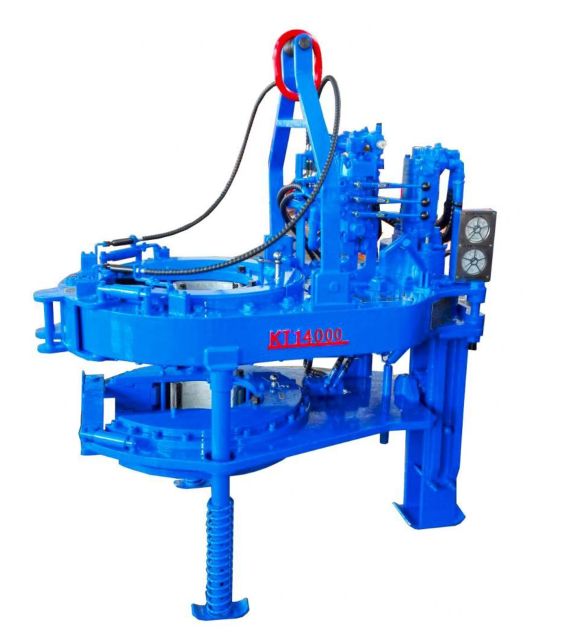

KHT8625 Casing Power TongIt is used for the upper and lower out of the oil field casing operation. The labor of workers is greatly reduced, the connection quality of the thread is improved, and the accident of improper casing operation is reduced. The power tong also has the following characteristics: □Open type, convenient and quick to enter and exit the working position, the integral tong head has high strength and good rigidity. □ Double swing jaws, easy to disassemble. □ Brake belt assembly, easy to operate, easy to maintain and replace. □ Open gear support structure to improve strength and rigidity. □ Full hydraulic and mechanical shifting. □ The shell adopts high-strength steel plate to increase the strength. The jaws are cast with precision craftsmanship, which is beautiful and elegant. □ With hydraulic torque indicator and installation interface, it is convenient to realize computer management. □ Adopt hydraulic safety device for safety door, with good safety performance. □ The torque range is large, which can meet the requirements of larger torque.
Scope of application | Tongs: 2 3/8″-8 5/8″ |
Opening size (main pliers) | 9"/228.5mm |
Clamp head speed: | High: 5200 ft.lbs/7 kN.m Low: 25000 ft.lbs/34 kN.m |
torque | High gear 2500 ft.lb/3400 N m |
Dimensions (L×W×H) | 55.1″×37.5″×70.8″ / 1400×955×1800 mm |
Jaw plate specifications | We offer three common jaws: 5 1/2″, 6 5/8″, 8 5/8″; others: 2 3/8″, 2 7/8″, 3 1/2″, 4″, 4 1/2″, 5″, 7″, 7 5/8″, 8 5/8″ jaws Can be equipped according to customer needs |
Application effect description
Features: 1. The clamp head is an open structure, and the working position of advancing and retreating is fast and convenient. The integral pliers have good hardness and rigidity; 2. The main pliers and the back pliers adopt three-jaw plate clamping devices. This device ensures minimal string corruption. The front two jaws of the main tongs are of swing structure, and the rear jaws are of roller type. Assembly and disassembly are very convenient. Optimum cut ratio design ensures reliable clamping and easy slope retreat. The rear clamp is a three-claw plate structure driven by a hydraulic cylinder. Simple structure and reliable clamping; 3. It adopts four-speed rotation, with large speed regulation range and large rated torque; 4. It has a braking method with brake nails. High braking torque. easy to use. Easy maintenance and replacement; 5. The open-type large gear support structure greatly improves the hardness and rigidity of the open-type large gear; 6. The shell is made of high-hardness steel plate. Overall hardness is good. All kinds of jaws are made by fine casting and forging process. Beautiful appearance and high hardness; 7. Provide hydraulic torque indicator. And provide torque meter installation interface

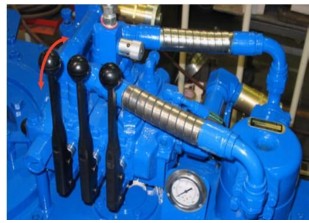

detailed image

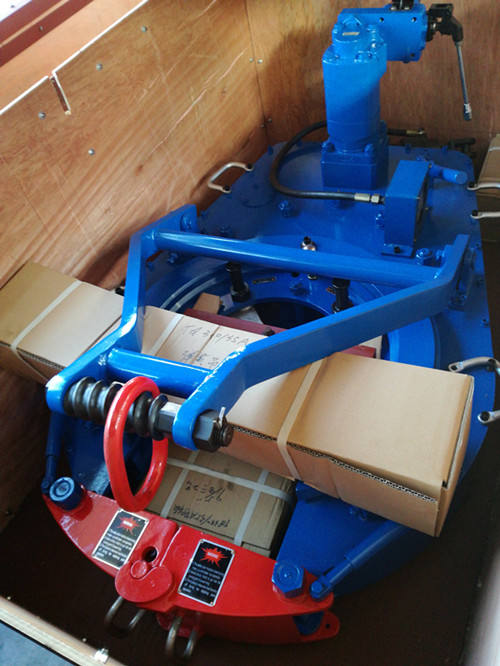

Pack by case
Related Products
Packaging and Shipping

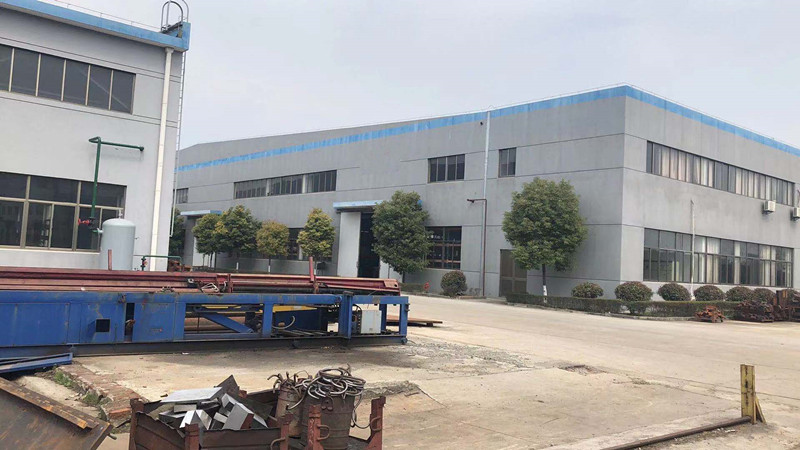

Company Profile
Dongying Qixiang Import and Export Co., Ltd.(Export Department), specializing in Chinese oilfield equipment and tools. We have a strong technical team, we can provide technical support. Our engineers have over 15 years of drilling experience.
Our main products: 1. Drilling rig spare parts (water rotation, mud pump, crane, etc.)
2. Wellhead tools (power tongs, slips, elevators, etc.)
3. Cementing tools
4 downhole tools, pots and downhole motors
5. OCTG
6. Wellhead equipment and tools, valves, blowout preventers and spare parts
7. Mud pump and spare parts
Our main products: 1. Drilling rig spare parts (water rotation, mud pump, crane, etc.)
2. Wellhead tools (power tongs, slips, elevators, etc.)
3. Cementing tools
4 downhole tools, pots and downhole motors
5. OCTG
6. Wellhead equipment and tools, valves, blowout preventers and spare parts
7. Mud pump and spare parts
Our service and strength
Product quality is our lifeline, reputation is our foundation, they are the first position in our mind,
Then we can build a long-term friendship with each client.
Then we can build a long-term friendship with each client.
FAQ
Skype: eve.liu06211988mobile:0086-18554639639instant message:0086-18554639639
e-mail: [email protected]
e-mail: [email protected]
