Automatic transformer silicon steel core cut-to-length cutting line
- $92300.00 / 1 - 1 sets
$90450.00 / >=2 sets - 1 set
- Zhu Tang (Suzhou) Technology Co., Ltd.
- Jiangsu, China
- Mr Jack Liao
| Health status: | new | Cutting Thickness (mm): | 0.2 - 0.35 mm |
| CNC system: | programmable logic controller | Sheet width: | 40-400mm |
| Supply capacity: | 100 sets per year | brand: | bamboo pond |
| maximum. Punch diameter: | 24mm | Core Components Warranty: | 1 year |
| color: | custom made | Video external inspection: | if |
| Uncoiler loading: | 1000kg | port: | Shanghai or as your request |
| Mechanical test report: | if | Sheet Thickness: | 0.2-0.35mm |
| Showroom location: | not any | Cutting length (mm): | 350 - 9999 mm |
| strength: | 15kW | Core components: | PLC, Bearings, Gearboxes, Motors, Pressure Vessels, Gears, Pumps |
| payment terms: | letter of credit, wire transfer | product name: | Fixed length line |
| Packaging Details: | Seaworthy packaging | Shearing speed: | 0-120m/min |
| Marketing Type: | normal product | Main selling point: | Famous brand PLC |
| Applicable industries: | Mechanical Repair Shop, Manufacturing Plant | Weight (kg): | 8000 |
| Sheet length: | 350-9999mm | Control System: | CNC |
| place of origin; place of origin: | Jiangsu, China | application: | Cutting silicon steel |
| Feed rate (m/min): | 1 - 120 m/min | Warranty: | 1 year |
| Cutting width (mm): | 40 - 400 mm |
Automatic transformer silicon steel core cut-to-length cutting line
introduce

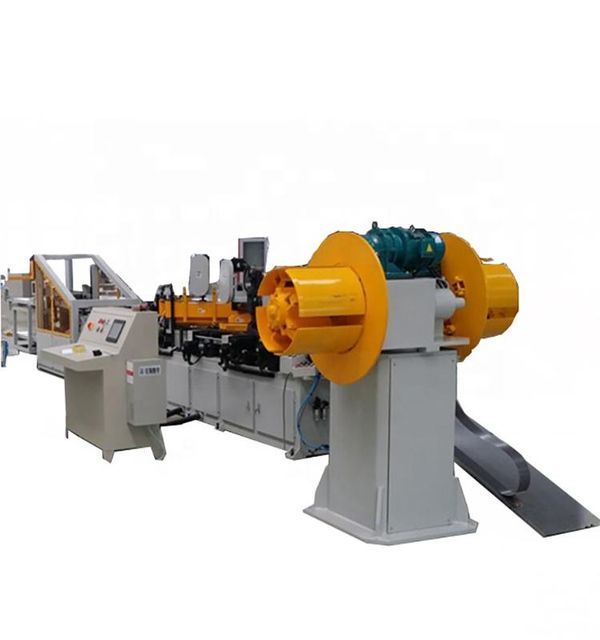

Transformer silicon steel core automatic cut-to-length cutting line HJX-400 is a double-cut double-punch silicon steel shearing machine, which can cut, punch and slot the iron core plate to make full oblique seam, half oblique seam and straight seam. Slotted transformer core laminations can be used in small and medium transformers. The silicon steel sheet coils are punched and cut according to the preset sheet shape and size, and the finished sheets are sorted at the end of the production line and then stacked.
main ingredient
1. Uncoiler at both ends (hydraulic tensioning, electric reversing)
2. Spreading device
3. Feeder (servo motor drive, length measuring device)
4. Punch unit
5. Shearing machine unit
6. Outlet Platform
7. Depilator and Sorter
8. Grabber
9. Whole line width adjustment system
10. Pneumatic system
11. Electric control system control cabinet and console
technical parameter
HJJ4 Typical Standard Specifications00 isAs shown below, but can be modified according to customer's specifications and needs.
|
Coil width tolerance: |
≤±0.1mm |
|
Coil Burr Length: |
≤0.03mm |
|
Coil S-degree tolerance: |
1000mm one-way less than 0.1mm |
|
Coil waviness: |
≤15mm/1000mm (span greater than 1000mm, height less than 15mm) |
|
Sheet Thickness: |
0.2~0.35mm |
|
Sheet width: |
40~400mm |
|
Sheet length: |
350~9999mm |
|
Punching diameter |
10mm~24mm |
|
Punch location: |
Bidirectional offset along the centerline |
|
Eccentricity of V-type punching (along the center of the plate): |
±30mm |
|
Feeding speed: |
0~100m/min |
|
strength: |
15Kw |
|
Business direction: |
left line |
