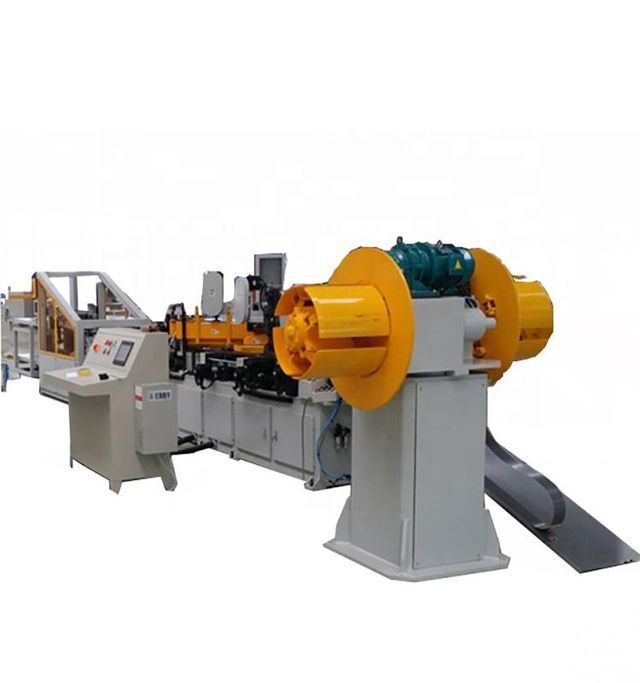

Programmable Transformer Silicon Steel CNC Cut to Length Line
- $50000.00 /set
- 1 set
- Zhu Tang (Suzhou) Technology Co., Ltd.
- Jiangsu, China
- Mr Jack Liao
| Port: | Shanghai; | Packaging Detail: | Seaworthy packing; |
| Brand Name: | Zhutang; | Power: | 15kw; |
| Sheet length: | 350-2500mm; | Machinery Test Report: | Provided; |
| Video outgoing-inspection: | Provided; | Core Components: | PLC,Engine,Bearing,Gearbox,Motor,Pressure vessel,Gear,Pump; |
| Condition: | New; | Payment Terms: | L/C,T/T; |
| Showroom Location: | None; | Warranty: | 1 Year; |
| Local Service Location: | France; | After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; |
| Application: | slitting sillicon stee; | Warranty of core components: | 1 Year; |
| Applicable Industries: | Machinery Repair Shops,Manufacturing Plant; | Supply Ability: | 100 Sets per Year; |
| Marketing Type: | Ordinary Product; | Key Selling Points: | Famous brand PLC; |
| After-sales Service Provided: | Engineers available to service machinery overseas,Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support,Free spare parts; | Sheet thickness: | 0.23-0.35mm; |
| Place of Origin: | Jiangsu, China; |
Introduction:
Programmable Transformer Silicon Steel CNC Cut to Length Linee HJJ400 is used to shear, punch, and notch iron core sheet to makes fully inclined seam, half inclined seam and straight seam transformer iron core overlapping sheet, which can be used in small and medium sized transformer. Silicon-steel sheet coil material is punched and sheared as per preset sheet shape and size, and the finished sheets will be sorted and put in order at the end of the production line, then they can be laminated.
Main Technical Parameters:
|
Roll material width tolerance: |
≤±0.1mm |
|
Roll material burr length: |
≤0.03mm |
|
Roll material S degree tolerance: |
single direction less than 0.1mm in 1000mm |
|
Roll material wave degree: |
≤15mm/1000mm( span more than 1000mm, height less than 15mm) |
|
Sheet thicKness: |
0.23~0.35mm |
|
Sheet length: |
350~2500mm |
|
Punching hole dia. |
10mm~24mm |
|
Punching hole position: |
can be bidirectional offset along the center line |
|
V-type punching eccentricity(along the centre of the sheet): |
±30mm |
|
Speed of feeding: |
0~100m/min |
|
Power: |
15Kw |
|
Operating direction: |
Left line |
ABOUT US
Zhu Tang (Suzhou) Technology Co., Ltd., formerly known as Zhu Tang (Shanghai) Technology Co., Ltd., is specializing in developing, designing, manufacturing and selling transformer and reactor manufacturing machines, such as foil winding machines, coil winding machines, iron core stacking & tilting platform, etc. Our custormers are from all over the world, including Russia, Germany, Canada, South Korea, Vietnam, and India etc. The company was established in 2009 and is located in Taicang City, Suzhou City, Jiangsu Province, China.
|
|
 |
 |
 |
 |
 |
1) Q: Are you manufacturer or trading company?
A: We provide technical support online as well as overseas services provided by our skilled technicians.
