High frequency transformer PNI pin automatic shaping and straightening machine
- $997.00 / 1 - 9 sets
$965.00 / 10 - 99 sets
$933.00 / >=100 sets - 1 set
- Dongguan Huiyue Automation Equipment Technology Co., Ltd.
- Guangdong, China
- Mr HongYue Li
PRODUCT DETAIL
| Applicable industries: | manufacturing plant | CNC system: | CNC |
| Cutting length (mm): | 2.8 - 15mm | Weight (kg): | 11 |
| Sales unit: | single product | place of origin; place of origin: | Guangdong, China |
| Health status: | new | Cutting Thickness (mm): | 0.4 - 3 mm |
| Showroom location: | not any | Feeding form: | manual |
| brand: | Kaguyuki | Foot length range: | 2.8-15 (mm) |
| Video external inspection: | if | Feed rate (m/min): | 35 - 40 m/min |
| Cutting width (mm): | 0.4 - 3 mm | Core Components Warranty: | 1 year |
| weight: | 11KG | Single package size: | 37X22X12.3 cm |
| Gross weight per piece: | 30.000 kg | Packaging Preview: | |
| Core components: | Bearings, pressure vessels, gears, pumps | Packaging Details: | Inspection-free wooden box packaging |
| Warranty: | 1 year | Marketing Type: | New Products 2020 |
| Main selling point: | High precision and fast efficiency | Equipment size: | L370*W220*H123mm |
| Alias: | Transformer PNI pin automatic shaping and straightening machine | Uncoiler loading: | 11 |
| Mechanical test report: | if | Wire diameter: | 0.4-3.0 (mm) |
| Dimensions (L*W*H): | 370L*220W*123H | Air pressure: | Below 0.6MPA |
2.8-15 (mm)
Product Description

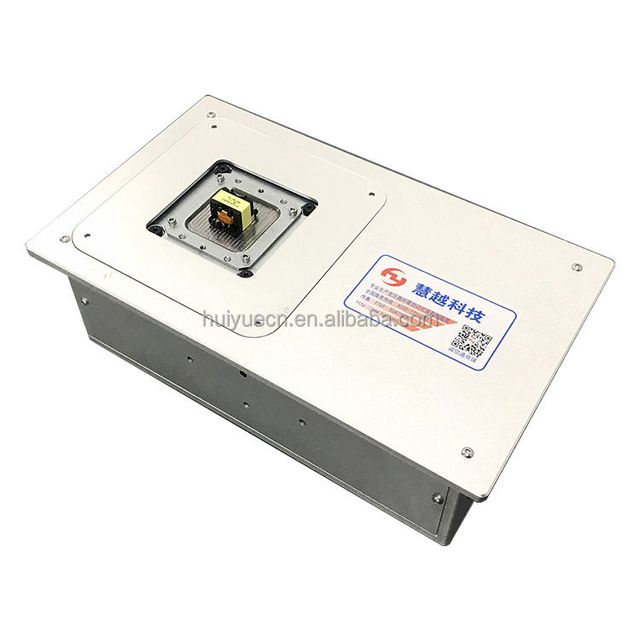

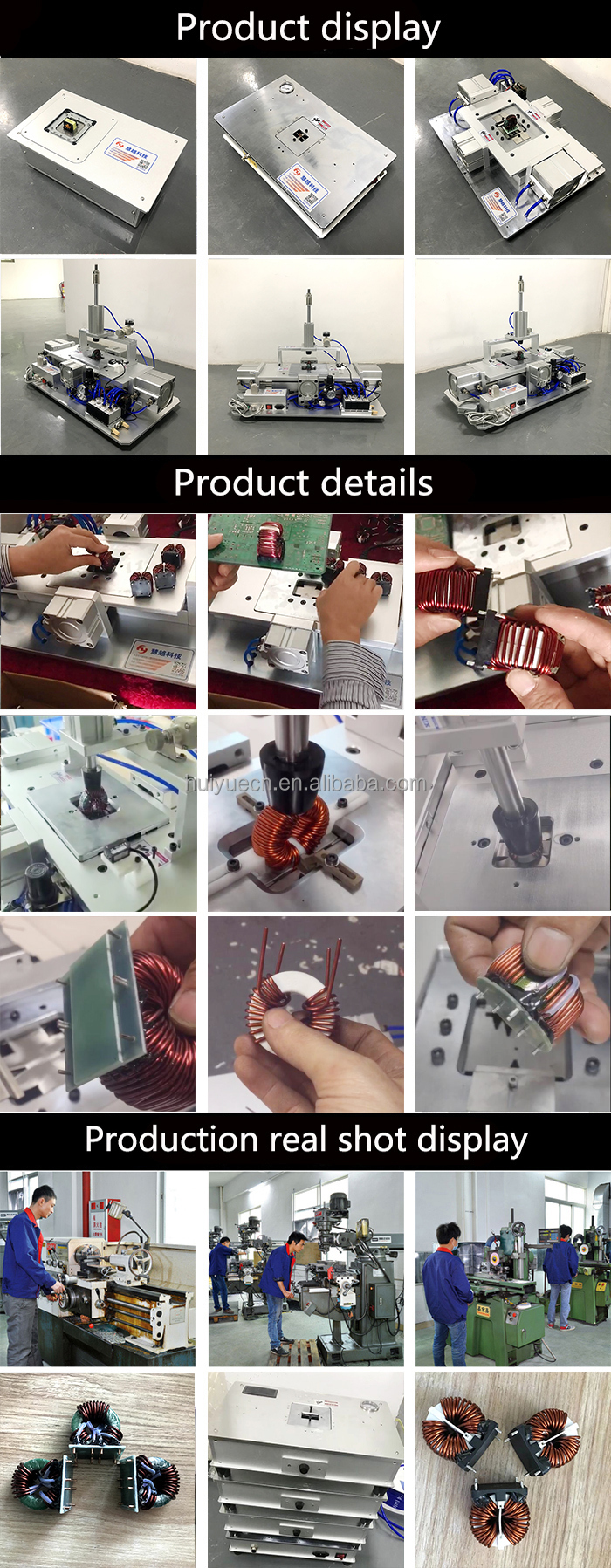

HY-J01 High frequency transformer PNI pin automatic shaping and straightening machine
The deviation correction machine is a self-developed deviation correction machine for transformers, magnetic ring inductors, filters, etc. After the stitch is corrected by this machine, it can be easily dropped without damaging the stitch and the skeleton. Insert the product directly into the round hole of the fixture, lightly press the foot with your hand, and step on the pneumatic foot pedal to start the machine. The whole process is completed in 2-3 seconds. It is convenient and quick to use, has high processing efficiency, and has a wide range of application performance.
main feature
The whole is small and compact. The surface of the whole machine is made of aluminum plate, and the surface is sandblasted and oxidized. The design is flat and ergonomic. The overall packaging of the appearance is made of aluminum alloy material, which makes the whole machine lighter and more beautiful in appearance.
The fixture is made of two kinds of steel, with a uniform appearance, and is equipped with a foolproof needle, which is convenient and accurate to replace.
Installation Notes
1. The 8MM connector of the filter is connected to the air inlet, and the other 6MM is connected to the air duct of the machine. Check the filter water and water daily. There is a water outlet at the lower end of the water cup, and the water is released by light pressure without affecting the quality of the cylinder.
Note: If the air pressure is adjusted below 0.6MPA, the rebound pin will try to reduce the air pressure as much as possible.
2.220V to 24V external power conversion, safe and reliable. The two electrical connectors of the foot switch and the power supply must be connected as marked. Four: Parameters
1. Equipment size: length 370*width 220*height 123, weight about 11KG
2. Single-station quick-correction pins, suitable for splicing spacing of 2.3-55, row spacing of 2.3-55, and product size between 5-60.
3. The main components are made of S45C steel, and the outer shell is made of 5052 aluminum plate with surface oxidation treatment.
4. The governance is made of A3, 304 stainless steel, brass and other materials, depending on the product. Five: function
1: Any high and low frequency transformers, inductance coils, magnetic rings, and digital display pins can be easily straightened, the fixture is easy to replace, the speed is fast, the width is wide, and the fine-tuning is convenient.
2: Main body equipment: now it is mainly manual, it is convenient to add automatic attack energy, and it can be connected to the automatic line.
Adjustment Instructions
The adjustment of the machine is mainly to loosen and tighten 8 adjustment screws, and adjust to the staggered position of the round holes of the upper and lower plates of the fixture during operation. Product, identify the inclination direction of the pin/when the whole is inclined diagonally, the 1#2# screw is slightly tight, and the 5#6# screw is slightly loose. The other direction is the same. Be careful not to be too tight and try not to get stuck.
maintain
After about a week of use, disassemble the No. 2 panel, use a spatula to clean up the rosin tin powder stuck inside, and brush it with a brush. Keep the machine as clean as possible during use to prolong the service life of the machine. Note: Individual products are dirty and need to be cleaned more.e
The deviation correction machine is a self-developed deviation correction machine for transformers, magnetic ring inductors, filters, etc. After the stitch is corrected by this machine, it can be easily dropped without damaging the stitch and the skeleton. Insert the product directly into the round hole of the fixture, lightly press the foot with your hand, and step on the pneumatic foot pedal to start the machine. The whole process is completed in 2-3 seconds. It is convenient and quick to use, has high processing efficiency, and has a wide range of application performance.
main feature
The whole is small and compact. The surface of the whole machine is made of aluminum plate, and the surface is sandblasted and oxidized. The design is flat and ergonomic. The overall packaging of the appearance is made of aluminum alloy material, which makes the whole machine lighter and more beautiful in appearance.
The fixture is made of two kinds of steel, with a uniform appearance, and is equipped with a foolproof needle, which is convenient and accurate to replace.
Installation Notes
1. The 8MM connector of the filter is connected to the air inlet, and the other 6MM is connected to the air duct of the machine. Check the filter water and water daily. There is a water outlet at the lower end of the water cup, and the water is released by light pressure without affecting the quality of the cylinder.
Note: If the air pressure is adjusted below 0.6MPA, the rebound pin will try to reduce the air pressure as much as possible.
2.220V to 24V external power conversion, safe and reliable. The two electrical connectors of the foot switch and the power supply must be connected as marked. Four: Parameters
1. Equipment size: length 370*width 220*height 123, weight about 11KG
2. Single-station quick-correction pins, suitable for splicing spacing of 2.3-55, row spacing of 2.3-55, and product size between 5-60.
3. The main components are made of S45C steel, and the outer shell is made of 5052 aluminum plate with surface oxidation treatment.
4. The governance is made of A3, 304 stainless steel, brass and other materials, depending on the product. Five: function
1: Any high and low frequency transformers, inductance coils, magnetic rings, and digital display pins can be easily straightened, the fixture is easy to replace, the speed is fast, the width is wide, and the fine-tuning is convenient.
2: Main body equipment: now it is mainly manual, it is convenient to add automatic attack energy, and it can be connected to the automatic line.
Adjustment Instructions
The adjustment of the machine is mainly to loosen and tighten 8 adjustment screws, and adjust to the staggered position of the round holes of the upper and lower plates of the fixture during operation. Product, identify the inclination direction of the pin/when the whole is inclined diagonally, the 1#2# screw is slightly tight, and the 5#6# screw is slightly loose. The other direction is the same. Be careful not to be too tight and try not to get stuck.
maintain
After about a week of use, disassemble the No. 2 panel, use a spatula to clean up the rosin tin powder stuck inside, and brush it with a brush. Keep the machine as clean as possible during use to prolong the service life of the machine. Note: Individual products are dirty and need to be cleaned more.e
|
Model: HY-J01 |
|
Working voltage: 220V to 24V external power conversion |
|
Pressure requirements: below 0.6MPA |
|
Wire diameter: 0.4-3.0 (mm) |
|
Foot length range: 2.8-15 (mm) |
|
Feeding form: manual |
| Machine size: 370L*220W*123Hmm. |
|
Weight 11KG |
our service
24 hours online technical support and 12 months 100% quality warranty, excluding consumables.
