Special longitudinal seam welding machine
- $7000.00 /set
- 1 set
- Wuxi Volcano Welding & Cutting Equipment Co., Ltd.
- Jiangsu, China
- Ms Lisa Zhu
| usage: | seam welder | Delivery Details: | 3~30 days after receiving the order |
| Suitable workpiece length: | 500mm-3000mm | aspect: | optional |
| After-sales service provided: | Engineers can repair machinery overseas | Health status: | new |
| weight: | optional | brand: | volcano |
| strength: | standard | Molding time: | 150-1500mm/min |
| payment terms: | L/C,T/T,Western Union | place of origin; place of origin: | Jiangsu, China |
| Supply capacity: | 50 sets per month | model: | EN |
| Certification: | EU standard | Welding Diameter: | 100-3000mm |
| Applicable wall thickness: | 0.3mm- 4mm | Applicable workpiece diameter: | 100mm-1000mm |
| Packaging Details: | Wooden pallets and electric control cabinets are made of plywood. | Warranty: | 1 year |
| control method: | PLC+touch screen | port: | Shanghai Port |
| Voltage: | standard | Material: | carbon steel, stainless steel |
| Welding method: | seam welding |

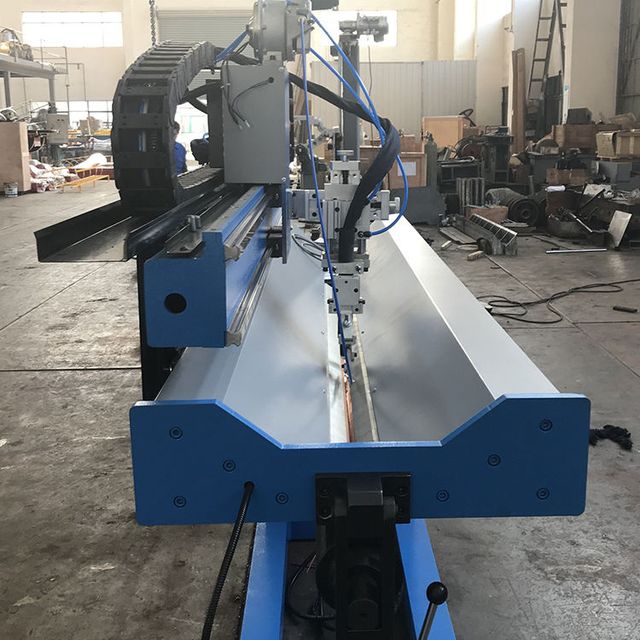

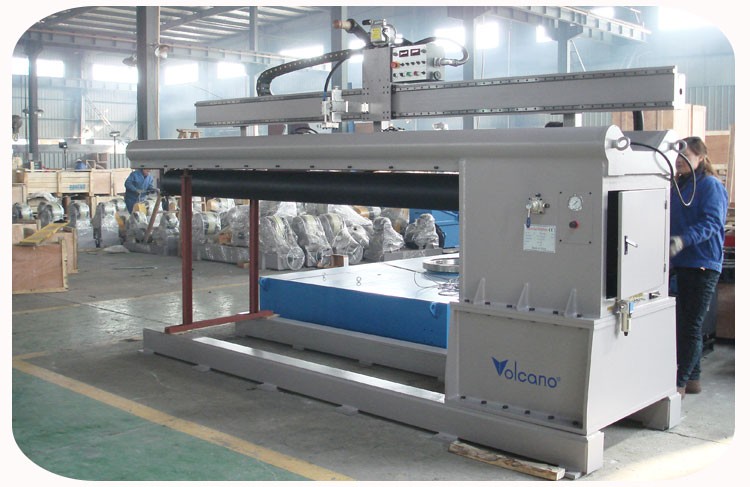

Longitudinal seam welder
The automatic longitudinal seam welding machine series is mainly used for welding the longitudinal seam of thin plates.

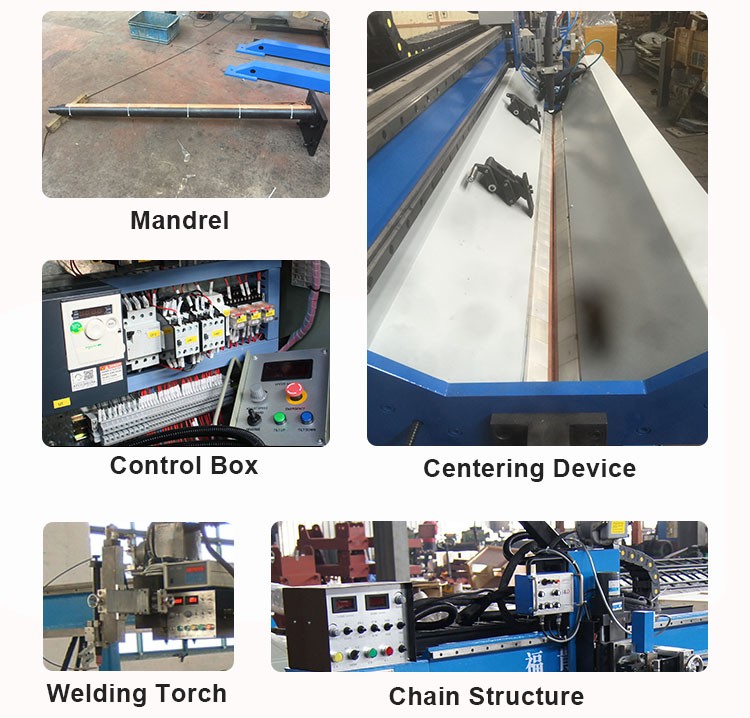

Adopt cantilever type, mainly composed of frame, finger clamping device, water-cooled mandrel,
Moving trolleys, cross slides, wire feeders and torch holders. Finger clamping unit with special push force
Starting from the air bag, the air bag pressure is adjusted between 0-7kg/cm2, the distance between the two rows of fingers
Between 5 and 20mm, to meet various weld widths; water-cooled mandrels are designed according to the work
Diameter and length of pieces to ensure strength. Fluted water-cooled blade inserted on top of mandrel
For radiator cooling. Its mandrel is height adjustable to handle a variety of material thicknesses. beam fitted
A traveling trolley that moves linearly by rails and drive units, with variable speed.
The main parameters
| Model | ZH-500 | ZH-1000 | ZH-1500 | ZH-2000 | ZH-2500 | ZH-3000 | ZH-3500 |
| Welding length | <=500 | <=1000 | <=1500 | <=2000 | <=2500 | <=3000 | <=3500 |
| Minimum cylinder diameter (mm) | >=110 | >=150 | >=180 | >=230 | >=280 | >=340 | >=400 |
| Welding thickness (mm/min.) | 0.2-6 | 0.4-6 | 1-6 | ||||
| Welding speed(mm) | 150-1500 | ||||||
| speed control | Inverter | ||||||
| Workpiece fixing method | pneumatic | ||||||
| Step accuracy (mm) | ±0.1 | ±0.15 | ±0.2 | ||||

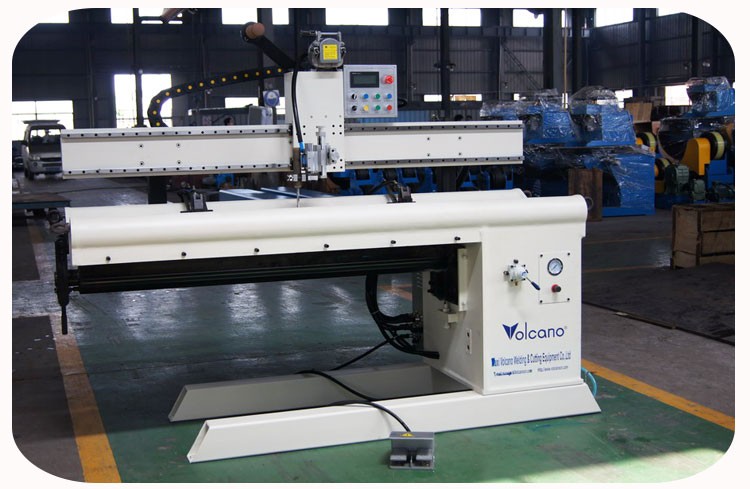

ZH-2500 Special Longitudinal Seam Welding Machine

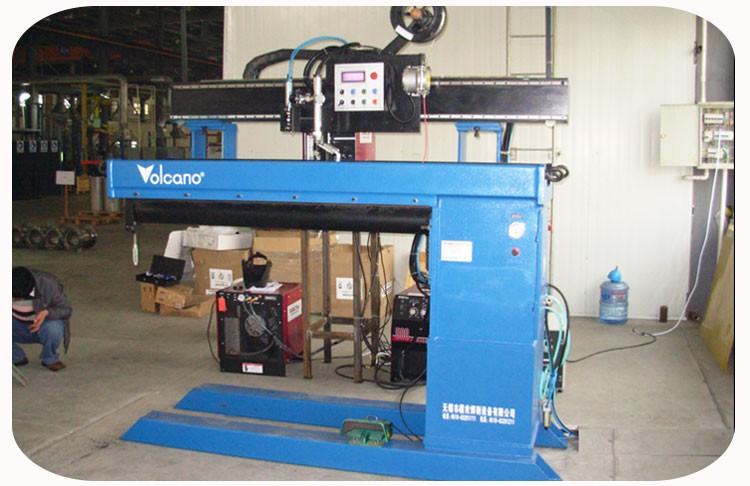

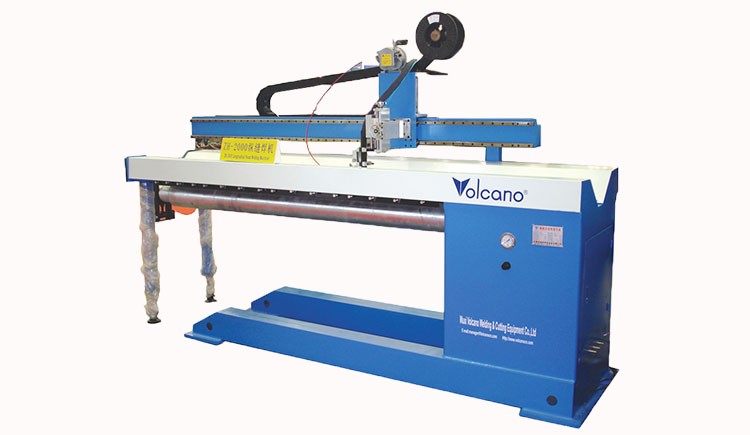

ZH-2000 Longitudinal Seam Welder

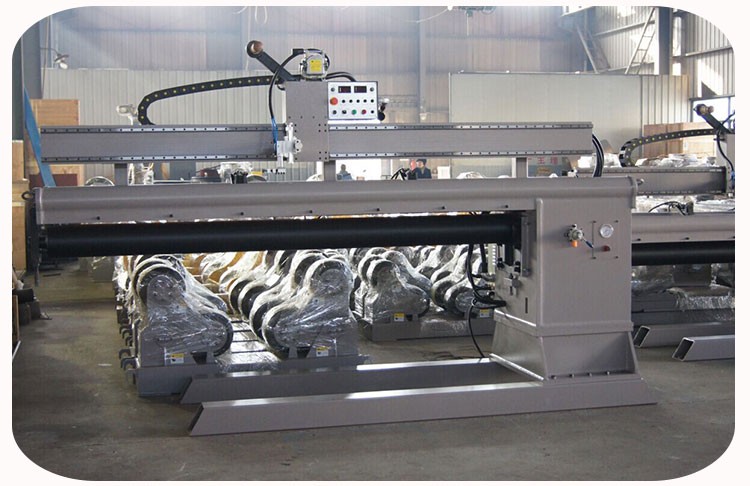

ZH-3000 longitudinal seam welding machine
